GETTING STARTED GUIDE

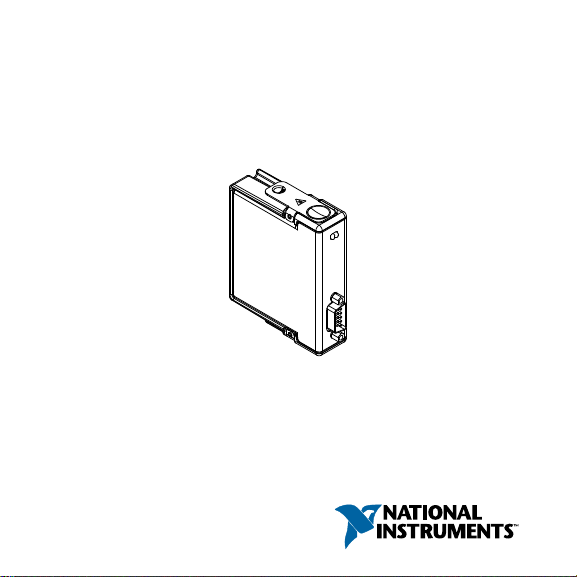

NI 9881
1-Port CANopen Module
This document explains how to connect to the NI 9881.
The NI 9881 module requires the latest NI-CANopen software to
be installed. The latest version of the NI-CANopen software is at
ni.com/downloads.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Note Before you begin, complete the software and
hardware installation procedures in your chassis
documentation.
Note The guidelines in this document are specific to
the NI 9881. The other components in the system might
not meet the same safety ratings. Refer to the
documentation for each component in the system to
determine the safety and EMC ratings for the entire
system.
Safety Guidelines
Operate the NI 9881 only as described in this document.
Caution Do not operate the NI 9881 in a manner not
specified in this document. Product misuse can result in
a hazard. You can compromise the safety protection
built into the product if the product is damaged in any
way. If the product is damaged, return it to NI for
repair.
2| ni.com | NI 9881 Getting Started Guide
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Safety Guidelines for Hazardous Locations
The NI 9881 is suitable for use in Class I, Division 2, Groups A,
B, C, D, T4 hazardous locations; Class I, Zone 2, AEx nA IIC T4
and Ex nA IIC T4 hazardous locations; and nonhazardous
locations only. Follow these guidelines if you are installing the
NI 9881 in a potentially explosive environment. Not following
these guidelines may result in serious injury or death.
Caution Do not disconnect I/O-side wires or
connectors unless power has been switched off or the
area is known to be nonhazardous.
Caution Do not remove modules unless power has
been switched off or the area is known to be
nonhazardous.
Caution Substitution of components may impair
suitability for Class I, Division 2.
Caution For Division 2 and Zone 2 applications,
install the system in an enclosure rated to at least IP54
as defined by IEC/EN 60079-15.
NI 9881 Getting Started Guide | © National Instruments | 3
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Caution For Division 2 and Zone 2 applications,
install a protection device between the external power
supply and the Vsup pin. The device must prevent the
Vsup-to-COM voltage from exceeding 50 V if there is
a transient overvoltage condition.
Caution For Zone 2 applications, install a protection
device between the CAN signals and the NI 9881 CAN
pins. The device must prevent the CAN Port-to-COM
voltage from exceeding 55 V if there is a transient
overvoltage condition.
Special Conditions for Hazardous Locations Use in
Europe and Internationally
The NI 9881 has been evaluated as Ex nA IIC T4 Gc equipment
under DEMKO Certificate No. 07 ATEX 0626664X and is
IECEx UL 14.0089X certified. Each NI 9881 is marked II 3G
and is suitable for use in Zone 2 hazardous locations, in ambient
temperatures of -40 °C ≤ Ta ≤ 70 °C. If you are using the NI 9881
in Gas Group IIC hazardous locations, you must use the device in
an NI chassis that has been evaluated as Ex nC IIC T4, Ex IIC
T4, Ex nA IIC T4, or Ex nL IIC T4 equipment.
4| ni.com | NI 9881 Getting Started Guide
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Caution You must make sure that transient
disturbances do not exceed 140% of the rated voltage.
Caution The system shall only be used in an area of
not more than Pollution Degree 2, as defined in
IEC 60664-1.
Caution The system shall be mounted in an
ATEX/IECEx-certified enclosure with a minimum
ingress protection rating of at least IP54 as defined in
IEC/EN 60079-15.
Caution The enclosure must have a door or cover
accessible only by the use of a tool.
Wiring the NI 9881
The NI 9881 has one 9-pin male D-Sub connector that provides
connections to a CAN bus. The NI 9881 has pins for CAN_H and
CAN_L, to which you connect the CAN bus signals. Connect
these signals using twisted-pair cable.
The port has two common pins (COM) that are internally
connected to the module’s isolated reference and serve as the
NI 9881 Getting Started Guide | © National Instruments | 5
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
reference ground for CAN_H and CAN_L. You can connect the
CAN bus reference ground (sometimes referred to as CAN_V-) to
one or both COM pins. The port also has an optional shield pin,
SHLD, that you can connect to a shielded CAN cable.
Connecting SHLD may improve signal integrity and EMC
performance in a noisy environment.
Caution You must use a UL listed ITE power supply
marked LPS with the NI 9881.
The NI 9881 requires an external power supply of +9 to +30 V to
operate. Supply power to the NI 9881 VSUP pin.
Note Power on VSUP is required for CANopen
operation.
The NI 9881 pinout is listed in Table 1.
The NI 9881 features software-selectable bus termination for
High-Speed CAN transceivers. On the NI 9881, you can enable
120 Ω termination resistors between CAN_H and CAN_L
through an API call. Table 3 lists recommended termination
resistor values.
6| ni.com | NI 9881 Getting Started Guide
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Table 1. Pin Assignments for the NI 9881
Connector Pin Signal
6
7
8
9
1
2
3
4
5
1 No Connection (NC)
2 CAN_L
3 COM
4 NC
5 SHLD
6 COM
7 CAN_H
8 NC
9 VSUP
CAN Bus Topology and Termination
A CAN bus consists of two or more CAN nodes cabled together.
The CAN_H and CAN_L pins of each node are connected to the
NI 9881 Getting Started Guide | © National Instruments | 7
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
main CAN bus cable through a short connection known as a
“stub.” The pair of signal wires, CAN_H and CAN_L, constitutes
a transmission line. If the transmission line is not terminated,
each signal change on the bus causes reflections that may cause
communication errors. Because the CAN bus is bidirectional,
both ends of the cable must be terminated. However, this
requirement does not mean that every node on the bus should
have a termination resistor; only the two nodes at the far end of
the cable should have termination resistors.
Figure 1 shows a simplified diagram of a CAN bus with multiple
CAN nodes and proper termination resistor (Rt) locations.
8| ni.com | NI 9881 Getting Started Guide
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Figure 1. CAN Bus Topology and Termination Resistor Locations
CAN
Node
CAN
Node
CAN
Node
RtRt
CAN
Node
CAN_H
CAN_L
CAN_H
CAN_L
CAN_H
CAN_L
CAN_H
CAN_L
Bus Cable Length
Stub
Length
Connecting a CAN Bus to the NI 9881
You can connect the NI 9881 port to any location on a CAN bus.
Figure 2 shows one example of connecting the NI 9881 directly
to one CAN node.
NI 9881 Getting Started Guide | © National Instruments | 9
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
