Multitech MultiModem ZBA MT9234ZBA Manuel utilisateur

MultiModem®ZBA

MT9234ZBA-USB

Quick Start Guide

MultiModem ZBA-USB Quick Start Guide

2 Multi-Tech Systems, Inc.

MultiModem ZBA-USB Quick Start Guide

MT9234ZBA-USB

82100211L Rev. B

This publication may not be reproduced, in whole or in part, without prior

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the

contents hereof and specifically disclaims any implied warranty of merchantability

or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc.

reserves the right to revise this publication and to make changes from time to time

in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any

person or organization of such revisions or changes. Check Multi-Tech’s Web site

for current versions of our product documentation.

Revision Date Description

A 10/04/07 Initial release.

B 04/14/08 Add Vista Operating System support

Trademarks

Multi-Tech, MultiModem, and the Multi-Tech logo are registered trademarks of

Multi-Tech Systems, Inc. Microsoft, Windows 2000, 2003, and XP are registered

trademarks or trademarks of Microsoft Corporation in the United States and/or

other countries.

Technical Support

Country By Email By Phone

Europe, Middle East, Africa: support@multitech.co.uk +(44) 118 959 7774

U.S., Canada. all others: support@multitech.com (800) 972-2439 or

+763-717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112 U.S.A.

(763) 785-3500 or (800) 328-9717

Fax (763) 785-9874

http://www.multitech.com

MultiModem ZBA-USB Quick Start Guide

Multi-Tech Systems, Inc. 3

Introduction

This guide shows you how to set up your MultiModem ZBA-USB. For

detailed information, product specifications, troubleshooting tips, and

more, see the User Guide, available on your MultiModem CD.

Check Multi-Tech’s Web site for current versions of our product

documentation.

Safety Warnings

•Use this product only with UL- and CUL-listed computers.

•To reduce the risk of fire, use only UL-listed 26 AWG (.41mm) or

larger telephone wiring.

•Never install telephone wiring during a lightning storm.

•Never install a telephone jack in a wet location unless the jack is

specifically designed for wet locations.

•Never touch uninsulated telephone wires or terminals unless the

telephone line has been disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

•Avoid using a telephone during an electrical storm; there is a risk of

electrical shock from lightning.

•Do not use a telephone in the vicinity of a gas leak.

•The telephone cord is to be disconnected before accessing the

inside of the equipment.

Package Contents

•One MultiModem ZBA-USB

•One set of four self-adhesive plastic feet

•One USB cable

•One RJ11 telephone cable

•One printed Quick Start Guide

•One product CD

MultiModem ZBA-USB Quick Start Guide

4 Multi-Tech Systems, Inc.

Modem Installation

Connect the Modem to Your System

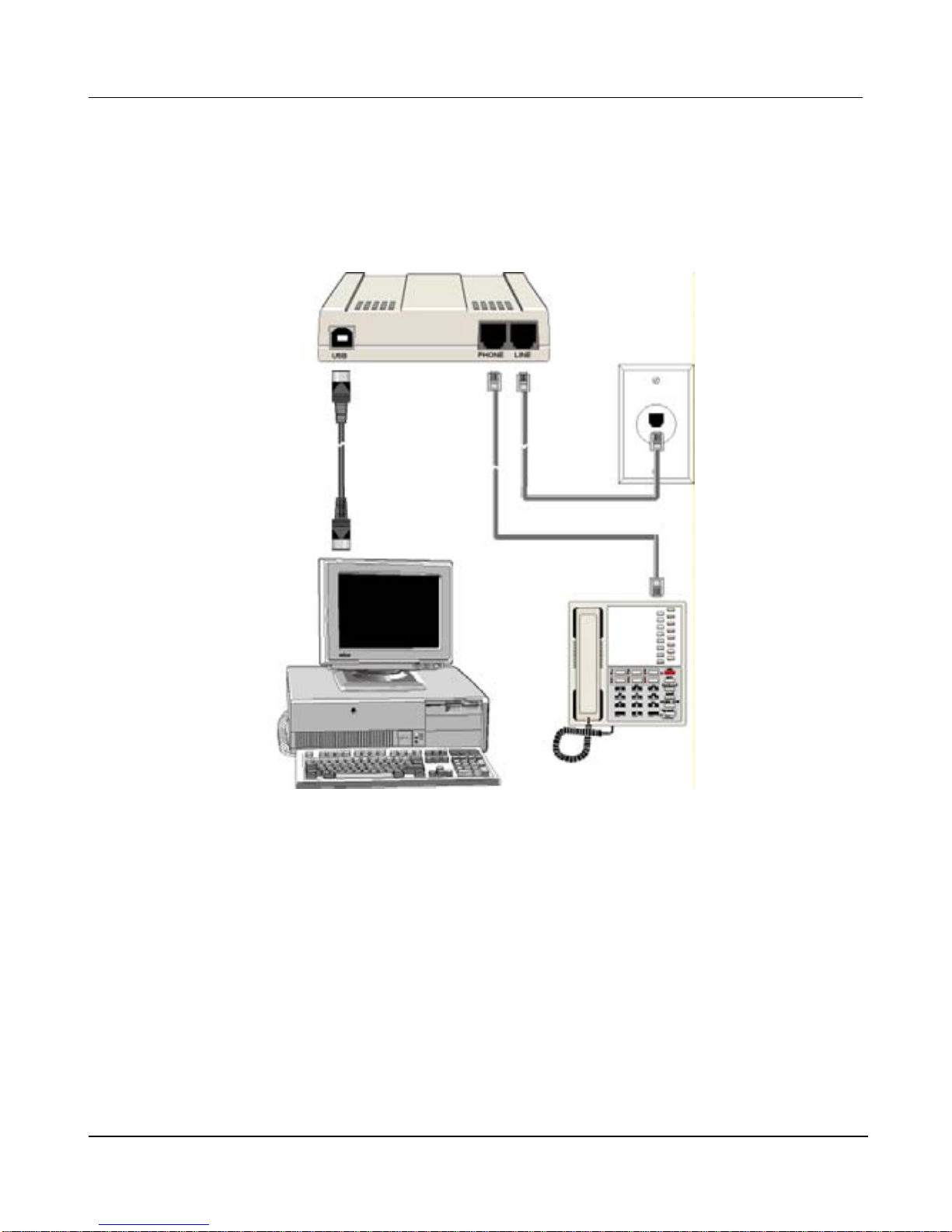

Place the modem in a convenient location, and then connect it to your

computer’s USB port, the phone line, and, optionally, to your phone.

Connect the Modem to Your PC

Plug one end of the USB cable into the USB connector on the modem,

and plug the other end into a USB port connector on your computer.

Connect the Modem to the Telephone Line

Plug one end of the provided telephone cable into the modem’s LINE

jack, and the other end into a telephone wall jack. This is the only

required connection.

Important: The LINE jack is not interchangeable with the PHONE

jack. Do not plug the phone into the LINE jack or the line cable into

the PHONE jack.

MultiModem ZBA-USB Quick Start Guide

Multi-Tech Systems, Inc. 5

Note: The Federal Communications Commission (FCC) and

Industry Canada impose certain restrictions on equipment

connected to public telephone systems.

Connect the Modem to the Phone (Optional)

If you want to connect a phone to the same line as the modem, plug

the phone cable into the modem PHONE jack.

Installing the Modem Driver

Compatibility: This MultiModem ZBA is compatible with Windows

Operating Systems Vista, XP, 2003, 2000, and Linux.

Windows: Place the MultiModem CD into the PC’s CD-ROM drive. The

Add New Hardware Wizard will display. For detailed driver installation

directions, see the User Guide.

Linux: Under the Linux directory on the MultiModem CD, you will find

the Linux driver and a Readme file. Refer to the Readme file for the

correct driver file and installation guide for your distribution/version of

Linux

Note: If your model did not include a CD, you can download the drivers

from the Multi-Tech Web site.

Configure the Modem for Your Country

Different countries have different requirements for how modems must

function. Therefore, before you use your modem, you must configure it

to match the defaults of the country in which you are using it. You can

use one of two configuration methods:

•Using the Global Wizard to Configure Your Modem

•Using AT Commands to Configure Your Modem

MultiModem ZBA-USB Quick Start Guide

6 Multi-Tech Systems, Inc.

Using Global Wizard to Configure Your Modem

The Global Wizard configuration utility is recommended for computers

running Windows Vista/XP/2003/2000.

1. Insert the MultiModem CD into the CD-ROM drive. The Autorun

dialog box appears.

2. Click Initial Setup and Country Selection.

3. Choose either:

•Run Global Wizard from CD. This will not load the wizard

onto your hard drive, or

•Install Global Wizard on the HD. This will install the wizard

onto your hard drive for future use.

4. The Global Wizard dialog box appears. Click Next.

5. The Wizard searches for your modem and identifies it. Click Next.

6. Select the country in which the modem will be used. Click Next.

7. Review your choice of country. If it is correct, click Next to

configure the modem.

8. When Global Wizard announces that the parameters have been

set, click Finish to exit.

MultiModem ZBA-USB Quick Start Guide

Multi-Tech Systems, Inc. 7

Using AT Commands to Configure Your Modem

Non-Windows users can configure the modem using AT commands.

You must enter these commands in your communication program’s

terminal window.

1. Run your favorite communication program and open the

program’s terminal window.

2. To configure the modem for a specific country:

Type AT%T19,0,nn (where nn is the country code in hexadecimal

format

Press ENTER.

The message OK displays.

3. To verify the change:

Type ATI9.

Press ENTER.

The country code is displayed in decimal format, as in this

example:

Country AT command

(hexadecimal) Country code

(decimal)

Euro/NAM AT%T19,0,34 (default) 52

The complete list of country codes can be found on the Multi-Tech

Web site at http://www.multitech.com/GlobalModem/config.

82100211L
