Thank you for using the MultiModem ZBA-USB modem. Your MultiModem product data/fax modem supports

remote configuration and dial-up connections. It offers V.34/33.6K fax and Error Correction Mode that reduces fax

transmission time by more than half when compared to traditional fax modems. In addition, these modems are

globally approved for use in many countries around the world.

Package Contents

The MultiModem USB package contains:

●A MultiModem data/fax modem

●A set of four self-adhesive plastic feet

●One USB cable

●One modular telephone cable

Other Documentation

The AT Commands for the MultiModem are described in a separate reference guide. You can find this guide on

the Multi-Tech website.

Technical Specifications

Your MultiModem ZBA-USB-CDC modem has the following specifications.

Trade Name

MultiModem® ZBA

Model Number

MT9234ZBA-USB-CDC-XR

Server-to-Client Data Rates

V.90 speeds when accessing a V.90 or V.92 server (actual speed depends on server

capabilities and line conditions)

Client-to-Server Data Rates

Up to 50Kbps when accessing a V.92 server (actual speed depends on server capabilities

and line conditions); otherwise, the same as client-to client data lines.

Client-to-Client Data Rates

33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200,

4800, 2400, 1200, 0-300 bps

Fax Data Rates

33600, 31200, 28800, 26400, 24000, 21600, 19200, 16800, 14400, 12000, 9600, 7200,

4800, 2400, 1200, 0-300 bps

Modem Compatibility

ITU-T V.92, V.90, V.34 enhanced, V.34, V.34bis, V.32, V.32bis, V.22; Bell 212A and 103;

ITU-T V.21, V.42, V.42bis, V.44

Fax Compatibility

ITU-T “Super” Group 3, Class 1.0, 2.0, 2.1, T.4, T.30, V.21, V.27ter, V.29, V.34, V.17; TIA/EIA

578 Class 1, 2, TR29.2

Error Correction

ITU-T V.42

Data Compression

ITU-T V.44 (4:1 throughput), V.42bis (4:1 throughput), MNP 5 (2:1 throughput)

Flow Control

XON/XOFF (software), RTS/CTS (hardware)

Intelligent Features

Plug and play; fully AT command compatible; autodial, redial, repeat dial; pulse or tone

dial; dial pauses; auto answer; caller ID; EIA extended automode; adaptive line probing;

automatic symbol and carrier frequency during start-up, retrain, and rate renegotiation;

DTMF detection; call status display, auto-parity and data rate selections; keyboard-

controlled modem options; non-volatile memory; on-screen displays for modem option

parameters; command lines of up to 40 characters each; remote configuration.

Command Buffer

40 characters

Transmit Level

-12 dBm (Euro/NAM) –varies by country/region setting

Chapter 1 –Product Overview

MT9234ZBA-USB-CDC-XR User Guide 6

Frequency Stability

±0.01%

Receiver Sensitivity

-43 dBm under worst-case conditions

AGC Dynamic Range

43 dB

Connectors

USB connector; two RJ-11 phone jacks

Cables

One RJ11 phone cable

One USB cable

Note: To reduce interference, shield cables connected to the computer.

Diagnostics

Power-on self test, local analog loop, local digital loop, remote digital loop.

Environmental

Temperature range 0°–50° C (32°–120° F); humidity range 20–90% (non-condensing)

Dimensions

10.9 cm wide x 14.5 cm long x 2.5 cm high (4.3”x 5.7”x 1.10”)

Weight

227 g (8 oz)

Power

Typical Maximum

Measured Volts 4.96 4.94

Current (AMPS) 0.136 0.176

Watts 0.675 0.869

Limited Warranty

2 year

7 MT9234ZBA-USB-CDC-XR User Guide

Analog Telecom Safety Warning

Before servicing, disconnect this product from its power source and telephone network. Also:

Never install telephone wiring during a lightning storm.

Never install a telephone jack in wet locations unless the jack is specifically designed for wet locations.

Use this product with UL and cUL listed computers only.

Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at

the network interface.

Use caution when installing or modifying telephone lines.

Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from

lightning.

Do not use a telephone in the vicinity of a gas leak.

CAUTION: To reduce the risk of fire, use only 26 AWG or larger UL Listed or CSA Certified telecommunication

line cord.

Avertissements de sécurité télécom analogique

Avant de l'entretien, débrancher ce produit de son réseau d'alimentation et de téléphone. également:

Ne jamais installer du câblage téléphonique pendant un orage électrique.

Ne jamais installer de prises téléphoniques à des endroits mouillés à moins que la prise ne soit conçue

pour de tels emplacements.

Utilisez ce produit avec UL et cUL ordinateurs répertoriés seulement.

Ne jamais toucher fils ou des bornes téléphoniques non isolés à moins que la ligne téléphonique n'ait été

déconnectée au niveau de l'interface réseau.

Faire preuve de prudence au moment d'installer ou de modifier des lignes téléphoniques.

Éviter d'utiliser le téléphone pendant un orage électrique. Il peut y avoir un risque de choc électrique

causé par la foudre.

N'utilisez pas un téléphone à proximité d'une fuite de gaz.

ATTENTION: Pour réduire les risques d’incendie, utiliser uniquement des conducteurs de télécommunications 26 AWG au

de section supérleure.

Chapter 2 –Installing the Modem

MT9234ZBA-USB-CDC-XR User Guide 8

Connecting the Modem to Your PC

Placing the modem in a convenient location, connect it to your computer’s USB port, to the telephone line, and,

optionally, to your telephone.

Connecting the USB

Plug one end of the USB cable into the USB connector on the modem, and the other end into a USB port

connector on your computer.

Connecting the Line

Plug one end of the phone cable into the modem’s LINE jack and the other end into a phone line wall jack.

Note: The LINE jack is not interchangeable with the PHONE jack. Do not plug the phone into the LINE jack or the

line cable into the PHONE jack.

Note: The Federal Communications Commission (FCC), and Industry Canada impose certain restrictions on

equipment connected to public telephone systems. See Appendix A for more information. .

Connecting a Phone

For voice-only calls, you can optionally plug a telephone into the modem’s PHONE jack.

Installing the Modem Driver

After you install the driver, test the operation of your new MT9234ZBA-USB by registering it. Open an Internet browser, then

go to the URL that follows. Instructions at the website explain how to register the modem.

http://www.multitech.com/en_US/TOOLS/Forms/register/warranty.asp

Manually Installing the MT9234ZBA-USB-CDC in Windows 7

1. Connect the MT9234ZBA-USB-CDC to an available USB port.

Windows 7 reports that the driver software was not successfully installed. You must manually point Windows 7 to the

drivers needed.

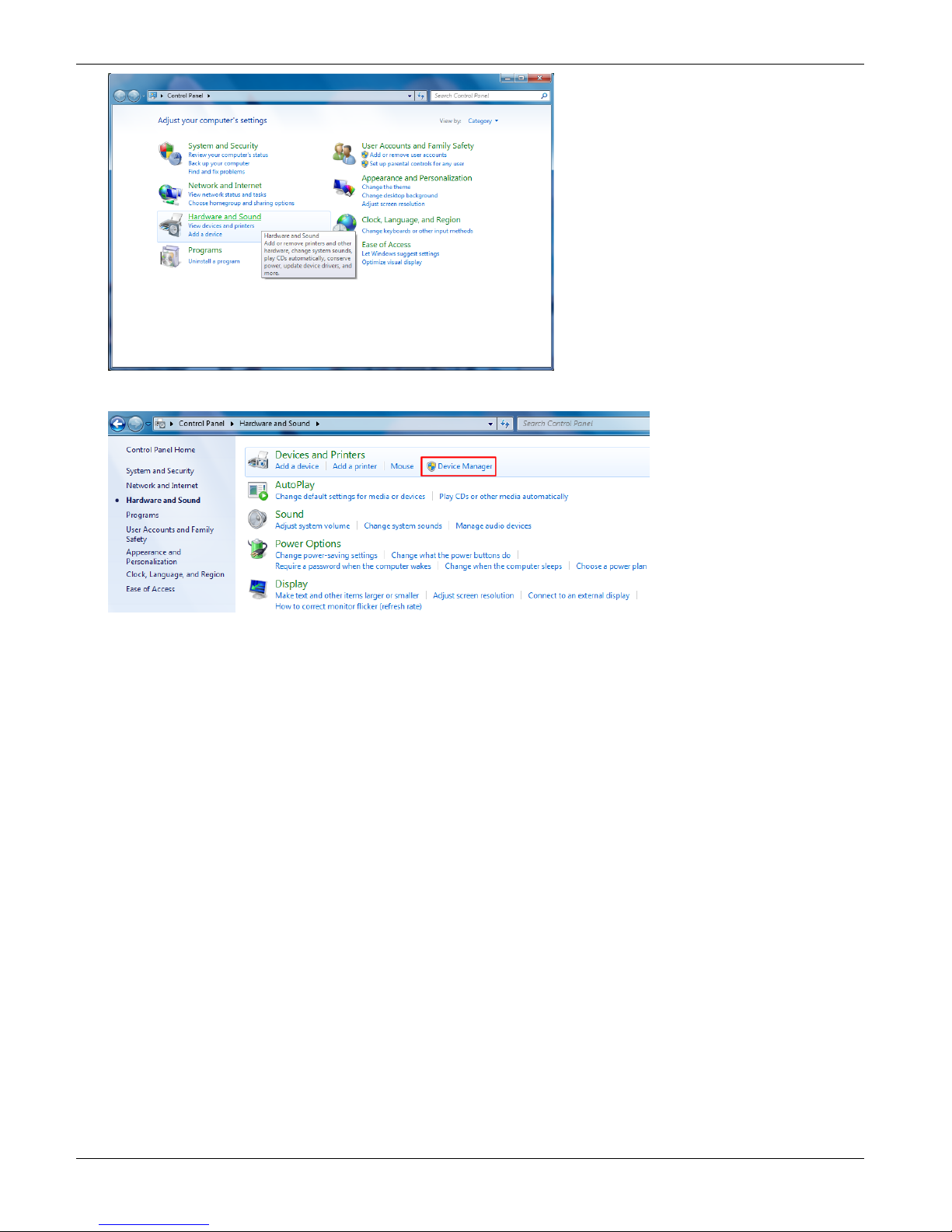

2. From Windows Start button, select Control Panel.

3. Click Hardware and Sound.

Chapter 2 –Installing the Modem

9MT9234ZBA-USB-CDC-XR User Guide

4. In the Devices and Printers group click Device Manager.

Chapter 2 –Installing the Modem

MT9234ZBA-USB-CDC-XR User Guide 10

5. In the list of devices, from the Other devices item, right click on Unknown device and select Update Driver Software.

6. Click Browse my computer for driver software.

7. Click Browse and navigate to the folder where you stored the driver that you downloaded from the MultiTech website.

Click OK.

Table des matières

Autres manuels Multitech Modem

Multitech

Multitech MTCBA-C-U-N1 Manuel utilisateur

Multitech

Multitech MT5656ZDX Series Manuel utilisateur

Multitech

Multitech QuickCarrier USB-D EV-DO Manuel utilisateur

Multitech

Multitech SocketModem Guide d'application

Multitech

Multitech MTE-LAT6-B07 Manuel utilisateur

Multitech

Multitech MultiModem Cell MTCBA-E1 Manuel utilisateur

Multitech

Multitech MultiModem Manuel utilisateur

Multitech

Multitech MTCBA-E Manuel utilisateur

Multitech

Multitech MultiModem GPRS with Ethernet Interface Manuel utilisateur

Multitech

Multitech MMCModem GPRS (MTMMC-G) Manuel utilisateur

Multitech

Multitech MultiModemUSB MT5634ZBA-USB Manuel utilisateur

Multitech

Multitech MTCBA-C Manuel utilisateur

Multitech

Multitech QuickCarrier USB-D MTD-H5 Manuel utilisateur

Multitech

Multitech MTC-EV3 Manuel utilisateur

Multitech

Multitech MT5600BA Manuel utilisateur

Multitech

Multitech MultiModem ISDN MT128ISA-UV Manuel utilisateur

Multitech

Multitech MultiModem ZBA USB MT5634ZBA-USB Manuel utilisateur

Multitech

Multitech RJModem MT5656RJ Mode d’emploi

Multitech

Multitech MT5634ZPX-PCI Manuel utilisateur

Multitech

Multitech MultiModem DSVD MT5600DSVD Manuel utilisateur

Multitech

Multitech MultiConnect microCell MTCM2 Manuel utilisateur

Multitech

Multitech MultiModem MT5600ZDX Manuel utilisateur

Multitech

Multitech MultiModem MT9234ZPX-UPCI Manuel utilisateur

Multitech

Multitech MultiModem MT9234ZPX-PCIE Manuel utilisateur

Manuels Modem populaires d'autres marques

Davicom

Davicom DM562AP Manuel utilisateur

EpiValley

EpiValley TATA indicom SXC-1080 Manuel utilisateur

Zte

Zte WiMAX Manuel utilisateur

Intelimax

Intelimax MA-2060 Manuel utilisateur

SMC Networks

SMC Networks D3CM1604V Manuel d'utilisation et d'entretien

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuel utilisateur

Samsung

Samsung AceLink SAM-335A Manuel utilisateur

Enfora

Enfora Enabler-G Guide de configuration rapide

iRZ

iRZ ATM2-232 Manuel utilisateur

Zhone

Zhone 6310 Manuel utilisateur

Paradyne

Paradyne Hotwire 7976 Manuel utilisateur

US Robotics

US Robotics 3453C Manuel utilisateur

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur

Zte

Zte MF823 Manuel utilisateur

Four-Faith

Four-Faith F1403 Manuel utilisateur

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuel utilisateur

Gemtek

Gemtek WiMAX WIXFBR-103 Manuel utilisateur
