Moxa Technologies MAR-2000 Manuel utilisateur

– 1 – – 2 – – 3 –

P/N: 1802020002010

*1802020002010*

MAR-2000

Quick Installation Guide

First Edition, June 2015

Overview

The MAR-2000 is a multi-WAN router with 802.11n, GPS, and 3G

GSM/HSPA+ interfaces. It features 2 RS-232/422/485 serial ports,

2 Ethernet ports, 4 digital input channels, 4 digital output channels,

a CompactFlash socket, and 2 USB 2.0 ports. The MAR-2000 is

particularly well-suited for rolling stock or other vehicle

applications, giving a solid, convenient foundation for configuring

an intelligent, cost-effective, multiple-WAN mobile

communications environment.

Package Checklist

•1 MAR-2000 embedded computer

•Wall-mounting kit

•DIN rail mounting kit

•CBL-4PINDB9F-100: 4-pin pin header to DB9 female console

port cable, 100 cm

•Quick installation guide (this guide)

•Documentation and software CD

•Warranty card

Note: Please notify your sales representative if any of the

above items are missing or damaged.

Panel Layout

Refer to the following figures for the panel layouts.

Front View

Rear View

LED Indicators

The following table describes the LED indicators located on the

front and rear panels of the MAR-2000.

LED Name

LED Color

LED Function

Power

Green

Power is on and functioning normally

Off

Power is off, or power error

Storage

Yellow

CF card is detected

Off

CF card is not detected

Ready

Green

The system is ready

Off

The system is not ready

(programmable)

Green

Programmable: no default definition

Off

Programmable: no default definition

LAN1, LAN2

Green

100 Mbps Ethernet mode

Yellow

10 Mbps Ethernet mode

Off

No activity

P1 Tx, P2 Tx

(on the right of

the DB9 port)

Green Serial port transmitting data

Off Serial port not transmitting data

P1 Rx, P2 Rx

(on the right of

the DB9 port)

Yellow Serial port receiving data

Off Serial port not receiving data

Installing the Mounting Kits

Wall and cabinet mounts

The two metal brackets included with the MAR-2000 can be used to

attach it to a wall or the inside of a cabinet. Using two screws per

bracket, first attach the brackets to the bottom of the MAR-2000.

Next, use two screws (M3 type, torque 4.5±0.5 kgf-cm) per

bracket to attach the MAR-2000 to a wall or cabinet.

DIN rail assemblies

An aluminum DIN rail mounting assembly is included in the

package. When attaching the rail assembly to the MAR-2000,

orient the stiff metal spring towards the top.

STEP 1:

Insert the

top of the DIN rail

into the slot just

below the stiff metal

spring.

STEP 2:

The

mounting

assembly should

then snap into

place, as shown.

To remove the MAR-2000 from the DIN rail, reverse steps 1 and 2

above.

Connector Description

Power Connector

Connect the 24 VDC power line to the MAR-2000’s power input

with the M12 connector. When the MAR-2000 system is ready, the

READY LED will display a steady green color.

Grounding the MAR-2000

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection

from the ground screw to the grounding surface prior to connecting

the power.

ATTENTION

This product is intended to be mounted to a well

grounded

mounting surface, such as a metal panel.

There are two ground

connectors on the front

panel of the

MAR-2000.

One is located at the

middle pin of the power

input, the other is beside

the power input. Use either

connector for grounding.

SIM Card

The MAR-2001-T supports 2

ellular modules, and the

MAR

-2002-T supports 3

ellular modules.

Unscrew the

SIM card cover and insert the

SIM card in the

desired slot.

– 4 – – 5 – – 6 –

www.moxa.com/support

The Americas:

+1-714-528-6777 (toll-free: 1-888-669-2872)

Europe:

+49-89-3 70 03 99-0

Asia-Pacific:

+886-2-8919-1230

China:

+86-21-5258-9955 (toll-free: 800-820-5036)

Ethernet Port

The MAR-2000 comes with 2 10/100 Mbps Ethernet

ports with M12 connectors.

Serial Port

The 2 serial ports (P1 and P2) use DB9 male connectors. Each port

can be configured for use on RS-232, RS-422, or RS-485 networks

from the MAR-2000's management web page. The pin

assignments are shown in the following table:

RS-232

RS-422

RS-485

(4-wire)

RS-485

(2-wire)

DCD

TxDA(-)

–

RxD

TxDB(+)

–

TxD

RxDB(+)

DataB(+)

DTR

RxDA(-)

DataA(-)

GND

DSR

–

RTS

–

CTS

–

Antenna

The MAR-2000 comes with built-in GPS and 3G GSM/HSPA+

modules. The following chart indicates the default configuration of

antenna mounts:

MAR-2001-T

MAR-2002-T

DI, DO

The MAR-2000 has 4 digital output channels and 4 digital input

channels. The MAR-2000 Hardware User’s Manual has detailed

pinout and wiring diagrams.

Reset Button

Press and hold the Reset button continuously for at least 5

seconds to reload the factory default configuration. After the

factory default configuration has been loaded, the system will

reboot automatically. The Ready LED maintains a steady glow once

the system has rebooted.

CompactFlash

The MAR-2000 has a single CompactFlash type I/II slot for

memory expansion. The CF card can be accessed by unscrewing

the panel located on the bottom of the MAR-2000.

The mount point for the CompactFlash filesystem is /dev/sda.

WARNING

Be sure to power off the computer before inserting or

removing the CompactFlash card.

Console Port

The RS-232 console port is a 4-pin header connector located on the

underside of the motherboard above the CF card socket. As above,

use a screwdriver to remove the panel protecting the CF card to

access the 4-pin RS-232 connector. This serial port is used to

access the console terminal, and is useful for viewing boot

messages, file system logs, and error messages. Use the

CBL-4PINDB9F-100 cable included with the MAR-2000 to connect

a PC to the MAR-2000’s serial console port.

USB

The MAR-2000 computer features 2 USB 2.0 ports for external

storage expansion.

Powering on the MAR-2000

To power on the MAR-2000, connect the power cable to the M12

connector and then connect the power adapter.

ATTENTION

he shielded ground

should be connected to the center

pin of the power input connector.

Note that it takes approximately five minutes for the system to get

ready. Once the system is ready, the Ready LED will light up.

Connecting to the MAR-2000

There are three ways to connect the MAR-2000 to a PC: through

the MAR-2000 management web page, the serial console port, or

by SSH over the network. The COM settings for the serial console

port are: Baudrate=115200 bps, Parity=None, Data bits=8,

Stop bits =1, Flow Control=None.

ATTENTION

Remember to choose the

VT100 terminal type. T

o connect

a PC to

the serial console, use the CBL-4PINDB9F-100

cable that shipped with your MAR-2000.

To use SSH and the MAR-2000 management web page, you will

need to know the MAR-2000’s IP address and netmask. The default

LAN settings are shown below. For initial configuration, you may

find it convenient to use a crossover Ethernet cable to connect

directly from the PC to the MAR-2000.

Default IP Address

Netmask

LAN 1

192.168.3.127

255.255.255.0

LAN 2

192.168.4.127

255.255.255.0

Once the MAR-2000 is powered on and the Ready LED has lit up,

you can open the MAR-2000 management web page. The default

Password: admin

NOTE

For additional configuration information, refer to the

MAR-2000 Hardware User’s Manual.

Autres manuels pour MAR-2000

Table des matières

Autres manuels Moxa Technologies Routeur réseau

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 Manuel utilisateur

Moxa Technologies

Moxa Technologies IKS-6324 Series Manuel

Moxa Technologies

Moxa Technologies AirWorks AWK-1137C-EU Manuel utilisateur

Moxa Technologies

Moxa Technologies EDS-518E Manuel utilisateur

Moxa Technologies

Moxa Technologies TN-5916 Series Manuel utilisateur

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 Manuel

Moxa Technologies

Moxa Technologies TSN-G5000 Series Manuel utilisateur

Moxa Technologies

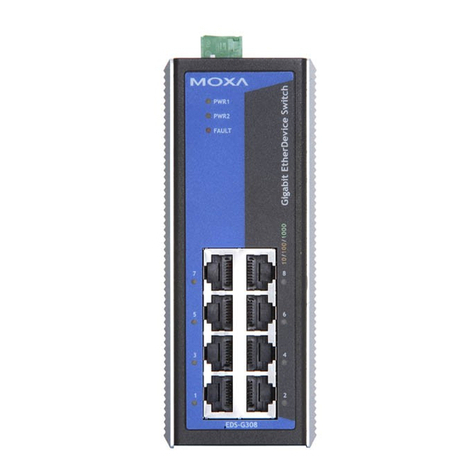

Moxa Technologies EDS-G308 Manuel
