ioThinx 4500 (45ML) Module Series

User’s Manual

Version 1.0, July 2020

www.moxa.com/product

ioThinx 4500 (45ML) Module Series

User’s Manual

The software described in this manual is furnished under a license agreement and may be used only in accordance with

the terms of that agreement.

Trademarks

The MOXA logo is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the part of

Moxa.

Moxa provides this document as is, without warranty of any kind, either expressed or implied, including, but not limited

to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the

products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no responsibility for

its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas

Toll

-free: 1-888-669-2872

Tel:

+1-714-528-6777

Fax:

+1-714-528-6778

Moxa China (Shanghai office)

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia

-Pacific

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045

Safety Symbols

DANGER

Indicates a high

-risk, imminently hazardous situation, which could result in death or serious injury.

WARNING

Indicates a moderate

-risk, potentially hazardous situation, which may result in moderate to serious injury.

CAUTION

Indicates a low

-risk, potentially hazardous situation, which may result in minor or moderate injury.

NOTE

Indicates a potential malfunction

, which will not result in damage to property.

INFORMATION

This information is important for preventing errors.

Table of Contents

1. Preface.............................................................................................................................................. 1-1

Revision History .................................................................................................................................1-2

Relevant Models .................................................................................................................................1-2

Package Contents ...............................................................................................................................1-2

How to Use This Device .......................................................................................................................1-2

Safety Precautions ..............................................................................................................................1-2

Additional Resources ...........................................................................................................................1-3

2. Product Overview.............................................................................................................................. 2-1

Technical Data ...................................................................................................................................2-2

Common Specifications ................................................................................................................2-2

45ML-5401 Specifications.............................................................................................................2-2

Appearance........................................................................................................................................2-3

Front View..................................................................................................................................2-3

Dimensions ................................................................................................................................2-3

LED Indicators....................................................................................................................................2-4

3. Hardware Installation ....................................................................................................................... 3-1

Module Specifications ..........................................................................................................................3-2

Terminal Blocks...........................................................................................................................3-2

45ML-5401.................................................................................................................................3-2

Mounting the Module...........................................................................................................................3-4

Installing the Module on the DIN Rail .............................................................................................3-4

Unmounting the I/O Module from the DIN Rail ................................................................................3-5

1. Preface

In this chapter, we explain the scope of and how to use this document.

The following topics are covered in this chapter:



Revision History



Relevant Models



Package Contents



How to Use This Device



Safety Precautions



Additional Resources

ioThinx 4500 (45ML) Module Series Preface

1-2

Revision History

Version Change Date

v1.0 First release. 2020-07-06

Relevant Models

This document applies to the following 45ML modules:

Model Name Features Operating Temp.

45ML-5401 4 serial ports (RS-232/422/485 3-in-1) -20 to 60°C

45ML-5401-T 4 serial ports (RS-232/422/485 3-in-1) -40 to 75°C

Package Contents

The following items are included in the product package.

•1 x 45ML module

•1 x quick installation guide (printed)

•1 x warranty card

How to Use This Device

45ML modules cannot be used as standalone devices. The modules must be used with an ioThinx 4500 Series

head/CPU module. Refer to the appropriate ioThinx 4500 Series User’s Manual for details.

NOTE

Be sure to connect both

the system and field power on the ioThinx 4530 series to the power supply; otherwis

the 45ML module may

not work properly.

Safety Precautions

Observe the following safety precautions when installing or using the devices discussed in this document:

DANGER

Never work on the

device while the power source is switched on! Disconnect all power sources to the devic

before

performing any installation, repair, or maintenance work.

DANGER

To avoid causing electrical arcs,

make sure that all power sources have been disconnected before removing

replac

ing components. Electrical arcs can cause explosions in areas that contain flammable substances.

This

warning applies when:

•

Connecting or disconnecting the removable terminal block.

•

Connecting or disconnecting the device from a field-site power source.

ioThinx 4500 (45ML) Module Series Preface

1-3

WARNING

Devices

discussed in this document are sensitive to electrostatic d

ischarge, which can cause internal damage

and/or affect normal operation of the devices. Observe the following precautions when handling a device:

•

Before touching the device, touch a grounded object with your finger to discharge static electricity.

•

Wear an approved grounding wristband.

•

Do not touch connectors or pins on component boards.

•

Do not touch circuit components inside the equipment.

•

Use a static-safe workstation, if available.

•

Store the device in appropriate static-safe packaging when not in use.

WARNING

Check the voltage

supplied by the power source.

Make sure the voltage provided by the power source matches

the

voltage required by the device.

WARNING

Check the voltage or current of the sensors or loads.

Make sure the voltage and/or current indicated on the

sensors or loads corresponds to the specification

s of your 45ML module before you connect the device.

WARNING

Connect

your device to an earthed ground.

CAUTION

Do not use the device if the device itself is already damaged. Replace defective or damaged

devices

to ensure

at your devices function properly.

CAUTION

Do not attempt to repair the

device yourself. If your device needs to be repaired,

return the device to Moxa’s

customer service

department. Attempting to repair the device yourself could invalidate the device’s warranty

Additional Resources

Refer to following documents for additional information.

•Datasheets for the following products:

ioThinx 4530 Series

ioThinx 4500 Series (45ML) Modules

•User’s Manuals:

ioThinx 4530 Series Hardware User’s Manual

ioThinx 4530 Series Linux User’s Manual

•Programming Guide:

ioThinx 4530 Series Programming Guide

2. Product Overview

In this chapter, we give an overview of each of the 45ML modules.

The following topics are covered in this chapter:



Technical Data

Common Specifications

45ML-5401 Specifications



Appearance

Front View

Dimensions



LED Indicators

ioThinx 4500 (45ML) Module Series Product Overview

2-2

Technical Data

Common Specifications

Physical Characteristics

Connector:

Removable terminal block

Wiring:

18 to 24 AWG

Dimensions:

26.4 x 99 x 65.5 mm (1.04 x 3.90 x 2.58 in)

Installation:

DIN-rail mounting

Environmental Limits

Operating Temperature:

Standard Models:

-20 to 60°C (-4 to 140°F)

Wide Temp. Models:

-40 to 75°C (-40 to 167°F)

45ML-5401 Specifications

Serial Communication

Interface:

4 RS-232/422/485 ports, software selectable

Isolation:

3k VDC or 2k Vrms

Serial Communication Parameters

Parity:

None, Even, Odd

Data Bits:

7, 8

Stop Bits:

1, 2

Flow Control:

RTS/CTS (RS-232 only), XON/XOFF

Pull High/Low Resistor for RS

-485: 10 kilo-ohm

Baudrate:

300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

Serial Signals

-232: TxD, RxD, RTS, CTS, GND

-422: Tx+, Tx-, Rx+, Rx-, GND

-485-2w: Data+, Data-, GND

Note: Up to 5 45ML-5401 modules can be used at the same time.

ioThinx 4500 (45ML) Module Series Product Overview

2-3

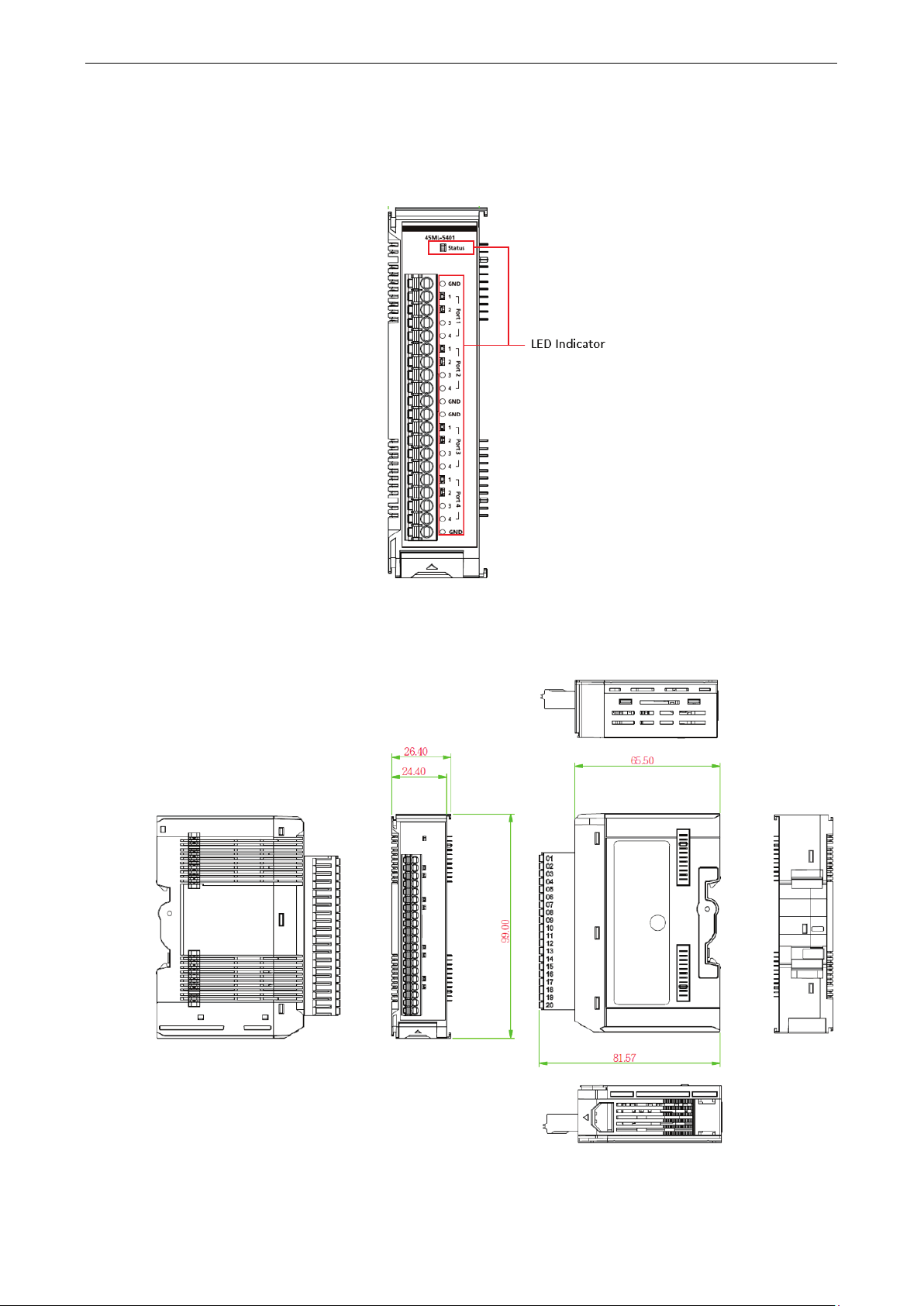

Appearance

Front View

Dimensions

Unit: mm (inch)
