Moxa Technologies PWR-190-AC/DC Manuel utilisateur

P/N: 1802001901013

*1802001901013*

PWR-190-AC/DC,

PWR-2190-AC/DC

Quick Installation Guide

AC/DC Power Module

Edition 4.0, March 2017

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia

-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Introduction

The PWR-190-AC/DC and PWR-2190-AC/DC power modules are designed

for the NRack Systems’ TRC-190/2190 chassis. They transform the AC

power input into a steady 12 VDC, or DC power input from 36 to 53 VDC

to a steady 12 VDC output to power the slide-in modules for the TRC-190.

Package Checklist

•PWR-190/2190-AC x 1 or PWR-190/2190-DC x 1

•Power cord

•Quick installation guide (printed)

•Warranty card

Dimensions (unit = mm)

PWR-190/2190-AC

- 3 -

PWR-190/2190-DC

Powering the AC/DC Power Supply Module

ATTENTION

Ensure before connecting to the external power source, the

ON/OFF switch must be set

to “O

”. Failure to observe this caution

could result in damage to, and subsequent failure of, the power

supply module and human life.

Follow the instructions below to power on the power supply modules.

PWR-190/2190-AC

1. Set the ON/OFF switch to “O”.

2. Connect the female end of the power cord to the AC power connector

on the power supply module.

3. Plug the male end on the power cord into the correct voltage AC rack

or wall socket.

4. Set the ON/OFF switch to “l”.

5. Check whether the power LED is illuminated or not to see if the

power supply module is working.

- 4 -

PWR-190/2190-DC

1. Set the ON/OFF switch to “O”.

2. Be sure that the external power source is NOT powered.

3. Connect the power cord and the shielding ground to the male

terminal block.

4. Link the male and female terminal blocks.

5. Tighten the screws (clockwise) to secure the male and female

terminals.

6. Power up the external power source.

7. Set the ON/OFF switch to “l”.

8. Check whether or not the power LED is illuminated to see if the

power supply module is working.

Power Supply Module Installation

ATTENTION

Do not connect the power supply module to the external power

source before install it into the chassis. Failure to observe this

may cause equipment damage, personal injury, or even death.

1. Install the AC power supply module and DC power supply module

the same way. The default power supply module will be in power

module Slot A. You can install an additional power supply module in

Slot B. Install or remove the power supply module from Slot A or

Slot B in the same manner.

2. Whether installing a power supply module in Slot A or Slot B, be sure

to remove the plate from the slot first. To remove the plate, remove

the 2 screws that secure the plate to the chassis.

- 5 -

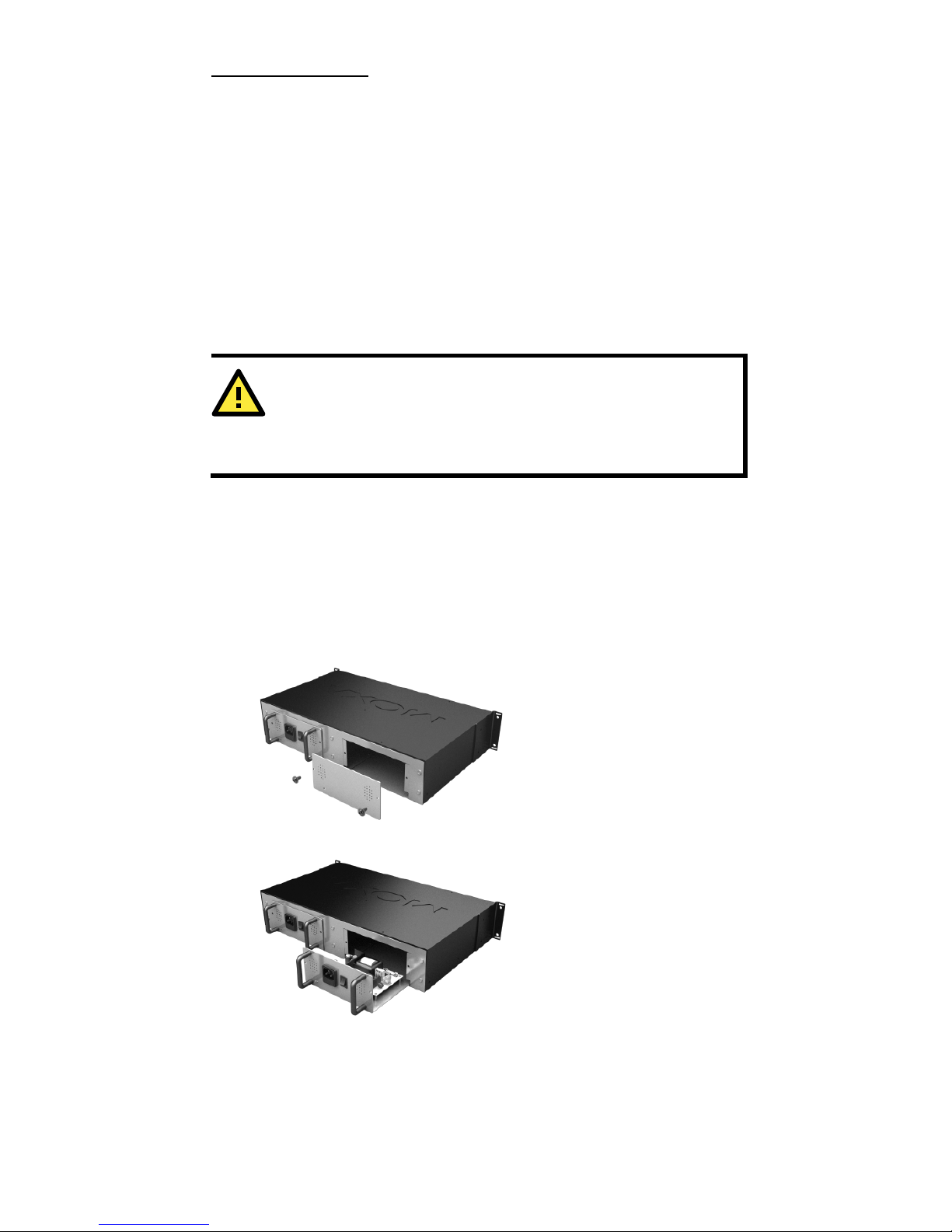

3. After removing the plate from the chassis, slowly slide the power

supply module into the chassis. Push the power supply module into

the chassis to ensure that it is all the way inside and firmly

connected to the chassis.

PWR-190/2190-AC

PWR-190/2190-DC

4. Screw the power supply module clockwise to secure the power

supply module in place.

5. Connect the power supply module to the external power source.

Power Supply Module Replacement

Replace the AC power supply module and DC power supply module the

same way. Do not remove the power supply module from the chassis

when the power source is connected and the external power switch is set

to “O”. When the chassis is equipped with 2 power supply modules, any

one of them can be hot swapped without stopping the other one.

1. Set the power supply module power switch to “O”.

2. Disconnect the power supply module from the external power

source.

3. Loosen the two screws on the power supply module.

4. Smoothly slide out the power supply module.

5. Install another new power supply module following the instructions

in the previous section.

- 6 -

Replacing the Power Supply

Fuses(PWR-190/2190-AC module only)

You do not need to remove the power supply module from the chassis in

order to replace the fuse in the module.

ATTENTION

Wear a

grounding device and observe electrostatic discharge

precautions when replacing the fuse in the power supply module.

Failure to observe this caution could result in damage to, and

subsequent failure of, the power supply module.

Follow the instructions below to change the fuse if needed.

1. Set the power switch on the power supply module to “O”.

2. Disconnect the power supply module from the external power

source.

3. From the inside edge of the power connector, insert a flat blade

screwdriver into the groove at the front. Gently pry the fuse holder

out of the power connector.

4. Remove the fuse from the holder carefully.

5. The replacement fuse must be the same size and rating as the

original. Installing a fuse of a different size or rating may damage

your power module or even the entire system.

6. Plug the fuse holder back into its original location.

7. Connect the power supply module to the external power source.

ATTENTION

Do not connect the power supply module to the external power

source

before installing it in the chassis. Failure to observe this

may cause the equipment damage, personal injury, or even

death.

- 7 -

Specifications

Physical Characteristics

Case

SECC (1.2 mm)

Dimensions

157.4 x 123.3 x 70 mm (18.6 x 11 x 3.3 in.)

Gross Weight

0.5 kg or 1.1 lbs

Environment

Operating Temperature

0 to 60°C (32 to 140°F)

Operating Humidity

5% to 95% RH

Storage Temperature

-40 to 85°C (-40 to 185°F)

Power Requirement

Input Voltage

Universal 100 to 240 VAC 47-63 Hz or 48 VDC

Max. Power Output

5.4 A @ 12 VDC

Regulatory Approvals

Class B

FCC

Part 15 Subpart B Class A

EMI

EN55022 1998, Class B

EMS

EN61000-4-2 (ESD), Criteria A, Level 4

EN61000

-4-3 (RS), Criteria A, Level 2

EN61000

-4-4 (EFT), Criteria A, Level 3

EN61000

-4-5 (Surge), Criteria A, Level 3

EN61000

-4-6 (CS), Criteria A, Level 2

EN61000-4-8 (PFMF), Criteria A, Level 3
