MD2418-MX INSTALLATION INSTRUCTION
26"~55"
Max:400x400mm/16x16"
Min:75x75mm/3x3"
Für die Installationsanweisungen auf deutsch, Siehe Seite 12~13.
Pour l'instruction en français, veuillez vous reporter à la page 14~15.
Para las instrucciones de la instalación en español, favor vea la página 16~17.
Per le Istruzioni in italiano, vedi pagina 18~19.
If you have any questions, please contact us via customerservice@mountingdream.com
or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).
For more information, please visit our website: www.mountingdreamonline.com
TV
1 2
(B1)
x1

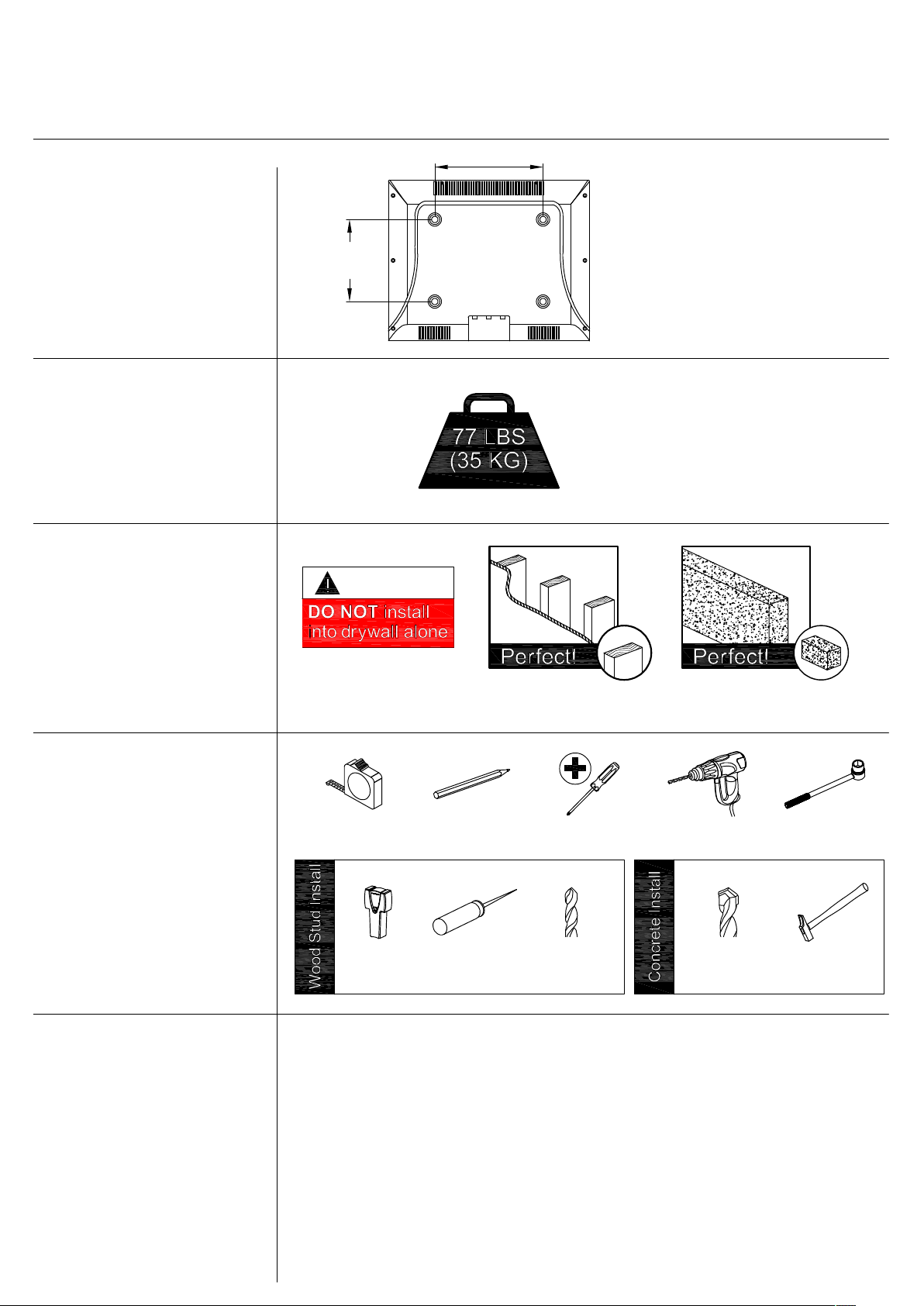

Before getting started, let’s make sure this mount is perfect for you!
1 Is your TV VESA
equal to/greater than
75x75mm/3x3"
and equal to/less than
400x400mm/16x16"?
2 Does your TV
(including accessories)
weigh less than
77 LBS (35 KG)?
4 Installation Tools
(Not Included)
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:400mm/16"
MAX:
400mm/16"
Yes --- Perfect!
No --- This mount is NOT compatible.
CAUTION:
Drywall with
wood studs?
Band Tape
2M2M
5 Safety Caution
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, contact Customer Service via
customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon
- Fri 10am - 6pm (Pacific time).
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by Mounting Dream.
● Incorrect installation may result in product damage or body injury. Mounting Dream shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.
Solid concrete
wall?
Pencil Screwdriver Electrodrill Socket Wrench
1/2"(13mm)
Stud Finder Awl 5/32"(4mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
1
3 What is your wall
made of?
Parts and Hardware
WARNING:This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. For parts
shortage or damage, please contact us via customerservice@mountingdream.com.
NOTE: Not all hardware included will be used.
2
x8
M6x8mm
Allen Key
x1
Right Extended Arm
x2x2
Left Extended Arm
x2
Extended Arm Screws
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
M8x45mm
M6x17mm M8x22mm
M4 M6
10mm 2.5mm
Washers
Spacers
TV Screws
x4 x4
x4 x4
x4 x4
x4
x4 x4
x4 x8
x4
TV plate
x1
3

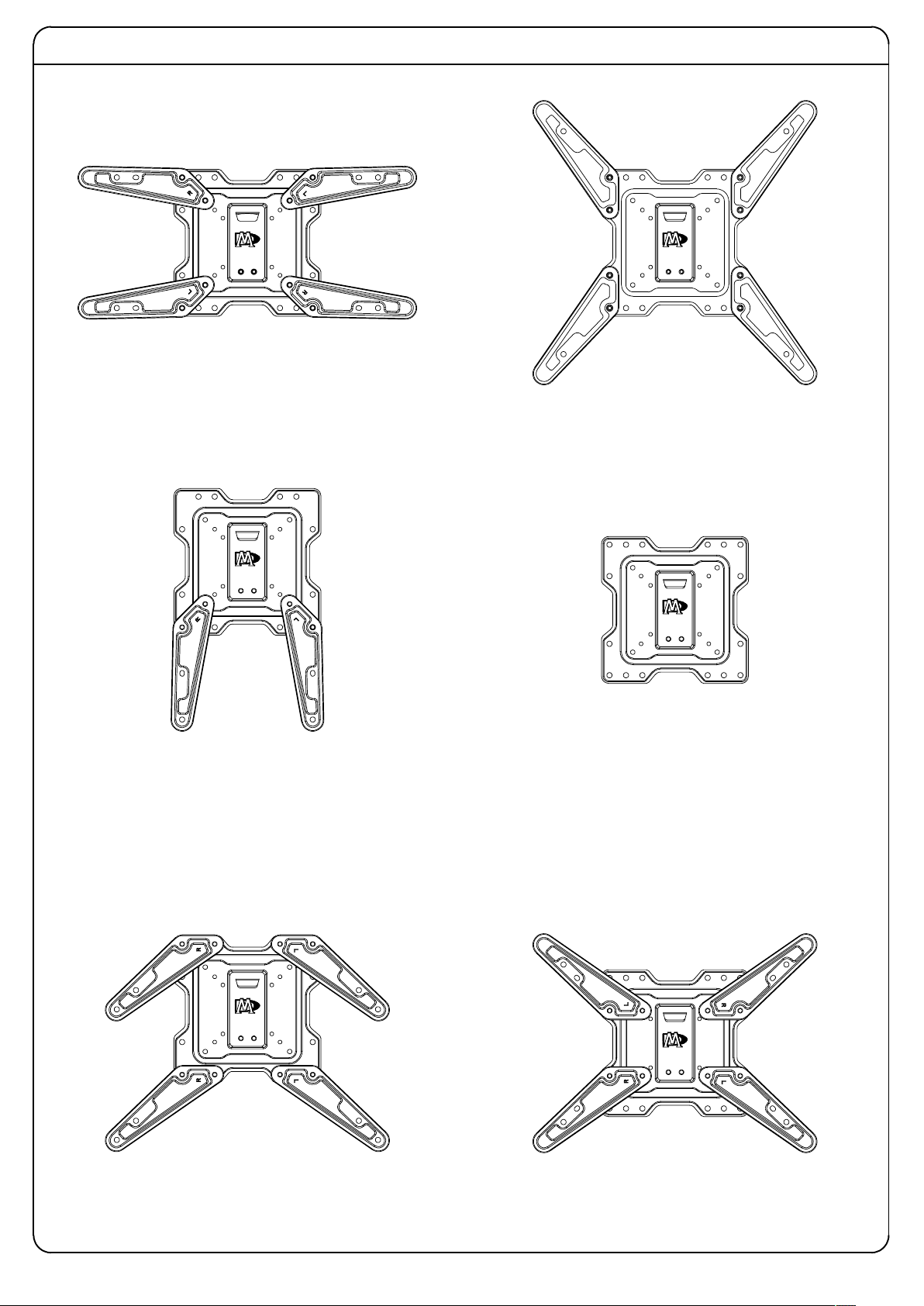

1-1 Choose Configuration
④
⑤
200mm x 300mm
400mm x 200mm
75mm x 75mm
100mm x 100mm
100mm x 200mm
150mm x 150mm
200mm x 100mm
200mm x 150mm
200mm x 200mm
300mm x 200mm 400mm x 300mm
①
③
300mm x 300mm
400mm x 400mm
①
① ①
L
R
L
R
③
③③
② ②
②②
④
④④
⑤
⑤ ⑤
⑥ ⑥
⑥ ⑥
4
M8
M6
M4
1-2 Select TV Screws
TV back
Bracket Washer
Bracket
Long Screw
Spacer
No, go to PAGE 5 for detailed combination.
Yes, go to PAGE 5 for detailed combination.
TV back
1-3 Need Spacer?
Short Screw
Washer
Extended Arms Assembly Example (For reference)
Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to
remove the inner circle.
Screw and washer
Spacer(s), screw and washer
1-4 Attach TV Plate to TV Back
5
No!

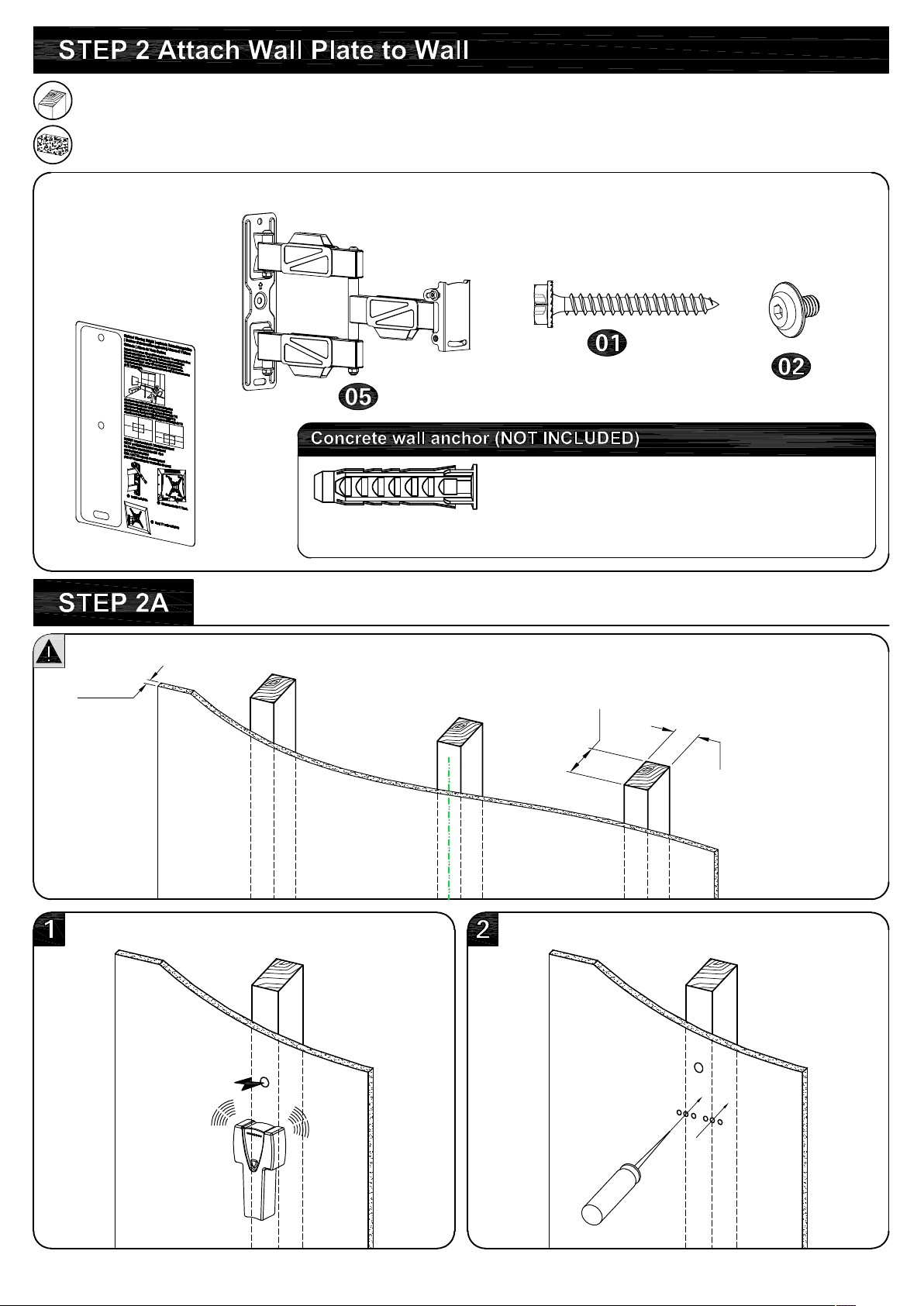

For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 8
Parts and Hardware
Lag Bolt M7x55mm
x3
x2
<16mm
(5/8")
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Wood Stud Installation
6
Contact us at telephone (626) 604-9048 (USA)
Mon - Fri 10am - 6pm (Pacific time) or email us by
customerservice@mountingdream.com to have
these additional pieces shipped directly to you.
Concrete Wall Anchor
3pcs
Wall plate unit
Mounting Template
x1
M6x12mm Bolt
7
5/32"
(4mm)
Go to Step 3 on PAGE 9.
O
Centre line
2.36"(60mm)
CAUTION: To avoid potential personal injury or property damage:
All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
No!
Level
Mounting Template
UP
Solid Concrete Wall Installation
8
2.36"
(60mm)
3/8"
(10mm)
Concrete Wall
Anchor
DANGER
Min.
8"(203mm)
CAUTION: To avoid potential personal injury or property damage:
All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the direction of the arrow should be upward as shown.
No!
Mounting Template
Level
UP
9
77 LBS (35 KG)
Before hanging TV, please conduct "wall plate installation integrity test" first.
TV
1 2
