Mounting Dream MD2463 Manuel utilisateur

MD2463 INSTALLATION INSTRUCTION

If you have any questions, please contact us via customerservice@mountingdream.com

or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).

For more information,please visit our website:www.mountingdreamonline.com

(B2)

10"~26" Max:100x100mm/4x4"

Min:50x50mm/2x2"

Für die Installationsanweisungen auf deutsch, Siehe Seite 10~11.

Pour l'instruction en français, veuillez vous reporter à la page 12~13.

Para las instrucciones de la instalación en español, favor vea la página 14~15.

Per le Istruzioni in italiano, vedi pagina 16~17.

x3 x1

1 2

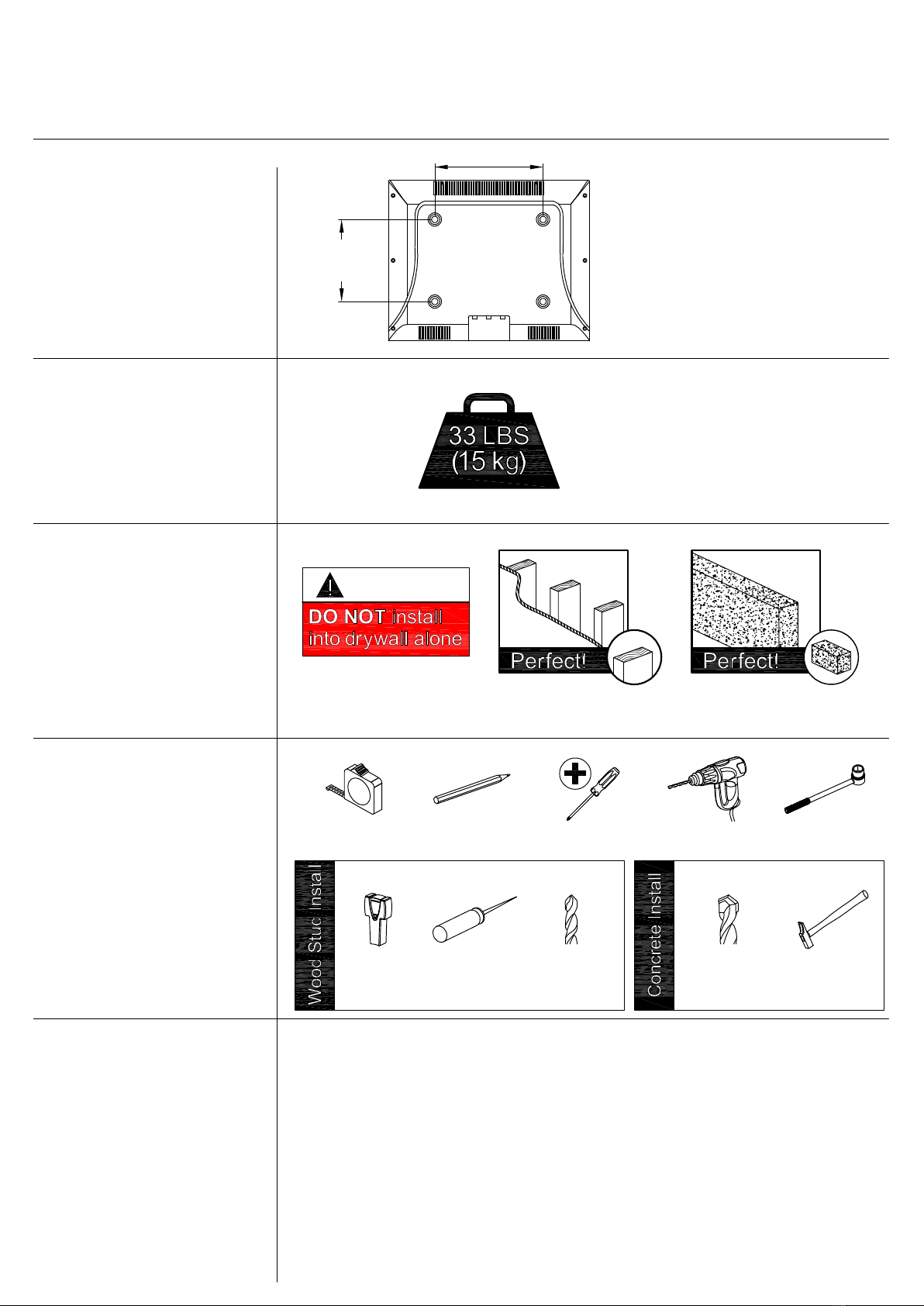

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

50x50mm/2x2",

75x75mm/3x3",

100x100mm/4x4"?

2 Does your TV

(including accessories)

weigh less than

33 LBS (15 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:100mm/4"

MAX:

100mm/4"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon

- Fri 10am - 6pm (Pacific time).

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 1/8"(3.2mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@mountingdream.com.

NOTE: Not all hardware included will be used.

Wall Plate Unit

TV Screws

1-1 Disassemble Wall Plate Unit into Two Pieces

8mm Open-End Wrench

TV plate

Wall plate

M4x12mm

M6x12mm

M4x30mm

M6x35mm

x4 x4

M5x12mm M5x30mm

M6x17mm

M4/M5 M6

2.5mm

Washers

Spacers

x4 x4

1-2 Choose Configuration

① 50mm x 50mm

② 75mm x 75mm

③ 100mm x 100mm

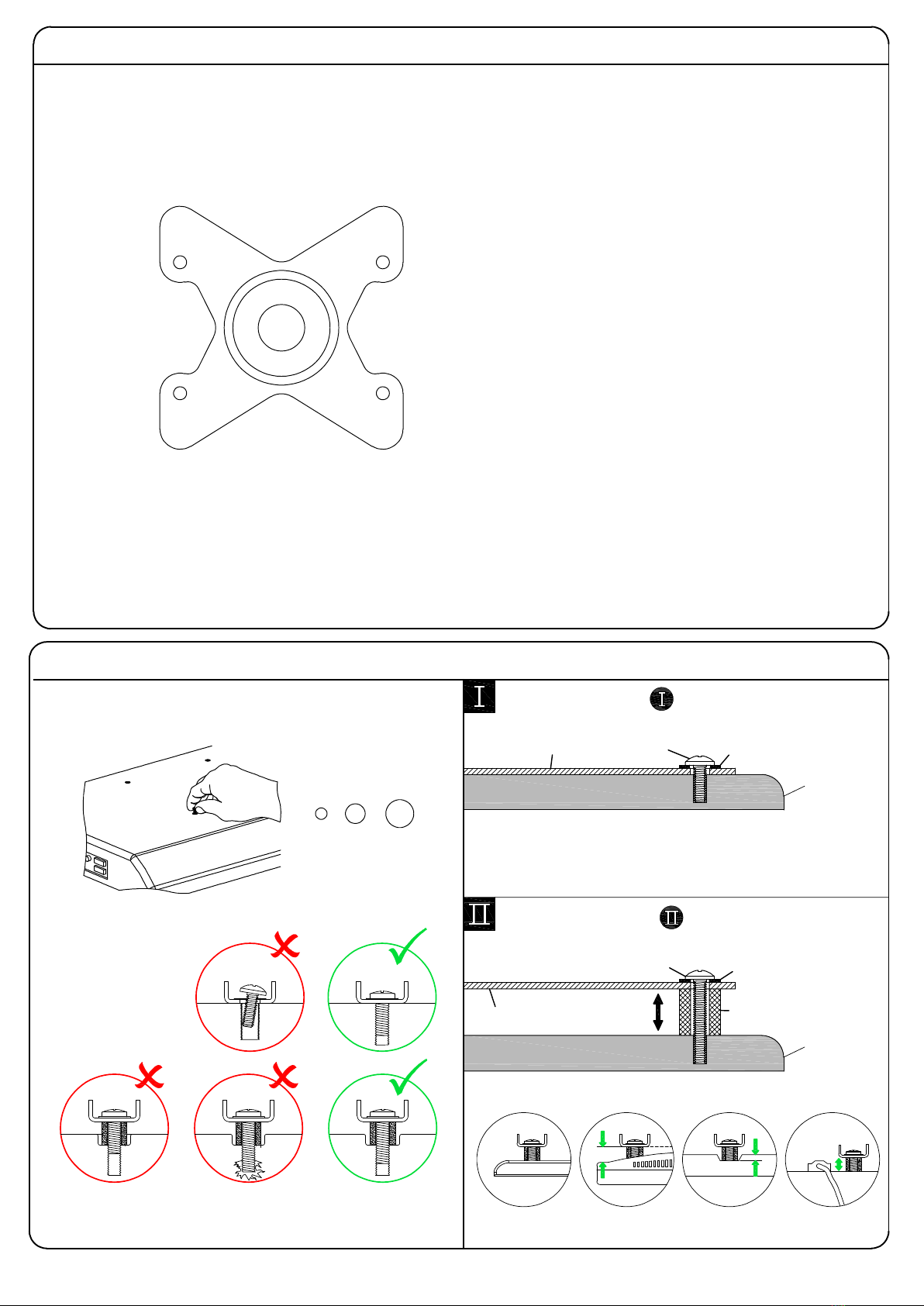

1-3 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 4 for detailed combination.

Yes, go to PAGE 4 for detailed combination.

TV back

1-4 Need Spacer?

Short Screw

Washer

①①

① ①

②②

② ②

③ ③

③③

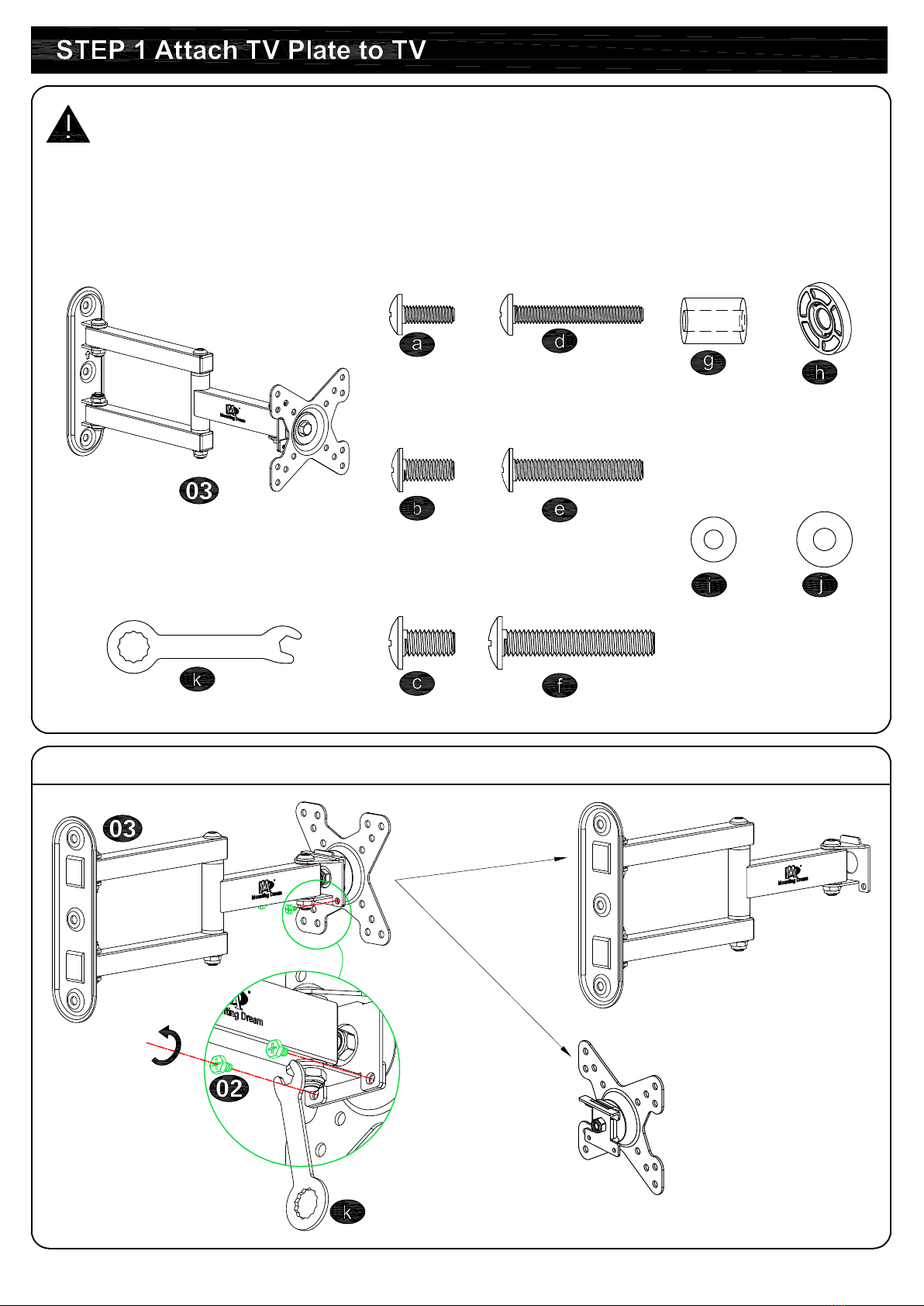

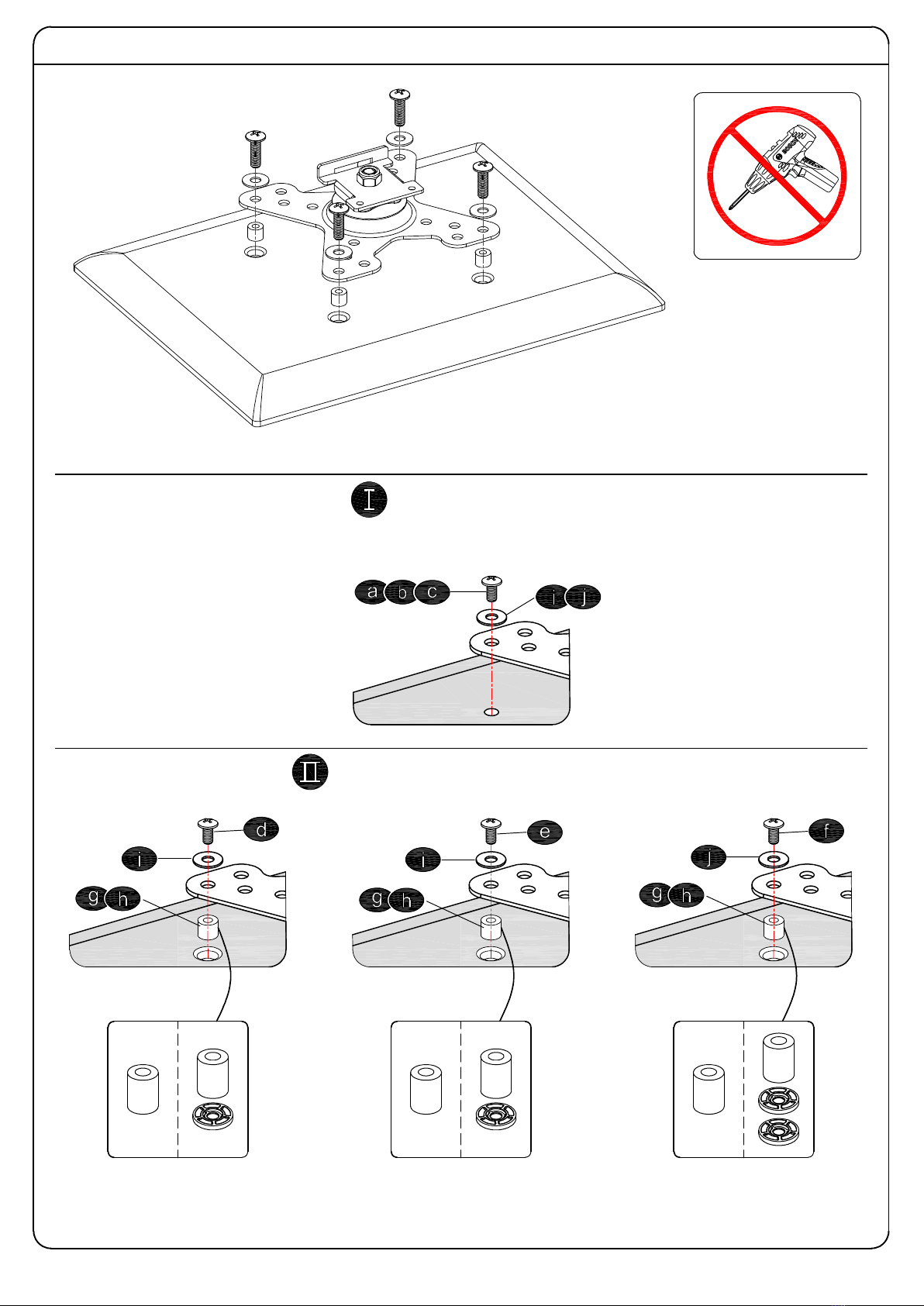

1-5 Attach TV Plate to TV Back

No!

Screw and washer

Spacer(s), screw and washer

Tips: If you need to combine M6(f) screw with 2.5mm spacer(h), you have to remove the

inner circle.

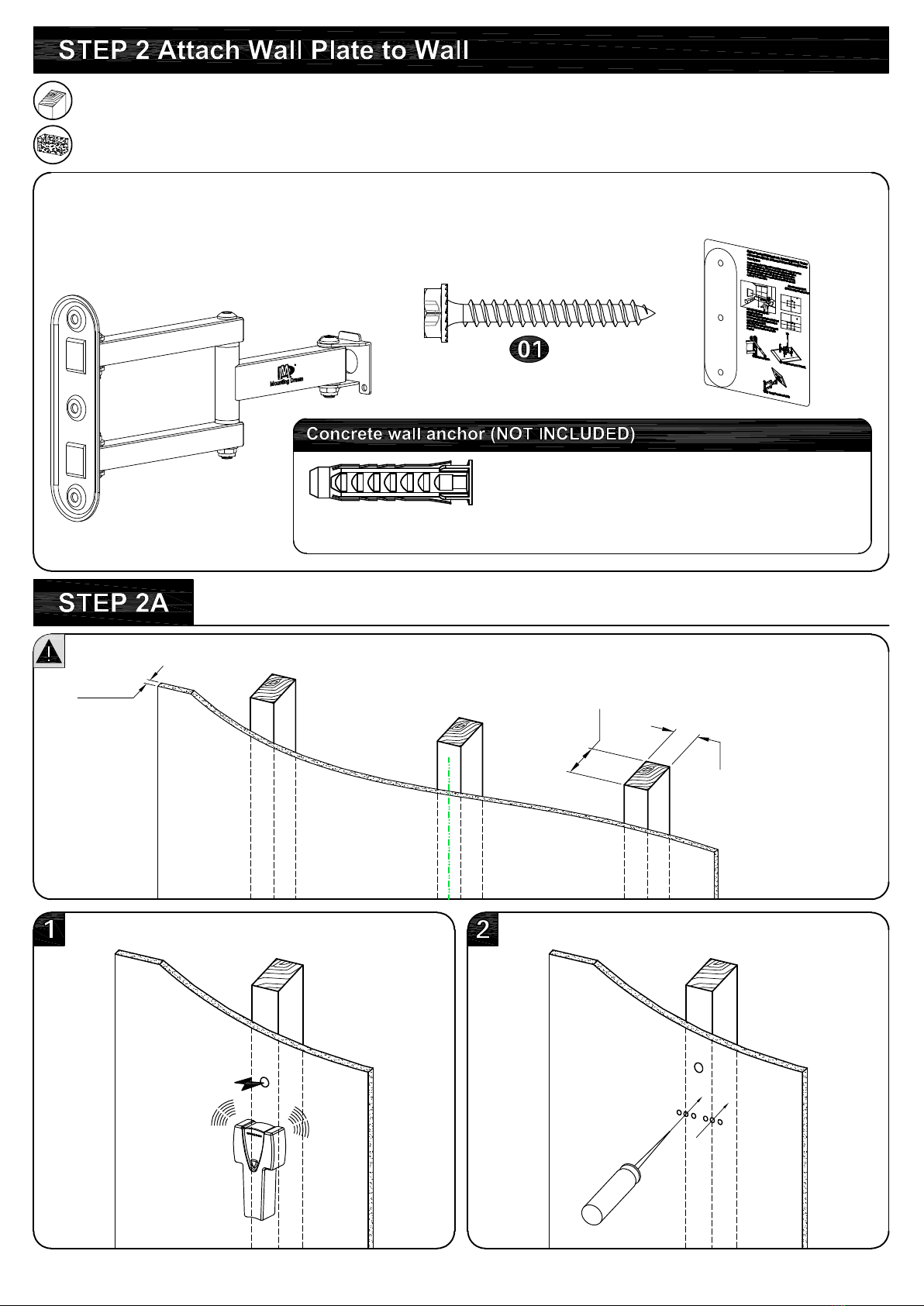

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 7

<16mm

(5/8")

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Parts and Hardware

Wood Stud Installation

Mon - Fri 10am - 6pm (Pacific time) or email us by

customerservice@mountingdream.com to have

these additional pieces shipped directly to you.

Concrete Wall Anchor

3pcs

Wall Plate

Lag Bolt M6x50mm

Mounting Template

1/8"

(3.2mm)

Go to Step 3 on PAGE 8

Centre line

2.16"(55mm)

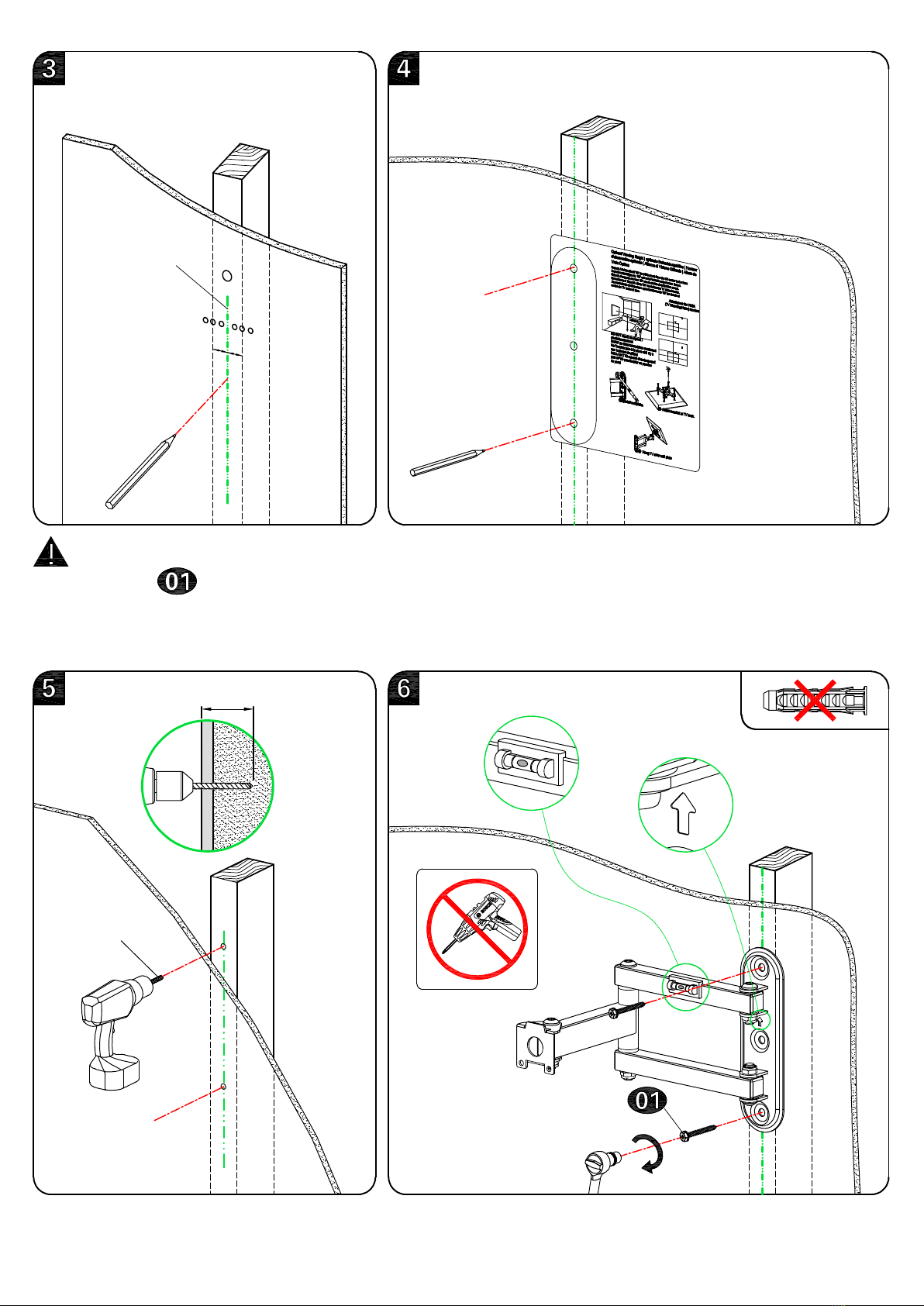

CAUTION: To avoid potential personal injury or property damage:

All 2 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

Mounting Template

Level

Wall plate

No!

Solid Concrete Wall Installation

2.16"

(55mm)

3/8"

(10mm)

Concrete Wall

Anchor

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

Mounting Template

Wall plate

Level

No!

33 LBS (15 kg)

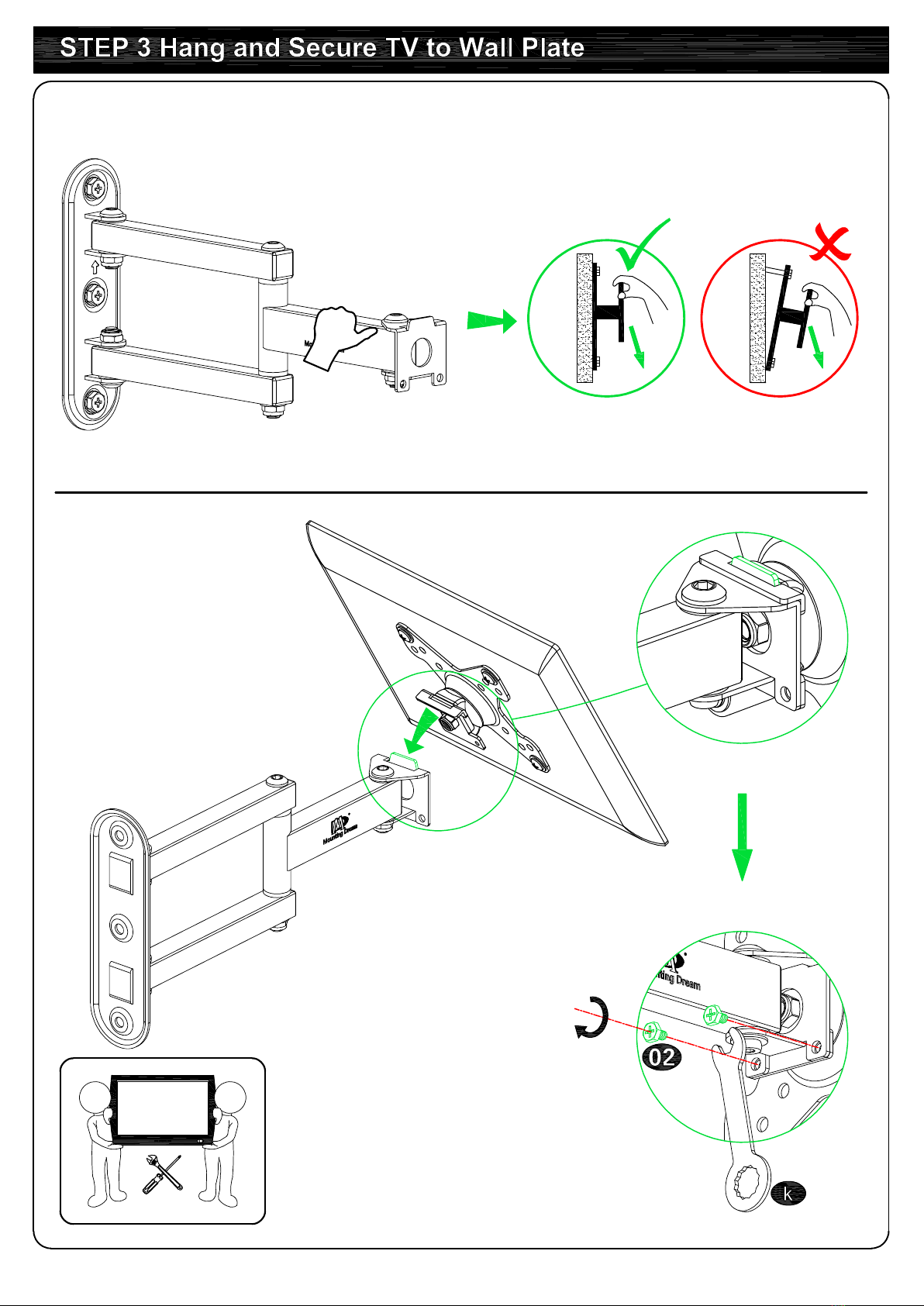

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

345mm

75mm

100mm

196.5mm

+90°/-90°

190mm 100mm

+15°

-15°

66mm

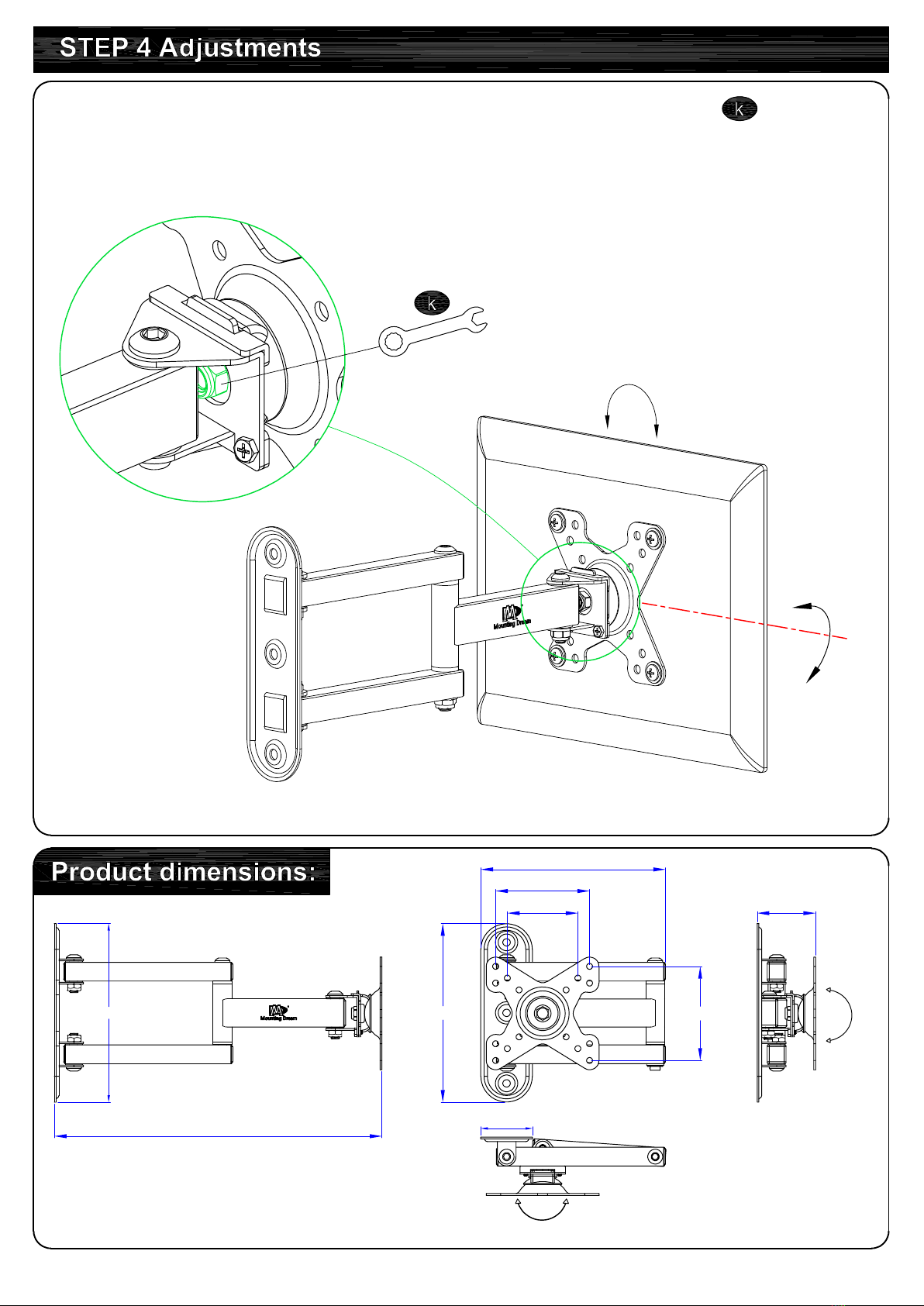

Adjust TV leveling and tilting angle by using open-end wrench to loosen

and tighten the nut.

360°

-15°

+15°

190mm

55mm
