32" 4K HDR IPS Ultra Slim Desktop Monitor

P/N 27772

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

This monitor is intended for indoor use only.

Do not expose this monitor to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the device. If moisture does get in or on

the device, immediately unplug it from the power outlet and allow it to fully dry

before reapplying power.

Do not touch the monitor, the power cord, or any other connected cables with wet

hands.

Do not place the monitor on an unstable surface where it could fall and cause either

personal injury or damage to the monitor and/or other equipment.

Do not subject the monitor to extreme force, shock, or fluctuations in temperature

or humidity.

Do not block the ventilation holes in the monitor's casing. Do not place the monitor

in a confined space with inadequate ventilation. Periodically check the ventilation

holes to ensure they do not become clogged with dust, debris, or nearby items.

Do not place the monitor near a heat source, such as a fireplace, heating vent,

radiator, etc.

Do not place or install this monitor in an area where it can be exposed to excessive

amounts of dust, humidity, oil, smoke, or combustible vapors.

Prior to operation, check the monitor and power cord for physical damage. Do not

use if physical damage has occurred.

Unplug this monitor from the power source when not in use.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that the

power cord does not present a tripping hazard.

Never unplug the monitor by pulling on the power cord. Always grasp the

connector head or adapter body.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This monitor has no user serviceable parts. Do not open the case or otherwise

attempt to modify this monitor.

Do not leave a single image on the display for a long period of time. Doing so could

cause "burn-in" of the image. It is recommended to use a variable desktop

background and to use a screen saver to prevent "burn-in". Alternatively, ensure

that the monitor is powered off for at least 2 hours out of every 12.

FEATURES

3840 x 2160p @ 60Hz maximum resolution

Two HDMI® 2.0 and two DisplayPort 1.3 video inputs

Supports the AMD® FreeSync™ dynamic refresh rate feature

Support for more than 1.07 billion colors (10 bits / channel, 30 bits total)

2ms response time

500000:1 dynamic contrast ratio

Soft matte screen finish

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-

6pm PT) or via email at [email protected]

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x 32" monitor

1x Stand neck

1x Stand base

3x M4x10 screws

3x M4x7 screws

1x High Speed HDMI® Cable

1x AC power adapter

1x AC power cord

1x User's manual

PRODUCT OVERVIEW

Connections

Controls

Note that the Left and Right directions referred to below are from the perspective of the

front of the monitor.

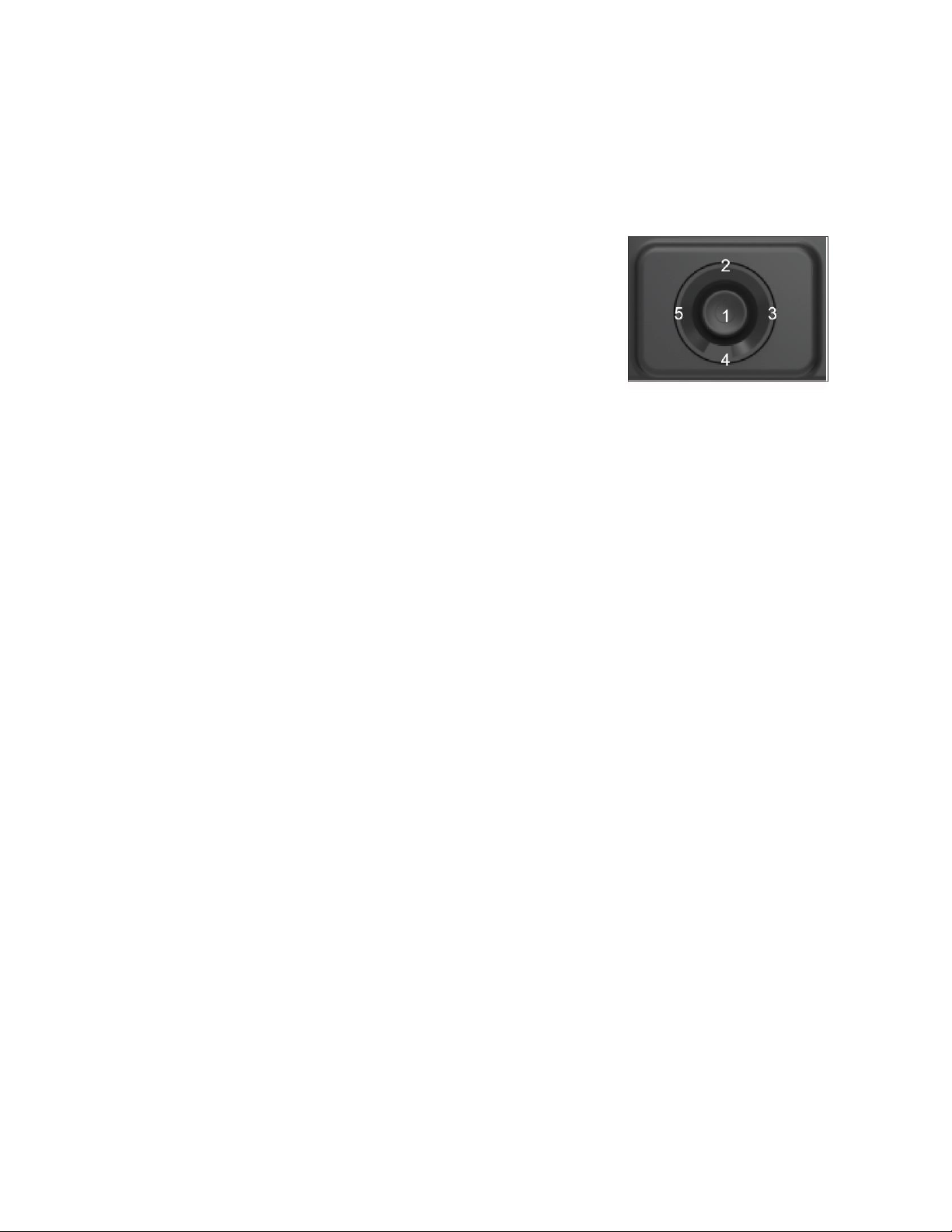

1. Power: Press the joystick in to turn the monitor on or

to put it into standby mode.

2. Up: If the OSD or Input Select menu is not displayed,

push the joystick Up to display the OSD menu. If the

OSD menu is displayed, push the joystick Up to select

or edit the highlighted menu entry. If editing an entry

in the OSD menu, push the joystick Up to save your changes. If the Input Select

menu is displayed, push the joystick Up to select the highlighted input.

3. Left: If the OSD or Input Select menu is not displayed, push the joystick to the Left

(from in front of the monitor) to turn the Low Blue Ray feature on or off. If the OSD

or Input Select menu is displayed, push the joystick to the Left to move the

highlight to the left or down. If editing an entry, push the joystick to the Left to

decrease the value or to cycle backwards through the available options.

4. Down: If the OSD or Input Select menu is not displayed, push the joystick Down to

display the Input Select menu. If the OSD or Input Select menu is displayed, push

the joystick Down to back up one menu level or to exit the menu. If editing a value,

push the joystick Down to cancel editing without saving your changes.

5. Right: If the OSD or Input Select menu is not displayed, push the joystick to the

Right (from in front of the monitor) to cycle through the HDR settings. If the OSD or

Input Select menu is displayed, push the joystick to the Right to move the highlight

to the right or up. If editing an entry, push the joystick to the Right to increase the

value or to cycle forwards through the available options.

OSD MENU SYSTEM

The On-Screen Display (OSD) menu system allows you to change basic and advanced

settings. Use the joystick control to navigate the menu and select and edit entries.

Picture Menu

Brightness: Adjusts the overall screen brightness. The adjustment range is 0-100 in 1

point increments.

Contrast: Adjusts the amount of contrast between the bright and dark areas of the

displayed image. The adjustment range is 0-100 in 1 point increments.

Sharpness: Adjusts the amount of edge enhancement on the image. The adjustment

range is 0-4 in 1 point increments.

Aspect Ratio: Adjusts the image aspect ratio. The available options are Full, 16:9, 4:3,

and 1:1. The Full options uses the aspect ratio output by the connected video source,

while the other three options force the individual aspect ratios.

Ultra Vivid: Adjusts the amount of color saturation used. The available options are Off,

Low, Middle, and High.

DCR: Enables or disables the Dynamic Contrast Ratio (DCR) features, which uses the

backlighting to artificially increase the overall image contrast. DCR is not well suited

for use with the fast moving images found in action movies and video games. DCR

cannot be enabled when the HDR feature is set to On or Auto. The available options

are On and Off.

HDR: Enables or disables the High Dynamic Range (HDR) feature. The available options

are On, Off, and Auto.

Color Menu

Color Effect: Selects one of the image color presets designed for use with different

applications. The available options are Standard, FPS, RAC, RTS, and Movie. The FPS,

RAC, and RTS options are designed for use with First Person Shooter, Racing, and

Real Time Strategy games.

Saturation: Adjusts the amount of color saturation. The adjustment range is 0-100 in 1

point increments.

Gamma: Selects one of the available gamma options. The available options are Off, 1.8,

2.0, 2.2, and 2.4.

Temperature: Selects one of the color temperature values. The available options are

sRGB, User, 9300, 7500, 6500, and 5400.

R: Adjusts the amount of red color in the image. The adjustment range is 0-255 in 1

point increments. This option is only available when the Temperature option is set

to User.

G: Adjusts the amount of green color in the image. The adjustment range is 0-255 in 1

point increments. This option is only available when the Temperature option is set

to User.

B: Adjusts the amount of blue color in the image. The adjustment range is 0-255 in 1

point increments. This option is only available when the Temperature option is set

to User.

Advance Menu

Volume: Adjusts the volume level. The adjustment range is 0-100 in 1 point increments.

Mute: Enables or disables audio muting. The available options are On and Off.

Over Drive: Adjusts how quickly the monitor is able to switch colors for anti-ghosting

purposes. The available options are On and Off.

Free Sync: Enables or disables the AMD® FreeSync™ feature, which uses a dynamic

refresh rate aimed at reducing screen tearing. The available options are On and Off.

Low Blue Ray: Adjusts the amount of blue light contained in the image. The available

options are Off, Low, Middle, and High.

Los: The Los feature puts a crosshair overlay on the middle of the screen for use with

FPS games. There are three different styles available. The available options are Off,

Los 1, Los 2, and Los 3.

OSD Menu

Language: Selects one of the available languages for the OSD menu system. The

available languages are English, Chinese, Korean, French, German, Italian, Spanish,

Russian, Dutch, Japanese, and Polish.

Menu Time: Adjusts the amount of time that the OSD menu will remain on screen

without any control input. The adjustment range is 10-60 seconds in 1 second

increments.

OSD H Position: Sets the horizontal position of the OSD menu on the screen. The

adjustment range is 0-100 in 1 point increments.

OSD V Position: Sets the vertical position of the OSD menu on the screen. The

adjustment range is 0-100 in 1 point increments.

Transparency: Adjusts the amount of transparency of the OSD menu. The adjustment

range is 0-255 in 1 point increments.

Reset: Resets all monitor settings to the factory default values.

Information Menu

This screen displays the firmware version, active input, screen resolution, horizontal refresh

rate, and the pixel clock.

SPECIFICATIONS

Model

27772

Screen Size

32"

Screen Type

IPS

Screen Finish

Soft matte

Backlighting

LED

Video Inputs

2x HDMI® 2.0 and 2x DisplayPort 1.3 with AMD®

FreeSync™ support

Aspect Ratio

16:9

Maximum Resolution

3840 x 2160 @ 60Hz

Pixel Pitch

0.1845 x 0.1845

Brightness

250 cd/m2

Contrast Ratio

1000:1

Dynamic Contrast Ratio

500000:1

Response Time

2ms

Viewing Angles

178° horizontal, 178° vertical

Maximum Colors

More than 1.07 billion (10 bits/channel, 30 bits

total)

Input Power

19 VDC, 3.42A

AC Adapter Input Power

100 ~ 240 VAC, 50/60 Hz

Maximum Power Consumption

65 watts

Dimensions (without stand)

28.3" x 16.6" x 1.6" (720 x 422 x 42 mm)

Dimensions (with stand)

28.3" x 20.5" x 7.5" (720 x 520 x 191 mm)

Weight

12.8 lbs. (5.8 kg)

TECHNICAL SUPPORT

Monoprice is pleased to provide free, live, online technical support to assist you with any

questions you may have about installation, setup, troubleshooting, or product

recommendations. If you ever need assistance with your new product, please come online

to talk to one of our friendly and knowledgeable Tech Support Associates. Technical

support is available through the online chat button on our website www.monoprice.com

during regular business hours, 7 days a week. You can also get assistance through email by

sending a message to tech@monoprice.com

REGULATORY COMPLIANCE

Notice for FCC

Modifying the equipment without Monoprice’s authorization may result in the equipment

no longer complying with FCC requirements for Class B digital devices. In that event, your

right to use the equipment may be limited by FCC regulations, and you may be required to

correct any interference to radio or television communications at your own expense.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Table des matières

Autres manuels Monoprice Moniteur

Monoprice

Monoprice 34712 Manuel utilisateur

Monoprice

Monoprice Crystal Pro 44029 Manuel utilisateur

Monoprice

Monoprice 13809 Manuel utilisateur

Monoprice

Monoprice 33821 Manuel utilisateur

Monoprice

Monoprice CrystalPro 37922 Manuel utilisateur

Monoprice

Monoprice 10489 Manuel utilisateur

Monoprice

Monoprice 13808 Manuel utilisateur

Monoprice

Monoprice Dark Matter 44632 Manuel utilisateur

Monoprice

Monoprice 33822 Manuel utilisateur

Monoprice

Monoprice 12520 Manuel utilisateur

Monoprice

Monoprice 38576 Manuel utilisateur

Monoprice

Monoprice DARK MATTER 45548 Manuel utilisateur

Monoprice

Monoprice Dark Matter 40778 Manuel utilisateur

Monoprice

Monoprice 10509 Manuel utilisateur

Monoprice

Monoprice 37923 Manuel utilisateur

Monoprice

Monoprice DARK MATTER 44710 Manuel utilisateur

Monoprice

Monoprice 6960 Mode d’emploi

Monoprice

Monoprice 15481 Manuel utilisateur

Monoprice

Monoprice Zero-G 31004 Manuel utilisateur

Monoprice

Monoprice 24656 Manuel utilisateur

Monoprice

Monoprice 31005 Manuel utilisateur

Monoprice

Monoprice Dark Matter H3C2R-HQ Manuel utilisateur

Monoprice

Monoprice 27" CrystalPro WQHD Manuel utilisateur

Monoprice

Monoprice 24659 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
