Monoprice 13808 Manuel utilisateur
13808 Manual
MONOPRICE
PID 13808
27" IPS-G Pro LED Monitor
User's Manual
AUTO MENU UP DOWNVOL+
VOL-
1 This monitor includes a Dual-Link DVI-D
input with a maximum resolution of
2560x1440. If you intend to use the DVI
input, you must have a Dual-Link DVI-D
source and must use a Dual-Link DVI-D
cable (not included). Do not use a
Single Link DVI cable.
a.
DVI Cable Notice
b.
HDMI Input Notice
Important Notices
DVI-D(Single Link)
18+1 needle DVI cable
support the resolution 1920 X 1080
DVI-D(Dual Link)
24+1 needle DVI cable
support the resolution 2560 X 1440
The HDMI® input on this monitor supports all of the features listed in the HDMI
version 1.4 specification. To enjoy these features and resolutions up to
2560x1440, your HDMI source must also support those features and resolution,
and you must use a High Speed HDMI Cable (included).
CONTENTS
1
SAFETY GUIDELINES
FEATURES
PACKAGE CONTENTS
CONNECTIONS & CONTROLS
MONITOR STAND & BASE
VIEW ANGLE ADJUSTMENT
INSTALLATION
POWER
INPUT SELECTION
ON-SCREEN DISPLAY (OSD) MENU
BASIC MENU OPERATION
TROUBLESHOOTING
SPECIFICATIONS
PRESET DISPLAY MODES
----------------------------------------------------------------- 2
-------------------------------------------------------------------------------- 3
---------------------------------------------------------------- 3
----------------------------------------------------- 3
------------------------------------------------------------ 4
-------------------------------------------------------- 5
--------------------------------------------------------------------------- 5
------------------------------------------------------------------------------------- 6
--------------------------------------------------------------------- 6
--------------------------------------------- 6
----------------------------------------------------------- 7
----------------------------------------------------------------- 14
----------------------------------------------------------------------- 16
----------------------------------------------------------- 17
To avoid personal injury or damage to your equipment, please adhere to the
following safety guidelines:
SAFETY GUIDELINES
2
Do not place the monitor on an unstable surface where it could fall and
cause personal injury or damage to the monitor or other equipment.
Do not expose the monitor to water or moisture of any kind. Do not
place objects filled with moisture such that they could tip over and spill
onto the monitor.
If the monitor is exposed to moisture, immediately unplug the power
source and allow it to completely dry out before reapplying power.
Do not block the ventilation holes on the monitor. Do not place the
monitor in an enclosed space where it cannot get adequate ventilation
or cooling.
Do not place the monitor near a heat source, such as a fireplace,
radiator, heater vent, etc.
The power supply for this monitor uses a NEMA 5-15 grounded plug.
Ensure that your power source is properly grounded. Do not use a
"cheater" plug to bypass the ground pin.
The monitor can be powered by a wide voltage range, from 100 to 240
VAC at 50 or 60 Hz, with an AC current at least 2.71A. Ensure that
your power source supplies voltage within this operating range. If your
power source is not within this operating range, please consult your
local power company.
If the monitor will be unused for a long period of time, turn it off and
unplug it from the power source. This will help prevent damage in the
event of a lightning strike or excessive power surge.
Do not attempt to open the case or service the monitor yourself.
Clean only with a soft, dry cloth. Do not use solvents or chemical
cleaners on the screen or casing.
Do not leave a single image on the display for an extended length of
time. Doing so could cause burn-in of the image, that is visible on the
screen mask. It is recommended to use a variable desktop background
and to use a screen saver to prevent burn-in. Alternatively, ensure that
the monitor is powered off for at least 2 hours out of every 12.
•
•
•
•
•
•
•
•
•
•
•
• 27" IPS monitor with LED backlighting
• 16:9 aspect ratio
• 2560 x 1440 @ 60Hz maximum resolution
• Includes VGA, HDMI, and Dual Link DVI-D input options
• Angle adjustable stand +12 ~ -3 degrees
• Built-in stereo speakers with 2 watt/channel amplifier
FEATURES
1x 27" IPS LED monitor
1x Stand base
1x AC power adapter
1x AC power cord
1x High Speed HDMI cable
1x User's manual
PACKAGE CONTENTS
3
1
CONNECTIONS & CONTROLS
2
VGA VGA port
3
DVI Dual Link DVI-D port
4
HDMI HDMI port
5
DC power connector
VGA connectorDVI connectorHDMI connector DC IN
Audio connector
DC IN
AUDIO 3.5mm stereo TRS audio jack
AUTO
1234567
VOL+ VOL- UP DOWN
1 AUTO
7 Power ON/OFF
2
VOL+ Increases the volume level
Moves the selection to the right in the menus
Auto adjusts the image
Displays the source list
3
VOL- Decreases the volume level
Moves the selection to the left in the menus
4
UP Moves the selection up in the menus
Selectable Hotkey action
5
DOWN Moves the selection down in the menus
Selectable Hotkey action
6
Edit highlighted menu/
4
MONITOR STAND & BASE
Fit the stand onto the bottom of the stand support and press firmly
until it clicks into place.
MENU
MENU Displays the main menu
Exits the main menu
5

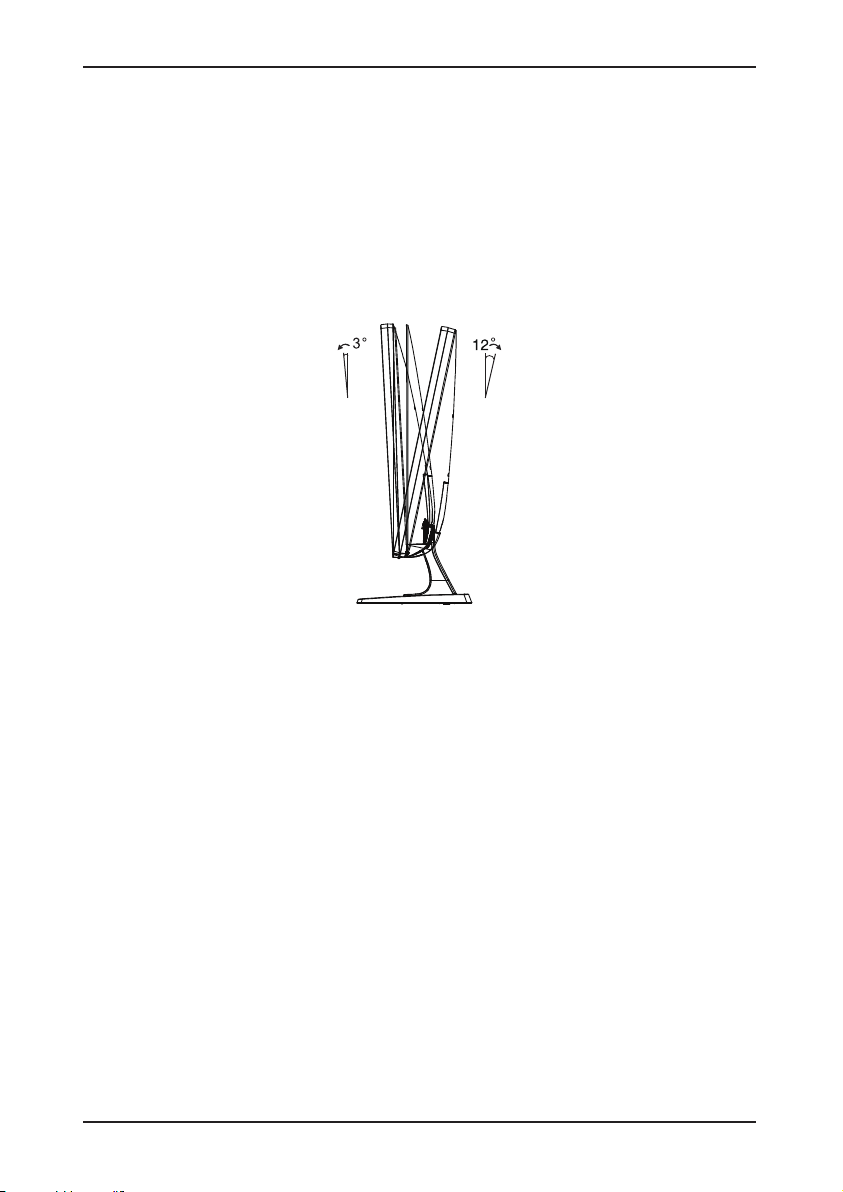

If you are using the stand and base that comes with the monitor, you can
adjust the vertical angle of the monitor from -3 degrees (down) to +12
degrees (up). To adjust the angle, grasp the top and bottom edges of the
display, taking care not to touch the glass on the front. You can use clean
gloves or soft, dry cloths to aid in grasping the display edge without touching
the screen.
VIEW ANGLE ADJUSTMENT
1. Install the base or attach the monitor to a desk or wall mount, as desired.
(See MONITOR STAND & BASE)
2. Using the included video signal cables, connect video source devices to
the appropriate ports on the back of the monitor. You can have a different
video source device for each input.
3. Plug the DC power connector into the DC IN port on the back of the
monitor.
4. Plug the AC cord into the AC adapter, then plug the other end into a power
outlet.
INSTALLATION
Press the power button to turn the monitor ON. The LED indicates the power
state:
Green - Power is ON
Red - Standby mode
Off - No power to monitor
POWER
1. Press the AUTO button to display the list of inputs.
2. Press the UP or DOWN buttons to move the red highlight to the desired
input.
3. Press the AUTO button to switch to the highlighted input.
ON-SCREEN DISPLAY (OSD) MENU
The built-in OSD menu system allows you to adjust the various settings
options on the monitor.
INPUT SELECTION
6
BASIC MENU OPERATION
MENU - The MENU button performs three basic functions, depending on the
context. If you press the MENU button with the OSD off, the OSD menu will
be displayed. If you press the MENU button again, without pressing any
other buttons, the OSD menu will close. Finally, if you press the MENU with
the OSD menu displayed AFTER moving the highlight with the UP and
DOWN buttons, the highlighted entry will be opened for editing.
UP - When the OSD menu is displayed, the pressing the UP button moves
the selection highlight up. If you press the UP button when the OSD menu is
off, it will activate the selected Hotkey function.
DOWN - When the OSD menu is displayed, the pressing the DOWN button
moves the selection highlight down. If you press the DOWN button when the
OSD menu is off, it will activate the selected Hotkey function.
VOL+ - When the OSD menu is displayed and an item has been opened for
editing, the VOL+ button increases the selected value. If the OSD menu is
off, pressing the VOL+ button increases the speaker volume.
VOL- - When the OSD menu is displayed and an item has been opened for
editing, the VOL- button decreases the selected value. If the OSD menu is
off, pressing the VOL- button decreases the speaker volume.
AUTO - If the OSD menu is displayed, pressing the AUTO button activates
7
the OSD menu. pressing the AUTO button activates the INPUT SELECTION
menu.
The BRIGHTNESS menu is the one at the top of the list. The following items
can be edited on this menu:
BRIGHTNESS - Controls the monitor's overall brightness level.
CONTRAST - Controls the monitor's contrast level.
ECO - Allows direct selection of the preset display modes. The four presets
are: Standard, Text, Movie, and Game.
DCR - Allows direct control over the use of Dynamic Contrast Ratio (DCR).
You can set it ON or OFF.
BRIGHTNESS MENU
8
