Microtek ArtixScan 1800f Manuel utilisateur

Microtek

ArtixScan 1800f

Installation and Operation Manual

Trademarks

Microtek®, ArtixScanTM, and ScanWizardTM Pro are trademarks or registered trademarks of

Microtek International, Inc. Macintosh®and Apple®are registered trademarks of Apple Com-

puter, Inc. Windows®is a registered trademark of Microsoft Corporation. Adobe®and Acrobat®are

registered trademarks of Adobe Systems Incorporated. All other products or name brands are

trademarks of their respective holders.

Important

Documents that you scan may be protected under copyright law. The unauthorized use of such

documents could be a violation of the rights of the copyright holder. Microtek bears no responsi-

bility for the unauthorized use of copyrighted materials.

To obtain optimal results from the Microtek scanning software and user's manual, you should be

familiar with such Windows concepts as pointing, clicking, dragging, and selecting from menus and

dialog boxed. If these things are new to you, refer to your Microsoft Windows User's Guide.

I49-003455 A

August 2002

Microtek Lab, Inc.

16941 Keegan Avenue

Carson, CA 90746

USA

TEL: 310-687-5800

http://www.microtekusa.com

Microtek International, Inc.

No. 6, Industry East Road 3

Science-Based Industrial Park

Hsinchu 300, Taiwan

TEL: +886-3-5772155

FAX: +886-3-5772598

http://www.microtek.com

Microtek Europe B.V.

Klompenmaker Str. 76

3194DE Hoogvliet-RT

The Netherlands

TEL: +31-10-242-5688

FAX: +31-10-242-5699

http://www.microtekeurope.com

iii

Contents

Introduction 1

System Requirements ........................................................................ 1

Environmental Requirements ............................................................ 2

Unpacking the Scanner 3

Taking a Closer Look .......................................................................... 4

Unlocking the Scanner ....................................................................... 5

Shipping the Scanner .................................................................. 5

Installation 6

Installing the Scanner Software ........................................................ 6

Connecting the Scanner toYour Computer ........................................ 7

Using the FireWire Cable .............................................................. 7

Using the USB Cable .................................................................... 9

Positioning Your Originals 11

Positioning Reflective Materials ....................................................... 11

PositioningTransparent Film ........................................................... 12

Using the Glass Holder .............................................................. 13

Using the Other Film Holders .................................................... 14

A. Using the 35mm Slide Holder ........................................ 15

B. Using the 35mm Filmstrip Holder .................................. 15

C. Using the 6 x 9 cm Film Holder ...................................... 17

D. Using the 4

x 5

Film Holder ........................................ 18

Your First Scan 19

Performing Color Calibration 21

The Color CalibrationTarget ............................................................ 21

PositioningYourTarget ..................................................................... 21

A. Positioning the ReflectiveTarget............................................ 22

B. Positioning theTransparentTarget ......................................... 22

CalibratingYourTarget ..................................................................... 23

Loading a Profile .............................................................................. 24

Specifications 25

Additional Documentation in the CD-ROM 25

Federal Communications Commission Interference Statement 26

ArtixScan 1800f Installation and Operation Manual 1

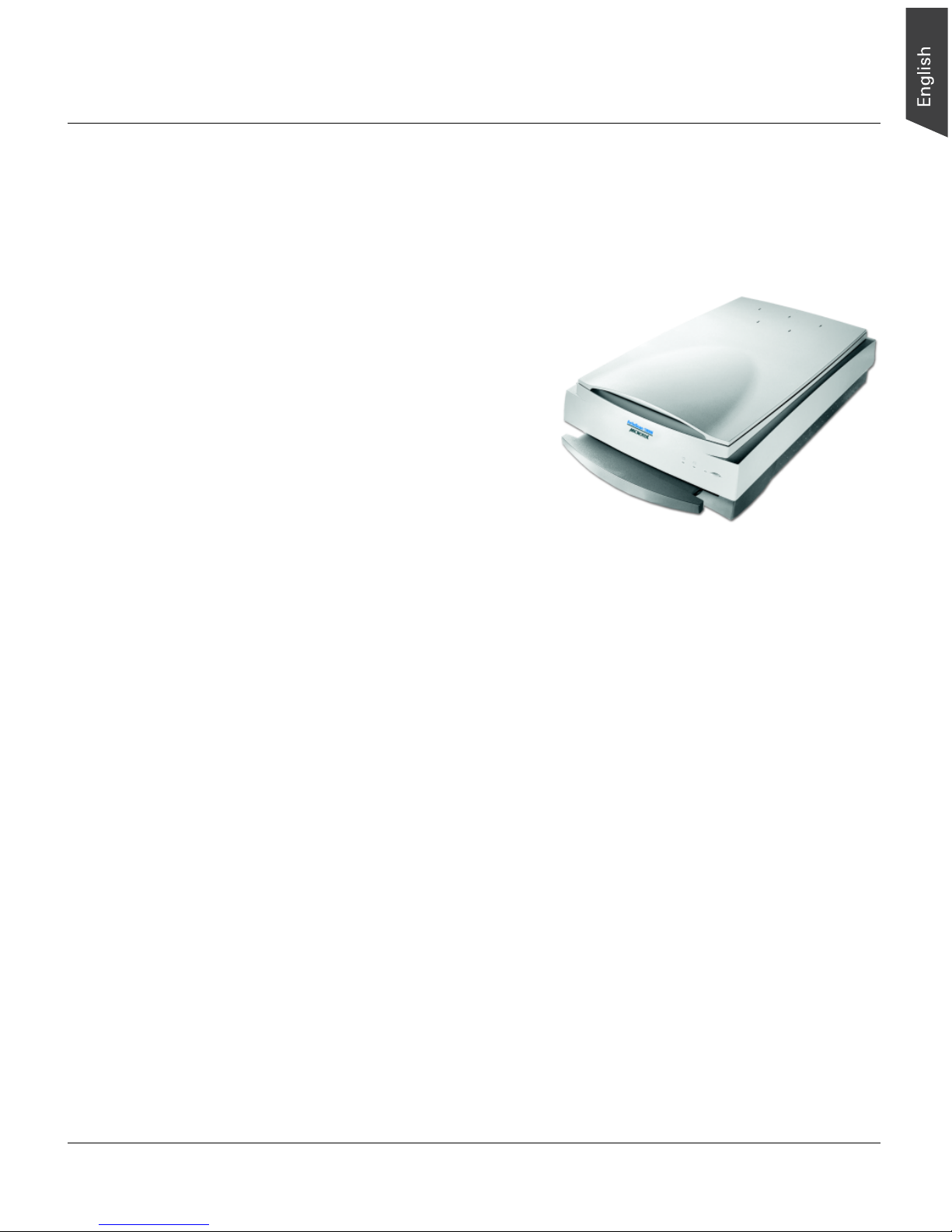

Introduction

TheArtixScan1800fisasingle-pass,dualinterface(FireWireandUSB2.0),48-bit,

high-resolution scanner with two scanning beds — the upper bed for scanning

reflective materials such as photos and prints, and the lower bed for scanning

transparent media such as film, slides, and filmstrips. The ArtixScan 1800f is

specifically designed for graphic arts and imaging professionals.

This manual will help you in the

installation and operation of your

scanner, and the information provided

covers both Macintosh and PC

environments.

System Requirements

• CD-ROMdrive(forinstallingsoftware)

• Color display with 24-bit color output capability

• 128MBRAMormorerecommended

FireWire

• PC - Pentium II or later with built-in FireWire port or FireWire card installed

-Windows98SE,2000,Me,orXP

• Mac -iMacDV or new G3/G4 with built-in FireWiresupport

-Mac OS9.x

USB2.0 (USB2.0featuresbackwardcompatibilitytoUSB 1.1)

• PC - Pentium II or later with USB 1.1 port or with USB 2.0 card installed

-Windows98, 2000, Me, or XP

• Mac - iMacorG3/G4 with built-in USB1.1 port

-Mac OS 8.6,or 9.x

2 ArtixScan 1800f Installation and Operation Manual

Environmental Requirements

Before unpacking your scanner, make sure that the location where the scanner will be

installed is large enough to allow for easy operation.

• Make sure that the operating environment for the scanner is free of dust and other

contaminants.

• Allow adequate ventilation space (no less than 38.1"or 15 cm) around the

scanner.

• Place the scanner on a flat, stable surface that is not subject to vibration.

• Make sure that the scanning surface will not be exposed to direct sunlight or other

sources of bright light.

• Avoid placing the scanner close to sources of extreme cold or heat.

• Avoid connecting the scanner to a power source that might experience power

surges.

• Avoid positioning the scanner in the path of heavy traffic where it may get

bumped.

• Place the scanner within 3 feet of the computer. Use the FireWire cable or the USB

2.0 cable that came with your scanner.

Once the scanner has been placed in a suitable location and is ready to be connected

to the host computer, it is time to proceed with installation of the necessary hardware

and software components for the scanner.

ArtixScan 1800f Installation and Operation Manual 3

Unpacking the Scanner

While unpacking the scanner, inspect the shipping carton for any signs of

mishandling or damage. Your scanner’s packing carton and padding material have

been carefully chosen to prevent damage to the unit in shipping and can withstand a

reasonable amount of pressure.

Refer to the enclosed packing list to ensure that you received all of the parts

necessary for scanner setup. If there are any damaged or missing parts, contact

Microtek's customer service department.

1. ArtixScan 1800f scanner

2-1. FireWire card

2-2. FireWire cable

2-3. USB 2.0 cable (backward compatibility to USB 1.1)

2-4. Power cord

2-5. Microtek CD-ROM (ScanWizard Pro)

2-6. Documentation: includes ArtixScan 1800f

Installation and Operation Manual, ScanWizard Pro

User’s Guide, ScanWizard Pro Quick Reference, and

other inserts.

3-2

3-3

3-4

3-5

3-1

2-3

2-1

2-2

2-6

2-5

FireWire

1.1

1.2

1.1

1.2 2.2

2.1

1.1 2.1

2.2

2.3

2.4

2.5

2.6

1.2

1.3

1.5

1.6

1.4

1.1

1.2

2.1

2.2

2.3

2.4

3.1

3.2

3.3

3.4

1.3

1.4

3-6

3-1. Glass Holder

3-2. 35mm Slide Holder

3-3. 35mm Filmstrip Holder

3-4. 6 x 9 cm Film Holder

3-5. 4

x 5

Film Holder

3-6. Main Holder

3-7. Vinyl Strip (10 pcs)

2-4

3-7

4 ArtixScan 1800f Installation and Operation Manual

Horizontal ruler

Scanner lid

Glass surface

(Upper scan bed)

Vertical ruler

Taking a closer look

Transparency tray

(Lower scan bed) Power button

Power indicator (green)

Transparency Ready indicator

(amber)

Reflective Ready indicator

(amber)

FireWire ports (2)

USB 2.0 port (1)

Power connector

ArtixScan 1800f Installation and Operation Manual 5

Unlocking the Scanner

Before you start to operate the scanner, the scanner should be unlocked. To unlock

the scanner, follow the steps below:

1. Look for the unlocking screw at the bottom

of the scanner.

2. Using a screwdriver or a coin, push and

turn the locking screw counterclockwise to

the unlock position.

When successfully unlocked, the screw

will push out a little, protruding slightly

from the bottom of the scanner.

Shipping the Scanner

If you have to transport the scanner, the scanner must be locked. To lock the scanner,

follow the steps below:

1. Turn off the scanner if your scanner is on.

2. Turn the scanner back on. The scanner’s

carriage will move to the standby position

in 5 minutes.

3. When the indicators on the front of your

scanner stop blinking, use a screwdriver or

a coin and then push and turn the locking

screw clockwise to the locked position.

When the screw has been tightened, this

indicates that your scanner is locked.

4. Turn off your scanner. The scanner is now

ready for transport.

6 ArtixScan 1800f Installation and Operation Manual

Installation

This section provides information on the scanner connection procedures.

Installing the Scanner Software

Before connecting the scanner to your computer, follow the steps below to install the

scanner software:

1. Turn on your computer.

2. Insert the Microtek CD-ROM into your CD-ROM drive.

ForMacintoshusers:*

When the Microtek CD-ROM icon appears on your Macintosh desktop, double-

click on this icon to open it. The software installer screen should appear, and click

each software program on the screen to install all the software components.

Double-click the “Install” icon on each folder to install the respective programs one

at a time.

ForPCusers:

The Microtek Scanner Software installer screen should automatically come up.

When the software installer screen appears, click each software program in the

order that it appears on the screen to install all the software components.

When you install ScanWizard Pro, the installer program will install the Color

Matching System driver program and ask you to perform Color Matching for your

monitor and printer. The Color Matching System feature ensures color consistency

from the initial input phase when an image is captured by the scanner, to the final

output process when the image is output to your monitor or printer.

Note: If the software installer screen does not come up automatically, double-

click the following in succession: “My Computer” on your Windows desktop; the

CD-ROM icon; and then cdsetup.exe to start the installer program.

3. Restart your computer when the software installation is complete.

*Caution:

For Macintosh users,

1. Make sure the additional software you have is already installed in your computer

before installing the scanner software.

2. Make sure that all virus protection software is turned off before installing the

scanner software. Once the scanner software installation is finished, remember to

re-enable the virus protection software.

3. For iMac users, please visit Apple's website at http://www.apple.com/imac/to

download and install any iMac updates you may require.

Autres manuels pour ArtixScan 1800f

Table des matières

Autres manuels Microtek Scanner

Microtek

Microtek ScanMaker i800 Manuel utilisateur

Microtek

Microtek ScanMaker i700 Manuel utilisateur

Microtek

Microtek ArtixScan DI 2020 Manuel utilisateur

Microtek

Microtek ArtixScan F1 Mode d’emploi

Microtek

Microtek ArtixScan DI 6260S Mode d’emploi

Microtek

Microtek ArtixScan1200DF Manuel utilisateur

Microtek

Microtek LS-4600 Manuel utilisateur

Microtek

Microtek ScanMaker 3740 Manuel

Microtek

Microtek ArtixScan 120tf Manuel utilisateur

Microtek

Microtek ArtixScan 1200DF Mode d’emploi

Microtek

Microtek ScanMaker 1000XL Plus Manuel utilisateur

Microtek

Microtek ScanMaker 3700 Manuel utilisateur

Microtek

Microtek ArtixScanDI 8040c Manuel utilisateur

Microtek

Microtek ScanMaker 5950 Manuel utilisateur

Microtek

Microtek ScanMaker V6USL Manuel utilisateur

Microtek

Microtek ArtixScanDI 5230 Manuel utilisateur

Microtek

Microtek ArtixScan 2500 Manuel utilisateur

Microtek

Microtek ObjectScan 1600 Manuel utilisateur

Microtek

Microtek ArtixScan DI 2020 Instructions de montage

Microtek

Microtek Bio-1000F Manuel utilisateur

Microtek

Microtek ScanMaker X12USL Manuel utilisateur

Microtek

Microtek ArtixScanDI 6240S Manuel utilisateur

Microtek

Microtek XT6060 Mode d’emploi

Microtek

Microtek Artix Scan1100 Manuel d'installation

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
