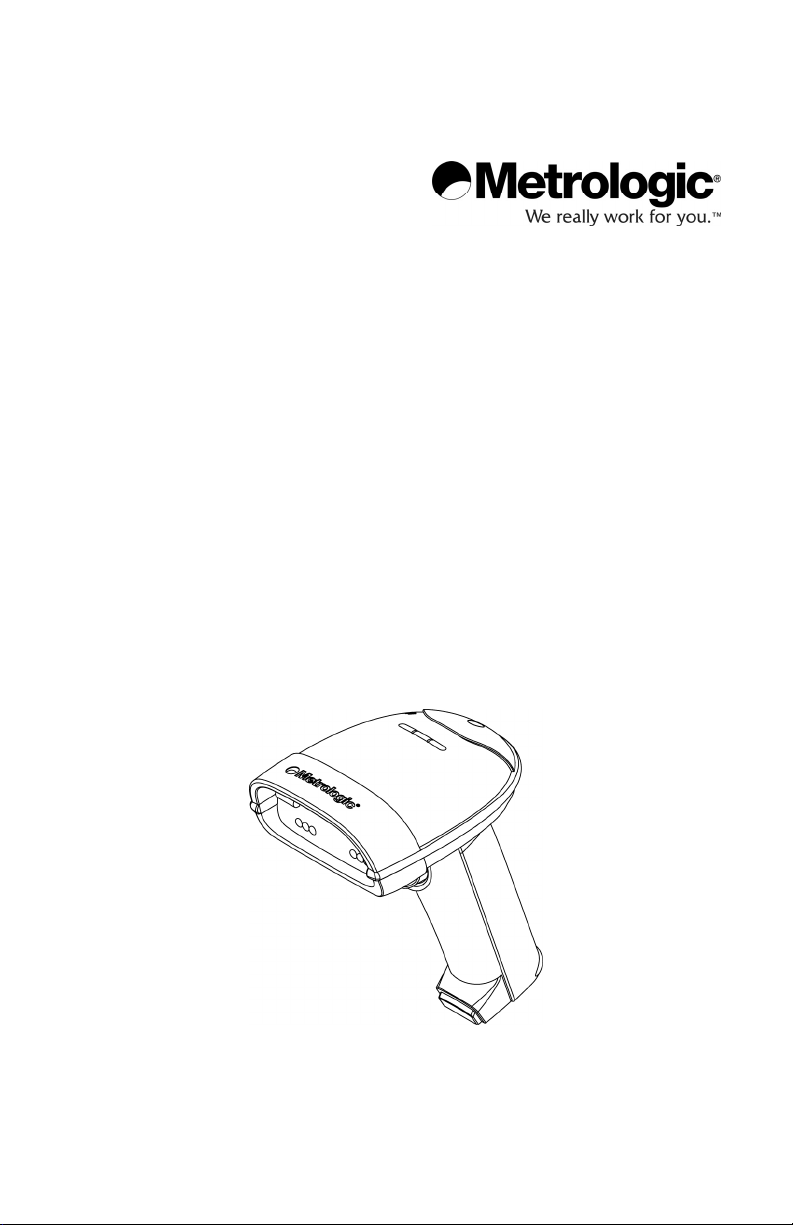

Metrologic MS1633 FocusBT Manuel utilisateur

METROLOGIC INSTRUMENTS, INC.

MS1633 FocusBT

™with

Bluetooth®Wireless Technology

Area Imaging Bar Code Scanner

Installation and User’s Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.

and any use of such marks by Metrologic Instruments, Inc. is under license.

Other trademarks and trade names are those of their respective owners.

TABLE OF CONTENTS

Introduction

Product Overview ............................................................................................. 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 3

Labels............................................................................................................... 4

Maintenance..................................................................................................... 5

Getting Started

Battery Tips and Cautions ................................................................................ 6

Charger Status Indicators................................................................................. 6

Charging the Battery ........................................................................................ 7

Battery Installation............................................................................................ 8

Low Battery Warning ........................................................................................ 8

Removing the Battery for Charging .................................................................. 8

Driver Installation

Driver Installation for USB Adapter with Bluetooth Technology........................ 9

Auto Reconnect Driver Setup......................................................................... 12

FocusBT Connection Configuration................................................................ 14

Establishing Communication via Bluetooth Technology

When FocusBT Acts as a Server to Other Devices........................................ 16

When FocusBT Acts as a Client to Other Devices ......................................... 17

When FocusBT is Used with an MS9535 Cradle............................................ 18

Range Gate Mode .......................................................................................... 18

Inventory Mode............................................................................................... 19

Stand Kits

Stand Components, MLPN 46-00147............................................................. 20

Hard Mounting the Stand................................................................................ 21

Assembling the Stand .................................................................................... 22

iii

TABLE OF CONTENTS

Scanner Operation

Two Default Modes of Operation.................................................................... 23

Audible Indicators........................................................................................... 24

Visual Indicators ............................................................................................. 25

Failure Modes................................................................................................. 26

Depth of Field by Minimum Bar Code Element Width .................................... 27

IR Activation Range........................................................................................ 28

Troubleshooting Guide ....................................................................................... 29

Design Specifications ......................................................................................... 33

Default Settings – Communication Parameters.................................................. 35

Configuration Modes .......................................................................................... 37

Upgrading the Flash ROM Firmware.................................................................. 38

Limited Warranty ................................................................................................ 39

Regulatory Compliance

Safety ............................................................................................................. 40

EMC ............................................................................................................... 41

Patents ............................................................................................................... 43

Index .................................................................................................................. 44

Contact Information and Office Locations........................................................... 46

INTRODUCTION

Product Overview

FocusBT™ is an Area Imager enabled with Bluetooth®wireless technology that

outperforms the competition by integrating advanced features to both hand-held

and presentation mode scanning such as FirstFlash®scanning, automatic aim

line, object detection and RangeGate®to optimize efficiency and productivity

while providing the freedom of mobility.

FocusBT has been designed with a removable battery pack for remote charging

to decrease down time caused by having a dead battery. Two battery packs are

supplied so the user can simultaneously scan while remotely charging the spare

battery. The benefits of this feature are 24/7 scanning and increased throughput

for all enterprise applications.

FocusBT is the industry leader in Area Imaging and the added benefits of

Bluetooth technology along with a rich feature set, make it the scanner of choice

for 2D wireless applications.

FocusBT

™Interface

MS1633 – 5

BT Interface 1.2

Bluetooth technology Profile Supported:

SPP (Serial Port Profile)

Decoding and functional capability of the unit is restricted through the

use of license numbers provided by Metrologic. Units will not support

key features such as, but not limited to, the ability to decode PDF, 2D or

OCR fonts without the proper licenses. Desired licenses can be

specified at the time of sale or call a Metrologic representative for more

information. Standard models ship with the ability to read all 1D, PDF

and 2D bar codes. OCR fonts are disabled by default and must be

specifically requested at an additional cost.

www.metrologic.com2

INTRODUCTION

Scanner and Accessories

BASIC KIT

Part # Description Qty.

MS1633 MS1633 FocusBT Area Imaging Bar Code Scanner 1

70-72018 Li-Ion Battery Pack 2

46-00358 Battery Charger 1

00-05176 USB BT adaptor 1

00-02544 MetroSelect®Single-Line Configuration Guide* 1

00-02281 Supplemental Configuration Guide* 1

46-00374 Software CD 1

00-02280 MS1633 FocusBT Installation and User’s Guide* 1

* Available on the Metrologic website - www.metrologic.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer - 5.2VDC @ 2 A output.

46-46915 120V United States

46-46913 220V-240V Continental European

46-46912 220V-240V United Kingdom

46-46914 220V-240V Australia

46-46911 220V-240V China

00-02001 MS1633 Focus Stand (46-00147) Installation Guide

46-00147 Modular Presentation Stand

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

Scanner and Charger Components

Figure 1. Scanner and Charger Components

Item Description

1 Yellow LED See Visual Indicators (on page 25)

2 White LED See Visual Indicators (on page 25)

3 Blue LED See Visual Indicators (on page 25)

4 Speaker See Audible Indicators (on page 24)

5 Trigger

6 Red Window LED Aperture

7 Power Button See Charging the Battery (on page 8)

8 Blue Power LED See Charging the Battery (on page 7)

9 Battery Pack See Battery Installation (on page 8)

10 Lock See Battery Installation (on page 8)

11 Power Jack See Battery Installation (on page 8)

12 Charging Contacts See Battery Installation (on page 7)

13 Blue Power LED See Charger Status Indicators (on page 6)

14 White Charge LED See Charger Status Indicators (on page 6)

www.metrologic.com4

INTRODUCTION

Labels

Each scanner has a label located on the underside of the head. This label

provides the unit’s model number, date of manufacture, serial number, CE and

caution information. The charger, the USB Adapter and the battery also have

labels with important safety and compliance information. The following figure

provides examples of these labels and their locations.

Figure 2. Label Locations and Samples

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must

meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.

To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and norm

EN/IEC 60950-1, the power source should meet applicable performance requirements for a

limited power source.

INTRODUCTION

Maintenance

Smudges and dirt on the unit's window can interfere with the unit's performance.

If the window requires cleaning, use only a mild glass cleaner containing no

ammonia. When cleaning the window, spray the cleaner onto a lint free, non-

abrasive cleaning cloth then gently wipe the window clean.

If the unit's case requires cleaning, use a mild cleaning agent that does not

contain strong oxidizing chemicals. Strong cleaning agents may discolor or

damage the unit's exterior.

www.metrologic.com6

GETTING STARTED

Battery Tips and Cautions

Before the FocusBT can be placed in operation the battery pack must be

charged for a minimum of 8 hours. After the initial preparation charge of

8 hours, the battery will only require 6 hours to come to a full charge when it

gives a Low Battery warning (see page 8). Follow the steps on page 7 to fully

charge the battery.

Once charged, the unit is able to handle 5400 continuous first pass readings over

a period of approximately 9 hours. After 30 seconds of no activity the scanner

will go into a sleep mode to conserve battery life.

Caution

Observe proper precautions when handling batteries.

Batteries may leak or explode if improperly handled. Observe the following

precautions when handling batteries for use in this product:

•Be sure the battery is turned off before replacing the battery.

•Be sure the battery is turned off when installed in the charger.

•Use only batteries approved for use in this equipment.

Do not mix old and new batteries or batteries of different types.

•Do not attempt to insert the battery upside down or backwards.

•Do not short or disassemble the battery.

•Do not expose the battery to flame or excessive heat.

•Do not immerse the battery in water or expose it to water.

•Do not transport or store with metal objects such as necklaces or hairpins.

•Batteries are prone to leakage when fully discharged.

To avoid damage to the product, be sure to remove the battery when no

charge remains.

•When not in use store the battery in a cool dry place.

•Discontinue use immediately should you notice any changes in the

battery, such as discoloration or deformation.

•Please recycle used batteries in accordance with local regulations.

Charger Status Indicators

There are two status indicators on the front of the charger located under the

Metrologic Logo. The following table lists how these indicators will illuminate

depending on the status of the charger.

CHARGER STATUS BLUE LED (PW) WHITE LED (CH)

Charging On Blinking

Fully Charged On Solid

Power On On OFF

Power Off OFF OFF

Autres manuels pour MS1633 FocusBT

Table des matières

Autres manuels Metrologic Lecteur de codes-barres

Metrologic

Metrologic MS 1690 Focus Series Manuel utilisateur

Metrologic

Metrologic MS9500 Voyager Series Manuel utilisateur

Metrologic

Metrologic MS9520 Voyager Manuel utilisateur

Metrologic

Metrologic MS7320 InVista Series Manuel utilisateur

Metrologic

Metrologic IS3480-00 Manuel utilisateur

Metrologic

Metrologic Cubit MS6520 Series Manuel utilisateur

Metrologic

Metrologic MS 1690 Focus Series Manuel utilisateur

Metrologic

Metrologic MS9500 Voyager Series Manuel utilisateur

Metrologic

Metrologic TECH 7 MS770 Manuel utilisateur

Metrologic

Metrologic S4800 microQuest Series Manuel utilisateur

Metrologic

Metrologic MS7120 Orbit Manuel utilisateur

Metrologic

Metrologic Orbit MS7100 Manuel utilisateur

Metrologic

Metrologic Eclipse MS5145 Manuel utilisateur

Metrologic

Metrologic MS7820 Solaris Manuel utilisateur

Metrologic

Metrologic MS9500 Voyager Series Manuel utilisateur

Metrologic

Metrologic MS9530 Series Manuel utilisateur

Metrologic

Metrologic MS700i Manuel utilisateur

Metrologic

Metrologic Fusion MS3780 Manuel utilisateur

Metrologic

Metrologic MK5145-31A38 Manuel utilisateur

Metrologic

Metrologic MS860i Mini-Slot Manuel utilisateur

Metrologic

Metrologic Genesis MS7580 Manuel utilisateur

Metrologic

Metrologic Tire and Rubber Guide de l'utilisateur

Metrologic

Metrologic MK1690-61A38 Manuel utilisateur

Metrologic

Metrologic MS9500 Voyager Series Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
