Metrologic MS1633 FocusBT Cordless

2D Scanner Installation Guide

Revision 1.0

2 MS1633 Focus BT Scanner Installation Guide

reproduced or transmitted without the express written consent of Cerner Corporation.

Revision History

1.0 05/03/2007 – Initial Release

The latest version of this document can be found in the following places:

•Internally for Cerner associates in the Cerner Knowledge Repository (KR) using the

search function with the keywords: Metrologic or MS1633

•Internally for Cerner associates on “My Cerner” using the search function with the

keywords: Metrologic or MS1633

•Externally for clients and Cerner associates on www.cerner.com under the Support tab,

Millennium Infrastructure Documentation, Peripherals, Bar-Code Scanners, Metrologic.

MS1633 Focus BT Scanner Installation Guide 3

reproduced or transmitted without the express written consent of Cerner Corporation.

Table of Contents

Revision History............................................................................................................2

Table of Contents..........................................................................................................3

Overview ........................................................................................................................4

LED and Beep Meanings ..................................................................................................5

Metrologic MS1633 Scanner Setup (USB CodeXML Modem)....................................6

Cerner Millennium Configuration.......................................................................................6

Cerner Classic Configuration............................................................................................8

Metrologic MS1633 Scanner Setup (USB Bluetooth Adapter).................................10

MetroBT Driver Installation..............................................................................................10

MetroBT Utility Installation ..............................................................................................15

SoftWedge Installation....................................................................................................17

MS1633 FocusBT Connection Setup..............................................................................21

Testing MS1633 FocusBT Scanner Connection.............................................................26

Setting up the Scanner for Cerner Millennium Applications............................................26

Setting up the Scanner for Cerner Classic Applications .................................................26

Metrologic MS1633 Scanner Setup (Keyport for Bluetooth) ...................................27

Installing Keyport Bluetooth ............................................................................................27

MS1633 FocusBT Connection Setup..............................................................................31

Testing MS1633 FocusBT Scanner Connection.............................................................33

Setting up the Scanner for Cerner Millennium Applications............................................34

Setting up the Scanner for Cerner Classic Applications .................................................34

Symbology Selection..................................................................................................35

Miscellaneous Optional Setup Procedures...............................................................37

Hands Free (Presentation) Mode....................................................................................37

Setting “Beep” Tone........................................................................................................38

Reset Scanner to Factory Defaults.................................................................................38

Show Firmware Revision ................................................................................................39

Sample Bar Codes.......................................................................................................40

“Linear” Sample Bar codes .............................................................................................40

“2D” Sample Bar codes...................................................................................................41

Metrologic FocusBT Cordless 2D

Scanner Installation Guide

Overview

This guide provides a Cerner-specific installation methodology for the following Metrologic

scanner model.

Model Kit Part Number Description

MS1633-5 MK1633-61B40

MS1633 FocusBT Cordless 2D Scanner with USB

CodeXML Bluetooth Modem

MS1633-5 MK1633-61B05

MS1633 FocusBT Cordless 2D Scanner with

Class2 USB Bluetooth Adapter

Verify the scanners model number by comparing the “Model” and the type located on the bottom

of the scanner to the ones listed above. You also can compare the number on the box the

scanner came in with the kit part number above. If the numbers do not match then this

document should not be used to set up the scanner.

To determine your scanners model number see the above two circles.

In this example the model number is: MS1690-47

This documentation should be used in place of the manufacturers’ documentation. The

manufacturer’s documentation is provided with the scanner in the event that it might be needed

at a later date. It is assumed that the reader understands how to attach peripheral devices and

load software on Windows®based PCs. If you need additional assistance, contact your

institution’s help desk, your Cerner account team or Cerner’s Client Care Team in Kansas City

Missouri call 816-201-9800 or toll free at (866) 221-8877 for assistance.

4 MS1633 Focus BT Scanner Installation Guide

reproduced or transmitted without the express written consent of Cerner Corporation.

MS1633 Focus BT Scanner Installation Guide 5

reproduced or transmitted without the express written consent of Cerner Corporation.

LED and Beep Meanings

The MS1633 has three LED indicators (yellow, white and blue) located on the top of the

scanner. When the scanner is on, the flashing or stationary activity of the LED’s indicates the

status of the current scan and the scanner. The Beep also indicates the status of the scans.

Normal Operation Feedback

LED Beep Meaning

None None Scanner not powered on or no barcode being scanned.

Steady Yellow None Scanner is in the presentation stand.

Steady Blue None The blue LED is illuminated when the scanner is active and linear

illumination is on or when the scanner is attempting to decode a

barcode.

Steady Blue &

Single White Flash 1 Beep When the scanner successfully reads a bar code it will beep once and

the White LED will turn on indicating data is being transmitted.

Steady White 1 Beep When the scanner successfully reads a bar code it will beep once and

the White LED will turn on indicating data is being transmitted. If the

host is not ready to accept the information, the scanner’s white LED

will remain on until the data can be transmitted.

Alternating

Flashing Blue and

White

None This indicates the scanner is in configuration mode. A short razzberry

tone indicates that an invalid bar code has been scanned while in this

mode.

Flashing Blue None The blue LED will flash if the trigger is pressed while the scanner is in

the in-stand presentation mode. The blue LED will stop flashing after a

brief period of time.

Long Razzberry

Tone – During

Power Up

Failed to initialize or configure the scanner. If the scanner does not

respond after reprogramming, return the scanner for repair.

Short Razzberry

Tone – Durring

Scanning

An Invalid bar code has been scanned when in configuration mode or

the trigger has been pulled too fast.

3 Beep after

power up Scanner ready for use.

White LED Flash 3 Beeps in

Configuration

Mode

Scanner has entered configuration mode.

3 beeps – Med /

High / Low When using single code configuring this 3 beeps indicate that the

barcode successfully configured the scanner.

3 Beeps in

Normal Mode Communication Error

2 beeps Low /

High Bluetooth connection has been made

2 beeps High /

Low Bluetooth connection has been disconnected

Flashing Blue Double Razz

Tone When the Bluetooth communication link is not active, the scanner will

emit a double razz tone and the Blue LED will start to flash. This can

occur when the scanner is out of Bluetooth communication range from

the host system and the RangeGate feature is disabled.

Metrologic MS1633 Scanner Setup (USB CodeXML Modem)

Cerner Millennium Configuration

If you are installing your MS1633 scanner using the USB CodeXML Modem on your PC running

in a Cerner Millennium environment please perform the following steps. If you are installing

your MS1633 scanner using the Metrologic USB Bluetooth adapter please move to that section

of this document as the instructions in this section are not designed for your scanner.

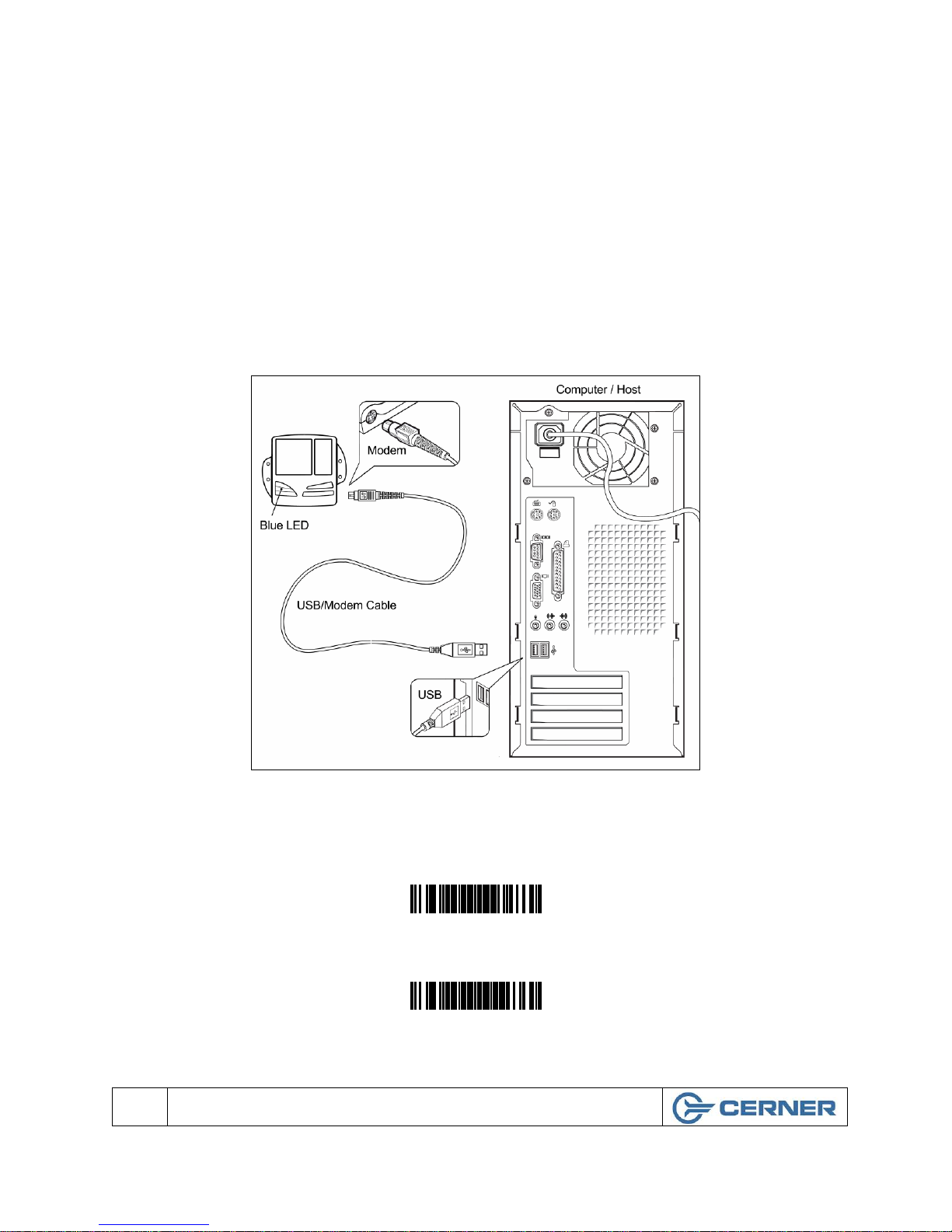

1. Connect the USB interface cable to the CodeXML Modem and to an unused USB port

on the PC or thin client.

2. Make sure your scanner is fully charged and powered on.

3. Scan the following barcode in the order they appear.

³999998

Factory Defaults

³999999

Enter/Exit Config Mode

6 MS1633 Focus BT Scanner Installation Guide

reproduced or transmitted without the express written consent of Cerner Corporation.

Cerner Millennium Configuration (Continued)

³116603

Disable CR Suffix

³116602

Disable LF Suffix

³125617

Enable CodeXML Protocol

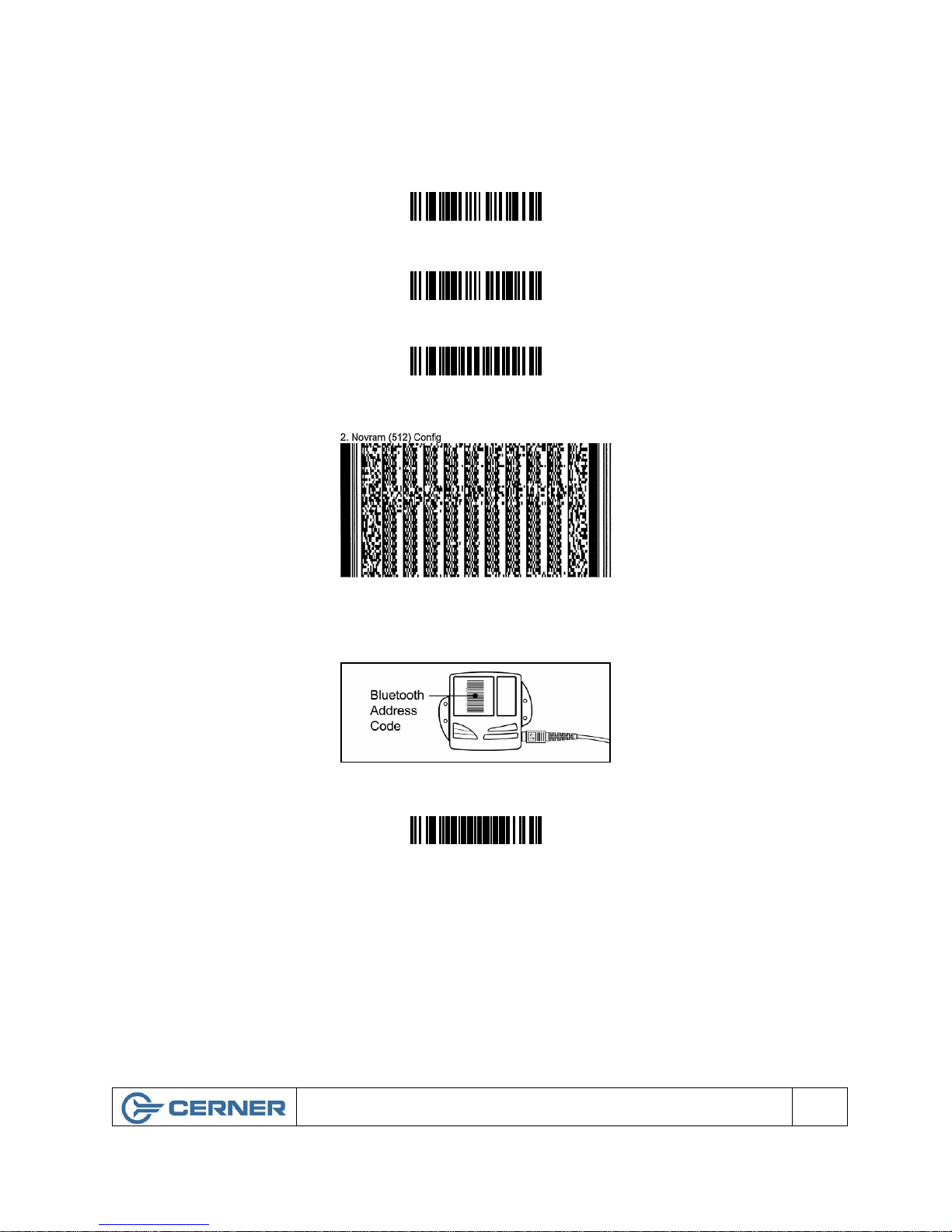

4. Next scan the “Bluetooth Address Code” Barcode on the top of the CodeXML Modem.

³999999

Enter/Exit Config Mode

Note: Please wait for a Low / High beep before proceeding. (About 10 seconds)

At this point the scanner is configured for the Cerner Millennium environment using a Horizontal

TAB suffix.

Please proceed to the section titled “Symbology Selection”

MS1633 Focus BT Scanner Installation Guide 7

reproduced or transmitted without the express written consent of Cerner Corporation.

Metrologic MS1633 Scanner Setup (USB CodeXML Modem)

Cerner Classic Configuration

If you are installing your MS1633 scanner using the USB CodeXML Modem on your PC running

in a Cerner Classic environment please perform the following steps. If you are installing your

MS1633 scanner using the Metrologic USB Bluetooth adapter please move to that section of

this document as the instructions in this section are not designed for your scanner.

1) Connect the USB interface cable to the CodeXML Modem and to an unused USB port

on the PC or thin client.

2) Make sure your scanner is fully charged and powered on.

3) Scan the following barcode in the order they appear.

³999998

Factory Defaults

³999999

Enter/Exit Config Mode

8 MS1633 Focus BT Scanner Installation Guide

reproduced or transmitted without the express written consent of Cerner Corporation.

Cerner Classic Configuration (Continued)

³116603

Disable CR Suffix

³116602

Disable LF Suffix

³125617

Enable CodeXML Protocol

4) Next scan the “Bluetooth Address Code” Barcode on the top of the CodeXML Modem.

³999999

Enter/Exit Config Mode

Note: Please wait for a Low / High beep before proceeding. (About 10 seconds)

At this point the scanner is configured for the Cerner HNA Classic environment using a Carriage

Return suffix.

Please proceed to the section titled “Symbology Selection”

MS1633 Focus BT Scanner Installation Guide 9

reproduced or transmitted without the express written consent of Cerner Corporation.

Metrologic MS1633 Scanner Setup (USB Bluetooth Adapter)

If you are installing your MS1633 scanner using the Metrologic USB Bluetooth Adapter on your

PC please perform the following steps. If you are installing your MS1633 scanner using the

USB CodeXML Modem please move to that section of this document as the instructions in this

section are not designed for your scanner.

To install the Metrologic MS1633 FocusBT scanner with a Bluetooth adapter you will need to

load 3 software applications on your PC. These applications are on the CD that came with your

scanner.

MetroBT Driver, MetroBT Utility, SoftWedge

Note: This installation document is used as a guide, the information should be the same but the

screens may very.

MetroBT Driver Installation

1) Load the included FocusBT CD into the CD-ROM drive on the host / computer.

2) If the CD-ROM does not automatically open, click on the window’s Start button, choose

Run, then click Browse to locate and open the CD-ROM drive. Double-Click on the

Metrologic.exe file then click OK.

3) Click on the MetroBT Driver button to begin the installation.

10 MS1633 Focus BT Scanner Installation Guide

reproduced or transmitted without the express written consent of Cerner Corporation.

Autres manuels pour MS1633 FocusBT

Table des matières

Autres manuels Metrologic Lecteur de codes-barres

Metrologic

Metrologic MK5145-31A38 Manuel utilisateur

Metrologic

Metrologic MS9520 Voyager Manuel utilisateur

Metrologic

Metrologic IS4220 ScanGlove Manuel utilisateur

Metrologic

Metrologic ScanQuest IS4110 Manuel utilisateur

Metrologic

Metrologic MS9590 VOYAGERGS series Manuel utilisateur

Metrologic

Metrologic MS9530 Series Manuel utilisateur

Metrologic

Metrologic FocusE IS1650 Manuel utilisateur

Metrologic

Metrologic MLPN 2168 Manuel utilisateur

Metrologic

Metrologic Quantum T MS3580 Manuel utilisateur

Metrologic

Metrologic IS4320-41 ScanKey Manuel utilisateur

Metrologic

Metrologic IS3480-00 Manuel utilisateur

Metrologic

Metrologic MetroSelect Manuel utilisateur

Metrologic

Metrologic S4800 microQuest Series Manuel utilisateur

Metrologic

Metrologic MS7600 Manuel utilisateur

Metrologic

Metrologic StratosS MS2220 Manuel utilisateur

Metrologic

Metrologic MS7120 Orbit Manuel utilisateur

Metrologic

Metrologic MK1650-62B14 - Metrologic IS1650 - Wired Stationary Barcode... Manuel utilisateur

Metrologic

Metrologic MS9500 Voyager Series Manuel utilisateur

Metrologic

Metrologic Fusion MS3780 Manuel utilisateur

Metrologic

Metrologic Eclipse MS5145 Manuel utilisateur

Metrologic

Metrologic MS7120 Series Manuel utilisateur

Metrologic

Metrologic MS9530 Series Manuel utilisateur

Metrologic

Metrologic MS6720 Manuel utilisateur

Metrologic

Metrologic MS6720 Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
