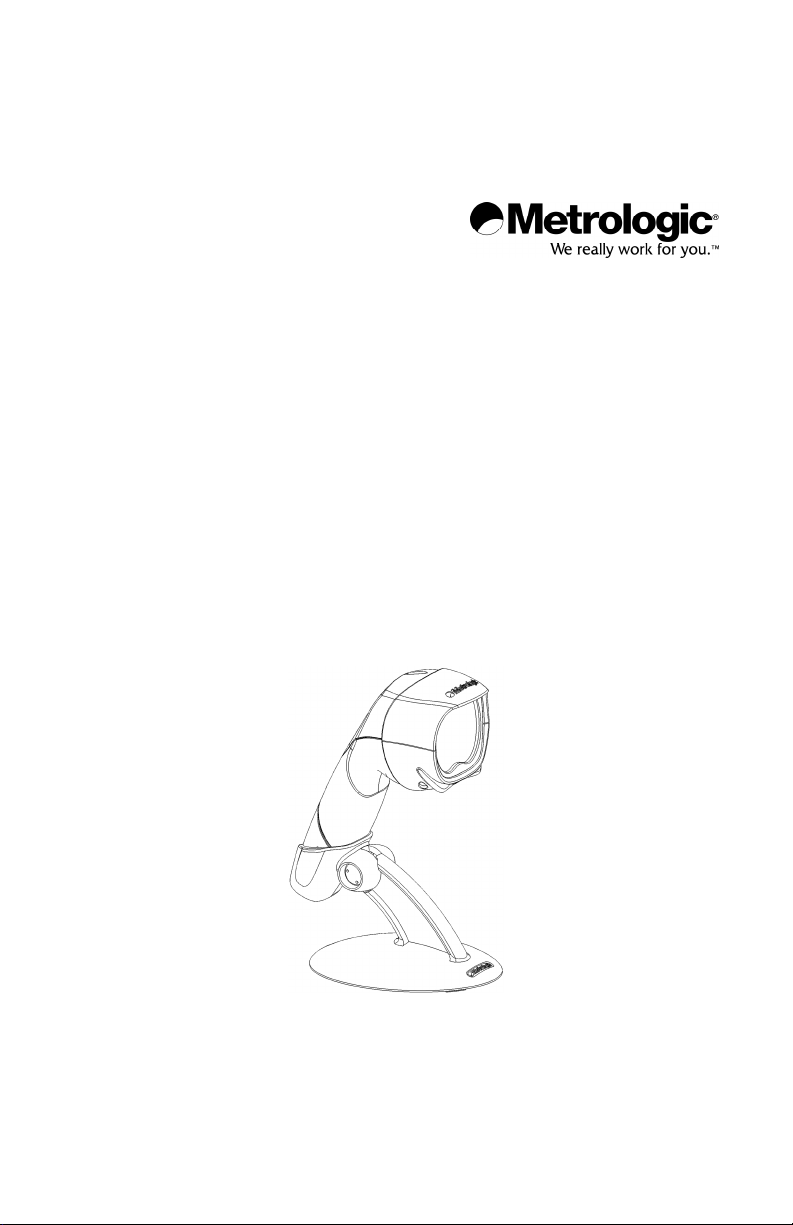

Metrologic MK3780-31A62 Manuel utilisateur

METROLOGIC INSTRUMENTS, INC.

MS3780 Fusion®

Omni/Single Line Scanner

Installation and User’s Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

TABLE OF CONTENTS

Introduction

Product Overview ............................................................................................. 1

Scanner and Accessories................................................................................. 2

Scanner Components....................................................................................... 4

Caution and Serial Number Labels................................................................... 5

Stand Specifications......................................................................................... 5

Cable Removal................................................................................................. 6

Cable Connection Warning............................................................................... 6

Maintenance..................................................................................................... 6

Installation

RS232 or Light Pen .......................................................................................... 7

RS485 or OCIA ................................................................................................ 8

Keyboard Wedge.............................................................................................. 9

Stand-Alone Keyboard Wedge....................................................................... 10

Full Speed or Low Speed USB (Integrated) ................................................... 11

EAS Deactivation ........................................................................................... 12

Scanner Operation

The Scan Pattern Mode Select Button ........................................................... 13

How to Use CodeGate and the Manual Activation Mode ............................... 14

Indicators

Audible ....................................................................................................... 15

Visual ......................................................................................................... 16

Failure ........................................................................................................ 17

Depth of Field Specifications

Normal Scan Zone ..................................................................................... 18

Reduced Scan Zone................................................................................... 19

Depth of Field by Bar Code Element Width

Normal Scan Zone ..................................................................................... 20

Reduced Scan Zone................................................................................... 21

IR Activation Range........................................................................................ 22

iii

TABLE OF CONTENTS

Troubleshooting Guide ....................................................................................... 23

Design Specifications ......................................................................................... 27

Applications and Protocols ................................................................................. 29

Default Settings - Communication Parameters................................................... 30

Configuration Modes ...................................................................................... 35

Bar Codes .................................................................................................. 35

MetroSet2................................................................................................... 35

Serial Configuration.................................................................................... 35

Upgrading the Firmware................................................................................. 36

Scanner and Cable Terminations ....................................................................... 37

Regulatory Compliance ...................................................................................... 41

Limited Warranty ................................................................................................ 44

Patents ............................................................................................................... 45

Index .................................................................................................................. 46

Contact Information and Office Locations........................................................... 48

INTRODUCTION

The MS3780 Fusion®is a hand-held, omnidirectional bar code scanner with

optional single-line scanning capabilities. It utilizes the powerful Metrologic

QuantumE®scan engine to provide an outstanding scan performance on all

standard 1D bar code symbologies, including RSS. Designed for retail

applications, the Fusion includes additional key product features like:

•Fully Automatic Scanning Operation

•Single-Line Mode for Menu Reading

•Custom Configurable Scan Pattern

•User-Replaceable Single-Cable Interface to Host (PowerLink Compatible)

•User Configurable Depth of Field

•Easy Bar Code Configuration

•Data Editing

•7 Beeper Tones

•Firmware updates are easily loaded into Flash memory

•OPOS and JPOS System Compatible

•CodeGate®

•Sunrise 2005 Compliant

SCANNER INTERFACE

MS3780-9 OCIA and RS232 Transmit/Receive

MS3780-11 RS485Sand Full RS232

MS3780-38 RS232 Low Speed USB*,

Keyboard Emulation Mode or USB Serial Emulation Mode

MS3780-40 Full Speed USB

MS3780-41 RS232/Light Pen Emulation

MS3780-47 Keyboard Wedge, Stand-Alone Keyboard and

RS232 Transmit/Receive

MS3780-48 Stand Alone Keyboard and RS232 Transmit/Receive

MS3780-120 USB and RS232 Transmit/Receive with EAS

* Configurable for Keyboard Emulation Mode or Serial Emulation Mode.

The default setting is Keyboard Emulation Mode.

SApplicable for IBM®Host applications.

INTRODUCTION

Scanner and Accessories

BASIC KIT COMPONENTS

Part No. Description

MS3780 Fusion Scanner

00-02099 MS3780 Installation and User’s Guide *

00-02407 MetroSelect®Configuration Guide *

* Guides also available for download at www.metrologic.com.

OPTIONAL ACCESSORIES

Part No. Description

AC to DC Power Transformer - Regulated 5.2VDC @ 1A output.

46-00525 90VAC – 255VAC United States, Canada and Japan

46-00526 90VAC – 255VAC Continental European

46-00527 90VAC – 255VAC United Kingdom

46-00528 90VAC – 255VAC Australia

46-00529 90VAC – 255VAC China

46-00530 90VAC – 255VAC India

The following cables are for Fusion models not equipped with EAS.

53-53000x-3 RS232 PowerLink Cable with Built in Power Jack

coiled cord, long strain relief, black

53-53002x-3 Keyboard Wedge PowerLink cable with Adapter Cable

coiled cord, long strain relief, black

53-53020x-3 Stand Alone Keyboard PowerLink Cable

coiled cord, long strain relief, black

MVC-3MPC-IB9 Metrologic Voltage Converter Cable, ±12VDC to +5.2VDC

For IBM Applications

Other items may be ordered for the specific protocol being used. To order additional

items, contact the dealer, distributor or call Metrologic’s customer service department

at 1-800-436-3876.

INTRODUCTION

Scanner and Accessories

OPTIONAL ACCESSORIES

Part No. Description

MVC-3MNC-N7052

Metrologic Voltage Converter Cable, ±12VDC to

+5.2VDC

For OCIA Applications

53-53213x-N-3 USB Full Speed Cable, Locking Plus-Power™Type A

straight cord, short strain relief

53-53214x-N-3

USB Full Speed Cable, Locking Plus-Power™Type A

straight cord, short strain relief

This cable is for use with full speed

USB (-40) interface only.

53-53235x-N-3

USB Low Speed Communication Cable,

Type A (Non-Locking) Connector

straight cord, short strain relief

The following cables are for Fusion models equipped with EAS.

59-59000x-E-3

RS232 PowerLink Cable with Built in Power Jack and

EAS Connection Wire

long strain relief, straight cable, black

59-59006x-E-3

RS485SPowerLink Cable with Built in Power Jack and

EAS Connection Wire

long strain relief, straight cable, black

55-55809x-N-E-3 USB, Keyed, Type A, EAS Connection Wire

Long strain relief, straight cable, black

46-00225 Stand

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s customer service department at

1-800-436-3876.

SApplicable for IBM®Host applications.

INTRODUCTION

Scanner Components

Figure 1. Scanner Components

ITEM NO. DESCRIPTION

1 Red Output Window, Laser Aperture (See page 41)

2 Mode Select Button (See page 13)

3 Beeper (See page 15)

4 Blue LED, Single-Line Mode / Menu Reading (See page 15)

5 White LED (See page 15)

6 Blue LED,

All Scan Lines On / Omnidirectional Reading (See page 15)

7 Amber LED, CodeGate (See page 15)

8 CodeGate Button (See page 14)

9 Pin Hole for Cable Release (See page 6)

10 10-Pin RJ45, Female Socket (See page 37)

INTRODUCTION

Caution and Serial Number Labels

Figure 2. Caution and Serial Labels

Caution:

To maintain compliance with applicable standards, all circuits connected to the scanner must meet

the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.

To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm EN/IEC

60950-1, the power source should meet applicable performance requirements for a limited power

source.

Stand Specifications

Figure 3. Stand Specifications

INTRODUCTION

Maintenance

Smudges and dirt on the unit's window can interfere with the unit's performance.

If the window requires cleaning, use only a mild glass cleaner containing no

ammonia. When cleaning the window, spray the cleaner onto a lint free, non-

abrasive cleaning cloth then gently wipe the window clean.

If the unit's case requires cleaning, use a mild cleaning agent that does not

contain strong oxidizing chemicals. Strong cleaning agents may discolor or

damage the unit's exterior.

Cable Removal

Disconnect the power supply from the PowerLink cable and turn off power to the

host system before removing the cable from the scanner.

1. Locate the small ‘pin-hole’ beneath

the Fusion logo on the front side of

the scanner near the end of the

handle.

2. Bend an ordinary paperclip into the

shape shown in figure 4.

3. Insert the paperclip (or other small

metallic pin) into the small ‘pin-hole’.

There will be a faint ‘click’ when the

connector’s lock releases.

4. Pull gently on the cable’s strain-relief

to remove the cable.

Cable Connection Warning

Important: If the PowerLink cable is not fully latched the unit can power

intermittently.

Figure 5. Figure 6.

Figure 4.
