Metra Electronics 95-2005B Manuel utilisateur
REV. 6/29/2016 INST95-2005B
METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
Installation instructions for part 95-2005B
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
• ISO DDIN radio provision
• A) Radio housing • B) Radio brackets • C) (4) #8 x 3/8” Phillips screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• LC-GMRC-03 • GMOS-06 (Bose amp only)
Antenna Adapter:
• 40-GM10
• Panel removal tool • Phillips screwdriver
• 9/32 Socket wrench • Cutting tool
TOOLS REQUIRED
Cadillac 1996-2005
95-2005B
A B C
CADILLAC
Deville (console shift) 1996-1999
Deville (DHS, DTS) 2000-2005
Eldorado 1996-2002
Seville 1996-2005
APPLICATIONS
95-2005B
2
Dash Disassembly
– Cadillac Eldorado 1996-2002............................................. 2-3
– Cadillac Seville 1996-1997 ................................................ 2-3
– Cadillac Seville 1998-2005 ................................................ 3-4
– Cadillac Deville (console shift) 1996-1999 ............................ 3-4
– Cadillac Deville (DHS, DTS) 2000-2005 ....................................4
Kit Preparation
– Cadillac Eldorado 1996-2002.................................................5
– Cadillac Seville 1996-1997 ....................................................5
– Cadillac Seville 1998-2005 ....................................................6
– Cadillac Deville (console shift) 1996-1999 ................................6
– Cadillac Deville (DHS, DTS) 2000-2005 ....................................7
Kit Assembly
– ISO DDIN radio provision ........................................................8
Table of Contents
Eldorado 1996-2002 / Seville 1996-1997
1.
Remove C-clip on forward facing side of shift
knob and pull and remove knob. (Figure A)
2. Remove (2) 9/32 screws on each side of
the ashtray assembly and (1) in the middle
underneath ashtray insert. (Figure B)
3. Insert a small flat blade screwdriver in
between the radio and the switch panel at
top of radio and pry up and out to remove
switch panel. (Figure C)
Continue on the next page
(Figure C)
(Figure B)
(Figure A)
Dash Disassembly
95-2005B
3
Seville 1998-2005 /
Deville (console shift)
1996-1999
1. Remove (2) 9/32 screws
on each side of the
ashtray assembly and (1)
in the middle underneath
ashtray insert. (Figure A)
2. Insert a small flat blade
screwdriver in between
the radio and the switch
panel at top of radio and
pry up and out to remove
switch panel. (Figure B)
Continue on the next page
Eldorado 1996-2002 / Seville 1996-1997 (Cont)
4. Remove (4) 9/32 screws:
• (2) from the top (Figure D) and
• (2) from the bottom to remove radio.
5. Remove the (2) retaining nuts securing the
radio and climate control to the factory
bracket assembly and slide the climate
control outward.
Continue to kit preparation
(Figure F)
(Figure E)
(Figure D) (Figure B)
(Figure A)
Remove 2 Retaining Nuts
One Per Side
Remove (2) retaining nuts,
per side
Dash Disassembly
95-2005B
4
Seville 1998-2005 /
Deville (console shift) 1996-1999
4. Remove (3) 9/32 screws:
• (1) From the top (Figure C) and
• (2) From the bottom to remove radio.
(Figure D)
5. Remove the (2) retaining nuts securing the
radio and climate control to the factory
bracket assembly and slide the climate
control outward. (Figure E)
Continue to kit preparation
(Figure E)
(Figure D)
(Figure C)
Deville (DHS, DTS)
2000-2005
1.
Unsnap and remove
panel surrounding
climate controls and
radio. (Figure A)
2. Depress clips on
both sides of radio
and pull out to
remove. (Figure B)
Continue to kit
preparation
(Figure B)
(Figure A)
Remove 2 Retaining Nuts
One Per Side
Remove (2) retaining nuts,
per side
Dash Disassembly
95-2005B
5
Eldorado 1996-2002 / Seville 1996-1997
1. Remove all tabs except the ones marked S-E from the radio housing. (Figure A)
2. Cut the front tab from bottom of the radio brackets armature on both sides.
(Figure B)
3. Attach the radio brackets to the radio housing. (Figure C)
4. Slide the climate control assembly into the bracket/housing assembly and
attach with the factory hardware. (Figure C)
Continue to kit assembly
(Figure C)
(Figure B)
(Figure A)
98-05S
98-05S
98-05S
S-E
S-E
CUT
CUT
CUT
CUT FRONT TAB HERE CUT FRONT TAB HERE
Cut front tab here Cut front tab here
(full view)
Bolt
Bolt
Kit Preparation
95-2005B
6
Seville 1998-2005 / Deville (console shift) 1996-1999
1. Remove all tabs except the ones marked 98-05S from the radio housing.
(Figure A)
2.
Cut the rear tab from bottom of the radio brackets armature on both sides. (Figure B)
3. Attach the radio brackets to the radio housing. (Figure C)
4. Slide the climate control assembly into the bracket/housing assembly and
attach with the factory hardware. (Figure C)
Continue to kit assembly
(Figure C)
(Figure B)
(Figure A)
98-05S
98-05S
98-05S
S-E
S-E
CUT CUT
CUT REAR TAB HERE CUT REAR TAB HERE
Cut rear tab here Cut rear tab here
(full view)
BOLT
98-05S
98-05S
98-05S
BOLT
98-05S
98-05S
98-05S
Bolt
Kit Preparation
95-2005B
7

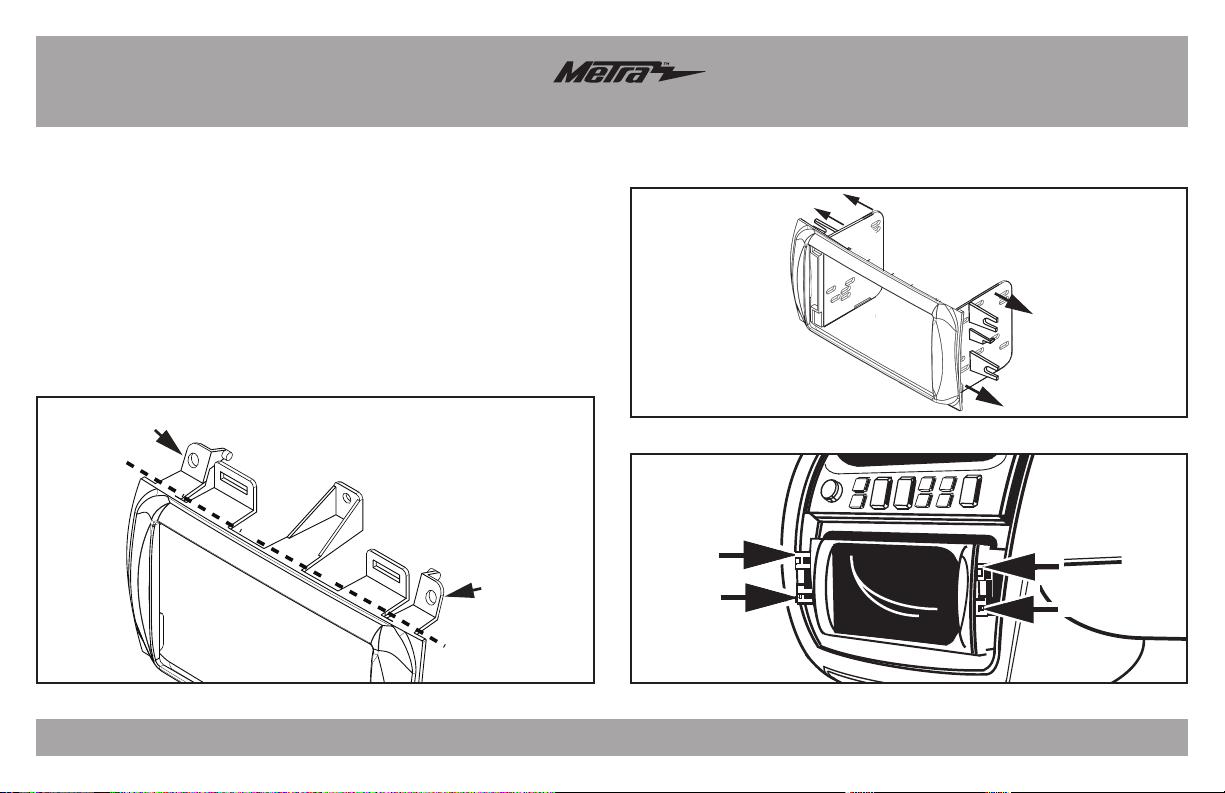

Deville (DHS, DTS) 2000-2005
1. Remove all tabs from the radio housing top. (Figure A)
2. Attach the radio brackets to the radio housing. Leave all side tabs on the radio
brackets attached, but cut away the plastic armature below each bracket at the
bottom of both sides. (Figure B)
3. When installing the 95-2005 assembly into the dash, use the supplied (4) #8 x
3/8” Phillips screws, to the locations shown. (Figure C)
Continue to kit assembly
(Figure C)
(Figure B)
(Figure A)
98-05S
98-05S
98-05S
S-E
S-E
CUT CUT
CUT
CUT
CUT
Kit Preparation
REV. 6/29/2016 INST95-2005B
METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Installation instructions for part 95-2005B
IMPORTANT
If you are having difficulties with the
installation of this product, please call our
Tech Support line at 1-800-253-TECH.
Before doing so, look over the instructions a
second time, and make sure the installation
was performed exactly as the instructions
are stated. Please have the vehicle apart
and ready to perform troubleshooting steps
before calling.
ISO DDIN radio provision
1.
Slide the radio into the bracket/radio housing
assembly, and then secure using the screws
supplied with the radio. (Figure A)
2.
Locate the factory wiring harness and antenna
connector in the dash and complete all
necessary connections to the radio. Metra
recommends using the proper mating adapter
from Metra and/or AXXESS. Test the radio for
proper operation.
3. Reassemble the dash in reverse order of
disassembly.
(Figure A)
Kit Assembly
REV. 6/29/2016 INST95-2005B
METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
Instrucciones de instalación para la pieza 95-2005B
¡PRECAUCIÓN!
Todos los accesorios, interruptores, paneles de con-
troles de clima y especialmente las luces del indicador de las bolsas
de aire deben estar conectados antes ciclar la ignición. Además, no
quite el radio de fábrica con la llave en la posición o de encendido ni
con el vehículo funcionando.
• Provisión de radio ISO DDIN
• A) Carcasa del radio • B) Soportes del radio • C) (4) Tornillos Phillips #8 de 3/8”
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
CABLEADO Y CONEXIONES DE ANTENA
(se venden por separado)
Arnés de cableado:
• LC-GMRC-03 • GMOS-06 (Bose amp only)
Adaptador de antena:
• 40-GM10
• Herramienta para quitar paneles • Destornillador Phillips
• llave de tubo 9/32 • Herramienta de corte
HERRAMIENTAS REQUERIDAS
Cadillac 1996-2005
95-2005B
A B C
CADILLAC
Deville (cambio de la consola) 1996-1999
Deville (DHS, DTS) 2000-2005
Eldorado 1996-2002
Seville 1996-2005
APLICACIONES
95-2005B
2
Desmontaje del tablero
– Cadillac Eldorado 1996-2002............................................. 2-3
– Cadillac Seville 1996-1997 ................................................ 2-3
– Cadillac Seville 1998-2005 ................................................ 3-4
– Cadillac Deville (cambio de la consola) 1996-1999 ................ 3-4
– Cadillac Deville (DHS, DTS) 2000-2005 ....................................4
Preparación del kit
– Cadillac Eldorado 1996-2002.................................................5
– Cadillac Seville 1996-1997 ....................................................5
– Cadillac Seville 1998-2005 ....................................................6
– Cadillac Deville (cambio de la consola) 1996-1999 ....................6
– Cadillac Deville (DHS, DTS) 2000-2005 ....................................7
Ensamble del kit
– Provisión de radio ISO DDIN ...................................................8
Indice

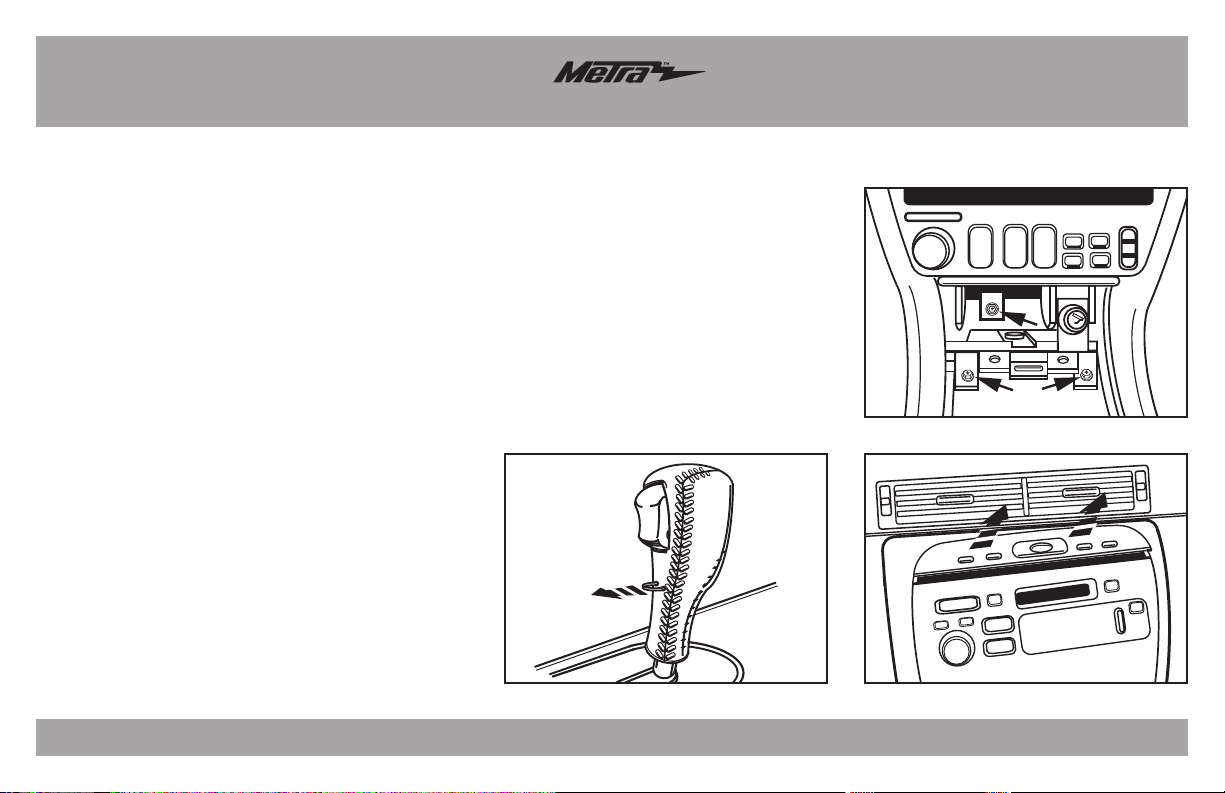

Eldorado 1996-2002 / Seville 1996-1997
1. Retire el gancho en C del lado orientado
hacia el frente de la perilla de la palanca
velocidades y jale y retire la perilla. (Figura A)
2. Quite los (2) tornillos 9/32 a cada lado del
ensamble del cenicero y (1) en el centro,
debajo del inserto del cenicero. (Figura B)
3.
Inserte un pequeño destornillador de paleta entre
el radio y el panel de interruptores en la parte
superior del radio y haga palanca para sacar y
quitar el panel de interruptores. (Figura C)
Continúa en la siguiente página
(Figura C)
(Figura B)
(Figura A)
Desmontaje del tablero
Table des matières
Langues :
Autres manuels Metra Electronics Récepteur de voiture
Metra Electronics
Metra Electronics 99-7607B Manuel utilisateur
Metra Electronics
Metra Electronics 99-8249 Manuel utilisateur
Metra Electronics
Metra Electronics 99-5825S Manuel utilisateur
Metra Electronics
Metra Electronics 99-3044 Manuel utilisateur
Metra Electronics
Metra Electronics 99-7382HG Manuel utilisateur
Metra Electronics
Metra Electronics Hyundai Santa Fe 2007 95-7325 Manuel utilisateur
Metra Electronics
Metra Electronics 99-6537B Manuel utilisateur
Metra Electronics
Metra Electronics 99-5815 Manuel utilisateur
Metra Electronics
Metra Electronics BUICK Lacrosse 2005-2009 Manuel utilisateur
Metra Electronics
Metra Electronics 99-7427 Manuel utilisateur
Metra Electronics
Metra Electronics DP-3021B Manuel utilisateur
Metra Electronics
Metra Electronics 99-7397B Manuel utilisateur
Metra Electronics
Metra Electronics Nissan Pathfinder 2013-up Manuel utilisateur
Metra Electronics
Metra Electronics AT-807HD Manuel utilisateur
Metra Electronics
Metra Electronics 99-8270HG Manuel utilisateur
Metra Electronics
Metra Electronics 99-9013HG Manuel utilisateur
Metra Electronics
Metra Electronics MDF-8202-1 Manuel utilisateur
Metra Electronics
Metra Electronics 95-9310B Manuel utilisateur
Metra Electronics
Metra Electronics 99-7313 Manuel utilisateur
Metra Electronics
Metra Electronics 99-8219 Manuel utilisateur
