Installation instructions for part INST-7898

CAUTION!

All accessories, switches, climate controls panels, and

especially air bag indicator lights must be connected before cycling

the ignition. Also, do not remove the factory radio with the key in the

on position, or while the vehicle is running.

• DIN radio provision

• ISO DIN radio provision

• A) Radio housing (a) • B) Radio housing (b) • C) Trim plate (a) • D) Trim plate (b) • E) ISO spacers

• F) ISO brackets (a) • G) ISO brackets (b) • H) Radio brackets • I) Rear support bracket (a) • J) Rear support

bracket (b) • K) (2) #8 x 3/4” Phillips pan head screws • L) (6) #8 x 3/8” Phillips pan head screws

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• Please visit metraonline.com for more information

Antenna Adapter:

• Not Required

• Phillips screwdriver • Cutting tool

• Panel removal tool • 8mm socket wrench

TOOLS REQUIRED

Acura/Honda/Isuzu 1988-2006

99-7898

AT-807HD, IBR-807HD, CF-807HD, AW-807HD

EB C DA F G

H I J K L

INST-7898

Applications

Dash Disassembly

Acura

- CL 1997-1999............................................ 3

- Integra 1990-1993 ..................................... 3

- Integra 1994-2001 ..................................3-4

- Legend 1990-1996 .................................... 4

- RSX 2002-2006

(except “S” model)..................................4-5

- TL 1996-1998............................................ 5

- Vigor 1992-1994........................................ 5

Honda

- Accord 1990-1993 ..................................... 6

- Accord 1994-1997 ..................................... 6

- Accord 1998-2002 ..................................... 7

- Civic 1996-1998 ........................................ 7

- Civic 1999-2000 ........................................ 8

Honda (Cont)

- Civic SE 2005 (only).................................... 9

- CRV 1997-2001 ....................................... 10

- CRV 2002-2006 ....................................... 10

- Oasis 1996-1999 ..................................... 11

- Odyssey 1995-1998................................. 11

- Odyssey 1999-2004................................. 11

- Prelude 1988-1991 .................................. 12

- Prelude 1992-1996 .................................. 12

- Prelude 1997-2001 .................................. 13

Kit Assembly

- DIN radio provision ..............................13-14

- ISO DIN radio provision............................. 15

Acura

CL ...........................1997-1999

Integra.....................1990-2001

Legend ....................1990-1996

RSX

(except “S” model)....2002-2006

TL............................1996-1998

Vigor........................1992-1994

Honda

Accord.....................1990-2002

Civic ........................1996-2000

Honda (Continued)

Civic SE ............................ 2005

CRV .........................1997-2006

Odyssey (without nav) 1995-2004

Prelude....................1988-1996

Isuzu

Oasis .......................1996-1999

Table of Contents

INST-7898

Dash Disassembly

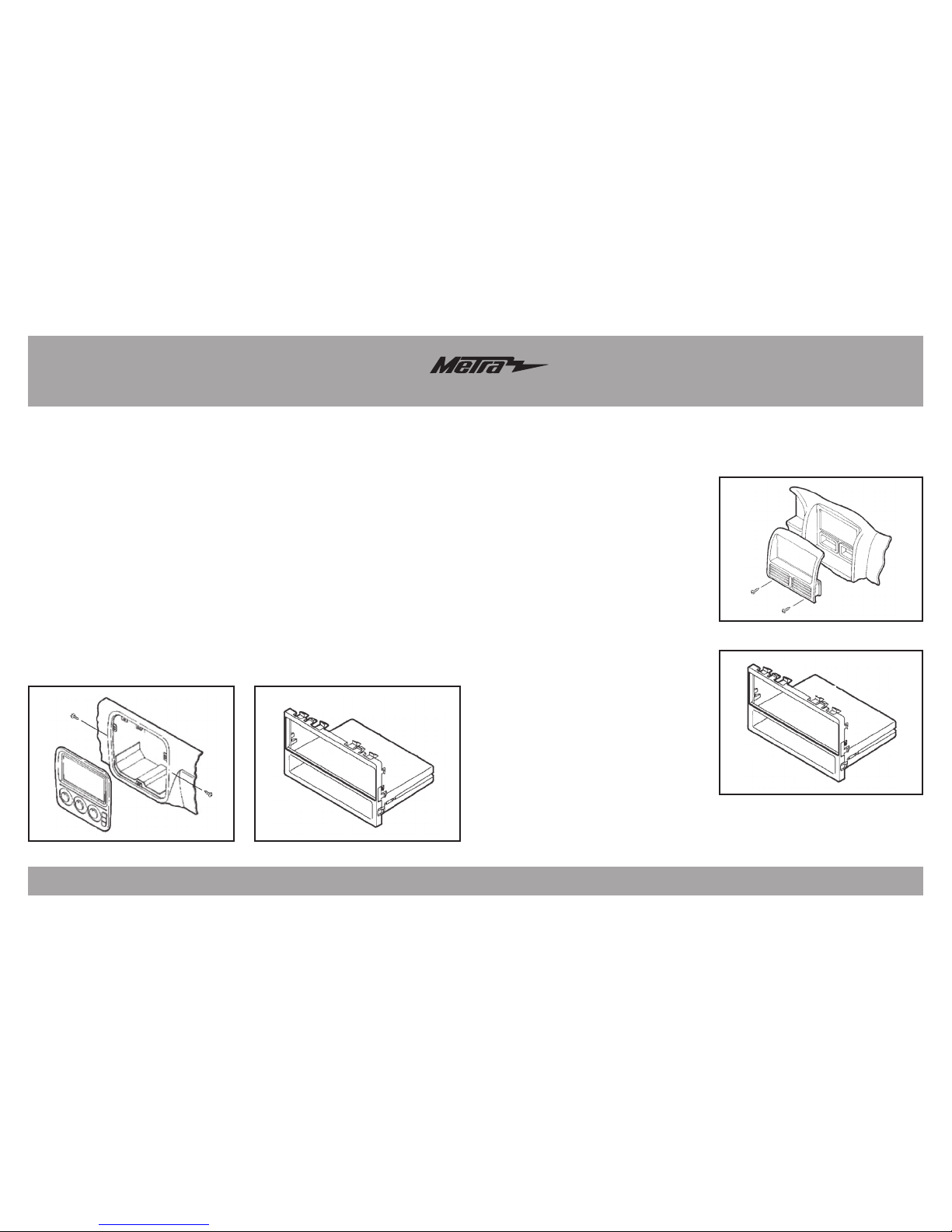

1. Remove (3) screws

from each side of the

center console and

remove the console.

2. Remove (2) screws

securing the factory

radio to the sub-dash

support bracket. Slide

the radio/pocket

assembly out and

disconnect the wiring.

(Figure A)

3. Cut and remove all

of the mounting clips

on Radio Housing (a)

EXCEPT clips “C” and

“H” (the clips can

be identified by the

stamped letter near

each clip). (Figure B)

Continue to kit

assembly

Acura Integra 1990-1993

1. Unclip the radio trim

bezel and disconnect

the clock and climate

control wiring.

(Figure A)

2. Remove (2) 8mm

hex head screws

securing the factory

radio and disconnect

the wiring.

3. Cut and remove all

of the mounting clips

on Radio Housing (a)

EXCEPT clips “A” and

“H” (the clips can

be identified by the

stamped letter near

each clip). (Figure B)

4. Mount the rear

support bracket (a)

to the back of Radio

Housing (b) with (2)

#8 x 3/8” Phillips pan

head screws supplied.

(Figure B)

Continue to kit

assembly

Acura CL 1997-1999

(Figure B)

(Figure A)

“H”

“A”

(Figure B)

(Figure A)

“H”

“C”

1. Remove the cover cap located under the

emergency brake and remove (2) screws exposed.

2. Remove (2) screws from the rear corners of the

lower dash trim bezel and remove.

3. Remove the ashtray and (2) screws exposed.

4. Unsnap the ashtray housing and disconnect the

cigarette lighter harness.

5. Remove the gear shifter knob and unsnap the

shifter trim.

Continue on next page

Acura Integra 1994-2001

(Figure A)

INST-7898

6. Remove (2) screws below the radio opening and

remove the upper dash trim bezel. (Figure A)

7. Remove (2) 8 mm screws securing the factory

radio and disconnect the wiring.

8. Cut and remove all of the mounting clips on Radio

Housing (a) EXCEPT clips “C” and “H” (the clips can

be identified by the stamped letter near each clip).

(Figure B)

Continue to kit assembly

Acura Integra 1994-2001

(Figure B)

“H”

“C”

1. Remove (2) screws

below the ashtray.

(Figure A)

2. Unclip the dash

trim bezel.

3. Disconnect the

cigarette lighter wiring

and remove the bezel.

4. Remove (2) bolts

securing the rear

of the factory radio

and disconnect the

wiring.

5. Cut and remove all

of the mounting clips

on Radio Housing (a)

EXCEPT clips “E” and

“J” (the clips can

be identified by the

stamped letter near

each clip). (Figure B)

Continue to kit

assembly

Acura Legend 1990-1996

(Figure B)

(Figure A)

“J”

“E”

(Figure A)

1. Unclip the lower dash panel (containing the power

outlet) and remove the panel.

2. Reach into the opening and remove (2) Phillips

screws from the base of the factory radio.

3. Slide the factory radio (with bracket assembly)

from the dash and disconnect the wiring. (Figure A)

4. Remove (4) Phillips screws securing the factory

radio to the bracket assembly and remove the

radio (if a factory pocket is present,

Continue on next page

Acura RSX 2002-2005

(except “S” model)

Dash Disassembly

INST-7898

(Figure B)

“J”

1. Using a small

screwdriver, unclip the

perimeter of the radio

trim bezel.(Figure A)

2. Disconnect the climate

control and rear

defroster wiring and

remove the bezel.

3. Remove (4) Phillips

screws securing the

factory radio/trim bezel

assembly. (Figure A)

4. Loosen (2) Phillips

screws securing the

back of the radio to the

metal housing and slide

the radio out (it is not

necessary to remove

the screws securing the

metal).

5. Disconnect the wiring.

6. Cut and remove all

of the mounting clips

on Radio Housing (a)

EXCEPT clips “B” and

“K” (the clips can

be identified by the

stamped letter near

each clip). (Figure B)

Acura TL 1996-1998

(Figure A) (Figure B)

“K”

“B”

remove (4) Phillips screws securing

the pocket to the bracket assembly

and remove). (Figure A)

5. Cut and remove the all mounting

clips on Radio Housing (a) EXCEPT

clips “J” (the clips can be identified

by the stamped letter near each clip).

(Figure B)

6. Mount the rear support bracket (b) to

the back of Radio Housing (a) with (2)

#8 x 3/8” Phillips pan head screws

supplied.

Continue to kit assembly

Acura RSX 2002-2005

(except “S” model)

Dash Disassembly

Continue to kit assembly

Remove the access cap from

the climate control cluster and

(1) screw exposed. (Figure A)

Unclip the cluster and remove

(2) screws exposed. (Figure A)

3. Remove the ashtray and (2)

Phillips screws exposed.

Remove the cover caps

from each front corner of

the center console and the

screws exposed.

5. Open the storage

compartment, lift up the

carpet and remove (2)

screws exposed.

6. Lift up on the center

console and remove. Unclip

the radio trim bezel and

disconnect the wiring.

7. Remove (2) bolts from the

back of the factory radio

and disconnect the wiring.

Cut and remove all of the

mounting clips on Radio

Housing (a) EXCEPT clips

“A” and “H” (the clips can

identified by the stamped

letter near each clip). (Figure B)

Continue to kit assembly

Acura Vigor 1992-1996

(Figure B)

(Figure A)

“H”

“A”

INST-7898

1. Remove the ashtray and (1) 3/4” #8

Phillips screw exposed. Open the

storage compartment and remove

(2) #8 Phillips screws exposed.

2. Remove the cup holder tray and (3)

#8 Phillips screws inside.

3. Lift the center console out and

remove (2) Phillips screws exposed

at the base of the dash trim bezel.

4. Unclip the bezel and remove.

5. Remove (2) hex head screws

securing the factory radio and

disconnect the wiring. (Figure A)

6. Cut and remove all of the mounting

clips on Radio Housing (a) EXCEPT

clips “A” and “H” (the clips can be

identified by the stamped letter near

each clip). (Figure B)

7. Mount the rear support bracket (a)

to the back of the Radio Housing (a)

with (2) #8 x 3/8” Phillips pan head

screws supplied.

Continue to kit assembly

Honda Accord 1994-1997

(Figure B)(Figure A)

“H”

“C”

Dash Disassembly

“H”

“A”

1. Remove (4) screws from the lower

portion of the center console.

(Figure A)

Remove the gear shifter knob and lift

the console out. Remove the ashtray

and ashtray bracket

3. Remove (2) screws from the bottom

of the radio support, slide the radio

out and disconnect the wiring.

4. Cut and remove all of the mounting

clips on Radio Housing (a) EXCEPT

clips “C” and “H” (the clips can be

identified by the stamped letter near

each clip). (Figure B)

Continue to kit assembly

Honda Accord 1990-1993

(Figure B)

(Figure A)

“H”

“C”

INST-7898

Honda Accord 1998-2002

1. Unsnap the clock panel, disconnect

the wiring and remove. (Figure A)

2. Remove (1) Phillips screw exposed

in the clock cavity.

3. Remove (2) Phillips screws below

the factory radio.

4. Unclip the radio trim bezel and

disconnect the wiring. (Figure A)

5. Remove (4) Phillips screws securing

the factory radio assembly and

disconnect the wiring.

6. Remove (2) screws securing the

factory pocket to the assembly.

7. Cut and remove the mounting clips

from Radio Housing (a).

8. Locate tabs “A” on the mounting

brackets for mounting, cut and

remove tabs “B” (the tabs can be

identified by the stamped letter near

each tab). (Figure B)

Secure the brackets to the housing with

(4) #8 x 3/8” Phillips pan head screws

Continue to kit assembly

(Figure B)(Figure A)

“A”

1. Remove (2) Phillips screws from

the bottom edge of the glove box

door and remove the door.

2. Remove (3) Phillips screws from

the lower steering column panel.

3. Pull straight down on the lower

steering column panel and remove

the panel.

4. Remove (2) Phillips screws under

the climate control panel.

(Figure A)

5. Remove (4) Phillips screws from

the lower dash location.

6. Remove (2) 8 mm hex head screws

securing the bottom-rear of the

factory radio and disconnect the

wiring.

Locate Radio Housing (b). (Figure B)

Continue to kit assembly

Honda Civic 1996-1998

(Figure B)

(Figure A)

Dash Disassembly

INST-7898

Honda Civic 1999-2000

1. Remove (2) Phillips screws from the

bottom edge of the glove box door

and remove the door.

2. Remove (3) Phillips screws from the

lower steering column panel.

3. Pull straight down on the lower

steering column panel and remove

the panel.

4. Remove (2) Phillips screws under

the climate controls.

5. Remove (4) Phillips screws from the

lower dash location. (Figure A)

6. Remove (4) Phillips screws securing

the bottom of the dash trim bezel/

radio assembly and pull the

assembly out as far as possible.

7. Cut the zip ties securing the radio

and climate control wires, slide the

dash trim bezel/radio assembly from

the dash cavity and disconnect the

wiring.

8. Cut and remove all of the mounting

clips on Radio Housing (a) EXCEPT

clips “B” and “H” (the clips can be

identified by the stamped letter near

each clip). (Figure B)

Continue to kit assembly

(Figure B)(Figure A)

“H”

“B”

Dash Disassembly

INST-7898

Honda Civic SE 2005 (only)

1. Unsnap and remove the trim ring

from around floor shifter.

2. Unsnap and remove larger trim

around floor console shifter.

3. Remove (2) Phillips screws from

in between cup holder and shifter.

(Figure A)

4. Unsnap sides of console (2 snaps

per side) and remove with power

outlet assembly.

5. Remove (2) Phillips screws from

under radio assembly, facing up.

(Figure A)

6. Remove (3) screws securing the

climate control pod to the back of

the dash trim bezel and remove the

pod. (Figure B)

7. Remove (4) Phillips screws from

each side securing the factory

radio to the bracket assembly and

remove the radio.

8. Cut and remove all mounting clips

on Radio Housing (a), EXCEPT

clips “B” and “H” (hooks can be

identified by the letter stamped

near each clip). (Figure C)

Continue to kit assembly (Figure C)(Figure A) (Figure B)

“H”

“B”

Dash Disassembly

INST-7898

1. Open the glove box, squeeze the

retaining clips and remove the

stoppers.

2. Lower the glove box and remove (2)

Phillips screws from the left edge.

3. Remove (2) Phillips screws from the

lower steering column panel and

remove.

4. Unclip the lower console cover (below

the ashtray and pocket) and remove.

5. Remove (2) Phillips screws from the

base of the center console, open

the console pocket and remove the

(4) outer screws exposed.

6. Unclip the center console and remove.

7. Remove (2) Phillips screws securing

the radio trim bezel, disconnect the

wiring, and remove the trim bezel/

radio assembly. (Figure A)

8. Remove (4) Phillips screws

securing the radio to the bezel and

remove.

9. Cut and remove all of the mounting

clips on Radio Housing (a) EXCEPT

clips “B” and “H” (the clips can be

identified by the stamped letter near

each clip). (Figure B)

Continue to kit assembly

Honda CR-V 1997-2001

(Figure A) (Figure B)

“H”

“B”

1. Remove (2) Phillips screws

from the bottom edge of the radio

trim bezel. (Figure A)

2. Unclip the trim bezel and remove.

3. Remove (4) Phillips screws

securing the factory radio and

disconnect the wiring.

4. Cut and remove all of the mounting

clips on

Radio Housing (a)

EXCEPT

clips “M” and “H” (the clips can

be identified by the stamped letter

near each clip). (Figure B)

Continue to kit assembly

Honda CR-V 2002-2006

(Figure B)

(Figure A)

“H”

“M”

Dash Disassembly

Autres manuels pour AT-807HD

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Metra Electronics Récepteur de voiture

Metra Electronics

Metra Electronics 99-5825S Manuel utilisateur

Metra Electronics

Metra Electronics 99-7809B Manuel utilisateur

Metra Electronics

Metra Electronics 99-2003 Manuel utilisateur

Metra Electronics

Metra Electronics 95-2005B Manuel utilisateur

Metra Electronics

Metra Electronics 99-6543HG Manuel utilisateur

Metra Electronics

Metra Electronics 95-7510 Manuel utilisateur

Metra Electronics

Metra Electronics 99-3010S-LC Manuel utilisateur

Metra Electronics

Metra Electronics 99-3311B Manuel utilisateur

Metra Electronics

Metra Electronics 99-5722 Manuel utilisateur

Metra Electronics

Metra Electronics 99-9604B Manuel utilisateur

Metra Electronics

Metra Electronics Hyundai Santa Fe 2007 95-7325 Manuel utilisateur

Metra Electronics

Metra Electronics 99-8907HG Manuel utilisateur

Metra Electronics

Metra Electronics 99-3400 Manuel utilisateur

Metra Electronics

Metra Electronics 95-7377B Manuel utilisateur

Metra Electronics

Metra Electronics 95-7812B Manuel utilisateur

Metra Electronics

Metra Electronics 99-5600 Manuel utilisateur

Metra Electronics

Metra Electronics 99-5839CH Manuel utilisateur

Metra Electronics

Metra Electronics 99-9013HG Manuel utilisateur

Metra Electronics

Metra Electronics 99-5700 Manuel utilisateur

Metra Electronics

Metra Electronics 99-8270HG Manuel utilisateur

Metra Electronics

Metra Electronics 99-2020 Manuel utilisateur

Metra Electronics

Metra Electronics 99-3044 Manuel utilisateur

Metra Electronics

Metra Electronics 99-6519B Manuel utilisateur

Metra Electronics

Metra Electronics 99-8249 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
