INSTALLATION INSTRUCTIONS FOR PART 99-2003

1-800-221-0932

www.metraonline.com

Phillips Screwdriver • Utility Knife • Socket Wrench

KIT FEATURES

APPLICATIONS

GM/SUZUKI MULTI KIT

•DIN Head Unit Provisions with Pocket

•ISO DIN Head Unit Provisions with Pocket

•Double DIN head unit provision

•Stacked ISO head unit provision

A) Radio Housing w/ Pocket • B) ISO Trim Plate • C) DDIN Trimplate • D) DDIN Stacked ISO Brackets

E) DIN Spacer • F) ISO Snap In Brackets • G) Carriage Bolts • H) Kep Nuts • I) (3) Screws/(3) Speed Clips

KIT COMPONENTS

TOOLS REQUIRED:

99-2003

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

• Wiring Harness - Please see www.metraonline.com

for specific interface applications

•Antenna Adapter -

•40-GM10 - GM Antenna Adapter 1988-up

•40-CR10 - Chrysler Antenna Adapter 2002-up

99-2003

BUICK

Century 1997-2005 3

Le Sabre 1995-2005 4,5

Park Avenue 1995-2005 4,5

Regal 1995-2004 3

Rendezvous 2002-2005 6

Riviera 1996-1999 7

Roadmaster 1995-1996 8

Skylark 1996-1998 9

CADILLAC

Escalade/EXT 2003-2005 10

Fleetwood/ Broughham

1990-1996 11-13

CHEVROLET / GEO

Avalanche 2003-2005 10

Blazer 2002-2005 14

Cavalier 2000-2005 15

Express Van 2001-2004 16,17

Colorado 2004-2009 43

Impala 2000-2005 18

Malibu 2001-2003 19

Malibu Classic 2004 19

Metro 1995-2001 20

Monte Carlo 2000-2005 21

SSR 2003-2006 22

S-10 2002-2004 14

Silverado 2003-2005 10

Suburban 2003-2005 10

Tahoe 2003-2005 10

Tracker 1992-2004 23

Trailblazer 2002-2009 24

Venture 2000-2005 25,26

GMC

Canyon 2004-2009 44

Envoy 2002-2009 29

Savanna 2001-2005 16,17

Sierra 2003-2005 10

HUMMER

H2 2003-2005 27,28

ISUZU

Ascender 2003-2008 29

OLDSMOBILE

Achieva 1996-1998 30

Alero 1999-2004 31

Aurora 1995-2003 32

Bravada 1998-01 14

Bravada 2002-04 29

Cutlass 1997-1999 33

Cutlass Supreme 1995-1997 33

Eighty-Eight 1994-1999 34

Intrigue 1998-2002 35

LSS 1996-1999 36

Ninety-Eight 1994-1996 34

Regency 1997-1998 36

Silhouette 2000-2004 25,26

PONTIAC

Aztec 2001-2008 37

Bonneville 2000-2005 38

Grand Am 2001-2005 39

Montana 2000-2004 25,26

Sunfire 2000-2005 40

SUZUKI

Aerio 2002 41

Esteem 1995-2003 42

Sidekick 1992-1998 23

Swift 1995-2001 20

Vitara 1999-2005 23

ALL VEHICLES

Notes 51,52

Tab Instructions 45

Kit Assembly 46-49

Final Assembly 50

99-2003 DASH DISASSEMBLY

BUICK • Century 1997-04 / Regal 1997 - 04

1. Open both doors and remove end caps from both ends of dashboard.

2. Open glove box, then remove (1) 9/32" screw from panel above passenge

kickpanel and remove.

3. Remove 9/32" screws from bottom left and right of ashtray assembly

and unclip and remove.

4. Unclip top edge of panel below steering column and let hang.

5. Remove (1) 9/32" screw from right side of instrument cluster and

radio trimpanel and remove entire panel from right to left.

6. Remove (3) 9/32" screws to remove radio.

7. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.

99-2003 DASH DISASSEMBLY

BUICK • LeSabre 1995-99 / Park Avenue 1995-99

1. Unsnap the climate control trim panel (from door to door) and remove (5) 9/32”

screws exposed.

2. Pop out the a/c vents and remove (1) Phillips screw exposed in each vent cavity.

3. Unclip the radio trim bezel and remove.

4. Remove the screws securing the factory head unit and disconnect the wiring.

5. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.

99-2003 DASH DISASSEMBLY

BUICK • LeSabre 2000-04 / Park Avenue 2000-04

1. Open drivers door and unsnap and remove dash end cap.

2. Remove (2) Phillips screws from underneath steering column cover.

3. Unsnap and remove steering column cover.

4. Unsnap and remove instrument panel.

5. Remove (2) 9/32" screws and remove radio.

6. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.

NOTE: For the Buick Le Sabre, Oldsmobile Aurora and the Pontiac Bonneville

the (3) speed clips and screws provided with the kit will need to be installed

into the sub dash wherethe screw holes line up on the kit.

99-2003 DASH DISASSEMBLY

BUICK • Rendezvous 2002-2005

1. Open center console and remove (2) Torx T-15 screws at front of console

opening.

2. Remove liners from cup holders and storage pocket next to cup holders,

then remove (4) Torx T-15 screws. Unsnap and remove panel.

3. Remove (2) 7mm hex head screws from bottom of driver side dash panel and

remove.

4. Unclip dash panel and remove.

5. Remove (3) 9/32" hex head screws to remove radio.

6. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.

99-2003 DASH DISASSEMBLY

BUICK • Rivieria 1996-

1. Unsnap left side panel exposing (1) Phillips screw to remove.

2. Remove (1) Phillips screw and unsnap right side panel to expose

(1) Phillips screw beneath panel and remove.

3. Unsnap underside of overhanging dash to unsnap (6) plastic rivets and

remove panel.

4. Remove (5) hex head screws now exposed under overhang.

5. Unsnap bottom edge of trim bezel, then while holding overhang up,

unsnap and remove trim bezel by removing any necessary harnesses.

6. Remove (3) Phillips screw to remove climate control.

7. Remove (2) Phillips screws to remove rear support and (3) 9/32" hex

head screws to remove radio.

8. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.

99-2003 DASH DISASSEMBLY

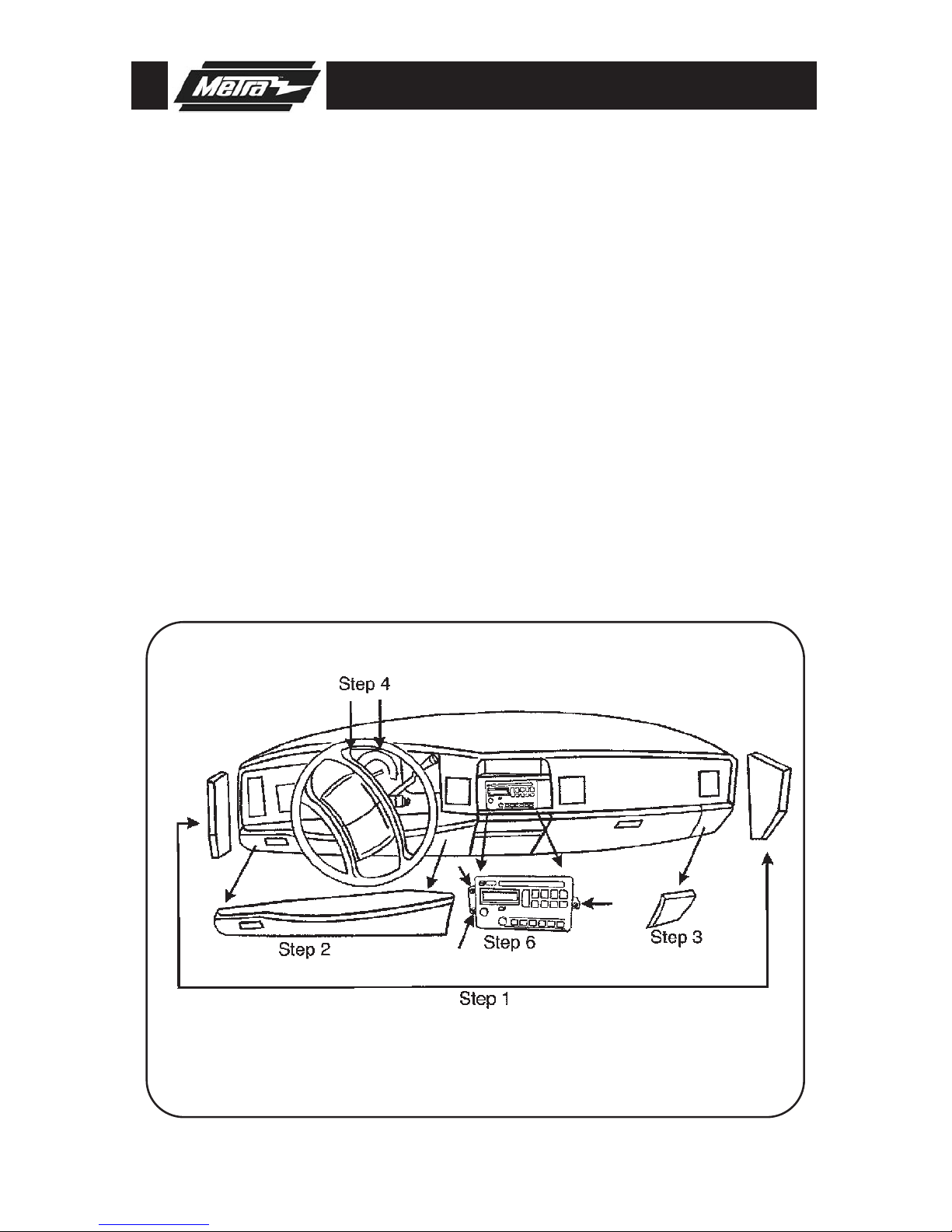

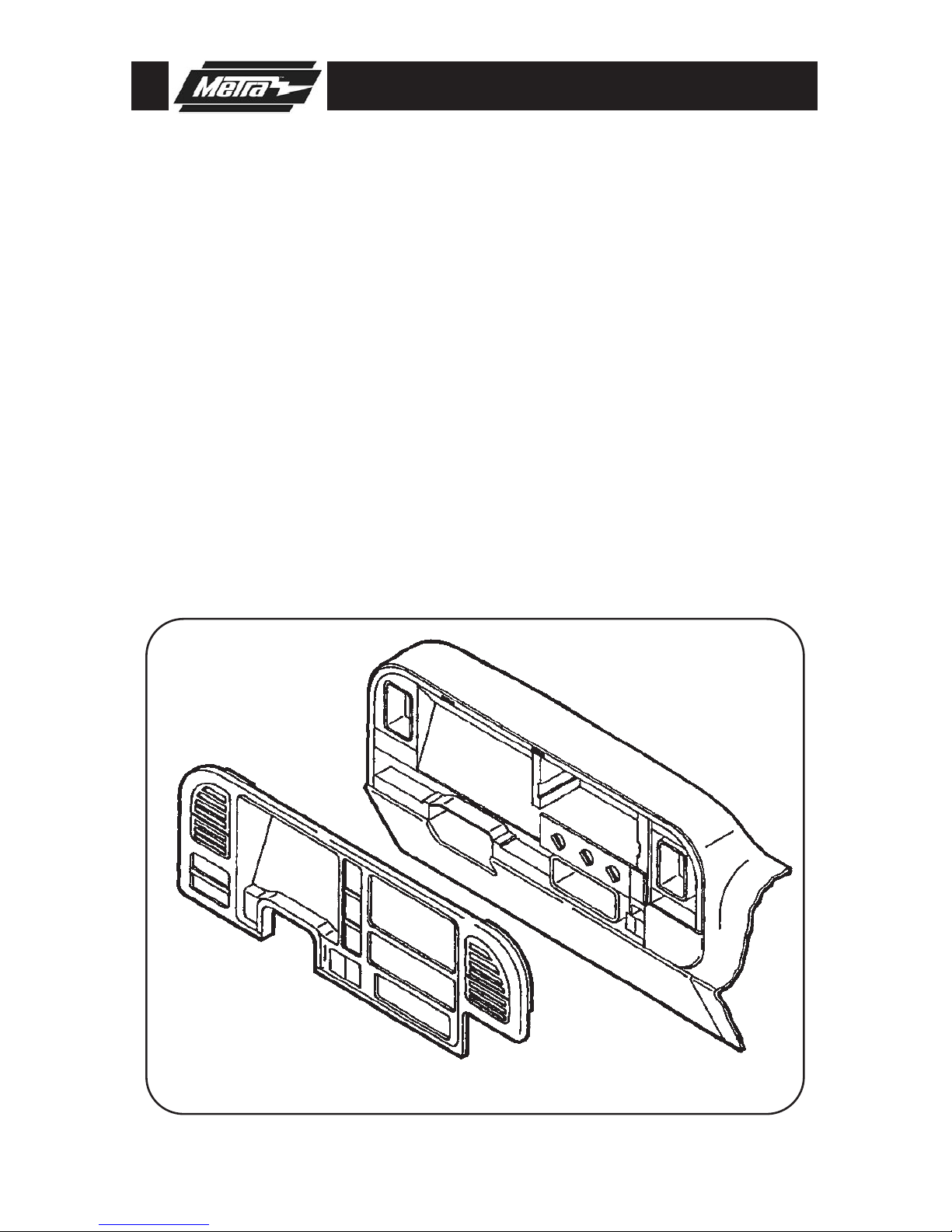

BUICK • Roadmaster 1995-1996

1. Unclip dash panel sides and remove.

2. Unclip panel below steering column and remove.

3. Unclip panel next to glove box on passenger side and remove.

4. Remove (2) 7mm screws above instrument cluster.

5. Set parking brake, turn car on, and move shifter to the lowest gear. Tilt steering

wheel down then unsnap entire instrument cluster/radio panel and remove.

6. Remove (3) 7mm screws to remove radio.

7. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.

99-2003 DASH DISASSEMBLY

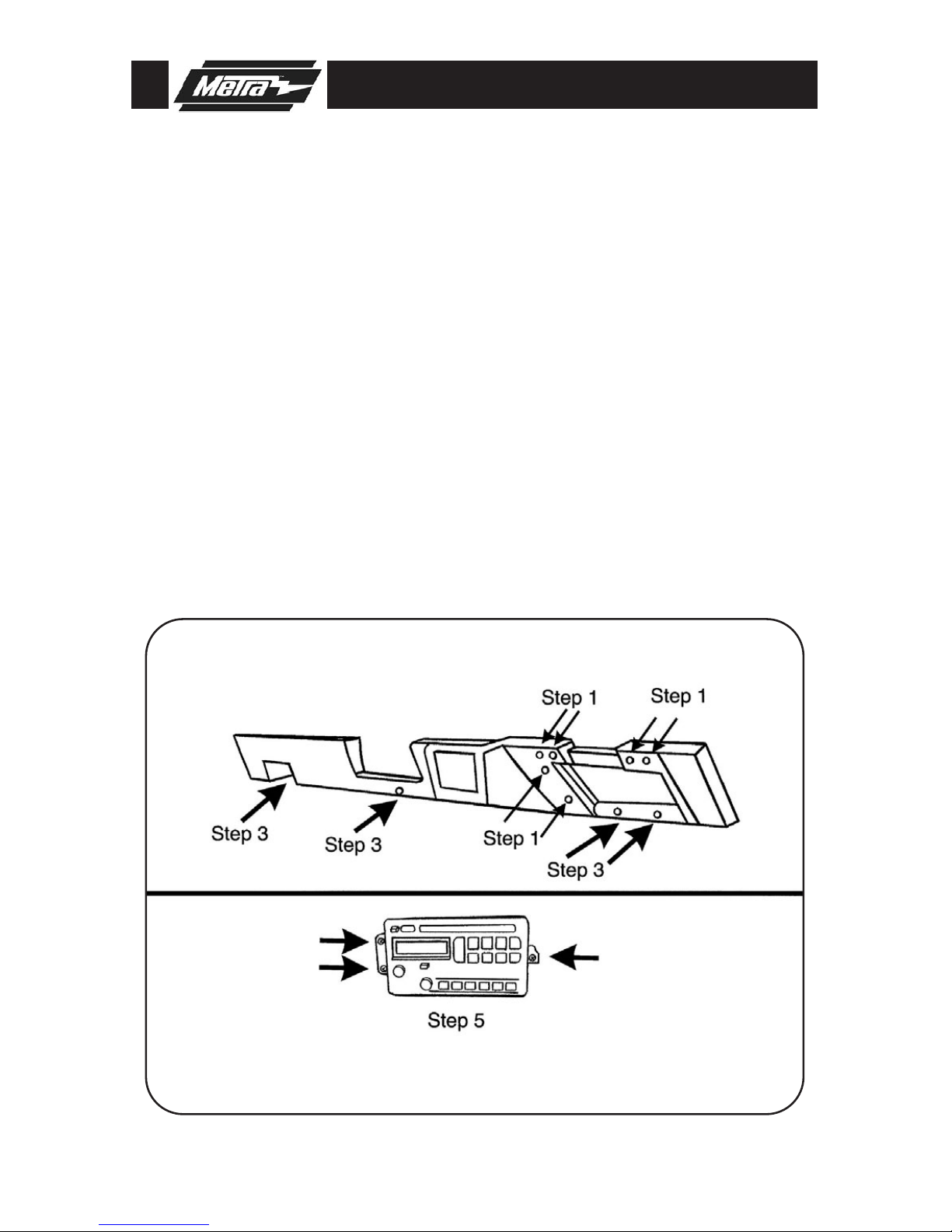

BUICK • Skylark 1996-

1. Remove (6) 9/32" screws inside glove box.

2. Under glove box and drivers knee bolster, remove (2) plastic panels by

turning (2) 1/4 turn fasteners per side.

3. Remove (4) 9/32" screws revealed. (2 per side).

4. Unsnap panel from driver's side to passenger's side.

5. Remove (3) 9/32" screws to remove radio.

6. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.

99-2003 DASH DISASSEMBLY

CADILLAC • Escalade 2003-2004

CHEVROLET • Avalanche 2003-2004

Silverado 2003-04 / Suburban 2003-2004

Tahoe 2003-2004

GMC • Sierra 2003-2004

Yukon / Denali / XL 2003-2004

1. Unsnap and remove dash bezel.

2. Remove (3) 9/32" screws and remove radio.

3. See page 44 for all vehicle tab instructions.

Disconnect the negative battery terminal to prevent an accidental short circuit.
