INSTALLATION INSTRUCTIONS FOR PART 99-7313

Phillips Screwdriver

1-800-221-0932 www.metraonline.com

KIT FEATURES

APPLICATIONS

Hyundai

Elantra 2001-2006

Tiburon 2003-2008

Sonata 2002-2005

Kia

Optima 2001-2006.5

(2006 Early Production Models Only)

•

DIN Head Unit Provision with Pocket

A) Radio Housing

KIT COMPONENTS

TOOLS REQUIRED:

99-7313

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Harness:

•70-7301 - KIA / Hyundai harness 1999-08

Antenna Adapter:

•Not required

Dash Disassembly

-Hyundai Elantra 2001-2006 . . . . . . . . . . . . . . . . . . . . . . . . 1

-Hyundai Tiburon 2003-2008 . . . . . . . . . . . . . . . . . . . . . . . . 2

-Hyundai Sonata 2002-2005 . . . . . . . . . . . . . . . . . . . . . . . . . 3

-Kia Optima 2001-2006.5

(2006 Early Production Models Only)

.......3

Kit Assembly

-DIN Head Unit Provision with Pocket . . . . . . . . . . . . . . . . . . 4

Final Assembly ...................................5

TABLE OF CONTENTS

99-7313

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skills

by enrolling inthe most recognized andrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.com

or call 800-354-6782 formore information

and take stepstoward abetter tomorrow.

2001-2006 HYUNDAI ELANTRA

99-7313

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Remove (2) Phillips screws from

under the instrument cluster.

Remove ashtray then remove (2)

Phillips screws in ashtray cavity.

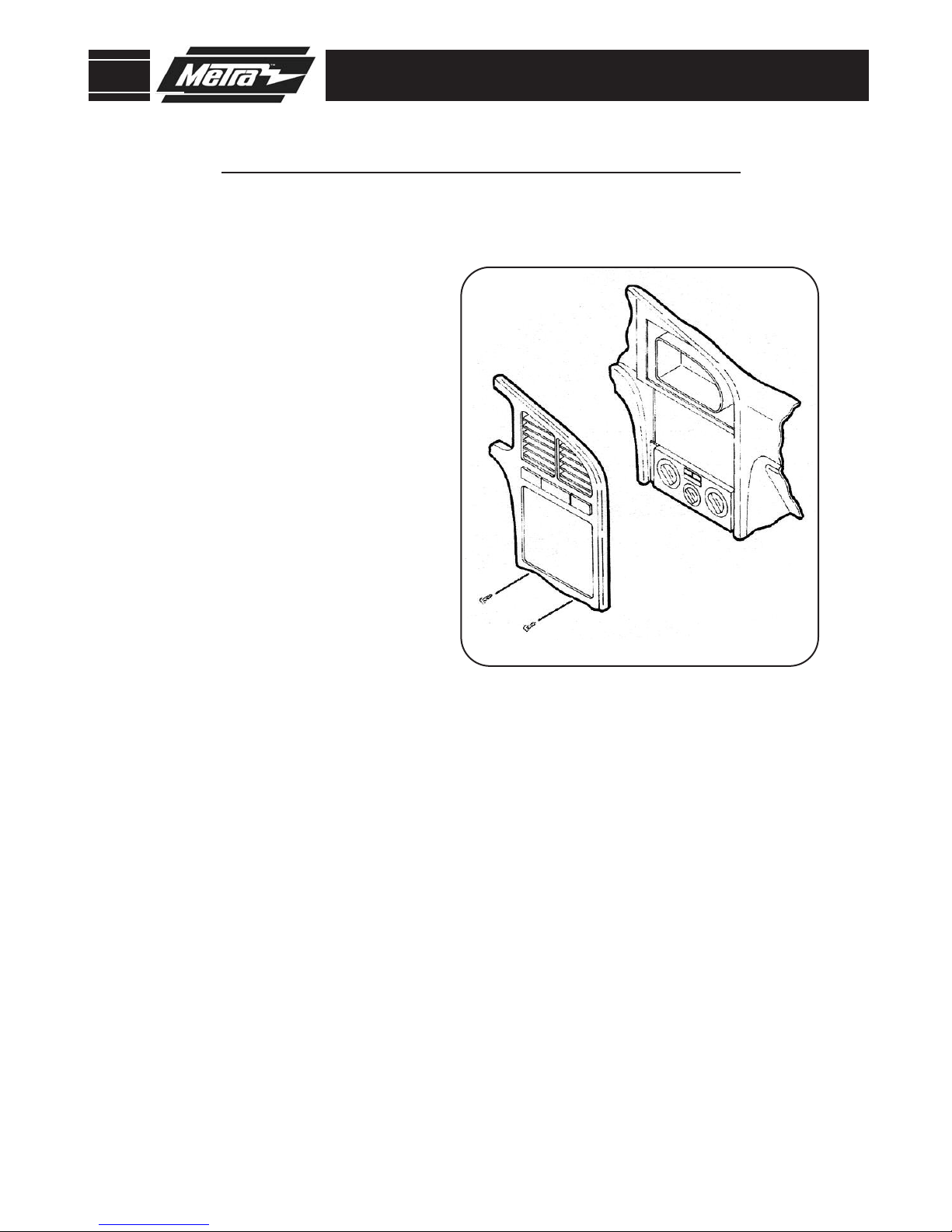

Unclip and remove panel surround-

ing radio and remove the bezel.

(Figure A)

Remove (4) Phillips screws securing

radio.

DASH DISASSEMBLY

2003-2008 HYUNDAI TIBURON

99-7313

Disconnect the negative battery ter-

minal to prevent an accidental short

circuit.

Unclip and remove the radio trim

panel starting with the bottom edge.

(Figure A)

Remove (2) Phillips screws securing

radio.

DASH DISASSEMBLY

CUT

NOTE: For the 2003-2008 Hyundai

Tiburon applications you will need to

cut and remove the bottom mount-

ing tabs on the DDIN brackets.

(Figure B)

2002-2005 HYUNDAI SONATA

99-7313

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove entire panel sur-

rounding radio.

(Figure A)

Remove (4) Phillips screws securing

radio.

NOTE: The rear support bar in the

sub dash will need to be cut and

removed for aftermarket radio clear-

ance.

(Figure B)

DASH DISASSEMBLY

2001-2006.5 KIA OPTIMA

(2006 OPTIMA EARLYPRODUCTION MODELS ONLY)

Slide the DIN cage into the Radio

Housing and secure by bending the

metal locking tabs down.

(Figure A)

Slide the aftermarket head unit into

the cage until secure.

(Figure B)

DIN HEAD UNIT PROVISION WITH POCKET

99-7313

KIT ASSEMBLY

FINAL ASSEMBLY

Locate the factory wiring harness in the dash. Metra recommends using the

proper mating adapter and making connections as shown.

(Isolate and individually tape off the ends of any unused wires to prevent

electrical short circuit.)

Re-connect the negative batteryterminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly.

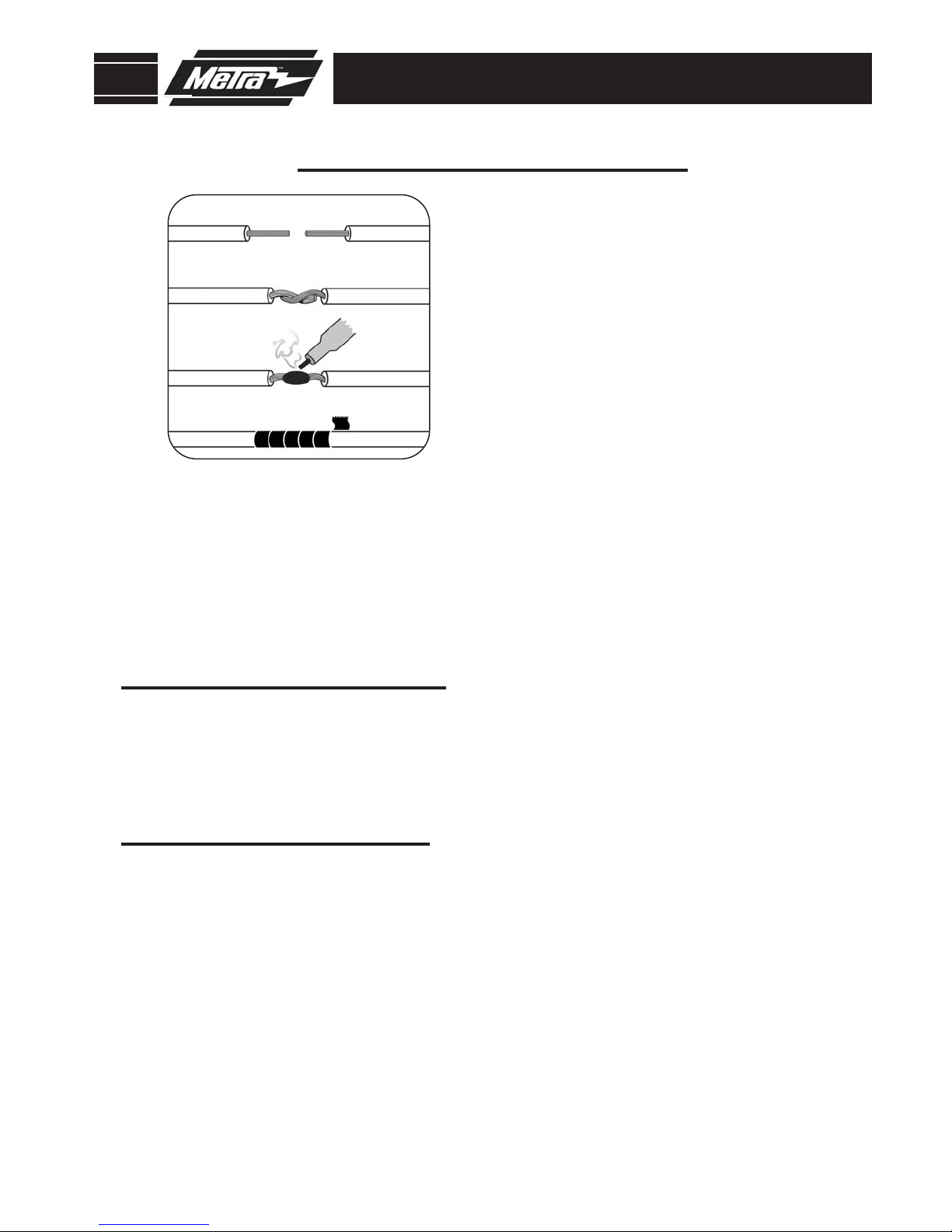

A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Make wiring connections using the EIA color code chart shown belowand the instructions included with the head

unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and individually

tape off ends of any unused wires to prevent electrical short circuit.

12V Ignition / Acc . . . Red

12V Batt / Memory . . Yellow

Ground . . . . . . . . . . . Black*

Power Antenna . . . . . Blue

Amp Turn-On . . . . . . Blue / White

Amp Ground . . . . . . . Black / White

Illumination. . . . . . . . Orange

Dimmer . . . . . . . . . . Orange / White

Right Front (+) . . . . . White

Left Front (-) . . . . . . . White / Black

Right Rear (+). . . . . . Violet

Right Rear (-) . . . . . . Violet / Black

Left Rear (+). . . . . . . Green

Left Rear (-) . . . . . . . Green / Black

*NOTE: When Black a wire is not present, ground radio to vehicle chassis.

All colors may not be present on all leads due to manufacturer’s specifications.

METRA / EIA WIRING CODE

FINAL WIRING CONNECTIONS

99-7313

FINAL ASSEMBLY

99-7313 INSTRUCTIONS

1-800-221-0932 www.metraonline.com
