INSTALLATION INSTRUCTIONS FOR PART 95-5820

95-5820

KIT FEATURES

•Double DIN Radio Provision

•Stacked ISO Mount Units Provision

•A) Double DIN Radio Housing • B) Double DIN Radio Housing Brackets

•C) Radio Housing Trim Panel • D) (6) U Style Panel Clips

KIT COMPONENTS

1-800-221-0932

www.metraonline.com

APPLICATIONS

FORD

F-150 2009

•Cutting Tool • Phillips Screwdriver • Socket Wrench • Torx Driver

•Panel Removal Tool

TOOLS REQUIRED:

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

Harness:

•Please see www.metraonline.com for

specific interface harness

Antenna Adapter:

•40-CR10 - Chrysler antenna adapter 02-up

Dash Disassembly

FORDF-1502009 .................................

. 1,2

Kit Preparation

FORDF-1502009 ...................................

Kit Assembly

-Double DIN Radio Provision / Stacked ISO Mount Units Provision .... 4

Final Assembly .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

TABLE OF CONTENTS

95-5820

*Note:

Refer also to the instructions included with the aftermarket radio.

NOWLEDGE IS

OWER

Enhanceyour installation and fabrication skillsby

enrolling in the most recognizedandrespected

mobile electronics school in our industry.

Log onto www.installerinstitute.comor call

800-354-6782 for more informationandtake steps

toward abetter tomorrow.

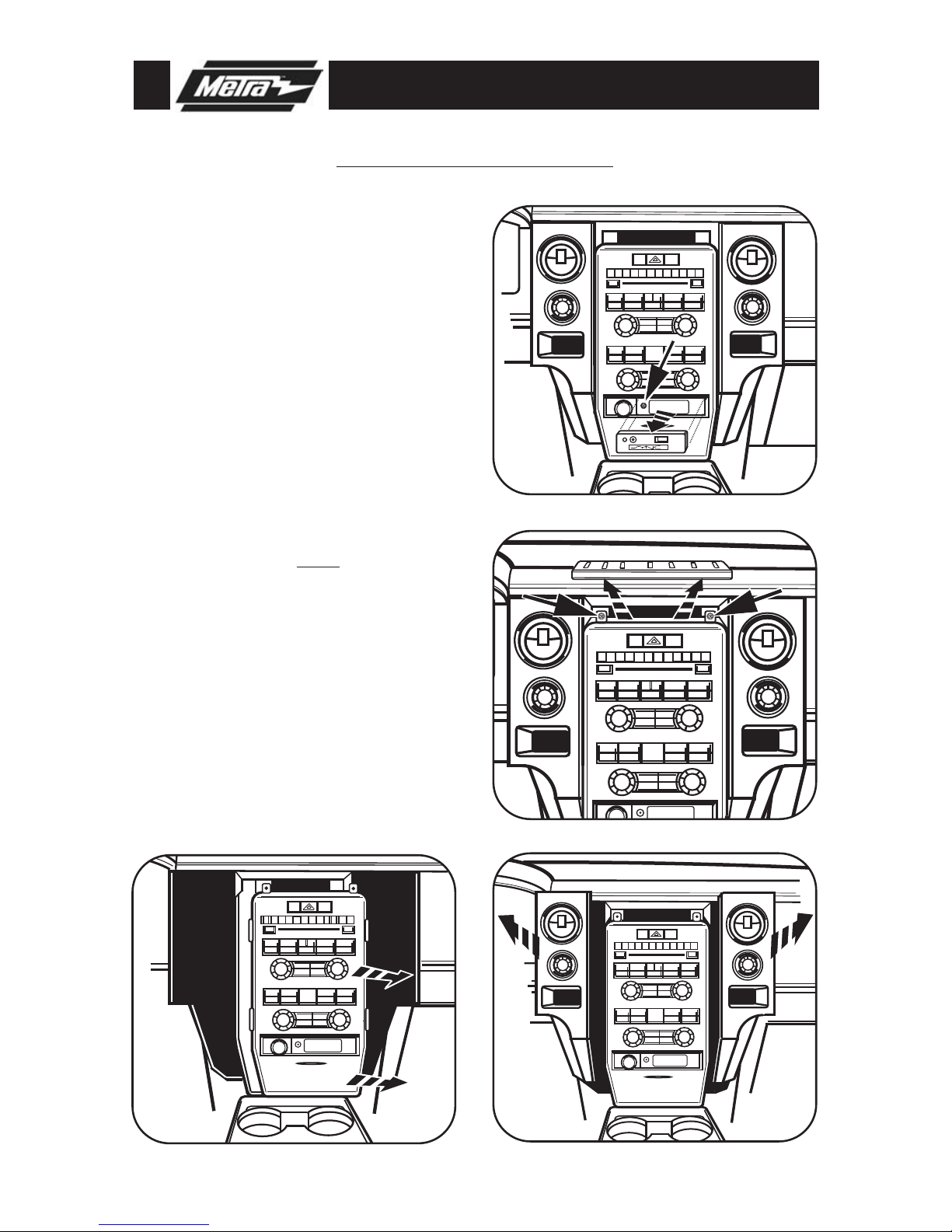

95-5820 DASH DISASSEMBLY

FORD F-150 2009

Remove the rubber pad at the top of

the radio trim panel then remove the

(2) 9/32” screws exposed. (

Figure B)

Disconnect the negative battery

terminal to prevent an accidental

short circuit.

Unclip and remove the switch panel

to the right of the cigarette lighter

then remove the (1) 9/32” screw

exposed. (

Figure A)

Unclip and pull the side panels con-

taining the a/c vents away from the

radio trim panel. Note: It is not nec-

essary to remove the panels com-

pletely. (

Figure C)

Unclip and remove the radio trim

panel. (

Figure D)

Continued on page 2.

95-5820 DASH DISASSEMBLY

FORD F-150 2009

FACTORY RADIO TRIM PANEL-REAR VIEW

Remove (4) Torx screws securing the

factory climate control to the radio

trim panel. (

Figure G)

Unclip and remove the cigarette

lighter socket from the radio trim

panel. (

Figure F)

Remove (4) 9/32” screws to remove

the factoryradio.

Unclip and remove the hazard/airbag

switchassembly from the factory

radio trim panel. (

Figure E)

Continue to final preparation.

95-5820 KIT PREPARATION

FORD F-150 2009

KIT REPLACEMENT RADIO TRIM PANEL-REAR VIEW

Secure the climate control into the

radio housing using the factory

hardware in the same location as

the factory radio trim panel. (

Figure C)

Clip the cigarette lighter socket into

the radio housing in the same loca-

tion as the factory radio trim panel.

(

Figure B)

Attachthe (6) U style panel clips to

the radio housing in the same

location as the factory radio trim

panel. (

Figure D)

Clip the hazard/airbag switch

assembly into the radio housing in

the same location as the factory

radio trim panel. (

Figure A)

Continue to kit assembly.

95-5820 KIT ASSEMBLY

DOUBLE DIN RADIO PROVISION OR

STACKED ISO MOUNT UNIT(S) PROVISION

Slide the appropriate side bracket

over the mounting legs of the Double

DIN trim plate aligning the holes in

the trim plate and the bracket and

rotate inward.

Note: The notch in the housing

should be on top.

(Figure A)

Slide the Double DIN or stacked ISO

mount units into the bracket/radio

housing assembly and secure the

Double DIN or stacked ISO mount

units to the assembly using the

screws supplied with the Double DIN

or stacked ISO mount units.

(Figure B)

Cut and remove half of the top (2)

mounting legs with the brackets

attached.

(Figure C)

Continue to final assembly.

Note: Refer also to the instructions included with the aftermarket radio.

CUT HERE -

CUT HERE

TOP LEG ONLY

CUT

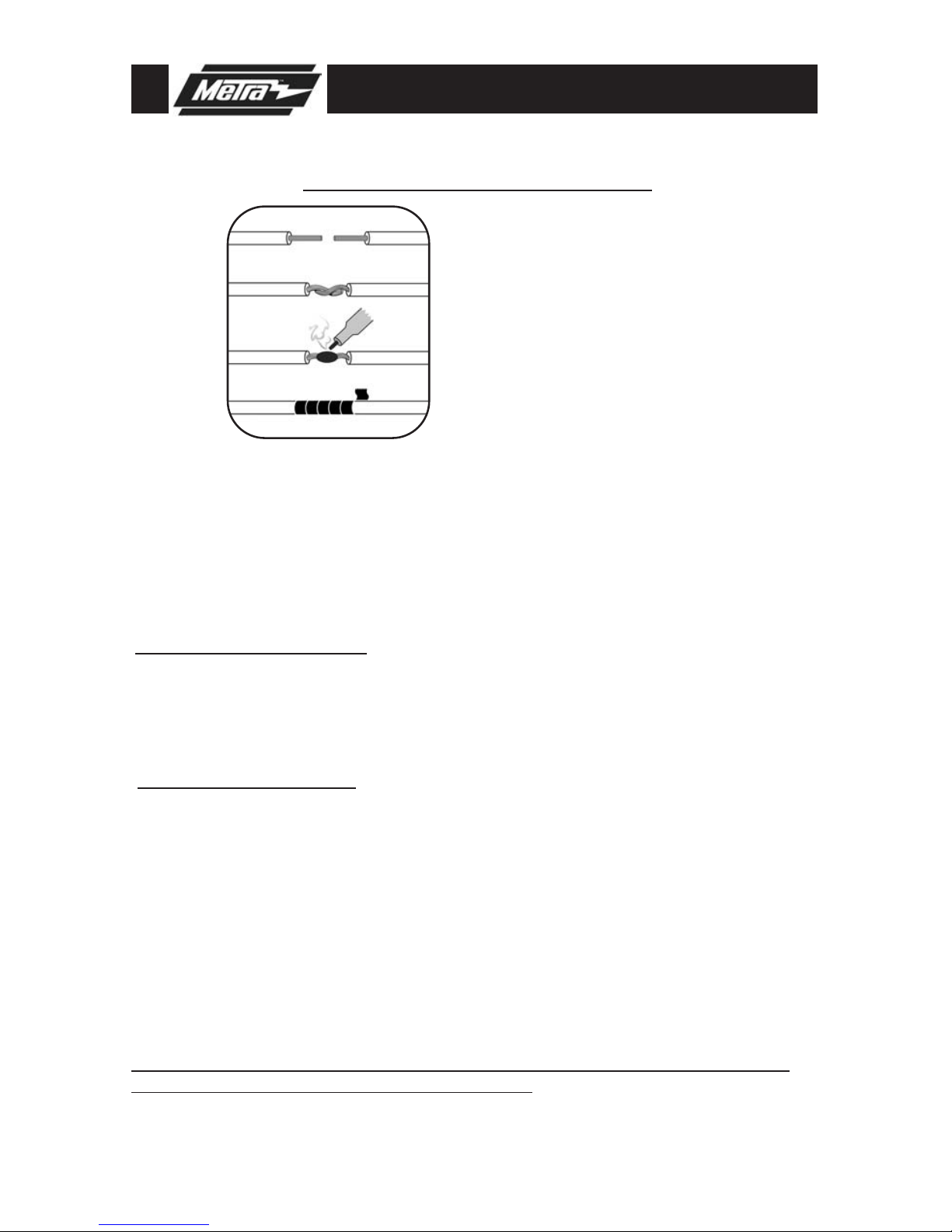

95-5820 FINAL ASSEMBLY

FINAL ASSEMBLY

(A) Strip wire ends back 1/2"

B) Twist ends together

C) Solder

D) Tape

Locate the factorywiring harness in the dash. Metra recommends using the proper mating

adapter and making the connections as shown. (Isolate and individually tape off the ends of

any unused wires to prevent electrical short circuit).

Re-connect the negative battery terminal and test the unit for proper operation.

Reassemble radio and dash assemblies in reverse order of disassembly using the

95-5820 radio housing in place of the factory radio trim panel.

Make wiring connections using the EIA color code chart shown below and the instructions

included with the head unit. Metra recommends making connections shown below; Strip, Splice,

Solder, Tape. Isolate and individually tape off ends of any unused wires to prevent electrical short

circuit.

FINAL WIRING CONNECTIONS

METRA / EIA WIRING CODE

12V Ignition / Acc. . . . . . . . . . Red

12V Batt / Memory. . . . . . . . . Yellow

Ground..................Black*

Power Antenna. . . . . . . . . . . . Blue

AmpTurn-On.............Blue / White

Amp Ground. . . . . . . . . . . . . . Black / White

Illumination . . . . . . . . . . . . . . Orange

Dimmer . . . . . . . . . . . . . . . . . Orange / White

Right Front (+) . . . . . . . . . . . . Gray

Right Front (-). . . . . . . . . . . . . Gray/ Black

Left Front (+) . . . . . . . . . . . . . White

Left Front (-). . . . . . . . . . . . . . White / Black

Right Rear (+) . . . . . . . . . . . . Violet

Right Rear (-) . . . . . . . . . . . . . Violet / Black

Left Rear (+) . . . . . . . . . . . . . Green

Left Rear (-) . . . . . . . . . . . . . . Green / Black

*NOTE:

When a Blackwireis not present, ground radio to vehicle chassis. All colors may not be

present on all leads due to manufacturer’sspecifications.

95-5820 INSTRUCTIONS

1-800-221-0932

www.metraonline.com
