INSTALLATION INSTRUCTIONS FOR PART 99-3306
99-3306
APPLICATIONS
Chevrolet Aveo sedan 2007-2010
KIT FEATURES
•DIN Mount Radio Provision with Pocket
•ISO Mount Radio Provision with Pocket
• Double DIN Mount Radio Provision
•Stacked ISO Units Provision
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
•E) Double DIN Trim Plate • F) Pocket
KIT COMPONENTS
A
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
•Phillips Screwdriver • Socket Set
1-800-221-0932
©COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
BD
E
C
F
Pontiac G3 2007-2009
WIRING AND ANTENNA CONNECTIONS: (Sold Separately)
Wiring Harness:
• 70-2105 - GM harness 2006-up
•70-8405 - GM/Suzuki/Daewoo harness 1999-up
Antenna Adapter:
•40-CR10 - CHRYSLER/GM antenna adapter 2002-up
Dash Disassembly
-
Chevrolet Aveo 2007-2010.. . . . . . . . . . . . . . . . . . . . . .
. . . . . . 1
-
Pontiac G3 2007-2009 . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . 1
Kit Assembly
- DIN Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . 2
-ISO Mount Radio Provision with Pocket. . . . . . . . . . . . . . . . . . . . . . . . 3
-Double DIN Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
-Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Final Assembly ...........................................6
TABLE OF CONTENTS
99-3306
*Note:
Refer also to the instructions included with the aftermarket radio.
K
NOWLEDGE IS
P
OWER
Enhanceyour installation and fabrication skillsby
enrolling in the most recognizedandrespected
mobile electronics school in our industry.
Log onto www.installerinstitute.comor call
800-354-6782 for more informationandtake
steps towardabetter tomorrow.

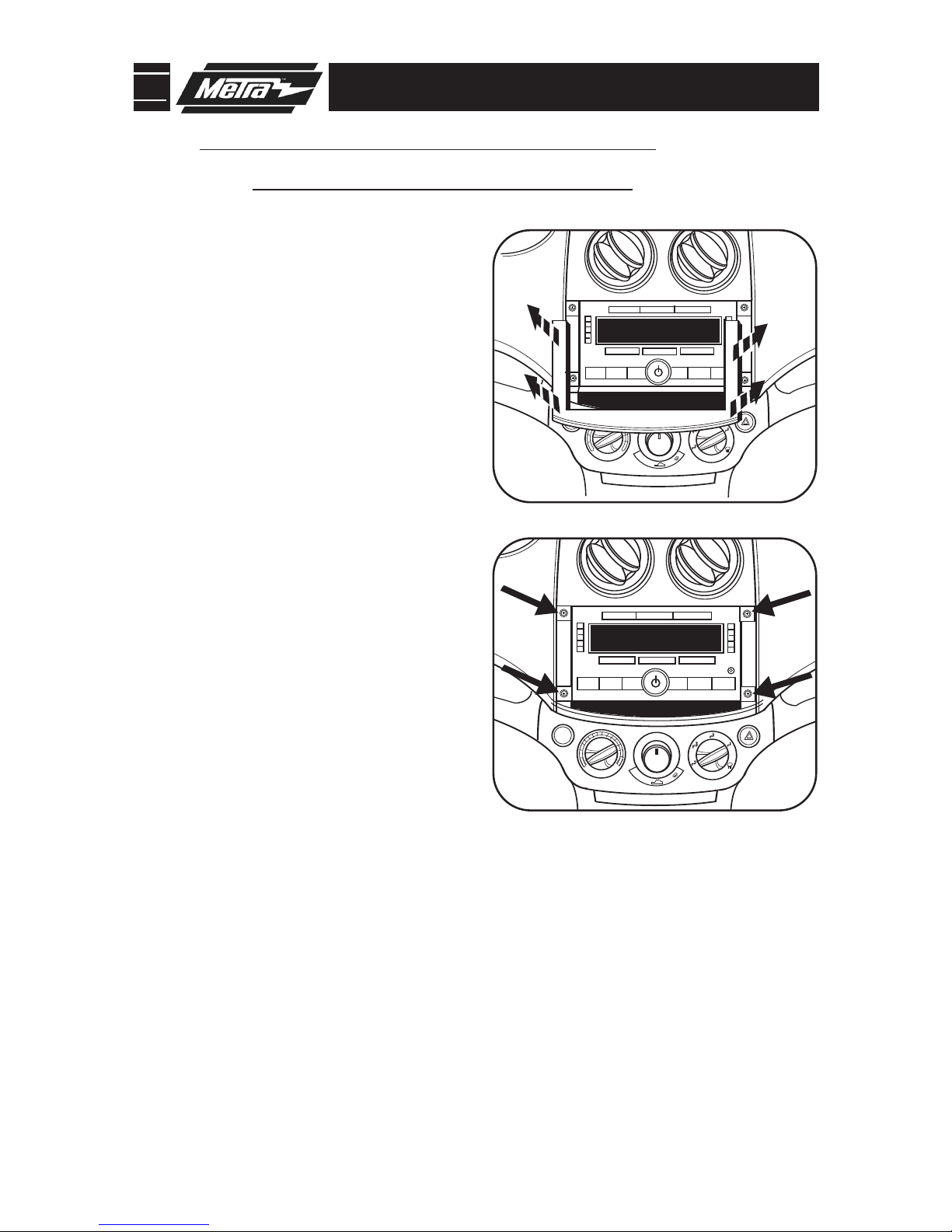

99-3306 DASH DISASSEMBLY
CHEVROLET AVEO 2007-2010
A
1
1
2
2
3
34
4
56
SOUND SCAN AST
A/C
123456
SOUND SCAN AST
A/C
B
1
1
Remove (4) 9/32” screws securing
the radio. Unplug and remove radio.
(
Figure B)
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
3
Unclip and remove trim panel around
radio. (
Figure A)
2
Continue to kit assembly.
PONTIAC G3 2007-2009
99-3306 KIT ASSEMBLY
2
A
B
C
DIN MOUNT RADIO PROVISION WITH POCKET
Slide the DIN cage into the Radio
Housing and secure by bending the
metal locking outward.
(Figure A)
1
Slide the aftermarket radio into the DIN
cage until it snaps into place.
(Figure B)
2
Snap the pocket into the radio housing.
(Figure C)
3
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
99-3306 KIT ASSEMBLY
3
A
B
C
ISO MOUNT RADIO PROVISION WITH POCKET
Mount the ISO Brackets to the radio
using the screws supplied with the
radio.
(Figure A)
1
Slide the radio into the radio opening
until it snaps into place.
(Figure B)
2
Snap the ISO Trim Plate onto the front
of the Radio Housing.
(Figure B)
3
Snap the pocket into the radio hous-
ing.
(Figure C)
4
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
99-3306 KIT ASSEMBLY
4
DOUBLE DIN MOUNT RADIO PROVISION
Cut and remove the center bar from
the radio housing.
(Figure A)
1
Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure B)
2
Slide the Double DIN radio into the
bracket/radio housing assembly and
secure the radio to the assembly using
the screws supplied with the radio.
(Figure C)
3
Snap the Double DIN trim-plate onto
the front of the housing/radio assem-
bly.
(Figure C)
4
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
A
B
C
99-3306 KIT ASSEMBLY
5
STACKED ISO UNITS PROVISION
Cut and remove the center bar from
the radio housing.
(Figure A)
1
Snap the Double DIN brackets to the
inside edge of the radio housing.
(Figure B)
2
Slide the stacked ISO units into the
bracket/radio housing assembly and
secure the units to the assembly using
the screws supplied with the units.
(Figure C)
3
Continue to final assembly.
*Note: Refer also to the instructions included with the aftermarket radio.
A
B
C
D
Snap the Double DIN trim-plate onto
the front of the housing/radio assem-
bly.
(Figure D)
4
99-3306 FINAL ASSEMBLY
FINAL ASSEMBLY
(A) Strip wire ends back 1/2"
B) Twist ends together
C) Solder
D) Tape
A
B
C
D
Locate the factory wiring harness in the dash. Metra recommends using the
proper mating adapter and making connections as shown. (Isolate and individ-
ually tape off the ends of any unused wires to prevent electrical short circuit.)
Re-connect the negative battery terminal and test the unit for proper operation.
Reassemble radio and dash assemblies in reverse order of disassembly.
1
2
3
FINAL WIRING CONNECTIONS
Make wiring connections using the EIA color code chart shown belowand the instructions included with the
head unit. Metra recommends making connections as shown below; Strip, Splice, Solder, Tape. Isolate and
individually tape off ends of any unused wires to prevent electrical short circuit.
METRA / EIA WIRING CODE
12V Ignition / Acc. . . . . . . . . . Red
12V Batt / Memory. . . . . . . . . Yellow
Ground. . . . . . . . . . . . . . . . . . Black*
Power Antenna............Blue
Amp Turn-On . . . . . . . . . . . . . Blue / White
Amp Ground. . . . . . . . . . . . . . Black / White
Illumination . . . . . . . . . . . . . . Orange
Dimmer . . . . . . . . . . . . . . . . . Orange / White
Right Front (+) . . . . . . . . . . . . Gray
Right Front (-). . . . . . . . . . . . . Gray/ Black
Left Front (+) . . . . . . . . . . . . . White
Left Front (-). . . . . . . . . . . . . . White / Black
Right Rear (+) . . . . . . . . . . . . Violet
Right Rear (-) . . . . . . . . . . . . . Violet / Black
Left Rear (+) . . . . . . . . . . . . . Green
Left Rear (-) . . . . . . . . . . . . . . Green / Black
*NOTE: When a Black wire is not present, ground radio to vehicle chassis.
All colors may not be present on all leads due to manufacturer’s specifications.
6
1-800-221-0932
REV. 04/21/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-3306
www.metraonline.com
