Lighting Accessories by Hunter Industries

Integration Guide

Luxor®Controllers with ZD Technology®and ZDC Technology®

LUXOR

Table of Contents

3 System Requirements

3 Getting Started

4 Adding Devices

8 Integration IDs

9 Telnet Logins

10 Programming Keypads

12 Project Transfer

13 Luxor Controller Conguration

15 Troubleshooting

LUXOR

Getting Started

1. Open the RadioRA 2 project.

2. In the DESIGN tab, locate the Main Repeater

by pressing the "Find Main Repeater" button.

System Requirements

RadioRA

2 System Requirements

Soware: RadioRA

2 Essentials or

RadioRA 2 Inclusive

Getting Started

3. Set Main Repeater DHCP to "Disabled" and

record the IP address.

Note: The Main Repeater IP address will be

added to the Luxor controller.

4. Press "Save Settings."

5. In the Design tab, press "+" to add a Room.

Note: Names should correspond to areas (e.g.,

Backyard, Palms, etc.) being turned ON by the

Luxor controller.

Adding Devices

Devices are used as placeholders for each Luxor

controller Group.

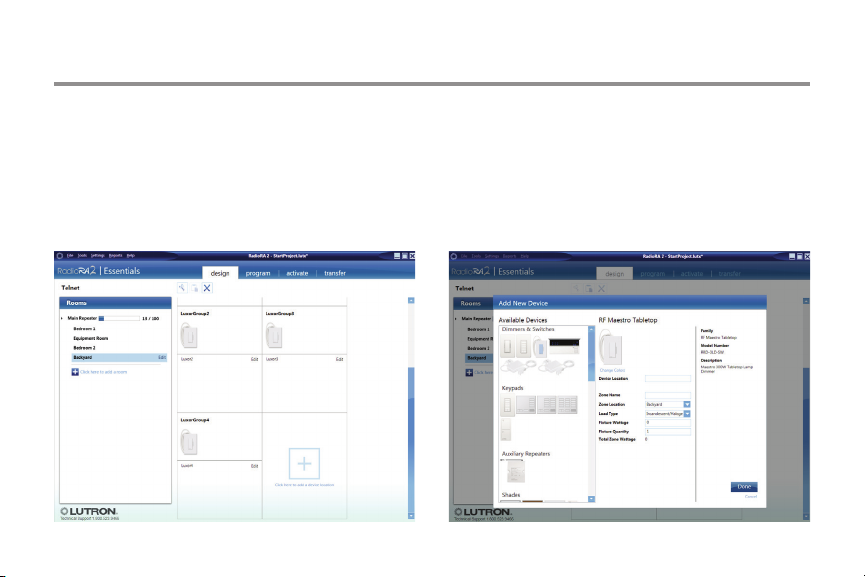

1. In the recently assigned Room, press "+ click here to add

a device location" and select RF Maestro Tabletop.

Adding Devices

2. Enter "Luxor All Groups" in the Device Location

and Zone Name elds.

3. Click "Done."

4. Click "+ Click here to add a device location" and

select RF Maestro Tabletop.

5. Enter "LuxorGroup1" in the Device Location eld

and "Luxor1" in the Zone Name eld.

Device Location = LuxorGroupX

Zone Name = LuxorX

X=Luxor Group number

Adding Devices

6. Click "Done."

7. Continue adding RF Maestro Tabletop devices

until the number of devices equals the number

of Luxor groups.

Note: "Luxor All Groups" device should now be

listed in Available Devices.

Integration IDs

1. From the Essentials soware menu bar,

click the Integration Settings tab.

2. Click the IDs tab.

3. Double-click Integration ID for "Luxor All Groups"

device and enter 500.

4. Double-click "Integration ID" and enter 501 for

the device named Luxor1.

Continue this process for the remaining devices

reserved for Luxor groups.

5. Click "OK" once all Luxor group Integration IDs

have been updated.

Telnet Logins

1. From the Essentials soware menu bar,

click the Integration Settings tab.

2. Click the Telnet Logins tab.

3. Click "+ Click here to create a new Telnet login."

4. Enter "hunter" in Username eld.

5. Enter "4HHuunntteerr" in the Password eld.

Note: "Bad Login" message will appear if

username and password do not match

steps 4 and 5.

6. Click "OK."

Programming Keypads

1. Click Program from the menu bar and select a

Keypad to operate Luxor Groups.

2. Select the room where Luxor Groups are located.

3. Select keypad button that will be used to turn on

Luxor Groups.

4. Set the desired dimming level (0-100%).

Note: Fade Time remains set at 0.

5. Click "Done."
