AuroRa®Package Installation Guide

Read all instructions before installing the AuroRa system.

The AuroRa installation guide is designed to help you plan and

complete the installation of your AuroRa Lighting Control System.

Refer to the information included in this guide to

learn about the following:

•AuroRa lighting control package contents

•How to install AuroRa dimmers/switches

•How to operate your system

•How to expand the system’s capability

Need help?

Call the Lutron

Technical Support Center,

24/7 at 800.523.9466

Please leave installation guide with resident homeowner.

AR-ENT-2S3D-XX

Lutron |2 Need help? Contact Lutron Technical Support 24/7: 800.523.9466

FCC Information

NOTE: This equipment has been tested and found

to comply with the limits for a Class B digital device,

pursuant to part 15 of FCC rules. Operation is

subject to the following:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired

operation. The user is encouraged to try to correct

the interference by one or more

of the following measures:

•Re-orient or relocate the receiving antenna.

•Increase the separation between the equipment

and receiver.

•Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

•Consult the dealer or an experienced radio/TV

technician for help.

Note: Changes or modifications not expressly

approved by Lutron Electronics Co. may void the

user’s authority to operate this equipment.

To avoid risk of overheating or possible burns,

do no exceed max ratings for dimmers/switches

(multi-gang locations require derating).

To avoid fire, shock or death, turn power off at

corresponding circuit breaker or remove fuse

before removing or installing any dimmers or

switches.

To avoid fire, shock or death, turn off power. If a

circuit breaker trips following resetting, DO NOT

reset to “on” again until the cause has been

corrected. Repeated closing of a circuit breaker

on an electrical overload can damage it and

electrical fires can result.

To avoid overheating, fire and possible damage

to equipment, use dimmers with 120 V~

incandescent lighting fixtures only. Do not use

with low-voltage transformers.

To avoid overheating, fire and possible damage to

dimmer/switch or other equipment, do not use

dimmers/switches to control receptacles, motor-

operated or transformer-supplied appliances.

To avoid fire, shock or death, if you cannot clearly

identify the neutral connection stop the installation

and contact a qualified electrician or call Lutron’s

24/7 Customer Support Center at 800.523.9466.

To avoid fire, shock or death, if you are unsure

about any part of these instructions consult a

qualified electrician.

important safety information

WARNING

CAUTION

Lutron |3Need help? Contact Lutron Technical Support 24/7: 800.523.9466

table of contents

Installing your system is simple. We recommend you

read through all the instructions and safety information

before starting.

Choose from the topics below to help

guide you through the process.

Important Safety Information 2

Before You Begin (AuroRa®package contents) 4

Selecting Dimmer/Switch Locations 5

Installing a Dimmer/Switch 6

Installing the Designer Insert 6

Replacing Switches With AuroRa Dimmers/Switches 7

Setting Up the Master Control 14

Setting Up the Central Antenna 15

Installing the Wireless Controller 16

How to Operate the System 17

Adding to the System

•Bridging two systems 18

•Activating additional Wireless Controllers 19

Frequently Asked Questions 20

Wiring Diagrams 21

General Information 22

Troubleshooting 24

If you have any questions, the Lutron Technical Support Hotline

is ready to help 24 hours, 7 days a week. Call us at 800.523.9466

for immediate assistance. Or, find information on the internet at

www.lutron.com/aurora.

Rooms

Entry

Kitchen

Foyer

Grge Ext

Family

All On All Off

RF Communication

System Visor

Advanced

Bridge Add

Power

LUTRON

Lutron |4 Need help? Contact Lutron Technical Support 24/7: 800.523.9466Lutron |4

AuroRa®|before you begin

AuroRa package contents

Slotted

screwdriver

Phillips

screwdriver

Wire

stripper

Wire

cutter

Tools you may need

Master Control

and dc adapter

(1)

Wireless

Controller

(1)

Switches

(2)

Central Antenna

and dc adapter

(1)

Label sheets

(2)

“At a glance”

instruction sheet

(1)

Installation

guide

(1)

Wire connector

and screw kit

(5)

Electrical tape

Small

screwdriver

(1)

Flashlight

Wireless Controller

rubber footpads

(4)

Designer inserts

(5)

Wireless Controller

wall mount

bracket kit

(1)

Dimmers

(3)

White

Neutral wire

for Switches

(2)

1 2 3 4 5

Lutron |5Need help? Contact Lutron Technical Support 24/7: 800.523.9466

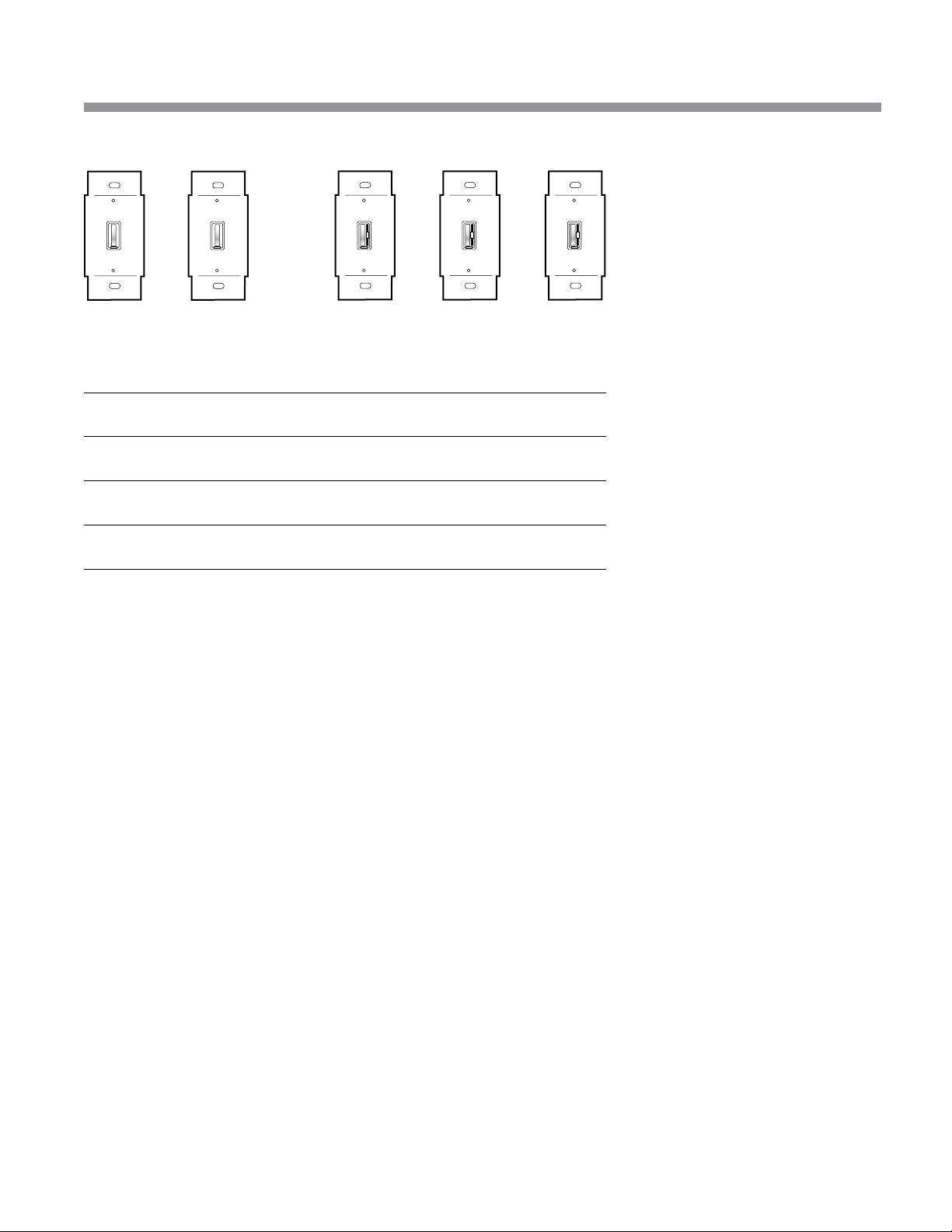

selecting dimmer/switch locations

Decide which lights you want to control with dimmers/switches

Choose your dimmer/switch locations:

1 (Switch):

2 (Switch):

3 (Dimmer):

4 (Dimmer):

5 (Dimmer):

Switches

•Total wattage of all light bulbs

controlled by each switch must

be between 10 W (0.08 A) to

600 W (5 A).

•Switch requires neutral wire in

location of install.

•Use AuroRa®switches with all

lighting loads (incandescent,

magnetic low-voltage, electronic

low-voltage, fluorescent).

•Do not use dimmers in 3-way

circuits with AuroRa switches.

•When combining dimmers or

switches in the same wallbox,

the dimmer’s/switch’s load

capacity must be reduced (See

“Derating Chart” on page 22).

Suggested Locations:

•1 (Switch): Entry

•2 (Switch): Kitchen

•3 (Dimmer): Foyer

•4 (Dimmer): Garage Exterior

•5 (Dimmer): Family

Dimmers

•Total wattage of all light bulbs

controlled by each dimmer must

be between 50 W and 600 W.

•Use dimmers with 120

incandescent light fixtures only.

Do not use with low-voltage

transformers or compact

fluorescent bulbs.

•When combining dimmers or

switches in the same wallbox,

the dimmer’s/switch’s load

capacity must be reduced (See

“Derating Chart” on page 22).

NOTE: When choosing locations be sure each control meets

the following requirements:

Lutron |6 Need help? Contact Lutron Technical Support 24/7: 800.523.9466

installing a dimmer/switch

Your first step is to identify how many switches control the lights you

have decided to add to your system.

•This is important so that you use the correct installation instructions.

•Lutron has created specific instructions for lights controlled by one,

two, or three switches to help simplify your installation.

After you have installed the first dimmer/switch, repeat the process

until all of the AuroRa dimmers/switches have been installed.

Installing an AuroRa®

dimmer/switch is as simple

as replacing a light switch

Installing the

designer insert

(use with designer

opening wallplates)

Designer-style

Wallplate Inserts allow

Lutron Traditional-

style dimmers and

switches to be used

with designer-style

wallplates.

A. Slide the insert over the dimmer/

switch, making sure to line up

the pins on the back of the

insert with the screw holes on

the dimmer/switch as shown.

B. Press the insert firmly in place.

Designer

Wallplate

Designer

Insert

C. Re-install the wallplate.

All OffAll On

Rooms

Entry

Kitchen

Foyer

Grge Ext

Family

Switch

Dimmer

Lutron |7Need help? Contact Lutron Technical Support 24/7: 800.523.9466

For lights controlled by two switches, use instructions

on pages 10 and 11.

For lights controlled by one switch, use instructions

on pages 8 and 9.

For lights controlled by three or more switches, use instructions

on pages 12 and 13.

Write down how many existing switches control the lights

you selected as 1–5 on your master control.

Number of existing switches:

replacing switches with AuroRa®dimmers/switches

✓ Helpful Hint:

This circuit is called

a single-pole circuit.

Typical location:

•Porch light

•Bedroom light

✓ Helpful Hint:

This circuit is called

a three-way circuit.

Typical location:

•Hallway light

•Kitchen light

✓ Helpful Hint:

This circuit is called

a four-way circuit.

Typical location:

•Stairwell light

Master Control

Your locations:

1*:

2*:

* AuroRa®Switches require

neutral wire at chosen location.

4A 4B

Lutron |8 Need help? Contact Lutron Technical Support 24/7: 800.523.9466

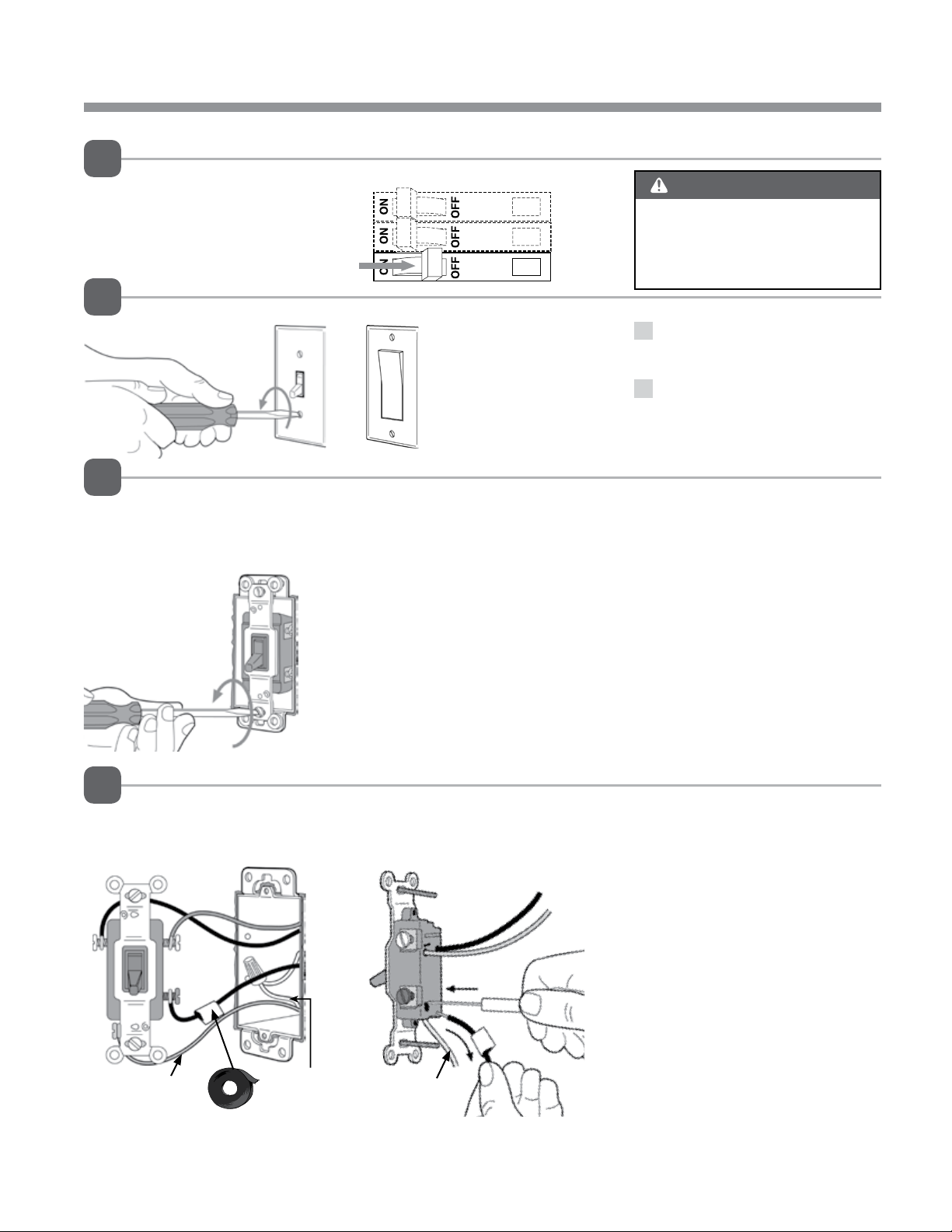

lights controlled by one switch

Uninstall existing switch

(wires attached to screws only)

Remove wallplate

Unscrew existing switch

and pull it forward out

of the wall

To avoid fire, shock or

death, turn power off

at corresponding circuit

breaker or remove fuse.

Turn power off at

corresponding circuit

breaker or remove fuse

✓ Helpful Hint:

Save your wallplate and screws.

Turn screw to loosen and

disconnect wires (1, 2, 3)

from the switch.

B. Two insulated wires inserted

into back of existing switch.

One ground wire attached

to a screw.

To uninstall switch,

refer to step 4B.

A. Two insulated wires

attached to a screw. One

ground wire (green or bare)

attached to a screw.

To uninstall switch,

refer to step 4A.

Uninstall existing switch

(wires attached to back of existing switch)

Insert screwdriver (included in

package) into the holes found on

the back of existing switch and

pull out wires (1, 2). Loosen

screw and disconnect ground

wire (3).

Once switch is pulled out, you should see one of the following:

3 (ground wire)

Traditional Designer

2Neutral

Neutral

NOTE:

If intending to install an AuroRa®

switch in this location, ensure

neutral is available before

disconnecting/uninstalling switch.

✓ Helpful Hint:

For wiring diagram for lights

controlled by one switch see

step 3A on page 21.

WARNING

Wire

Connector

Lutron |9Need help? Contact Lutron Technical Support 24/7: 800.523.9466

Mount dimmer or switch

Turn power on at circuit

breaker or replace fuse

A. Connect the green

or bare wire (ground

wire) to the green wire

on the dimmer/switch

with a wire connector.

B. Connect one wire to the black

screw on the dimmer/switch.

C. Connect the other wire to

either one of the two gold

colored screws (brass) on the

dimmer/switch.

D. Tighten the brass screw that is not

being used.

E. For AuroRa®switch connect the

neutral (usually white) wire to the

silver colored screw on the switch

using white wire provided by Lutron.

(see page 22 for additional info)

brass screws

ground wire

green wire

black

screw

Install dimmer or switch

Replace wallplate ✓ Helpful Hint:

See page 6—installing

the designer insert if

using designer wallplate.

DesignerTraditional

brass screws

ground wire

green wire

black

screw

SwitchDimmer

neutral wireneutral wire

silver screw white wire

(provided

by Lutron)

To avoid fire, shock or death,

if breaker trips do not reset

breaker to “on” again until

fault has been corrected.

WARNING

Lutron |10 Need help? Contact Lutron Technical Support 24/7: 800.523.9466

lights controlled by two switches

DesignerTraditional

Remove wallplate

Turn power off at circuit

breaker or remove fuse

Uninstall switch

✓ Helpful Hint:

Save your wallplate and screws.

A. Tag the wire attached to

the different colored screw.

This screw is usually labeled

COMMON.

B. Disconnect the wires from

the switch.

To pull out wires 1, 2, and 3, refer

to page 8 step 4B for instructions.

4 (ground wire)

NOTE:

You only need to replace one of the two switches controlling the light

with an AuroRa®dimmer/switch.

Unscrew existing switch and

pull it forward out of the wall

(do not disconnect wires yet)

B. Three insulated wires inserted

into back of existing switch.

One ground wire attached to

a screw.

To uninstall switch, refer to

step 4 Figure 4B.

A. Three insulated wires each

attached to a screw. One

ground wire (green or bare)

attached to a screw.

To uninstall switch, refer to

step 4 Figure 4A.

Once switch is pulled out, you should see one of the following:

Neutral

NOTE:

If intending to install an AuroRa

switch in this location, ensure

neutral is available before

disconnecting/uninstalling switch.

Figure 4BFigure 4A

✓ Helpful Hint:

For wiring diagram for lights

controlled by two switches see

step 3B on page 21.

To avoid fire, shock or

death, turn power off

at corresponding circuit

breaker or remove fuse.

WARNING

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Lutron Electronics Changer

Lutron Electronics

Lutron Electronics Maestro MS-OPS5M Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-OPS6M2U-DV Series Manuel utilisateur

Lutron Electronics

Lutron Electronics MAESTRO MS-OPS6M2-DV Manuel utilisateur

Lutron Electronics

Lutron Electronics MAESTRO MS-OPS2 Manuel utilisateur

Lutron Electronics

Lutron Electronics MAESTRO MS-A202 Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-OPS6M2N-DV Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-OPS6-DDV Manuel utilisateur

Lutron Electronics

Lutron Electronics MAESTRO MS-OPS2 Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-B202 Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-B202 Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-OPS5M Manuel utilisateur

Lutron Electronics

Lutron Electronics MAESTRO MRF2-8S-DV Manuel utilisateur

Lutron Electronics

Lutron Electronics RadioRA 2 Guide de configuration rapide

Lutron Electronics

Lutron Electronics Nova T NT-1PS Manuel utilisateur

Lutron Electronics

Lutron Electronics Aviena AN-1PS Manuel utilisateur

Lutron Electronics

Lutron Electronics Vive HKS-0 Manuel utilisateur

Lutron Electronics

Lutron Electronics DL-1PSL Manuel utilisateur

Lutron Electronics

Lutron Electronics Qoto Q-1PS Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-B202 Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-VPS5M Manuel utilisateur

Lutron Electronics

Lutron Electronics Aviena AN-1PS Manuel utilisateur

Lutron Electronics

Lutron Electronics MAESTRO MS-OPS2 Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-OPS6-DDV Manuel utilisateur

Lutron Electronics

Lutron Electronics Maestro MS-OPS5M Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
