Lutron Electronics Nova N-1PS Manuel utilisateur

Installation Instructions

Please Leave for Occupant

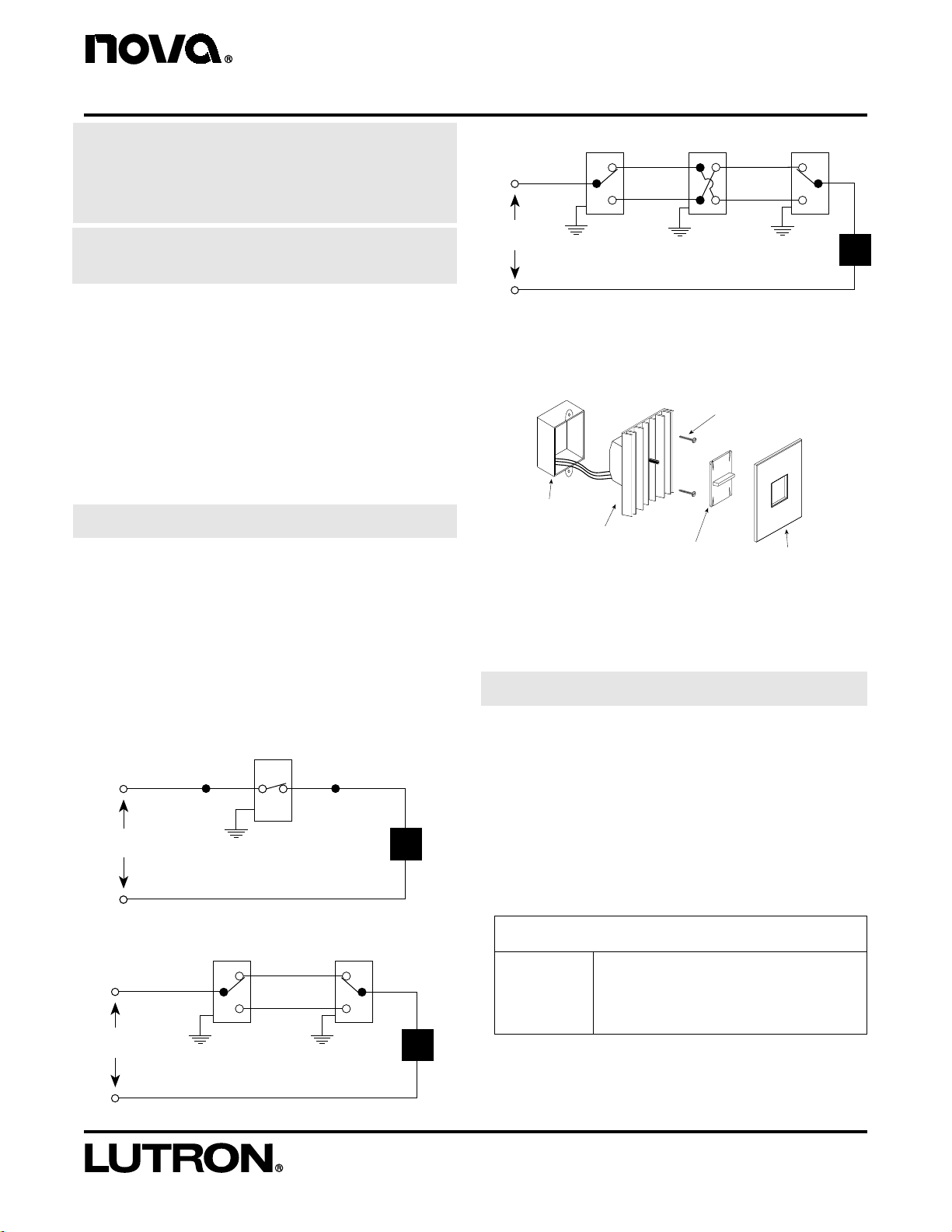

Figure C. Wiring Diagram - 4-Way

4. Mount switch to switchbox using screws

provided. Switch must be mounted vertically.

See Figure D.

5. Replace faceplate. Press firmly at top, middle,

and bottom to snap tabs into place.

6. Turn on power.

Ganging

Nova switches can be ganged without breaking off

side sections. The Nova design also allows for

break-offs to conserve space. See Table A or B for

the number of switchboxes you need.

When ganging any combination of small and large

controls, place all small controls at one end of gang,

all large controls at other end.

*See note below

Note: When ganging an even number of small controls without

removing side sections, you need an additional switchbox 3/4"

from the other switchbox(es). Use a chase nipple as a spacer.

See Figure E.

Control

Mounting

Screws

Slider Faceplate

Wallbox

Figure D. Mounting Diagram

Number of Small Controls

0123456

0 0 1 1+1* 4 4+1* 7 1+7*

Number 113568911

of Large 24679101213

Controls 3 6 8 10 11 13 14 16

4 9 11 12 14 15 17 18

Table A. Switchbox Requirement Chart -

No Side Sections Removed

Figure B. Wiring Diagram - 3-Way

Switches

N-1PS, N-3PS, N-4PS

20A, 120/277VAC

Table Of Contents

Important Notes......................................................1

Installation.............................................................. 1

Ganging.................................................................. 1

Installation Assistance ...........................................2

Important Notes-Please Read Before

Installation

Caution: Use ordinary switch to check new

installations for short circuits before installing Nova

switch. Do not install switch until you are sure no

short is present.

Multigang Installations: In multigang installations

several controls are grouped horizontally in one

ganging switchbox. Multigang faceplates are

available from Lutron to simplify and beautify these

installations. If you are planning a multigang

installation, read ganging information before

beginning installation.

Installation

1. Turn power OFF at circuit breaker or fusebox.

Wiring with power on may cause injury or

damage switch. Warranty void if switch is

miswired.

2. Remove faceplate. Pull at sides to snap it off.

3. Connect switchbox leads to switch. See Figure

A, B, or C for wiring diagram. Note: If a bare

copper or green ground wire is not in the wallbox,

contact a licensed electrician.

120/277V

60Hz

N-3PS

Load

Ground

120/277V

60Hz

Ground Load

N-3PS

Figure A. Wiring Diagram - Single-Pole

120/277V

60Hz

Load

N-3PS

Ground

BlackBlack

N-1PS

Ground Ground

N-3PS N-4PS

Figure G. Removing Side Sections

Side section break-off points

Cutting Plastic Faceplates

Some faceplates will need to be cut if removing side

sections of dimmers and not using a multigang

faceplate.

To cut faceplates:

1. Position faceplate face down on soft cloth.

2. Press firmly and score groove on back of

faceplate with razor-sharp knife. Use vertical

side of groove to keep knife on straight course

(see Figure H.)

3. Bend section back and forth several times to

break it off. Do not use pliers.

4. Smooth edges by placing fine-grained sandpaper

on flat surface and rubbing edge of faceplate

over it a few times. Hold faceplate steady as you

rub to keep edge true.

Figure H. Cutting Faceplate

Four-gang gangable

switchbox 3/4" space

(use chase

nipple)

Single-gang

gangable

wallbox

Figure E. Four-Gang Installation -

No Side Sections Removed

Table B. Switchbox Requirement Chart -

Side Sections Removed

Number of Small Controls

0123456

00123456

Number 11345678

of Large 235678910

Controls 35789101112

4 7 9 10 11 12 13 14

Removing Side Sections

Remove only inner side sections. Do not remove

outer side sections on ends of gang. See Figure F.

Using pliers, bend side sections down as far as you

can and back (see Figure G). Repeat until they

break off. Remove burrs or excess metal with a file

or sandpaper.

Do Not Remove

Outer Side Sections

Remove All Inner

Side Sections (Shaded)

Figure F. Three-Gang Installation -

Side Sections Removed

Warranty

Lutron will, at its option, repair or replace any control that is defective in materials or

manufacture within one year after the purchase. For warranty service, return unit to

place of purchase or mail to Lutron at 7200 Suter Road, Coopersburg, PA 18036-1299,

postage prepaid.

This warranty is in lieu of all other warranties, express or implied, and the implied

warranty of merchantability is limited to one year from purchase. This warranty

does not cover the cost of installation, removal, or reinstallation, or damage

resulting from misuse, abuse, or improper wiring or installation.

This warranty gives you specific legal rights, and you may also have other rights which

vary from state to state. Some states do not allow the exclusion or limitation of

incidental or consequential damages or limitations on how long an implied warranty

may last, so the above limitations and exclusions may not apply to you.

Lutron Electronics Co., Inc.

7200 Suter Road

Coopersburg, PA 18036-1299

Made and printed in U.S.A. 8/97 P/N 030-161 Rev. B

WorldwideTechnical and Sales

Assistance

If you have questions concerning the installation or

operation of this product, call the

LutronTechnical

Assistance Hotline

. Please provide exact model

number when calling.

(800) 523-9466 (U.S.A., Canada, and the Caribbean)

Other countries call (610) 282-3800

Fax (610) 282-3090
