Lorex SG21FD3044-161 Manuel de l'opérateur
www.lorexcctv.com
SG21FD3044-161 Page 1
Version 1.01
Package Contents
1Connect cameras to the monitor
4Turn the Master power switch located at
the back of the monitor ‘ON’.
2Connect one end of the ethernet cable to a
broadband router (not included) and the other
end to the back of the monitor.
5Press the Standby button to view
picture images.
3Connect one end of the power adapter (stan-
dard power cable) to the monitor, the other
end to an electrical outlet.
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
BACK OF THE MONITOR
BACK OF THE MONITOR BACK OF THE MONITOR
FRONT OF THE MONITOR
BACK OF THE MONITOR
ROUTER (NOT INCLUDED)
4 Color cameras are included with the Observation System. These cameras have
a single cable, and receive power directly from the Observation System.
1. Connect the female end of the supplied 57’ extension’ cable to the camera
2. Connect the male end of the supplied 57’ extension cable to an open DIN
channel on the back of the Observation System. Continue connecting
additional DIN cameras.
1 - Set up CD Rom (placed inside the owner’s manual)
1 - Owner’s Manual
1 - Quick Installation Guide
1 - Power Cord
2 - keys (for Hard Drive Bay)
1 - Network Viewer Guide
2 - Warning Decals
1 - 21” Color Monitor with Built-in Digital Video Recorder
1 - 160 GB Hard Disk Drive (installed inside hard drive bay)
1 - Remote Control with batteries
4 - Colour cameras with sunshade housing
4 - Camera brackets with mounting screws
4 - 100ft (30m) Extension Cables for camera
1 - 10ft (3m) Ethernet network cable
STEP 1
SETTING UP YOUR MONITOR FIRST
10:00
STEP 1 SHOULD TAKE
APPROXIMATELY 5 - 10
MINUTES TO COMPLETE
NOTE: The arrow mark on
top of the 6 PIN camera
cable(s) should face
UP while inserting the
6 PIN camera cable(s)
to the Monitor’s 6 PIN
connector(s).
21” FLAT SCREEN CRT/DVR OBSERVATION SYSTEM WITH 4
NIGHT VISION CAMERAS
1 - Broadband Router and Computer Required, not Included
www.lorexcctv.com

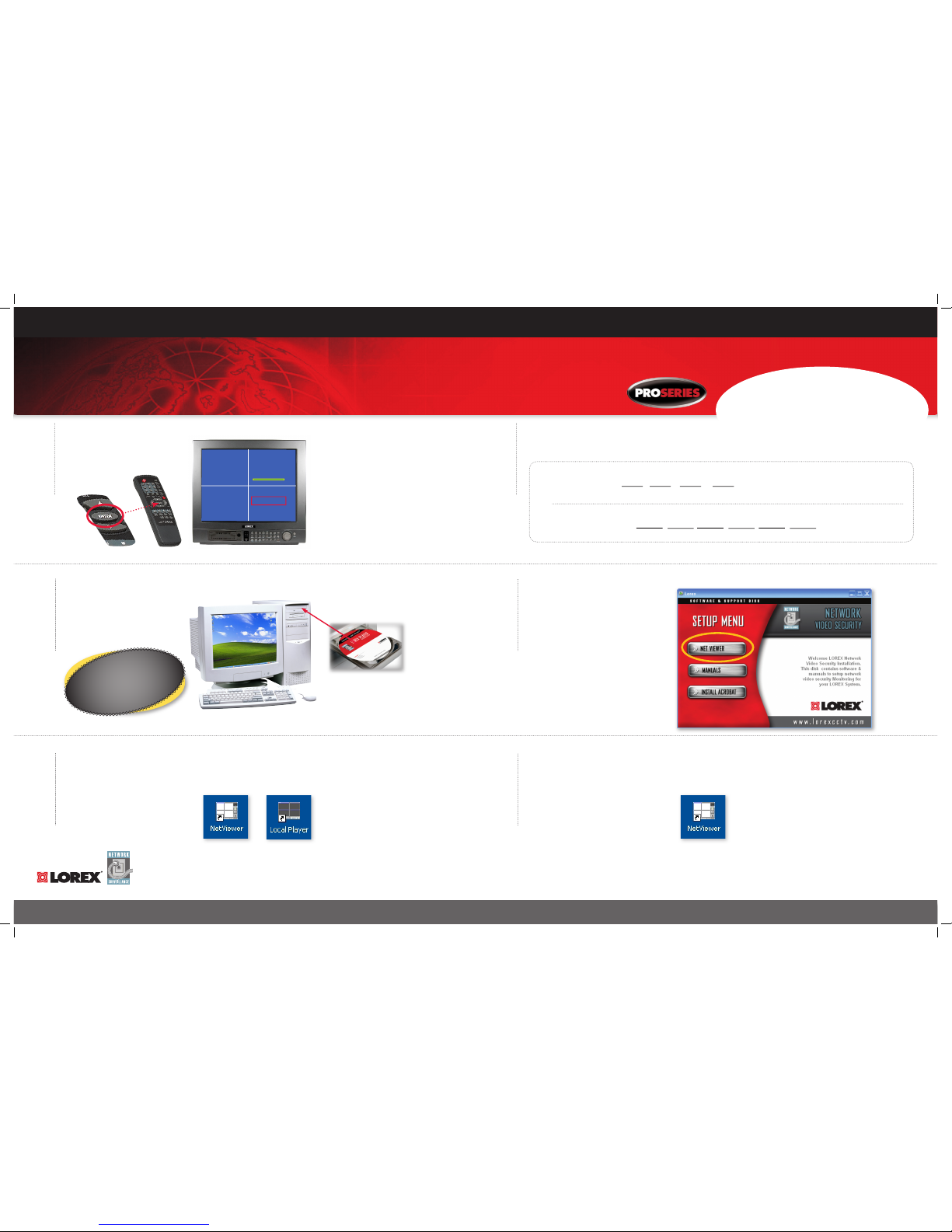

SG21FD3044-161 Page 2
Version 1.01
Record the 12 digit IP and the 12 digit
MAC Addresses
IP ADDRESS : . . .
MAC ADDRESS :
(record the period. It is part of the IP Address)
(DO NOT record the colon (:))
STEP 2
SET UP LOCAL VIEWING ON YOUR PC
2
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
1Press the ENTER button
on the remote control
(ensure batteries are
inserted)
6Double-click the Netviewer
icon on your desktop to
run the program
5Close the CD Menu
Screen. A Netviewer
icon and a Local Player
icon will appear on your
desktop
*** NETWORK INFORMATION ***
MAC ADDRESS : XX XX XX XX XX XX
IP ADDRESS : 192 . 168 . 001 . 100
SUBNET MASK : 255 . 255 . 255 . 000
GATEWAY : 192 . 168 . 001 . 001
PORT : 5000
SYSTEM CHECK…..
DYNAMIC IP REQUEST . . OK
*** MASTER HDD DETECT ***
POWER ON CHECK _ _ _ _ _ _ _ _ _ _ _ _ _OK
HDD IDENTIFY CHECK _ _ _ _ _ _ _ _ _ _ _ OK
HDD R/W CHECK __ _ _ _ _ _ _ _ _ _ _ _ _OK
MODEL : XXXXXXXXXXXXXXXXXXXXXX
HDD LBA : XXXXXXXXXXXXXXXXXXXXXX
HDD SPACE : 160 GB
100 %
4Select the netviewer option
3Insert the network
video CD software
into the computer’s
CD ROM drive
COMPUTER NOT INCLUDED
30:00
STEP 2 SHOULD TAKE
APPROXIMATELY 15 - 30
MINUTES TO COMPLETE
On your
Local Computer
www.lorexcctv.com
SG21FD3044-161 Page 3
Version 1.01
STEP 2
SET UP LOCAL VIEWING ON YOUR PC - CONTINUED
8Enter the Set-up in-
formation followed
by clicking OK
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
7Click the Set-up icon
11 View video images
from your computer
NETVIEWER SCREEN
10 Enter your User Name
and Password (It is
recommended that
“admin” be used for
both ID & Password)
as the default setting.
Press the OK button
9Click the connect
icon button
Enter the IP Address recorded in Step 2-2.
Enter the DVR/Monitor port (5000 by default)
Enter the User ID (admin by default), max. 5 characters
Select NTSC
NETVIEWER SCREEN
SET-UP ICON
NETVIEWER SCREEN
admin
admin
30:00
STEP 2 SHOULD TAKE
APPROXIMATELY 15 - 30
MINUTES TO COMPLETE
www.lorexcctv.com
SG21FD3044-161 Page 4
Version 1.01
STEP 3
SET UP INTERNET REMOTE SECURITY MONITORING
2Enter ‘ddns.strategicvista.net’
in the address bar
4
3Click Create Account
option.
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
1Port Forward (to the IP of the monitor recorded in Step 2-2 of this guide) your Router
FIRST before proceeding with the Set-up (you must Port Forward Port 5000, 5001,
5002 & 5003.
5An Automated Registration
Confirmation Email will be
sent to your email. Print
and Save this Registration
Confirmatio.
6Enter DDNS SET option on your
monitor by pressing the Menu
button on your remote control.
Use the arrow buttons to highlight
DDNS Set. Press the Enter Button MAIN MENU
TIME/DATE SET
SEQUENCE SET
TITLE SET
ALARM SET
MOTION SET
SYSTEM (I)
SYSTEM (II)
HDD/REC SET
ALARM REC
SCHEDULE
MONITOR SET
FIRMWARE
DDNS SET
Refer to your Router’s manual for specific instructions on port forwarding (or)
Check the Router configuration guide support document in the consumer guide section on our
website http://lorexstore.lorextechnology.com/uploads/PortForward_Guide.pdf
http://ddns.strategicvista.net
Create Account
Complete new account
information
1. FOR PRODUCT LICENSE select the SG21FD3044-161
option from the drop down menu.
2. FOR PRODUCT CODE enter the monitor’s MAC address
(recorded in step 2, section 2).
3. FOR URL REQUEST enter a unique URL name (eg.
Johndoe). Note: An URL name should not be more than 8
characters. 1 2
3
Service Provider: ddns.strategicvista.net
Domain name: house.strategicvista.net
User name: John Doe
Password: <leave this field blank>
Use Public IP to Register: Yes
40:00
STEP 3 SHOULD TAKE
APPROXIMATELY 40 - 60
MINUTES TO COMPLETE
www.lorexcctv.com
SG21FD3044-161 Page 5
Version 1.01
DDNS: Select “YES’
Domain Name: Enter the Domain Name sent to you in the registration
confirmation (Section 3-5).
User Name: Enter the User Name sent to your in the registration con-
firmation (Section 3-5).
User Password: Leave blank
Router: “Yes”
Scroll to return and press enter. Enter the DDNS set option and
verify that the DDNS STATUS is “OK”.
8Install the Net Viewer
video CD software
into your Remote
Computer
10 Close the CD Menu
Screen. A Netviewer
icon and a Local Player
icon will appear on
your desktop
9Select the Netviewer
option and follow the
dialog boxes to guide you
through installation
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
7Set the DDNS Settings
11 Double-click the Netviewer
icon on your desktop to
run the program 12 Click the Set-up icon
DDNS
DDNS: Y
DOMAIN NAME house
USER NAME John Doe
USER PASSWORD
ROUTER Y
RETURN
EXIT
DDNS STATUS OK
Use the UP, DOWN, LEFT, RIGHT and ENTER
keys located at the front of the monitor to set
DDNS Settings. Ensure the domain name
matches the name sent to you via email
(Note: Do not enter ‘strategicvista.net’ exten-
sion to the user name)
SET-UP ICON
COMPUTER NOT INCLUDED
40:00
STEP 3 SHOULD TAKE
APPROXIMATELY 40 - 60
MINUTES TO COMPLETE
STEP 3
SET UP INTERNET REMOTE SECURITY MONITORING - CONTINUED
On your
RemoteComputer
www.lorexcctv.com
SG21FD3044-161 Page 6
Version 1.01
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
FOR ADDITIONAL INFORMATION OR TROUBLESHOOTING HELP, REFER
TO YOUR OWNERS MANUAL FOR ASSISTANCE. YOU CAN ALSO CALL OR
EMAIL FOR FURTHER SUPPORT.
TOLL FREE TECHNICAL SUPPORT: 1-888-42 LOREX (1-888-425-6739)
WEBSITE: WWW.LOREXCCTV.COM
It’s all on the web
Product Information
User Manuals
Quick Start Guides
Specification Sheets
Software Updates
Firmware Upgrades
13 Enter the Setup information
field followed by clicking OK.
Click the Connect icon followed by enter-
ing the User name and Password (admin by
default). Press OK.
View the video picture remotely.
REFER TO YOUR OWNER’S MANUAL TO LEARN
MORE ABOUT THE DIFFERENT FEATURES AND
OPTIONS AVAILABLE WITH THIS SYSTEM
Enter the Domain Name sent to you in the
Registration Confirmation (Section 2-5)
followed by .strategicvista.net (eg. house.
strategicvista.net)
Enter 5000 by default
Enter “admin” by default
Select NTSC by default
14
STEP 3
SET UP INTERNET REMOTE SECURITY MONITORING - CONTINUED
40:00
STEP 3 SHOULD TAKE
APPROXIMATELY 40 - 60
MINUTES TO COMPLETE
