OPERATING INSTRUCTIONS

●Before operating the unit, please read this manual thoroughly

2507W41AV001A Rev.1A

DATE10-MAR-2000

2.4 GHz WIRELESS

VIDEO SECURITY SYSTEM

Model SG 6040

7.SPECIFICATIONS

WIRELESS CAMERA

Image sensor

Lens

Total Pixels

Scanning system

Scanning frequency

Sync. system

Resolution

Min. illuminations

Video Output

Gamma characteristics

Auto Iris

Microphone

Transmitting frequency

Modulation

RF out level

Video Output level

Antenna

Oper. temperature

Power source

Dimensions

Weight

1/3" B/W CCD imager

F2.0/f 3.7mm, 92°wide-angle lens

537(H) x 505(V), 270,000 pixels

2:1 interlace

15.734 KHz(H) 59.94Hz(V)

Internal Synchronization

420 TV lines horizontal

0.5 Lux at F2.0

1.0Vp-p/75 Ohm

r=0.45

Electrical Auto Iris

Shutter sensitivity :1/60-1/100,000

Electret Condenser

2.4 GHz-2.4835 GHz(2Ch)

90dBu/V, 3m

1.0Vp-p/75 Ohm

Directional high gain antenna

-14°to + 122°F

DC12V 500mA AC Adapter

2.72”(W) x1.89”(H) x5.75”(D)

Appro 9 OZ

WIRELESS RECEIVER MONITOR

Receiving frequency 2.4GHz - 2.4835GHz (2CH & AUTO)

Output level 1.0Vp-p/75ohm (Video),

1.35Vp-p (Audio)

Sensitivity -25dB to -80dBm

Antenna Directional high gain antenna

Resolution More than 280 lines

Sound output 0.5 Watt.

Power Source DC12-14V 1.2A AC Adapter

Dimension 7.09”(W)8.2”(H)8.07”(D)mm (W/O Battery

Case)

7.09”(W)9.45”(H)8.07”(D)mm

Oper. Temperature -14to + 122F

Weight Appro 45 OZ (W/O Battery Case)

Appro 50 OZ

FCC CLASS B NOTICE

Note:

This equipment has been tested and found to comply with the limits For a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, Uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, (which can be determined by

turning the equipment off and on), the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Explanation of two Symbols

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance-

(servicing) instructions in the literature accompanying the appliance.

THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON

THE BOTTOM OF THE SYSTEM.

WARNING:To prevent fire or shock hazard, do not expose this

appliance to rain, water, or wet locations. Do not insert

any metallic object through the ventilation grills.

IMPORTANT SAFETY INSTRUCTIONS

This wireless A/V equipment is provided with a polarized alternating-current line

plug (a plug having one blade wider than the other). This plug will fit into the

power outlet only one way. This is a safety feature. If you are unable to insert

the plug fully into the outlet, try reversing the plug. If the plug still fail to fit,

contact your electrician to replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION



TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

5.TROUBLE SHOOTING

If the system does not function properly, check the following points before contact the

service center.

Basic system includes 1- Wireless Camera

1- Wireless A/V Receiver Monitor

2- AC Adapters

--12V/0.5A Adapter (Camera)

--12-14V/1.2A Adapter (Monitor)

1- RCA A/V Cables or Scart A/V Cables (Option)

1- Owner's Manual/Warranty Card

1- Camera Mount

1- Warning Decal

Problems Causes and remedies

Camera Monitor

- AC adapter not plugged in

- Power switch not turned on

- Monitor not turned on

No power

(no picture/sound) - AC adapter not plugged

- Power switch not turned

- Adjust antenna direction

- Improper channel 1-2

selection

- AC adapter not plugged

- Power switch not turned

Poor reception

Picture flickering

Picture too bright,

or too dark

-Strong spot light in the

field of view

-Lighting source in the

field of view - Adjust brightness control

on Monitor

- Adjust antenna direction- Adjust antenna direction

Picture rolls and jumps

or scrambled picture

SAFETY INSTRUCTIONS

IMPORTANT SAFEGUARDS

Allthe safety and operating instructions should be read before the

appliance is operated and retained for future reference.

1. HEED WARNINGS - All warnings on the appliance and in the operating

instructions should be adhered to.

2. FOLLOW INSTRUCTIONS - All operating instructions should be

followed.

3. WATER AND MOISTURE - Do not use this video product near water -

for example, a bath tub, wash bowl, kitchen sink, laundry tub or swimming

pool, or in a wet basement.

4. POWER SOURCES - This product should be operated only from the type

of power source indicated on the marking label.

5. POLARIZATION - This video monitor equipment is provided with a

polarized alternating current line plug (a plug having one blade wider than

the other ). This plug will fit into the power outlet only one way. This is a

safety feature. If you are unable to insert the plug fully into the outlet, try

reversing the plug. If the plug should still fail to fit, contact your electrician

to replace your obsolete outlet. Do not defeat the safety purpose of the

polarized plug.

6. OVERLOADING - Do not overload outlets and extension cords, which

can result in a risk of fire or electric shock.

7. SERVICING - Do not attempt to service this product yourself. Opening or

removing covers may expose you to dangerous voltage or other hazards.

Refer all servicing or repairs to qualified service personnel. 2.Turn on the Camera and all Receiver Monitors. Search the channel 1-2 by

using channel Selector Switch on the Camera and Receivers Monitor and

select best one for optimum reception in your area.

3.Adjust the antenna direction as necessary.

All Receiver Monitor and Camera units must be set to same channel.

NOTE

152

4.MULTIPLE CHANNEL OPERATION

ONE CAMERA BY MULTIPLE RECEIVER OPERATION

You can receive A/V signal from the Wireless Camera on several Receiver monitors

in remote location at the same time using one Wireless Camera with multiple

Wireless Receiver as many as you want.

Channel Selector

Switch

Transmitter

1.Connect all Receiver Monitors with or without VCR using RCA cables.

(see instructions on page 12)

Be sure to set the Power Switches on the Camera and the Receiver to the OFF

position before proceeding with the following steps.

System includes only one Receiving Monitor and one Sending unit Additional

units are optional.

NOTE

Receiver Monitor-1

Channel Selector

Switch

8. DAMAGE REQUIRING SERVICE - Unplug this product from the wall outlet

and refer servicing or repairs to qualified service personnel under the following

conditions

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions.

e. If the product has been dropped or the cabinet has been damaged.

f. When the product exhibits a distinct change in performance.

9. REPLACEMENT PARTS - When replacement parts are required, be sure the

service technician has used replacement parts that are specified by the manufacturer

or have the same characteristics as the original part. Unauthorized substitutions

may result in fire, electric shock, or other hazards.

10. SAFETY CHECK - Upon completion of any service or repairs to this video

product, ask the service technician to perform safety checks to determine if the

video product is in proper operating condition.

11. An appliance and cart combination should be moved with care.

Do not place this equipment on an unstable cart, stand, or table.

The equipment may fall, causing serious injury to a child or adult,

and serious damage to the equipment. Wall or shelf mounting

should follow the manufacturer's instructions and should be

done with a mounting kit approved by the manufacturer.

314

4.MULTIPLE CHANNEL OPERATION

ONE RECEIVER MONITOR BY TWO CAMERAS OPERATION (Cont'd)

4.Turn on the Receiver Monitor and select the channel 1-2 one by one manually Channel

Selector switch on the Receiver Monitor.

5.Adjust the antenna direction as necessary.

CHAPTER TABLE OF CONTENTS PAGE

1. CONTROLS AND FUNCTIONS

WIRELESS CCD CAMERA...........................................................5

WIRELESS MONITOR.....………………...........................................6

2. INSTALLATION

WIRELESS CAMERA.................................................................…8

WIRELESS MONITOR......................……………….......................…9

ADJUSTING THE A/V ANTENNA..........................................….. 10

3. SYSTEM OPERATION

OPERATION WITH MONITOR.....................................................11

OPERATION WITH MONITOR & VCR..........................................12

4. MULTIPLE CHANNEL OPERATION

ONE RECEIVER MONITOR BY TWO CAMERAS OPERATION......13

ONE CAMERA BY TWO RECEIVERS OPERATION.............…......15

5. TROUBLE SHOOTING ...............................................................16

6. BASIC SYSTEM INCLUDES.....................................................…16

7.SPECIFICATIONS.....................................................................…17

134

4.MULTIPLE CHANNEL OPERATION

ONE RECEIVER MONITOR BY TWO CAMERAS OPERATION

1.Place all cameras at your desired location.

2.Connect the Receiver Monitor with or without VCR using RCA cables.

(see instructions on page 12)

3.Turn on all Cameras. The Cameras must use different channel. Select the channel

1-2 by using Channel Selector Switch on each Camera unit.

Second Camera is not included.

NOTE

Be sure to set the Power Switches on the Camera and the Receiver

Monitor to the OFF position before proceed following steps.

NOTE

Cameras

Ch1

Ch2

Channel Selector

Switch

Receiver Monitor

This wireless Camera & Monitor System consists of a Wireless Camera

and a 5" B/W Monitor. You can connect up to two Cameras to the

monitor.

For proper usage and application, please read the instruction manual.

Channel Selector

Switch

1.CONTROLS AND FUNCTIONS

WIRELESS CCD CAMERA

1. LENS

1/3" B/W CCD Image sensor with

built-in 92°fixed wide-angle lens.

2. MICROPHONE

Built-in condenser microphone.

(one-way audio)

3. LED-POWER INDICATOR

Indicates that the camera is turned on.

4. 2.4 GHz A/V ANTENNA

High gain directional patch antenna

sends A/V signal to the receiver.

5. STAND MOUNTING SOCKET

Reinforcement lock for camera stand.

6. CHANNEL SELECTOR SWITCH

Switch for the channel 1-2 selection.

7. POWER SWITCH ON/OFF

Controls power. Be sure to set the

switch to off position before plugging the

AC adapter into the unit and AC outlet.

8. AUDIO/VIDEO OUT JACKS

EAR Audio/Video-Out jacks for wire

mode operation. 

9. DC IN JACK

Plug the 12V(500mA) AC Adapter in here.

REAR VIEW

FRONT VIEW

8 9

512

VCR Rear

3.SYSTEM OPERATION

OPERATION WITH MONITOR & VCR

Both Camera and Receiver Monitor units must be set to same channel.

NOTE

NOTE Be sure to set the Power Switch on both the Receiver Monitor and Camera

to the OFF position before proceeding with the following steps.

NOTE

RCA Cable (1)

Camera

(1) Connect supplied power adapter to Camera power input.

(2) Slide the channel selector switch to CH 1~2 of your choice.

Receiver Monitor

(1) Connect supplied power adapter or plug from Battery Case to Receiver Monitor

power input.

(2) Search the channel 1-2 by using Channel Selector Switch on the Receiver Monitor and

Camera and select best one for optimum reception in your area.

(3) The fine tuning knob should be kept in the center position for best reception.

(4) Try to position both the Camera and Monitor as high off the ground as possible for

better reception.

(5) Connect A/V output signal to your VCR recorder. If you want to record the camera signal.

(6) Volume Control--Adjust the knob for desired volume level.

(7) Bright and Contrast Control--If the picture is too bright or too dark, adjust the bright

and contrast controls to suit.

(8) Vertical Hold Control--If picture rolls up and down

(as illustrated) adjust the vertical hold control.

(9) Adjust the antenna direction as necessary.

Receiver Monitor

12-14V 1.2A

AC Adapter

or plug from

Battery Case

Video Output Jack

Audio Output Jack

DC Input

Jack

Channel Selector

Switch

Contrast Control

V-Hold Control

Bright Control

REAR VIEW

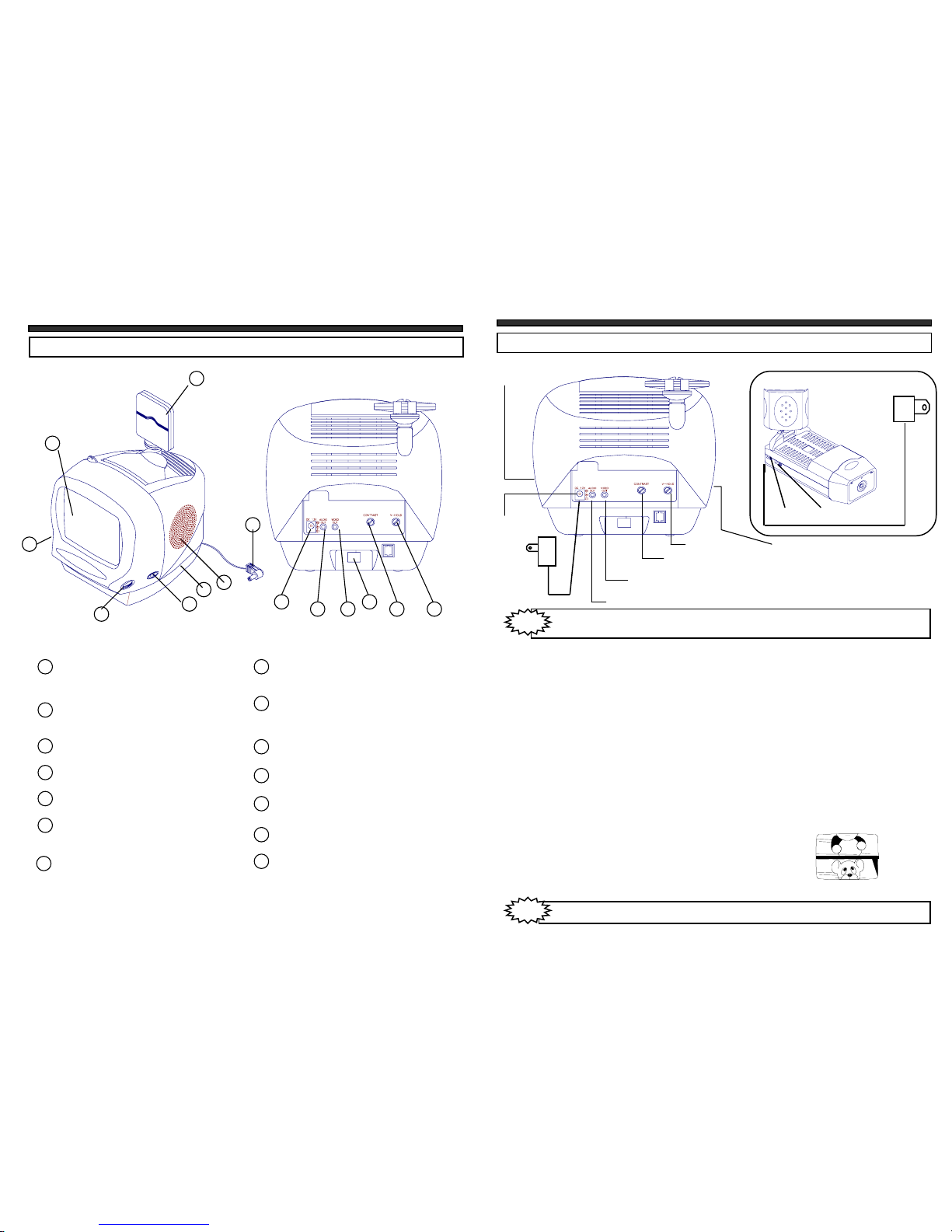

1.CONTROLS AND FUNCTIONS

WIRELESS MONITOR

FRONT VIEW

Location of Receiver Monitor controls

2.4GHz Antenna

High gain directional patch antenna

receives A/V signal from the camera.

CRT

5” Diagonal

Brightness Control

Contrast Control

OFF/Volume Control

Channel Selector Switch

Switch for channel 1-2-AUTO selection.

DC Input Jack

Connect the supplied 12-14V 1.2A

AC adapter.

Video Output Jack

EAR jack for Video output connection.

Audio Output Jack

EAR jack for Audio output connection.

V-Hold Control

Speaker

Battery Case

DC plug

Bolt.

116

79 8 10

3.SYSTEM OPERATION

OPERATION WITH MONITOR

Be sure to set the Power Switch on the Receiver Monitor and Camera to

the OFF position before proceed following steps.

Both Camera and Receiver Monitor units must be set to same channel.

NOTE

12V 500mA

AC Adapter

Camera

Power Switch Channel Selector

Switch

Camera

(1) Connect power adapter(12V/500mA) to Camera power input.

(2) Slide the channel selector switch to CH 1~2 of your choice.

Receiver Monitor

(1) Connect supplied power adapter or plug from Battery Case to Receiver Monitor

power input.

(2) Search the channel 1-2 by using Channel Selector Switch on the Receiver Monitor and

Camera and select best one for optimum reception in your area.

(3) The fine tuning knob should be kept in the center position for best reception.

(4) Try to position both the Camera and Monitor as high off the ground as possible for

better reception.

(5) Volume Control--Adjust the knob for desired volume level.

(6) Bright and Contrast Control--If the picture is too bright or too dark, adjust the bright

and contrast controls to suit.

(7) Vertical Hold Control--If picture rolls up and down

(as illustrated) adjust the vertical hold control.

(8) Adjust the antenna direction as necessary.

NOTE

Receiver Monitor

12-14V 1.2A

AC Adapter

or plug from

Battery Case

Video Output Jack

Audio Output Jack

DC Input

Jack

Channel Selector

Switch

Contrast Control

V-Hold Control

Bright Control

710

A/V Antenna

Front

(Patterned side)

2.INSTALLATION

ADJUSTING THE A/V ANTENNA

NOTE : The front (patterned side) of the A/V antennas on both camera and receiver

monitor must face each other for optimum performance as both are

directional high gain antennas.

IMPORTANT NOTE FOR CHANNEL SELECTION

Search the channel 1-2 and select best one for optimum reception in your area.

Both Camera and Receiver Monitor must be set to same channel.

Maximum antenna rotation 270°in

both clockwise and anti clockwise

Caution : Do not rotate the

antenna 360°or it will cause

antenna mechanism damaged

Receiver Monitor

Wireless Camera

REAR VIEW

1.CONTROLS AND FUNCTIONS

WIRELESS RECEIVER MONITOR (without Battery Case) (Optional)

FRONT VIEW

Location of Receiver Monitor controls

2.4GHz Antenna

High gain directional patch antenna

receives A/V signal from the camera.

CRT

5” Diagonal

Brightness Control

Contrast Control

OFF/Volume Control

Channel Selector Switch

Switch for channel 1-2-AUTO selection.

DC Input Jack

Connect the supplied 12-14V 1.2A

AC adapter.

Video Output Jack

EAR jack for Video output connection.

Audio Output Jack

EAR jack for Audio output connection.

V-Hold Control

Speaker

47 9 8 10

8 9

WIRELESS MONITOR

1.Connect the supplied 1.2A AC adapter to the DC INPUT JACK at the rear

of the receiver monitor and plug it into the 230V(or 120V) AC outlet.

Or 1a. Connect the DC Plug from Battery Case to the DC INPUT JACK at

the rear of the Receiver Monitor.

DC INPUT Jack

12-14V 1.2A

AC Adapter

2.INSTALLATION2.INSTALLATION

WIRELESS CAMERA

1.Attach the stand base to the wall or ceiling where you want to

install the camera. Locate a wall stud or ceiling joist and secure bracket using the

three supplied screws.

2.Attach the camera to the stand and firmly tighten the swivel.

3.Attach the camera with the stand to the stand base and firmly tighten the joint knob

on the stand base.

4.Connect the supplied 12V 500mA AC adapter to the DC IN jack at the rear of the

camera and plug it into 230V (or 120V) AC outlet.

DC 12V 500 mA

AC Adapter

Battery Case & Compartment

Remove the battery case by screwing down bolt at the rear side and sliding out

case. The battery feature requires 10 Pcs ‘C’ sized batteries.

Warning : To prevent injury. Do not reverse any Battery & Do not mix

Battery type.

Plug

Table des matières

Autres manuels Lorex Système de sécurité

Lorex

Lorex L17LD420 Series Manuel utilisateur

Lorex

Lorex LHB800 Series Manuel utilisateur

Lorex

Lorex mCAM DMC2030 Manuel utilisateur

Lorex

Lorex LW2101 series Manuel utilisateur

Lorex

Lorex LH041 Series Manuel utilisateur

Lorex

Lorex LW2002 Series Manuel utilisateur

Lorex

Lorex SG21FD3044-161 Instructions de montage

Lorex

Lorex LW2760 Series Manuel utilisateur

Lorex

Lorex SG15F6584 Manuel utilisateur

Lorex

Lorex SG6231 Manuel utilisateur

Lorex

Lorex SHS-2S7LDP series Manuel utilisateur

Lorex

Lorex L15LD420 SERIES Manuel utilisateur

Lorex

Lorex SG14S1042C-A Manuel utilisateur

Lorex

Lorex DMC2161 Manuel utilisateur

Lorex

Lorex LHB926 Series Manuel utilisateur

Lorex

Lorex SG19LD804-161 Guide d'installation

Lorex

Lorex LW1741 Manuel utilisateur

Lorex

Lorex SG6331P Manuel utilisateur

Lorex

Lorex SG21CD7484UQ-A80 Manuel utilisateur

Lorex

Lorex L19LD1600 Series Manuel utilisateur

Lorex

Lorex SG4230 Manuel utilisateur

Lorex

Lorex WIRELESS HOME MONITORING SYSTEM Manuel utilisateur

Lorex

Lorex LH120 Series Manuel utilisateur

Lorex

Lorex LW2602 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
