Linksys USB100H1 Manuel utilisateur

HomeLink™ Series

Phoneline + 10/100

USBNetwork

Adapter

Model No.: USB100H1

User Guide

usb100h1 April 2000.qxd 4/4/00 11:14 AM Page 1

Adapter is a registered trademark of Linksys. Microsoft, Windows, and the Windows

logo are registered trademarks of Microsoft Corporation. All other trademarks and

brand names are the property of their respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Phoneline + 10/100 USB network Adapter is free from

physical defects in material and workmanship under normal use for one (1) year from

the date of purchase. If the product proves defective during this warranty period, call

Linksys Customer Support in order to obtain a Return Authorization number. BE SURE

TO HAVE YOUR PROOF OF PURCHASE ON HAND WHEN CALLING. RETURN

REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF PURCHASE. When

returning a product, mark the Return Authorization number clearly on the outside of the

package and include your original proof of purchase.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. Linksys makes no warranty or representation,

expressed, implied, or statutory, with respect to its products or the contents or use of

this documentation and all accompanying software, and specifically disclaims its quali-

ty, performance, merchantability, or fitness for any particular purpose. Linksys reserves

the right to revise or update its products, software, or documentation without obligation

to notify any individual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

The Phoneline + 10/100 USB network Adapter has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequen-

cy energy and, if not installed and used according to the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which is found by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or device

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

004

usb100h1 April 2000.qxd 4/4/00 11:14 AM Page 3

Linksys HomeLink™ Series

Table of Contents

Introduction 1

Package Contents 2

Windows & Computer Compatibility 2

Getting to Know the Phoneline + 10/100 USB 3

Network Adapter

The Adapter’s Ports 3

The Adapter’s LEDs 4

The USB Icon 4

USB Cabling 5

Modem and Fax Compatibility 5

Installing the Phoneline + 10/100 USB 6

Network Adapter

Installing the USB Network Adapter & Cabling 6

Connecting to a Phoneline Network 7

Connecting to an Ethernet or Fast Ethernet Network 8

Windows 98 Installation & Setup 9

Installing the USB Network Adapter’s Driver 9

Network Component Configuration 13

Sharing Your Files & Printers 18

Windows 2000 Installation & Setup 20

Installing the USB Network Adapter’s Driver 20

Troubleshooting 23

Appendix 26

Client For Microsoft Setup for Windows 98 26

Novell NetWare 3.x Client Setup for Windows 98 27

Starting Over in Windows 98 28

Starting Over in Windows 2000 32

Manually Installing Network Components in Win 98 34

Linux, Open Source & Beta Operating Systems 35

Twisted-Pair Cabling 36

Telephone Cabling 38

Specifications 39

Customer Support 40

usb100h1 April 2000.qxd 4/4/00 11:14 AM Page 4

Phoneline + 10/100 USB Network Adapter

Introduction

The Phoneline + 10/100 USB Network Adapter

Congratulations on your purchase of the Linksys HomeLink Phoneline +

10/100 USB Network Adapter. The Linksys HomeLink Phoneline + 10/100

USB Network Adapter offers instant connectivity to multiple PCs over your

telephone wiring. There's no need for a switch, a hub, or any additional

cables. The network runs on standard home-grade telephone wires just like

the ones you use everyday.

The HomeLink Phoneline + 10/100 USB Network Adapter allows your phone

line to carry computer data along with your regular telephone voice service.

The USB device is equipped with two standard telephone ports and one

10/100 dual-speed Fast Ethernet port. You can connect to any 1Mbps

HomeLink network or any Ethernet or Fast Ethernet network without swap-

ping devices or running multiple adapters. The adapter connects to your

Windows 98 or Windows 2000 computer’s USB port. Since your HomeLink

network runs on regular telephone cables, there’s no extra hardware to buy.

Plug the Phoneline + 10/100 USB Network Adapter into any standard wall

jack and you’re networked.

Features

• Connect to a Network Using Your Existing Telephone Line

• Works with any Windows 98 or Windows 2000 PC With a USB Port

• 1Mbps Transfer Rate Over Telephone Lines

• Dual-Speed RJ-45 Port Automatically Detects Ethernet or Fast Ethernet

Speeds

• External USB Network Adapter with two RJ-11 Modular Telephone Ports

and one RJ-45 Auto-Sensing 10BaseT/100BaseTX Port

• USB Cable Included—Nothing More to Buy

• 4 Easy to Read LED Status Indicators

• HomePNA Compliant

• Connect Up to 25 Computers Together OnYour HomeLink Phonewire

Network

• Free 24-Hour Technical Support (North America only)

• Limited 1-Year Warranty

usb100h1 April 2000.qxd 4/4/00 11:14 AM Page 1

Linksys HomeLink™ Series

Package Contents for the Phoneline + 10/100 USB

Network Adapter

• One HomeLink Phoneline + 10/100 USB Network Adapter

• One Standard USB Cable

• One Standard Telephone Cable

• One Driver Diskette

• One User Guide and Registration Card

Windows & Computer Compatibility

To use this device, you must have Microsoft Windows 98 or

Windows 2000 installed on your PC. If you do not have Windows

98 or Windows 2000, this device will not work.

Also, the device requires that a USB port is installed and enabled on your PC.

Some PCs have a disabled USB port. If your port doesn’t seem to be work-

ing, there may be jumpers on the motherboard or a menu option in the BIOS

that will enable a PCs USB port. Consult your computer’s user guide. Some

motherboards have USB interfaces, but no ports.You should be able to install

your own USB port and attach it to your PCs motherboard using hardware

purchased at any computer store. Consult your computer’s user guide.

usb100h1 April 2000.qxd 4/4/00 11:14 AM Page 2

Phoneline + 10/100 USB Network Adapter

Getting to Know the Phoneline +

10/100 USB Network Adapter

The Adapter’s Ports

USB The USB port is where your

10/100 USB Network Adapter

will connect to your computer.

This port is a USB type B port.

LAN 10/100 The LAN 10/100 port allows

your computer to be connected

to an Ethernet or Fast Ethernet

network. If you are using the

LAN 10/100 port, the

HomeLink and Phone ports will

be inactive.

Phone The Phone port adds an extra phone jack to your home. The

phone jack will only carry telephone service if your

HomeLink network plugs into one of your phone jacks. If

you do not attach a telephone into the Phone port, you can

use the Phone port to daisy chain to another HomeLink

computer. See page 7 for details on daisy chaining.

HomeLink The HomeLink port allows your computer to be connected

to a HomePNA network. If you use the HomeLink port, the

LAN 10/100 port will be inactive.

NNoottee::The

Phoneline +

10/100 USB

Network

Adapter sup-

ports only one network

media type at a time. If you

want to use the adapter to

connect your PC to a

Phoneline network, the

10/100 function is disabled,

and vice versa.

usb100h1 April 2000.qxd 4/4/00 11:14 AM Page 3

Linksys HomeLink™ Series

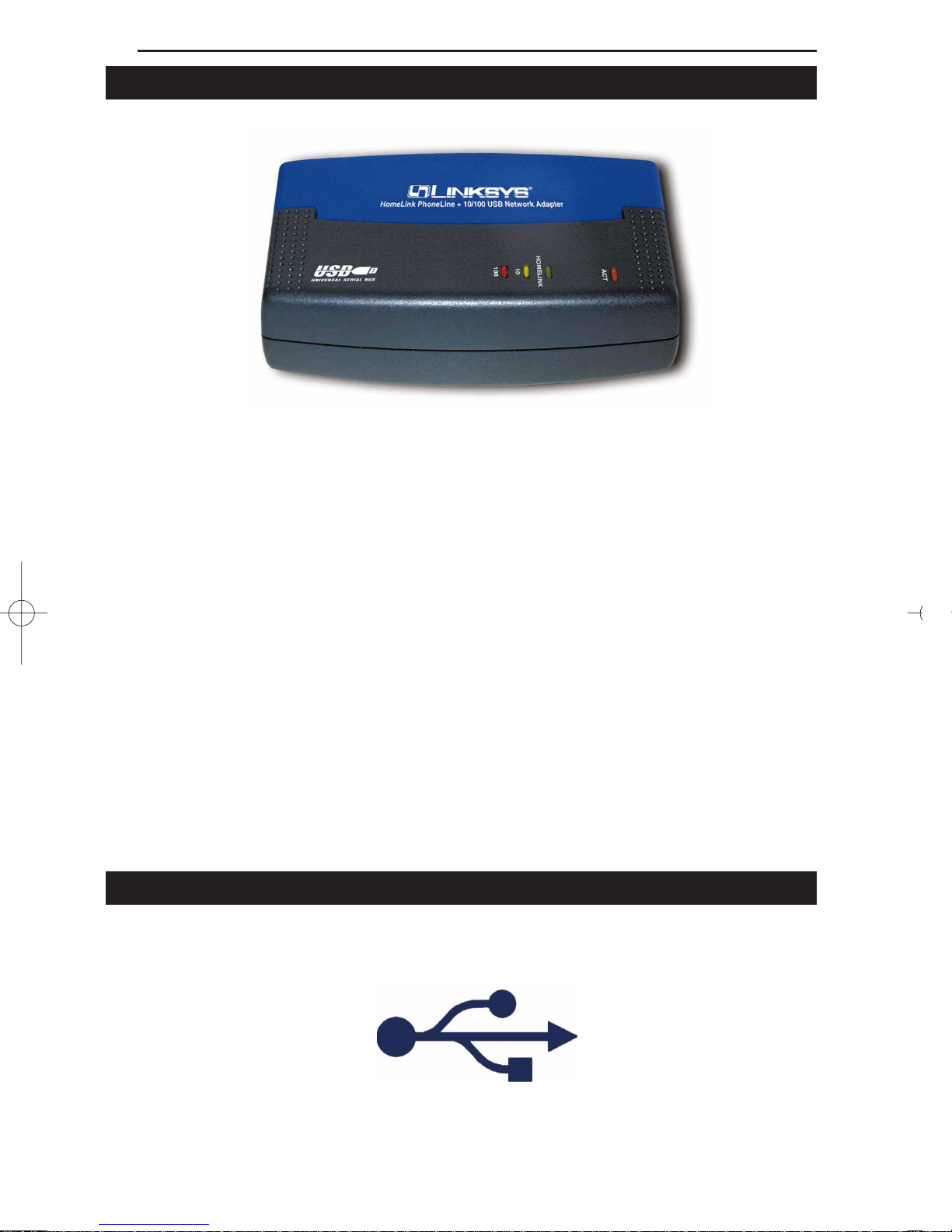

The Adapter’s LEDs

ACT The Activity LED will flicker orange when network data is

passing through the USB Network Adapter.

HOMELINK The HomeLink LED will illuminate green if a successful

connection is made to a Phoneline network.

10 The 10Mbps LED will illuminate green if a successful

10Mbps connection is made to an Ethernet network.

100 The 100Mbps LED will illuminate green if a successful

100Mbps connection is made to a Fast Ethernet network.

Only one of the HOMELINK, 10, or 100 LEDs should be illuminated at any

time. If none of the three are illuminated, your USB Network Adapter is not

making a successful network connection.

The USB Icon

Whenever you see the USB Icon (below), a USB port is nearby.

usb100h1 April 2000.qxd 4/4/00 11:15 AM Page 4

Phoneline + 10/100 USB Network Adapter

USB Cabling

The EtherFast 10/100 USB Network Adapter comes with one USB cable. One

end of the USB cable has a rectangular plug, which is called a typeA con-

nector. The other end of the cable has a square plug, or a type B connector.

The USB cable’s type B end connects to the USB device—in this case the

USB Network Adapter. The type A end connects to a computer’s USB port.

The picture below shows two USB ports as they might be found on your

computer. Note the two USB icons above the port.

Modem and Fax Compatibility

If you have only one phone jack in a room and you want to use your modem

or fax, it is recommended that you purchase a telephone jack splitter. Plug

your telephone or fax into one of the splitter’s ports, and your HomeLink

USB Network Adapter into the other.

Type A Type B

usb100h1 April 2000.qxd 4/4/00 11:15 AM Page 5

Linksys HomeLink™ Series

Installing the Phoneline +

10/100 USB Network

Adapter

Overview

The following instructions will help you physically connect your computer to

your network through your Phoneline + 10/100 USB Network Adapter. After

you physically install the adapter, you have to then install the adapter’s driver

software onto your computer and configure your computer to access your net-

work. Driver installation and PC configuration instructions follow these

device installation instructions.

Keep in mind that the USB Network Adapter will only support

one network media type at a time. The adapter can not connect

any device to a Phoneline network and an Ethernet network at the

same time.

Installing the USB Network Adapter &

Cabling

1. Insert the cable’s type B plug into the adapter’s B-type

port.

2. Insert the other end of the USB cable (the type A connector) into the

USB port on your PC.

Your computer is now connected to your USB Network Adapter.

Continue onto the next page to connect your computer to a Phoneline

network, or go to page 8 to connect it to an Ethernet or Fast Ethernet

network.

NNoottee::USB

cabling and port

information can

be found on

pages 3-5.

usb100h1 April 2000.qxd 4/4/00 11:15 AM Page 6

Phoneline + 10/100 USB Network Adapter

Connecting to a Phoneline Network

Computers on a Phoneline network can either connect through their

HomeLink ports, or through your home’s existing telephone wiring. The dia-

gram below shows a HomeLink network that takes advantage of both types of

connections.

Follow the instructions below to connect your computer to your HomeLink

network.

1. Connect one end of your telephone cabling to your Phoneline + 10/100

USB Network Adapter’s HomeLink Port.

2. Connect the other end of that telephone cable into another computer’s

HomeLink port, or into a networked wall jack.

Your computer is now connected to your Phoneline network.

• If your computer runs Windows 98, go to page 9 now for driver installa-

tion instructions.

• If your computer runs Windows 2000, go to page 20 now.

usb100h1 April 2000.qxd 4/4/00 11:15 AM Page 7

Autres manuels pour USB100H1

Table des matières

Autres manuels Linksys Carte réseau

Linksys

Linksys WGA600N - Wireless-N Gaming Adapter Bridge Manuel utilisateur

Linksys

Linksys PLK300 Manuel utilisateur

Linksys

Linksys WUSB54GS EU Manuel utilisateur

Linksys

Linksys USB200M Manuel utilisateur

Linksys

Linksys HPN200SK Manuel utilisateur

Linksys

Linksys WPC100 - Rangeplus Wireless G Pc Card Manuel utilisateur

Linksys

Linksys WUSB54GS EU Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Linksys

Linksys WPC11 Manuel utilisateur

Linksys

Linksys USB200M Instructions d'utilisation d'origine

Linksys

Linksys LNE100M Manuel utilisateur

Linksys

Linksys EG1064 Manuel utilisateur

Linksys

Linksys 10/100 LAN Card 10/100 Manuel utilisateur

Linksys

Linksys EG1032 Manuel utilisateur

Linksys

Linksys WUSB54GX4 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel utilisateur

Linksys

Linksys EG1064 Manuel utilisateur

Linksys

Linksys ProConnect USBHUB04 Manuel utilisateur

Linksys

Linksys EG1032 Instructions d'utilisation d'origine

Linksys

Linksys EG1032 Instructions d'utilisation d'origine

Linksys

Linksys WUSB200 Manuel utilisateur

Linksys

Linksys WUSB100 Manuel utilisateur

Linksys

Linksys HPN200 Manuel utilisateur

Linksys

Linksys WUSB100 Manuel utilisateur

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITXR Manuel utilisateur
