Linksys EtherFast LNE100TX ver. 5 Manuel utilisateur

Instant EtherFast®Series

EtherFast®10/100

LAN Card

Use this guide to install: LNE100TX ver. 5

User Guide

Linksys. Microsoft, Windows, and the Windows logo are registered trademarks of

Microsoft Corporation. All other trademarks and brand names are the property of their

respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every EtherFast®10/100 LAN Card is free from physical defects

in material and workmanship for the lifetime of the card, when used within the limits set

forth in the Specifications section of this User Guide. If the product proves defective dur-

ing this warranty period, call Linksys Customer Support in order to obtain a Return

Authorization number. BE SURE TO HAVE YOUR PROOF OF PURCHASE ON HAND

WHEN CALLING. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF

PURCHASE. When returning a product, mark the Return Authorization number clearly on

the outside of the package and include your original proof of purchase. All customers

located outside of the United States of America and Canada shall be held responsible

for shipping and handling charges.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. Linksys makes no warranty or representation,

expressed, implied, or statutory, with respect to its products or the contents or use of this

documentation and all accompanying software, and specifically disclaims its quality,

performance, merchantability, or fitness for any particular purpose. Linksys reserves the

right to revise or update its products, software, or documentation without obligation to

notify any individual or entity. Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

The EtherFast®10/100 LAN Card has been tested and complies with the specifications

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used according to the instructions, may cause harmful interfer-

ence to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which is found by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or device

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

UG-LNE100TX v5-10608NC KL

Linksys Instant EtherFast

Series EtherFast

10/100 LAN Cards

Troubleshooting 49

Common Problems and Solutions 49

Running the Card's Diagnostics 53

Appendix 54

Sharing Your Files and Printers 54

Installing the Driver in Windows 95 Version A 56

Novell NetWare 3.x Client Setup forWindows 95 or 98 57

Windows 95, 98 or ME Client for Windows NT 58

Starting Over in Windows 95, 98, ME or 2000 59

Manually Installing the Network Components in Windows 95, 98 and ME 64

Installing the Network Protocols for Windows 95, 98 and Millennium 65

About Plug-and-Play PCI Technology 67

Linux, Open Source and Beta Operating Systems 68

Glossary 69

Specifications 74

Environmental 74

Warranty Information 75

Contact Information 76

Table of Contents

Introduction 1

The EtherFast®10/100 LAN Card 1

Features 1

Package Contents for the EtherFast®10/100 LAN Card 2

Getting to Know the EtherFast®10/100 LAN Card 3

LEDs 3

The RJ-45 Port 3

Installing the EtherFast®10/100 LAN Card 4

Overview 4

Installing the Network Card and Cabling 4

Windows 95 Installation and Setup 7

Overview 7

Network Component Configuration 11

Windows 98 Installation and Setup 17

Overview 17

Installing the Network Card's Driver 17

Network Component Configuration 21

Windows Millennium Installation and Setup 26

Overview 26

Installing the Network Card's Driver 26

Network Component Configuration 29

Windows NT 4.0 Installation and Setup 34

Overview 34

Installing NT Networking and the EtherFast Card Driver 35

Installing the EtherFast Network Driver if Networking is Already Installed 41

Windows 2000 Installation and Setup 45

Overview 45

Installing the Network Card's Driver 45

EtherFast

10/100 LAN Cards

• One EtherFast®10/100 LAN Card(s)

• One 3.5” Driver Disk

• One User Guide and Registration Card

• Quick Install for Windows Operating Systems

Linksys Instant EtherFast

Series

Introduction

Fast Ethernet is a relatively new standard of networking built specifically for

speed-intensive network applications like video-conferencing, multimedia

development, imaging, and complex databases. Capable of sending and receiv-

ing data at 100 megabits-per-second in half-duplex mode, and 200Mbps in full

duplex, Fast Ethernet technology is at least 10 times faster than traditional

10BaseT networks.

Built to run with the fastest network applications, the EtherFast®10/100 LAN

Card is a high performance network adapter for desktop computers with 32-bit

PCI expansion slots. The EtherFast®10/100 LAN Card is ready to run with

both 10BaseT and 100BaseTX networks right out of the box – the card's 10/100

combo RJ-45 port automatically detects your network's maximum speed and

adjusts itself accordingly.

The EtherFast®10/100 LAN Card from Linksys also features Wake-On-LAN

(WOL) event management. If your PCI motherboard has built-inWOL support,

you’ll be able to utilize this unique management feature.You can remotely turn

on any computer with a WOL network card. The ultimate in 10/100 network-

ing is yours! If you don’t have WOL support on your motherboard or you have

no need for it, don’t worry — your EtherFast®10/100 LAN Card will operate

normally anyway. If your mission critical applications require blinding network

speed, the EtherFast®10/100 LAN Card is the best value for your networking

dollar.

• Easy to Use Plug-and-Play 10/100 PCI Network Card

• Full Duplex Capability at Up To 200Mbps

• Connects to Both 10Mbps Ethernet and 100Mbps Fast Ethernet Networks

• Power On Your PC From Anywhere on the Network with Wake-On-LAN

Management

• Works With All Major Network Operating Systems

• 10BaseT and 100BaseTX Fast Ethernet Power for PCI-Equipped PCs

• Includes Auto-Detecting 10BaseT/100BaseTX RJ-45 Port that

Automatically Adjusts to Full or Half Duplex

• Bus Mastering 32-bit Architecture Supports 100Mbps Speeds

Package Contents for the EtherFast®10/100 LAN Card

Features

The EtherFast®10/100 LAN Card

Installing the EtherFast®10/100 LAN

Card

Overview

Each EtherFast®10/100 LAN Card is equipped with an RJ-45 port that auto-

matically adjusts to either 10Mbps or 100Mbps speeds, allowing your PC to

attach to either Fast Ethernet (also known as 100BaseTX) or regular 10BaseT

Ethernet network segments without additional hardware or software.

The card should only be used with twisted-pair cabling. 10BaseT and

100BaseTX cabling is available in a number of different grades. For best

results, we recommend using 8-wire, category 5 unshielded twisted-pair for

both 10BaseT and 100BaseTX network segments, although category 3 can be

used for 10BaseT segments. The cable that runs from your PC’s EtherFast card

to your network should not exceed 100 meters (328 feet). Both Category 3 and

5 twisted-pair cabling can be purchased at most computer stores, or if you pre-

fer, you can crimp your own cables.

Installing the Network Card & Cabling

1. Power off your PC and any peripheral equipment attached to it. Unplug

your PC’s power cable.

2. Remove your computer's outside cover.

EtherFast

10/100 LAN Cards

Linksys Instant EtherFast

Series

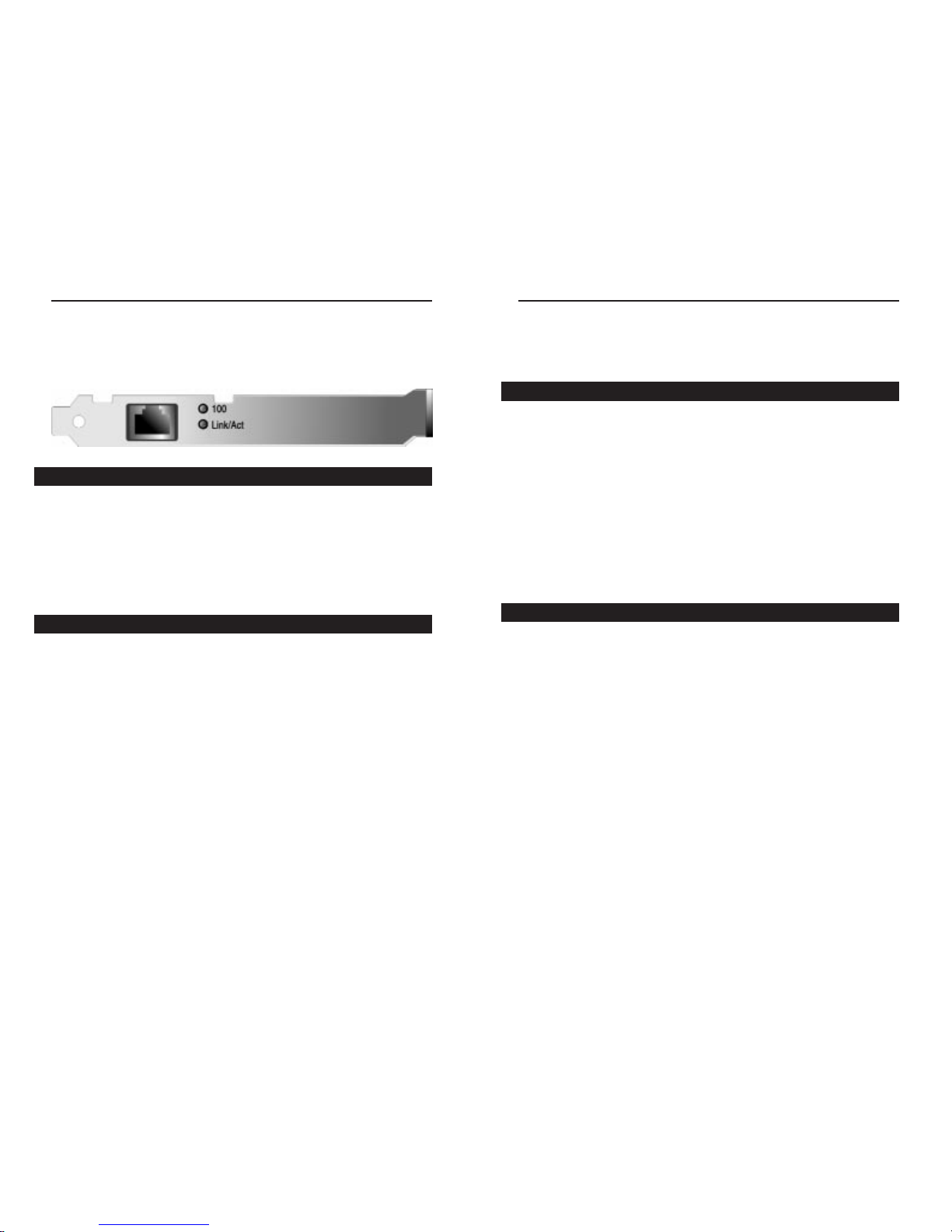

Getting to Know the EtherFast®

10/100 LAN Card

100 Amber. The 100 LED will illuminate when the card is operating at

100Mbps. If the 100 LED is not illuminated and the PC is powered on,

the card is operating at 10Mbps.

Link/Act Green. The Link LED will illuminate when the card has been suc-

cessfully connected to a network and flicker when data is being trans-

mitted or received over the network.

The RJ-45 Port is where you will connect your Category 3 or 5 network cabling.

Overview

Installing the Network Card and Cabling

LEDs

The RJ-45 Port

EtherFast

10/100 LAN Cards

6. Connect one end of a twisted-pair cable to your PC at the EtherFast®

10/100 LAN Card's RJ-45 port.

7. Plug the other end of the cable into one of your network’s 10BaseT or a

100BaseTX hub or switch ports, DSL modem, cable modem, router, etc.

8. Reconnect your PC’s power, then power on your computer. Your comput-

er will automatically recognize the card and assign it a unique IRQ ("inter-

rupt") and I/O address.

The card installation is complete. Next, you must install the device drivers

for the EtherFast®10/100 LANCard. To configure the 10/100 LAN Card,

turn to the section appropriate to your Operating System.

If you are using an operating system other than Windows 98,Windows 95,

or Windows NT, you will find the network driver installation instructions

on the Driver Disk’s readme.exe file.

Linksys Instant EtherFast

Series

3. Open your computer and locate the

PCI slot(s) on your motherboard.

PCI slots are easily identified by

their beige or white color. Remove

the metal slot cover on the back of

the PC, then insert the EtherFast®

10/100 LAN Card into an empty PCI

slot, as shown in the photograph

below.

4. Once your EtherFast®10/100 LAN Card is firmly in place, secure its

fastening tab to your PC's chassis with a mounting screw.

5. Replace your PC's cover.

NNoottee::If you intend to use both 10Mbps and 100Mbps components on your net-

work, you will need an auto-sensing hub or switch. For more information on

auto-sensing hubs or switches, go to the Linksys website at www.linksys.com.

NNoottee::When installing the

network card, be sure to

press the card solidly into

the PCI slot. Our network

cards are built to resist the

pressure necessary to insert the card

correctly in the PCI slot. Avoid a call to

technical support by making sure that

your card is inserted all the way into

your PC’s network slot! You will know

this has occurred when the card’s face-

plate is flush with your computer’s slot.

EtherFast

10/100 LAN Cards

3. While the Update Device Driver Wizard window is visible, put the

EtherFast®10/100 LAN Card Driver Disk into your floppy drive and

click the Next button.

4. A screen will appear stating that Windows 95 was unable to locate the driv-

er. Click the Other Locations button to enter the driver’s location manual-

ly.

5. Type the driver location, A:\WIN95, in the location field on the Select

Other Location Screen. Then, click the OK button.

Linksys Instant EtherFast

Series

Windows 95 Installation and Setup

After installing the EtherFast hardware in your computer, follow these instruc-

tions for installing the network device driver. For troubleshooting tips during

setup, refer to the Troubleshooting section.

There are different versions of Windows 95:

• VersionA

• Version B (also known as OSR2)

• Version C (with USB support)

The installation procedure for the network driver will vary slightly depending

on which version of Windows 95 you are using. To begin the driver installation,

and to determine which version of Windows 95 you are using:

1. If you already haven’t, start up your PC.

2. Windows 95 will automatically detect the EtherFast Card in your com-

puter. If an Update Device Driver Wizard window (below, or another simi-

lar window) appears, you are using Windows 95 version B. If not, you are

using version A. Skip to the Installing the Drive in Windows 95 Version

Asection in the Appendix.

Overview

EtherFast

10/100 LAN Cards

8. The following screen will prompt you for the driver location. In the Copy

Files From: field, type A:\WIN95. Then, click the OK button.

9. Windows 95 will begin copying files to your PC. When asked if you want

to restart your PC, remove the floppy disk and click Yes. If Windows does

not ask you to restart your PC, click the Start button, choose Shut Down,

choose Restart, then click the Yes button.

The Windows 95 Version B driver installation is complete. Please continue

on to the next section, which will provide instructions for configuring

Windows 95’s network protocol. Consult yourWindows documentation for

network configuration information if necessary.

Linksys Instant EtherFast

Series

6. Windows will show that the files have been found. Click the Finish button

to continue. Then, when you are prompted, verify that the “Linksys

LNE100TX (v5) Fast Ethernet Adapter Drivers” diskette is in your floppy

drive.

7. Windows will begin copying the EtherFast Card’s driver files to your PC.

Refer to the chart below to help guide you through the process.

NNoottee::From this point on, you must provide Windows with a User name and

Password every time you are prompted to do so. Remember to click OOKKto

properly log into Windows. If you click CCaanncceellor hit the EEssccaappee((EESSCC))key,

you will not log into the network.

• If your PC asks for the Linksys

Setup or Driver Disk

• If you are asked to supply

your Windows 98 Installation

Files or Disks

• If you are asked for a file that

includes “LNE100TX” in its

name

• If you receive a Version

Conflict error

1. Click OOKK.

2. Ensure that the DDrriivveerrDDiisskkis in your PC’s flop-

py drive.

3. Type “a:\” in the “Copy files from:” box.

4. Click OOKK.

1. Click OOKK.

2. If you have a WWiinnddoowwss9955CCDD--RROOMM, type

“d:\win95” in the “Copy files from:” box, where

“d:” is your CD-ROM drive.

3. If you

don’t

have a WWiinnddoowwss9955CCDD--RROOMM,

type: “c:\windows\options\cabs”.

4. Click OOKK.

1. Insert the DDrriivveerrDDiisskkinto your PC’s floppy

drive.

2. Type “a:\” in the “Copy files from:” box.

3. Click OOKK

1. Choose to keep the newest version of the file

by clicking YYeess.

If you press Skip or Cancel, the drivers will not be installed!

EtherFast

10/100 LAN Cards

3. Click the File and Print Sharing button. The

File and Print Sharing window will appear.

4a. If you'd like others to be able to access the files

on your PC's hard drive, select I want to be

able to give others access to my files.

4b. If you'd like to share your printer with other users on the network, select I

want to be able to allow others to print to my printer.

5. Click the OK button. File and Printer Sharing for Microsoft Networks

should now appear in the list of installed components.

NNoottee::If you do not enable

File and Printer Sharing,

your PC will be invisible on

the network, inaccessible

by anyone.

Linksys Instant EtherFast

Series

1. Once you are back at the Windows 95 desk-

top, click on your taskbar's Start button, then

Settings, then Control Panel, and then dou-

ble-click the Network icon.

2. The Network window will appear. Click on the

Configuration tab. A window similar to the

one below will appear. There may be other

components listed in addition to the ones

shown below (for example, Dial-up Adapter), which is normal. If any of the

components shown below are missing, however, you’ll need to manually

install them. If that’s the case, refer to the Manually Installing the Network

Components section of the Appendix now.

• Client for Microsoft Networks

• Client for NetWare Networks

• Linksys LNE100TX Fast Ethernet Adapter (LNE100TX v5)

•TCP/IP

NNoottee::If you need to install the

TCP/IP Protocol, see the

IInnssttaalllliinnggtthheeNNeettwwoorrkk

PPrroottooccoollssffoorrWWiinnddoowwss9955,,9988,,

aannddMMiilllleennnniiuummsection in the

Appendix. Windows NT and

2000 users need to check

their Windows User Guides

for protocol installation.

Network Component Configuration

EtherFast

10/100 LAN Cards

11. Click on the Identification tab and the following window will appear.

Type the name of your computer in the Computer Name box. Choose a

name that is unique from the other computer names on the network.

12. Type the name of your workgroup in the Workgroup box. The Workgroup

name should be the same Workgroup Name in use by all of the other PCs

on the network. Use the same Workgroup Name that is in use on your other

computers. Do not click OK when you have completed these fields.

13. Enter a description of your computer in the Computer Description box.

This box is optional. Do not click the OK button when you have complet-

ed these fields.

NNoottee::Your

Computer Name

and

Workgroup Name

must

both be fewer than 15 charac-

ters, and should only consist

of numbers and letters.

Linksys Instant EtherFast

Series

6. After making sure that all of the listed network components are installed

on your system, verify that Client for Microsoft Networks is listed in the

Primary Network Logon box.

7. Under Network Components, select Linksys LNE100TX (v5) Fast Ethernet

Adapter, and click the Properties button. A screen similar to that below

will appear.

8. Select the Driver Type tab and make sure that Enhanced Mode (32 bit

and 16 bit) NDIS Driver is selected.

9. The Bindings tab will show you what network protocols are presently uti-

lized by the card. There is no need to modify any setting on this tab.

10. The Advanced Tab has two settings. First, is the Media Type setting. This

should be set at AutoSense. The next setting, Select Media, should be set

at Ethernet.

Autres manuels pour EtherFast LNE100TX ver. 5

Table des matières

Autres manuels Linksys Carte réseau

Linksys

Linksys WPC100 - Rangeplus Wireless G Pc Card Manuel utilisateur

Linksys

Linksys EG1032 Instructions d'utilisation d'origine

Linksys

Linksys EG1032 Instructions d'utilisation d'origine

Linksys

Linksys EG1032 Manuel utilisateur

Linksys

Linksys WGA600N - Wireless-N Gaming Adapter Bridge Manuel utilisateur

Linksys

Linksys WPC11 Manuel utilisateur

Linksys

Linksys EtherFast LNE100TX ver. 5 Manuel utilisateur

Linksys

Linksys WCF11 - Wireless CompactFlash Card Type II Manuel utilisateur

Linksys

Linksys USB200HA Manuel utilisateur

Linksys

Linksys USB100TX - EtherFast 10/100 USB Network... Manuel utilisateur

Linksys

Linksys WCF11 - Wireless CompactFlash Card Type II Manuel utilisateur

Linksys

Linksys USB100H1 Instructions d'utilisation d'origine

Linksys

Linksys WUSB300N Manuel utilisateur

Linksys

Linksys EC2T Instructions d'utilisation d'origine

Linksys

Linksys ProConnect USBHUB04 Manuel utilisateur

Linksys

Linksys Instant Wireless WUSB11 Manuel utilisateur

Linksys

Linksys CGV2W Manuel utilisateur

Linksys

Linksys WUSB54GSC Instructions d'utilisation d'origine

Linksys

Linksys PAP2 Manuel utilisateur

Linksys

Linksys PCMLM56 - EtherFast - 56 Kbps Network Manuel utilisateur

Linksys

Linksys WDT11 Manuel utilisateur

Linksys

Linksys WUSB54GX4 Manuel utilisateur

Linksys

Linksys WUSB300N Manuel utilisateur

Linksys

Linksys EC1000 Manuel utilisateur

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITXR Manuel utilisateur
