Linksys WUSB54GX4 Manuel utilisateur

Model No.

USB Network Adapter

Wireless-G

WUSB54GX4

User Guide

WIRELESS

GHz

2.4

802.11g

with SRX400

Wireless-G USB Network Adapter with SRX400

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco

rights reserved. Other brands and product names are trademarks or registered trademarks of their respective

holders.

How to Use This User Guide

This User Guide has been designed to make understanding networking with the Wireless-G USB Network Adapter

with SRX400 easier than ever. Look for the following items when reading this User Guide:

In addition to these symbols, there are definitions for technical terms that are presented like this:

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like

this:

Figure numbers and descriptions can also be found in the “List of Figures” section in the “Table of Contents”.

This exclamation point means there is a caution or warning and is something that

could damage your property or the Wireless-G USB Network Adapter with SRX400.

This checkmark means there is a note of interest and is something you should pay

special attention to while using the Wireless-G USB Network Adapter with SRX400.

This question mark provides you with a reminder about something you

might need to do while using the Wireless-G USB Network Adapter with

SRX400.

word: definition.

Figure 0-1: Sample Figure Description

WUS54GX4-UG-60215NC BW

WARNING: This product contains chemicals, including lead, known

to the State of California to cause cancer, and birth defects or other

reproductive harm. Wash hands after handling.

Wireless-G USB Network Adapter with SRX400

TableofContents

Chapter 1: Introduction 1

Welcome 1

What’s in This User Guide? 1

Chapter 2: Planning Your Wireless Network 3

Network Topology 3

Roaming 3

Network Layout 4

Chapter 3: Getting to Know the Wireless-G USB Network Adapter with SRX400 5

Chapter 4: Setting Up and Connecting the Wireless-G USB Network Adapter with SRX400 6

Starting the Setup Wizard 6

Setting Up the Adapter 7

Chapter 5: Using the Wireless Network Monitor 17

Accessing the Wireless Network Monitor 17

Link Information Screens 17

Site Survey 20

Profiles 22

Creating a New Profile 23

Appendix A: Troubleshooting 33

Common Problems and Solutions 33

Frequently Asked Questions 34

Appendix B: Using Windows XP Wireless Zero Configuration 37

Appendix C: Wireless Security 40

Security Precautions 40

Security Threats Facing Wireless Networks 40

Appendix D: Windows Help 43

Appendix E: Glossary 44

Appendix F: Specifications 49

Appendix G: Warranty Information 50

Appendix H: Regulatory Information 51

Appendix I: Contact Information 57

Wireless-G USB Network Adapter with SRX400

ListofFigures

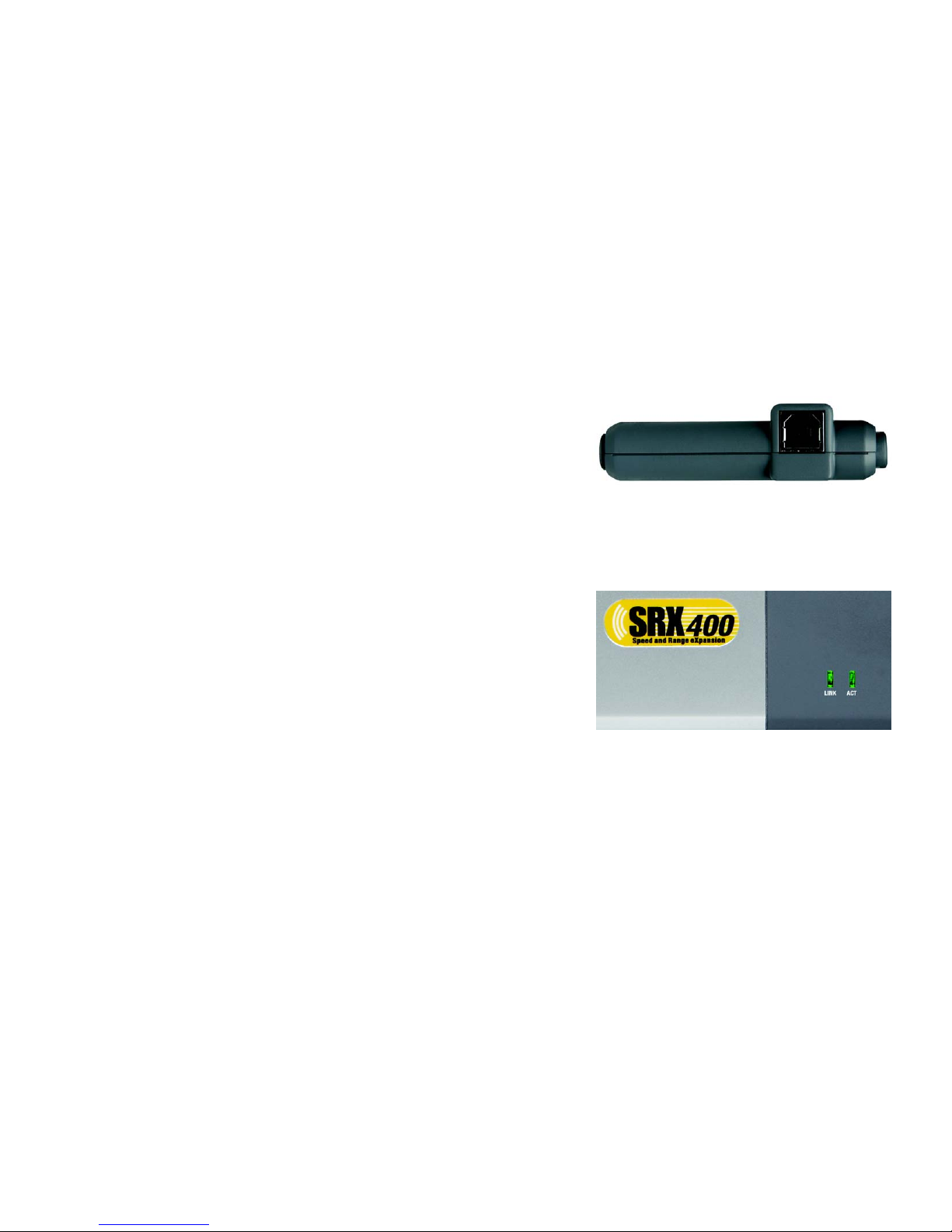

Figure 3-1: USB Network Adapter with SRX400’s USB Port 5

Figure 3-2: USB Network Adapter with SRX400’s LEDs 5

Figure 4-1: Setup Wizard’s Welcome Screen 6

Figure 4-2: Setup Wizard’s License Agreement 6

Figure 4-3: Connecting the Adapter Screen 7

Figure 4-4: Available Wireless Network Screen 7

Figure 4-5: Available Wireless Network Screen 8

Figure 4-6: WEP Key Needed for Connection 8

Figure 4-7: WPA-Personal Needed for Connection 9

Figure 4-8: WPA2-Personal Needed for Connection 9

Figure 4-9: Congratulations Screen 9

Figure 4-10: Available Wireless Network Screen 10

Figure 4-11: Network Settings Screen 10

Figure 4-12: Wireless Mode Screen 11

Figure 4-13: Ad-Hoc Mode Settings Screen 11

Figure 4-14: Wireless Security Screen 12

Figure 4-15: Wireless Security - WEP Screen 12

Figure 4-16: Wireless Security - WPA Personal Screen 13

Figure 4-17: Wireless Security - WPA2 Personal Screen 13

Figure 4-18: Wireless Security - WPA Enterprise Using EAP-TLS Screen 14

Figure 4-19: Wireless Security - WPA Enterprise Using PEAP Screen 14

Figure 4-20: Wireless Security - RADIUS Screen 15

Figure 4-21: Wireless Security - PEAP Screen 15

Figure 4-22: Confirm New Settings Screen 16

Figure 4-23: Congratulations Screen 16

Figure 5-1: Wireless Network Monitor Icon 17

Figure 5-2: Link Information Screen 17

Figure 5-3: More Information - Wireless Network Status Screen 18

Figure 5-4: More Information - Wireless Network Statistics Screen 19

Figure 5-5: Site Survey Screen 20

Figure 5-6: WEP Key Needed for Connection 20

Figure 5-7: WPA-Personal Needed for Connection 21

Figure 5-8: WPA2-Personal Needed for Connection 21

Wireless-G USB Network Adapter with SRX400

Figure 5-9: Profiles Screen 22

Figure 5-10: Import a Profile 22

Figure 5-11: Export a Profile 22

Figure 5-12: Create a New Profile 23

Figure 5-13: Available Wireless Network Screen 23

Figure 5-14: Available Wireless Network Screen 24

Figure 5-15: WEP Key Needed for Connection 24

Figure 5-16: WPA-Personal Needed for Connection 25

Figure 5-17: WPA2-Personal Needed for Connection 25

Figure 5-18: Congratulations Screen 25

Figure 5-19: Available Wireless Network Screen 26

Figure 5-20: Network Settings Screen 26

Figure 5-21: Wireless Mode Screen 27

Figure 5-22: Ad-Hoc Mode Settings 27

Figure 5-23: Wireless Security Screen 28

Figure 5-24: Wireless Security - WEP Screen 28

Figure 5-25: Wireless Security - WPA Personal Screen 29

Figure 5-26: Wireless Security - WPA2 Personal Screen 29

Figure 5-27: Wireless Security - WPA Enterprise Using EAP-TLS Screen 30

Figure 5-28: Wireless Security - WPA Enterprise Using PEAP Screen 30

Figure 5-29: Wireless Security - RADIUS Screen 31

Figure 5-30: Wireless Security - RADIUS Screen 31

Figure 5-31: Confirm New Settings Screen 32

Figure 5-32: Congratulations Screen 32

Figure B-1: Wireless Network Monitor Icon 37

Figure B-2: Windows XP - Use Windows XP Wireless Configuration 37

Figure B-3: Windows XP Wireless Configuration Icon 37

Figure B-4: Available Wireless Network 38

Figure B-5: No Wireless Security 38

Figure B-6: Network Connection - Wireless Security 39

Figure B-7: Wireless Network Connection 39

Chapter 1: Introduction

Welcome

Wireless-G USB Network Adapter with SRX400

Chapter1:Introduction

Welcome

Thank you for choosing the Wireless-G USB Network Adapter with SRX400. With this Adapter, your wireless

networking experience will be faster and easier than ever.

How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility

within your wireless network, whether it’s using the Wireless-G (802.11g) or Wireless-B (802.11b) standard. But

with SRX400, your speed and range are even better than before. And with USB, connection is simple.

But what does all of this mean?

Networks are useful tools for sharing computer resources. You can access one printer from different computers

and access data located on another computer's hard drive. Networks are even used for playing multiplayer video

games. So, networks are not only useful in homes and offices, they can also be fun.

PCs equipped with wireless cards and adapters can communicate without cumbersome cables. By sharing the

same wireless settings, within their transmission radius, they form a wireless network.

The included Setup Wizard walks you through configuring the Adapter to your wireless network settings, step by

step. Use the instructions in this Guide to help you set up and connect the Adapter using the Setup Wizard. These

instructions should be all you need to get the most out of the Adapter.

What’s in This User Guide?

This user guide covers the steps for setting up and using the Wireless-G USB Network Adapter with SRX400.

• Chapter 1: Introduction

This chapter describes the Adapter’s applications and this User Guide.

• Chapter 2: Planning Your Wireless Network

This chapter discusses a few of the basics about wireless networking.

• Chapter 3: Getting to Know the Wireless-G USB Network Adapter with SRX400

This chapter describes the physical features of the Adapter.

• Chapter 4: Setting Up and Connecting the Wireless-G USB Network Adapter with SRX400

This chapter shows you how to set up and connect the Adapter.

802.11b: an IEEE wireless networking standard

that specifies a maximum data transfer rate of

11Mbps and an operating frequency of 2.4GHz.

adapter: a device that adds network functionality

to your PC.

network: a series of computers or devices

connected for the purpose of data sharing,

storage, and/or transmission between users.

802.11g an IEEE wireless networking standard that

specifies a maximum data transfer rate of 54Mbps

and an operating frequency of 2.4GHz.

Chapter 1: Introduction

What’s in This User Guide?

Wireless-G USB Network Adapter with SRX400

• Chapter 5: Using the Wireless Network Monitor

This chapter explains how to use the Adapter’s Wireless Network Monitor.

• Appendix A: Troubleshooting

This appendix describes some problems and solutions, as well as frequently asked questions, regarding

installation and use of the Adapter.

• Appendix B: Using Windows XP Wireless Zero Configuration

This chapter instructs you on how to use Window XP Wireless Zero Configuration.

• Appendix C: Wireless Security

This appendix discusses security issues regarding wireless networking and measures you can take to help

protect your wireless network.

• Appendix D: Windows Help

This appendix describes how you can use Windows Help for instructions about networking, such as installing

the TCP/IP protocol.

• Appendix E: Glossary

This appendix gives a brief glossary of terms frequently used in networking.

• Appendix F: Specifications

This appendix provides the Adapter’s technical specifications.

• Appendix G: Warranty Information

This appendix supplies the Adapter’s warranty information.

• Appendix H: Regulatory Information

This appendix supplies the Adapter’s regulatory information.

• Appendix I: Contact Information

This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 2: Planning Your Wireless Network

Network Topology

Wireless-G USB Network Adapter with SRX400

Chapter2:PlanningYourWirelessNetwork

Network Topology

A wireless network is a group of computers, each equipped with one wireless adapter. Computers in a wireless

network must be configured to share the same radio channel. Several PCs equipped with wireless cards or

adapters can communicate with one another to form an ad-hoc network.

Linksys wireless adapters also provide users access to a wired network when using an access point or wireless

router. An integrated wireless and wired network is called an infrastructure network. Each wireless PC in an

infrastructure network can talk to any computer in a wired network infrastructure via the access point or wireless

router.

An infrastructure configuration extends the accessibility of a wireless PC to a wired network, and can double the

effective wireless transmission range for two wireless adapter PCs. Since an access point is able to forward data

within a network, the effective transmission range in an infrastructure network can be doubled.

Roaming

Infrastructure mode also supports roaming capabilities for mobile users. Roaming means that you can move your

wireless PC within your network and the access points will pick up the wireless PC's signal, providing that they

both share the same channel and SSID.

Before you consider enabling roaming, choose a feasible radio channel and optimum access point position.

Proper access point positioning combined with a clear radio signal will greatly enhance performance.

infrastructure: a wireless network that is

bridged to a wired network via an access point.

ad-hoc: a group of wireless devices

communicating directly with each other (peer-

to-peer) without the use of an access point.

roaming: the ability to take a wireless device

from one access point's range to another without

losing the connection.

ssid: your wireless network's name.

topology: the physical layout of a network.

access point: a device that allows wireless-

equipped computers and other devices to

communicate with a wired network. Also used to

expand the range of a wireless network

Chapter 2: Planning Your Wireless Network

Network Layout

Wireless-G USB Network Adapter with SRX400

Network Layout

Linksys wireless access points and wireless routers have been designed for use with 802.11b and 802.11g

products. Products using the 802.11g and 802.11b standards can communicate with each other.

Access points and wireless routers are compatible with 802.11b and 802.11g adapters, such as the notebook

adapters for your laptop computers, PCI adapters for your desktop PCs, and USB adapters for when you want to

enjoy USB connectivity. Wireless products will also communicate with a wireless print server.

When you wish to connect your wired network with your wireless network, network ports on access points and

wireless routers can be connected to any of Linksys's switches or routers.

With these, and many other, Linksys products, your networking options are limitless. Go to the Linksys website at

www.linksys.com for more information about wireless products.

router: a networking device that connects multiple

networks together

switch: a data switch that connects computing devices

to host computers, allowing a large number of devices

to share a limited number of ports

Chapter 3: Getting to Know the Wireless-G USB Network Adapter with SRX400

Wireless-G USB Network Adapter with SRX400

Chapter3:GettingtoKnowtheWireless-GUSBNetwork

AdapterwithSRX400

The USB Port

The USB Port is where you connect the USB cable.

The LEDs

The USB Network Adapter’s LEDs displays information about network activity.

LINK Green. The LINK LED lights up when the Adapter has an active connection.

ACT Green. The ACT LED flashes when there is network activity.

Figure 3-1: USB Network Adapter’s USB Port

Figure 3-2: USB Network Adapter’s LEDs

Table des matières

Autres manuels Linksys Carte réseau

Linksys

Linksys ETHERFAST 10/100 Manuel utilisateur

Linksys

Linksys EG1032 Instructions d'utilisation d'origine

Linksys

Linksys LNE2000T Manuel utilisateur

Linksys

Linksys HPN200SK Manuel utilisateur

Linksys

Linksys EtherFast LNE100TX ver. 5 Manuel utilisateur

Linksys

Linksys EG1032 Manuel utilisateur

Linksys

Linksys WPC100 - Rangeplus Wireless G Pc Card Manuel utilisateur

Linksys

Linksys HomeLink HPN100 Manuel utilisateur

Linksys

Linksys USB200M Manuel utilisateur

Linksys

Linksys LNE100M Manuel utilisateur

Linksys

Linksys USBVPN1 Manuel utilisateur

Linksys

Linksys EtherFast LNE100TX ver. 5 Manuel utilisateur

Linksys

Linksys WCF11 - Wireless CompactFlash Card Type II Manuel utilisateur

Linksys

Linksys PLK300 Manuel utilisateur

Linksys

Linksys HP200 Manuel utilisateur

Linksys

Linksys USB100TX - EtherFast 10/100 USB Network... Manuel utilisateur

Linksys

Linksys USB100H1 Manuel utilisateur

Linksys

Linksys EC2T Manuel utilisateur

Linksys

Linksys WUSB54GSC Manuel utilisateur

Linksys

Linksys WGA600N - Wireless-N Gaming Adapter Bridge Manuel utilisateur

Linksys

Linksys WUSB300N Manuel utilisateur

Linksys

Linksys EC1000 Manuel utilisateur

Linksys

Linksys WUSB54GSC Instructions d'utilisation d'origine

Linksys

Linksys EG1064 Manuel utilisateur

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITXR Manuel utilisateur
