DEMO MANUAL DC1198A-A

Description

LTM4605

20V, 5A High Efficiency

Buck-Boost µModule Regulator

Demonstration circuit DC1198A-A features the

LT M

4605EV, the high efficiency, high density switch

modebuck-boostµModule

regulator. The LTM4605EV can

regulate its output voltage from an input voltage above,

below, or equal to the output. The input voltage range

of DC1198A-A is from 4.5V to 20V with a preset output

voltage of 12V. The rated load current is 5A, although

derating is necessary for certain VIN, VOUT, and thermal

conditions. The switching frequency may be synchronized

to an external clock from 200kHz to 400kHz. This PLL

L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks of

Linear Technology Corporation. All other trademarks are the property of their respective owners.

perForMAnce sUMMArY

BoArD photo

can be used not only to reduce undesirable frequency

harmonics but also to parallel LTM4605 to provide high

output current. The LTM4605 data sheet must be read in

conjunction with this demo manual prior to working on

or modifying DC1198A-A.

Design files for this circuit board are available at

http://www.linear.com/demo

(TA= 25°C)

PARAMETER CONDITIONS VALUE

Input Voltage Range VIN 4.5V to 20V

Output Voltage VOUT VIN = 12V, IOUT = 5A. 12V ± 2%

Maximum Continuous Output Current Derating Is Necessary for Certain VIN, VOUT, and

Thermal Conditions

5ADC at 5VIN

12ADC at VIN > VOUT

Default Operating Frequency 300kHz

Efficiency VIN = 12V, VOUT = 12V, IOUT = 5A 97.6%, See Figure 3 for More Information

Load Transient VIN = 5V, VOUT = 12V See Figure 4 for Details

Downloaded from Elcodis.com electronic components distributor

dc1198aaf

DEMO MANUAL DC1198A-A

qUick stArt proceDUre

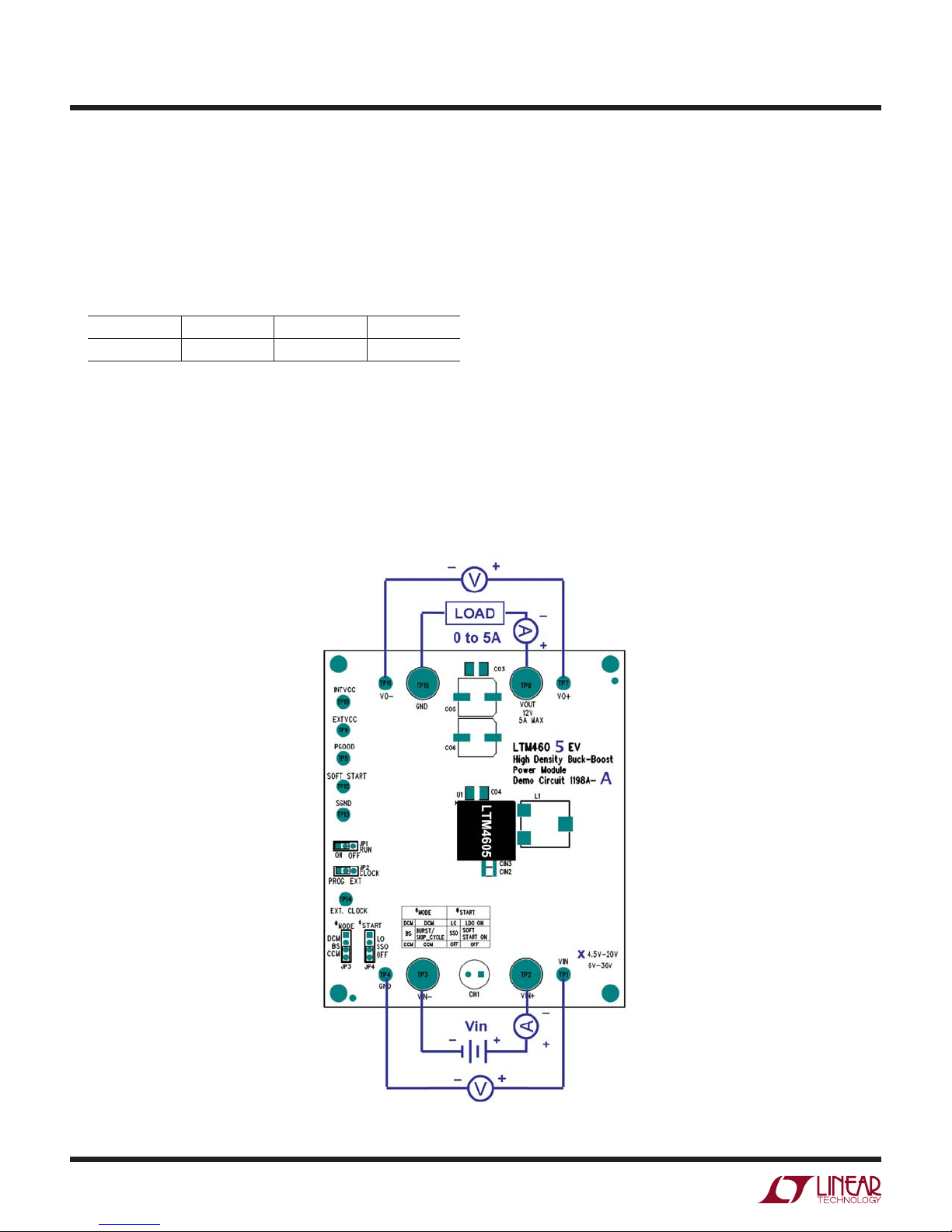

Figure 1. Test Setup of DC1198A-A

Demonstration circuit DC1198A-A isaneasywayto evaluate

the performance of the LTM4605EV. Please refer to Figure

1 for proper measurement equipment set-up and follow

the procedure below:

1. Place jumpers in the following positions for a typical

12VOUT application:

RUN CLOCK MODE START

ON PROG CCM SSO

2. With power off, connect the input power supply, load

and meters as shown in Figure 1. Preset the load to 0A

and VIN supply to be less than 20V.

3. Turn on the power at the input. The output voltage

should be 12V ± 2%.

4. Once the proper output voltage is established, adjust

the load within the operating range and observe the

output voltage regulation, ripple voltage, efficiency and

other parameters. Cooling fan andlower current sensing

resistor are necessary for VIN < 5V and IOUT = 5A.

5. To measure input and output ripple, please refer to

Figure 2 for proper setup.

6. The voltage of pin PLLFLTR determines the switching

frequency. Modify R6 and R7 to adjust the switching

frequency. Turn off the power supply before attempting

to remove and replace R6 and R7. Do not allow voltage

at pin PLLFLTR exceed 2.4V.

7. The Inductor, RS1 and RS2 should be modified to ac-

commodate certain input and output condition. Please

refer to the LTM4605 data sheet for recommended

component values.

DC1198A F01

Downloaded from Elcodis.com electronic components distributor

dc1198aaf

DEMO MANUAL DC1198A-A

qUick stArt proceDUre

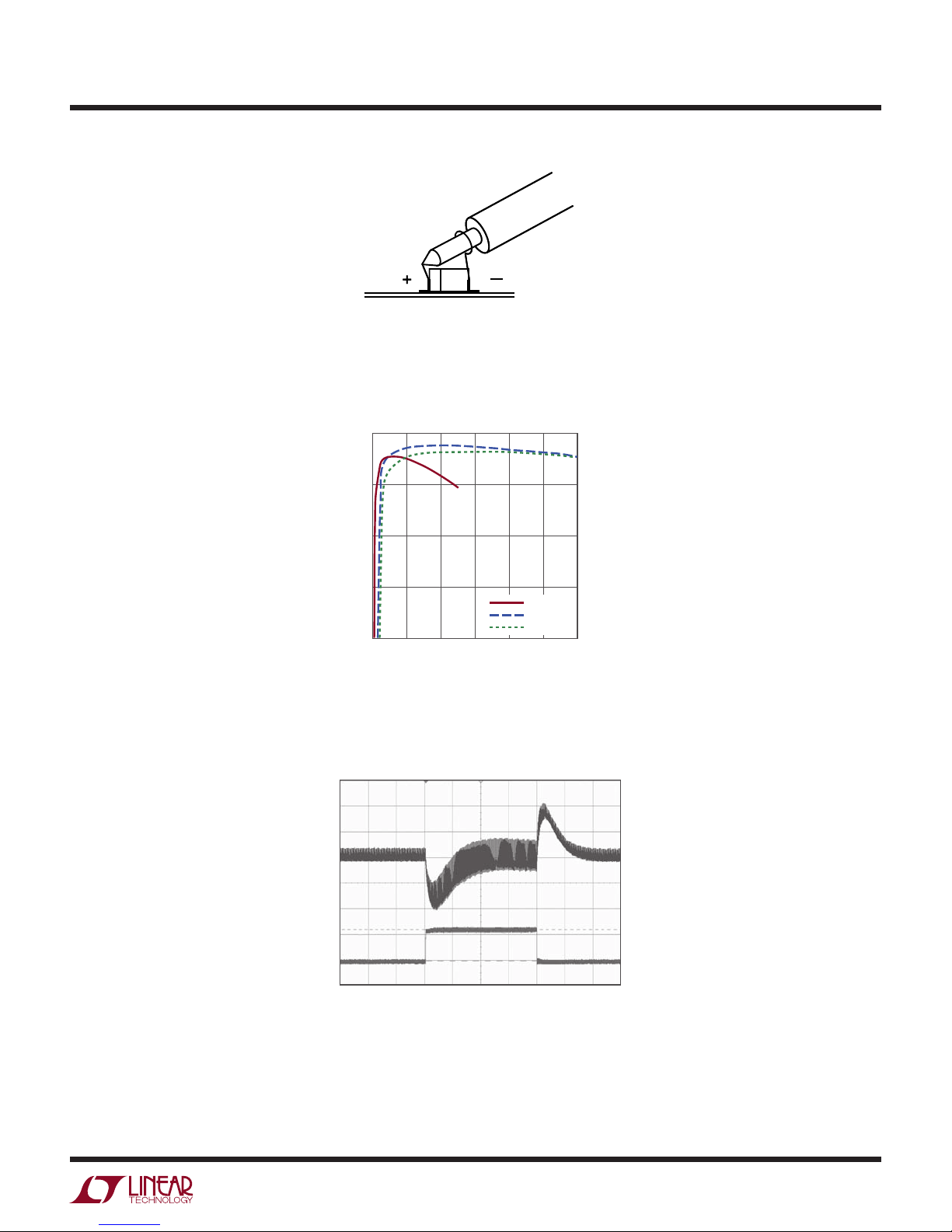

Figure 2. Proper Scope Probe Placement for Measuring Input or Output Ripple

Figure 3. Measured Supply Efficiency with Different VIN. (VOUT = 12V)

Figure 4. Measured Load Transient Response (2.5A Step, 25% to 75%)

LOAD CURRENT (A)

EFFICIENCY (%)

100

6 8 10

DC1198A F03

60 2 4 12

VIN = 5V

VIN = 12V

VIN = 20V

DC1198A F02

INPUT OR OUTPUT CAPACITOR

VIN = 5V, VOUT = 12V

CONTINUOUS CURRENT MODE (CCM)

1.25A TO 3.75A LOAD STEP

COUT = 2x22µF CERAMIC (1812, X7R), 2x180µF OSCON (16V)

PEAK-TO-PEAK OUTPUT VOLTAGE DEVIATION = 413mV

200µs/DIV

VOUT

AC-COUPLED

100mV/DIV

ISTEP

2A/DIV

DC1198A F04

Downloaded from Elcodis.com electronic components distributor

dc1198aaf

DEMO MANUAL DC1198A-A

pArts list

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CIN1 CAP, ALUM, 150µF, 20%, 35V SANYO, 35ME150WXV+TS (NOW SUNCON 35ME150WXV)

2 2 CIN2, CIN3 CAP, X7R, 10µF, 20%, 35V, 1206 TAIYO YUDEN, GMK316BJ106ML-T

3 1 CSS CAP, X7R, 0.01µF, 25V, 10%, 0603 AVX 06033C103KAT4A

4 2 CO3, CO4 CAP, X7R, 22µF, 16V, 20%, 1812 TDK C4532X7R1C226M

5 2 CO5, CO6 CAP, OS-CON, 180µF, 16V SANYO 16SVP180MX

6 1 L1 IND IRON POWER SMT FIXED, 3.3µH TOKO FD1254-3R3M=P3

7 1 R5 RES, CHIP, 7.15k, 1/16W, 1%, 0603 VISHAY CRCW06037K15FKEA

8 1 R6 RES, CHIP, 4.64k, 1/16W, 1%, 0603 VISHAY CRCW06034K64FKEA

9 1 R7 RES, CHIP, 1.21k, 1/16W, 1%, 0603 VISHAY CRCW06031K21FKEA

10 2 RS1, RS2 RES, CHIP, 0.015 1/2W, 1%, 1206 IRC LRC-LRF1206-01-R015-F

11 1U1 I.C., LTM4605EV#PBF LINEAR TECHNOLOGY CORPORATION LTM4605EV#PBF

Additional Demo Board Circuit Components

1 0 CIN4, CIN5 (OPT) CAP, 1206

2 0 C2, C4, C5, CP, CFF

(OPT)

C A P, 0 6 0 3

3 0 CO1, CO2 (OPT) CAP, SVP, 100µF, D3L

4 0 CO7 (OPT) CAP, 1206, 16V

5 0 CO8 (OPT) POSCAP, D3L

6 2 D1, D2 ZENER DIODE, 4.7V CENTRAL SEMICONDUCTOR CMDZ5230B-7-F

7 1 R1 RES, CHIP, 100k, 1/16W, 5%, 0603 VISHAY CRCW0603100KJNEA

8 1 R2 RES, CHIP, 51k, 1/16W, 5%, 0603 VISHAY CRCW060351K0JNEA

9 1 R8 RES, CHIP, 20k, 1/16W, 1%, 0603 VISHAY CRCW060320K0FKEA

10 1RS3 (OPT) RES,1206

11 1 R9, RUVLO (OPT) RES, 0603

Hardware/Components (For Demo Board Only)

1 2 JP1, JP2 2mm SINGLE ROW HEADER, 3 PIN SAMTEC TMM-103-02-L-S

2 2 JP3, JP4 2mm SINGLE ROW HEADER, 4 PIN SAMTEC TMM-104-02-L-S

3 4 JP1, JP2, JP3, JP4 SHUNT SAMTEC 2SN-BK-G

410 TP1, TP4, TP5, TP7,

TP9, TP11 TO TP15

TESTPOINT, TURRET, 0.095” MILL-MAX 2501-2-00-80-00-00-07-0

5 4 TP2, TP3, TP8, TP10 BANANA JACK KEYSTONE 575-4

6 4 STAND OFF STAND OFF, NYLON 0.50” TALL KEYSTONE 8833 (SNAP ON)

Downloaded from Elcodis.com electronic components distributor

dc1198aaf

DEMO MANUAL DC1198A-A

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

scheMAtic DiAgrAM

A A

B B

5A MAX







DCM

CCM

BS (BURST/SKIP_CYCLE) OFF

SSO (SOFT START ON)

LO (LDO ON)







12V

MODE

Degrading Necessary for Certain Input

and Output Voltages.

START

DCM

SOFT

START ON

LDO ON

OFF

MODE

OFF

SSO

BURST/

START

CCM CCM

DCM

SKIP_CYCLE

VERSION

4.7uH

3.3uH- A

L Cin1 Cin2, Cin3

35V, 150uF 10uF, 35V, 1206, X7R

4.7uF, 50V, 1206, X5R

ASSY TABLES

50V, 100uF

LTM4605EV

LTM4607EV

** **

- B

VIN

4.5V - 20V

6V - 36V

VSS

VIN

INTVCC

VOUT

VIN

INTVCC

VIN

INTVCC

SIZE

SCALE:

CAGE CODE DWG NO REV

SHEET OF

FILENAME:

TITLE

CONTRACT NO.

APPROVALS DATE

DRAWN

CHECKED

APPROVED

ENGINEER

DESIGNER

TECHNOLOGY

1630 McCarthy Blvd.

Milpitas, CA 95035

Phone: (408)432-1900

Fax: (408)434-0507























DC1198A-A/B

Friday, March 04, 2011

HELEN 8/28/07

Manjing Xie 8/28/07

High Density Buck-Boost Power Module

LTM4605EV / LTM4607EV

SIZE

SCALE:

CAGE CODE DWG NO REV

SHEET OF

FILENAME:

TITLE

CONTRACT NO.

APPROVALS DATE

DRAWN

CHECKED

APPROVED

ENGINEER

DESIGNER

TECHNOLOGY

1630 McCarthy Blvd.

Milpitas, CA 95035

Phone: (408)432-1900

Fax: (408)434-0507























DC1198A-A/B

Friday, March 04, 2011

HELEN 8/28/07

Manjing Xie 8/28/07

High Density Buck-Boost Power Module

LTM4605EV / LTM4607EV

SIZE

SCALE:

CAGE CODE DWG NO REV

SHEET OF

FILENAME:

TITLE

CONTRACT NO.

APPROVALS DATE

DRAWN

CHECKED

APPROVED

ENGINEER

DESIGNER

TECHNOLOGY

1630 McCarthy Blvd.

Milpitas, CA 95035

Phone: (408)432-1900

Fax: (408)434-0507























DC1198A-A/B

Friday, March 04, 2011

HELEN 8/28/07

Manjing Xie 8/28/07

High Density Buck-Boost Power Module

LTM4605EV / LTM4607EV

CMDZ5230B

2 1

(OPT)

CO1

(OPT)

CO1

(OPT)

JP3JP3

RS1

0.015

RS1

0.015

100K

TP9

EXTVCC TP9

EXTVCC

7.15K

CO6

180uF

16V

CO6

180uF

16V

C2 (OPT)C2 (OPT)

TP4

GND TP4

GND

TP15

INTVCC TP15

INTVCC

TP5

PGOOD TP5

PGOOD

R8 20KR8 20K

CO2

(OPT)

CO2

(OPT) CO7

(OPT)

16V

CO7

(OPT)

16V

L1L1

JP2JP2

Cin4

(OPT)

Cin4

(OPT)

RS2

0.015

RS2

0.015

CSS 10nF

CO3

22uF

16V

CO3

22uF

16V

Cin3

10uF

Cin3

10uF

(OPT)

TP1

VIN TP1

VIN

Cin1

CO8

(OPT)

CO8

(OPT)

51K

TP10



TP10



CO4

22uF

16V

CO4

22uF

16V

TP13

SGND TP13

SGND

CO5

180uF

16V

CO5

180uF

16V

TP2

VIN+ TP2

VIN+

TP7 VO+

CMDZ5230B

2 1

TP3

VIN- TP3

VIN-

C4 (OPT)

10V

C4 (OPT)

10V

TP8 VOUT

(OPT)

Cin2

10uF

Cin2

10uF

RS3

(OPT)

RS3

(OPT)

TP11 VO-

Cin5

(OPT)

Cin5

(OPT)

JP1JP1

JP4JP4

R6 4.64KR6 4.64K

1.21K

CFF

(OPT)

CFF

(OPT)

TP12

SOFT START TP12

SOFT START

RUVLO

(OPT)

RUVLO

(OPT)

TP14

EXT. CLOCK TP14

EXT. CLOCK

U1U1

VIN

L12

VIN

K11

VIN

J10

VIN

M10

VIN

L11 VIN

L10 VIN

K12

VIN

J11

VIN

J12

VIN

K10

GND

C11

GND

C10

GND

VOUT G2

VOUT G3

VOUT G4

VOUT H1

VOUT H2

VOUT H3

VOUT H4

COMP

EXTVCC

RSENSE G5

GND

C12 GND

D1 GND

D2 GND

D3 GND

GND

D10

VFB B6

SW1 J1

SW2 J8

VOUT G1

VOUT E2

VOUT E1

VIN

M11

VIN

M12

INTVCC

PGOOD

RUN

PLLFLTR

PLLIN

FCB

STNDBY

A10

SGND

GND

D11 GND

D12 GND

E3 GND

E4 GND

E5 GND

E6 GND

E7 GND

E8 GND

E9 GND

E10 GND

E11 GND

E12

GND

A11 GND

A12

GND

B10 GND

B11 GND

B12

SENSE+ A4

SENSE- A5

RSENSE G6

RSENSE G7

RSENSE G8

RSENSE G9

RSENSE G10

RSENSE G11

RSENSE G12

RSENSE H5

RSENSE H6

RSENSE H7

RSENSE H8

RSENSE H9

RSENSE H10

RSENSE H11

RSENSE H12

RSENSE J5

RSENSE J6

RSENSE J7

RSENSE K5

RSENSE K6

RSENSE L5

RSENSE L6

RSENSE M5

RSENSE M6

RSENSE F10

RSENSE F11

RSENSE F12

VOUT F1

VOUT F2

VOUT F3

VOUT F4

SW1 J2

SW1 J3

SW1 J4

SW1 K1

SW1 K2

SW1 K3

SW1 K4

SW1 L1

SW1 L2

SW1 L3

SW1 L4

SW1 M1

SW1 M2

SW1 M3

SW1 M4

SW2 J9

SW2 K7

SW2 K8

SW2 K9

SW2 L7

SW2 L8

SW2 L9

SW2 M7

SW2 M8

SW2 M9

NC F8

NC F9

NC F7

Downloaded from Elcodis.com electronic components distributor

dc1198aaf

DEMO MANUAL DC1198A-A

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

(408) 432-1900 ●FAX: (408) 434-0507 ●www.linear.com

 LINEAR TECHNOLOGY CORPORATION 2011

LT 0311 • PRINTED IN USA

DEMONSTRATION BOARD IMPORTANT NOTICE

Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions:

This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT

OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete

in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety

measures typically found in finished commercial goods. As a prototype, this product does not fall within the scope of the European Union

directive on electromagnetic compatibility and therefore may or may not meet the technical requirements of the directive, or other regulations.

If this evaluation kit does not meet the specifications recited in the DEMO BOARD manual the kit may be returned within 30 days from the date

of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY THE SELLER TO BUYER AND IS IN LIEU

OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THIS INDEMNITY, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user releases LTC from all claims

arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all

appropriate precautions with regard to electrostatic discharge. Also be aware that the products herein may not be regulatory compliant or

agency certified (FCC, UL, CE, etc.).

No License is granted under any patent right or other intellectual property whatsoever. LTC assumes no liability for applications assistance,

customer product design, software performance, or infringement of patents or any other intellectual property rights of any kind.

LTC currently services a variety of customers for products around the world, and therefore this transaction is not exclusive.

Please read the DEMO BOARD manual prior to handling the product. Persons handling this product must have electronics training and

observe good laboratory practice standards. Common sense is encouraged.

This notice contains important safety information about temperatures and voltages. For further safety concerns, please contact a LTC applica-

tion engineer.

Mailing Address:

Linear Technology

1630 McCarthy Blvd.

Milpitas, CA 95035

Downloaded from Elcodis.com electronic components distributor

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Linear Technology Carte mère

Linear Technology

Linear Technology DC1496B Guide de configuration rapide

Linear Technology

Linear Technology DC2565A Guide de configuration rapide

Linear Technology

Linear Technology DC2164A-B Guide de configuration rapide

Linear Technology

Linear Technology DC1848A Manuel utilisateur

Linear Technology

Linear Technology DC866 Manuel utilisateur

Linear Technology

Linear Technology DC1884A Series Guide de configuration rapide

Linear Technology

Linear Technology DC2003A Guide de configuration rapide

Linear Technology

Linear Technology DC1989B-C Guide de configuration rapide

Linear Technology

Linear Technology DC1418A-A Manuel utilisateur

Linear Technology

Linear Technology DC1562B Guide de configuration rapide

Linear Technology

Linear Technology DC1332B Guide de configuration rapide

Linear Technology

Linear Technology DC2118A Guide de configuration rapide

Linear Technology

Linear Technology DC273A Guide de configuration rapide

Linear Technology

Linear Technology DC2007A-A Guide de configuration rapide

Linear Technology

Linear Technology DC1763A Guide de configuration rapide

Linear Technology

Linear Technology DC1400A Guide de configuration rapide

Linear Technology

Linear Technology DC2603A-A Guide de configuration rapide

Linear Technology

Linear Technology DC708 Manuel utilisateur

Linear Technology

Linear Technology DC1261A Guide de configuration rapide

Linear Technology

Linear Technology DC1959B Guide de configuration rapide

Linear Technology

Linear Technology DC2181A Series Guide de configuration rapide

Linear Technology

Linear Technology DC2218A Guide de configuration rapide

Linear Technology

Linear Technology DC1899A Manuel utilisateur

Linear Technology

Linear Technology DC1216A-A Guide de configuration rapide

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
