Linear Technology DC1989B-C Guide de configuration rapide

dc1989bcf

DEMO MANUAL DC1989B-C

DESCRIPTION

LTM4676AEY

Dual 13A or Single 26A µModule Regulator

with Digital Power System Management

4× LTM4676A, 100A

Demonstration circuit 1989B-C is a high efficiency, high

density, µModule regulator with 4.5V to 17V input range.

The output voltage is adjustable from 0.5V to 4V, and it can

supply 100A maximum load current. The demo board has

four LT M

4676A µModule regulators. The LTM4676A is a

dual 13A or single 26A step-down regulator with PMBus

power system management. Please see LTM4676A data

sheet for more detailed information

DC1989B-C powers up to default settings and produces

power based on configuration resistors without the need

for any serial bus communication. This allows easy evalu-

ation of the DC/DC converter. To fully explore the extensive

power system management features of the part, download

the GUI software LTpowerPlay™ onto your PC and use

LT C ’s I2C/SMBus/PMBus dongle DC1613A to connect to

L, LT, LTC, LTM, Linear Technology, the Linear logo, Dust Networks and Dust are registered

trademarks and LTpowerPlay is a trademark of Linear Technology Corporation. All other

trademarks are the property of their respective owners.

the board. LTpowerPlay allows the user to reconfigure the

part on the fly and store the configuration in EEPROM, view

telemetry of voltage, current, temperature and fault status

GUI Download

The software can be downloaded from:

http://www.linear.com/ltpowerplay

For more details and instructions of LTpowerPlay, please

refer to LTpowerPlayGUI for LTM4676AQuick Start Guide.

Design files for this circuit board are available at

http://www.linear.com/demo/DC1989B-C

Figure 1. 4× LTM4676A; 100A DC1989B-C Demo Circuit

dc1989bcf

DEMO MANUAL DC1989B-C

QUICK START PROCEDURE

Demonstration circuit 1989B-Cis easy to set up to evaluate

the performance of the LTM4676AEY. Refer to Figure 2

for the proper measurement equipment setup and follow

the procedure below.

1. With power off, connect the input power supply to VIN

(4.5V to 17V) and GND (input return).

2. Connect the 1V output load between VOUT0 and GND

(Initial load: no load).

3. Connect the DVMs to the input and outputs. Set default

switch position: SW1: ON; SW2: ON.

4. Turn on the input power supply and check for the proper

output voltages. VOUT0 should be 1V ±1%.

5. Once the proper output voltages are established, ad-

just the loads within the operating range and observe

the output voltage regulation, ripple voltage and other

parameters.

6. Connect the dongle and control the output voltages

from the GUI. See “LTpowerPlay GUI for the LTM4676A

Quick Start Guide” for details.

Note: When measuring the output or input voltage ripple,

do not use the long ground lead on the oscilloscope probe.

See Figure 3 for the proper scope probe technique. Short,

stiff leads need to be soldered to the (+) and (–) terminals

of an output capacitor. The probe’s ground ring needs to

touch the (–) lead and the probe tip needs to touch the

(+) lead.

Connecting a PC to DC1989B-C

You can use a PC to reconfigure the power management

features of the LTM4676A such as: nominal VOUT, margin

setpoints, OV/UVlimits,temperaturefaultlimits,sequenc-

ing parameters, the fault log, fault responses, GPIOs and

other functionality. The DC1613A dongle may be plugged

when VIN is present.

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITION VALUE

Input Voltage Range 4.5V to 17V

Output Voltage, VOUT0 VIN = 4.5V to 17V, IOUT0 = 0A to 100A 0.5V to 4V, Default: 1V

Maximum Output Current, IOUT0 VIN = 4.5V to 17V, VOUT = 0.5V to 4V 100A

Typical Efficiency VIN = 12V, VOUT = 1V, IOUT = 100A 80.4%

Default Switching Frequency 350kHz

Table 1. LTM4676/LTM4676A Demo Cards for Up to 130A Point-of-Load Regulation

MAXIMUM OUTPUT CURRENT NUMBER OF OUTPUT VOLTAGES

NUMBER OF LTM4676/LTM4676A µMODULE

REGULATORS ON THE BOARD DEMO BOARD NUMBER

13A, 13A 2 1× LTM4676 DC1811A/DC1811B-A

13A, 13A 2 1× LTM4676A DC1811B-B

26A 1 1× LTM4676 DC2087A

50A 1 2× LTM4676A DC1989B-A

75A 1 3× LTM4676A DC1989B-B

100A 1 4× LTM4676A DC1989B-C

100A 1 1× LTM4676 (+ 3× LTM4620A) DC2106A-A

130A 1 1× LTM4676 (+ 3× LTM4630) DC2106A-B

100A 1 1× LTM4676A (+ 3× LTM4620A) DC2106B-A

130A 1 1× LTM4676A (+ 3× LTM4630) DC2106B-B

dc1989bcf

DEMO MANUAL DC1989B-C

QUICK START PROCEDURE

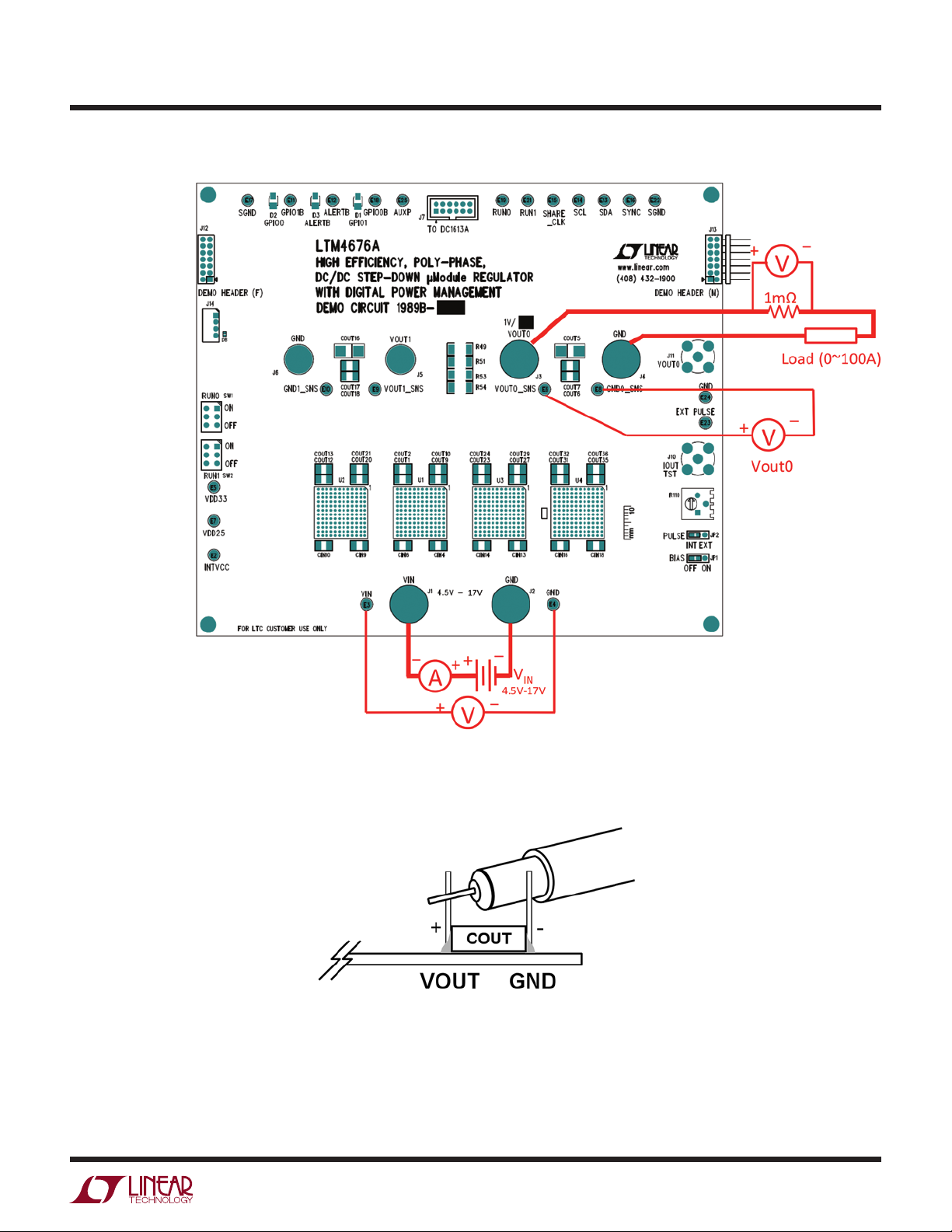

Figure 2. Proper Measurement Equipment Setup

Figure 3. Measuring Output Voltage Ripple

dc1989bcf

DEMO MANUAL DC1989B-C

QUICK START PROCEDURE

Figure 4. Demo Setup with PC

Figure 5. Efficiency vs Load Current at VIN = 5V and VIN = 12V

Efficiency vs Load Current

100

LOAD CURRENT (A)

EFFICIENCY (%)

100

90807010 40 50 603020

VIN = 5V

VIN = 12V

VOUT0 = 1V

dc1989bcf

DEMO MANUAL DC1989B-C

QUICK START PROCEDURE

Figure 8. Thermal Performance at VIN = 12V, VOUT0 = 1V, IOUT0 = 100A, TA= 23.8°C, Air Flow 300LFM

VOUT0 (20MHz BW) [50mV/DIV]

50A TO 100A LOAD STEP

VOUT0 (20MHz BW) [10mV/DIV]

Figure 6. Output Voltage VOUT0 vs Load Current

(VOUT0 RANGE = 1)

Figure 9. Current Sharing at VIN = 12V, VOUT0 = 1V

(Based on the Current Readback)

Figure 7. Output Voltage Ripple at VIN = 12V,

VOUT0 = 1V, IOUT0 = 100A

Figure 10. Total Current Readback vs Load

Current at VIN = 12V, VOUT0 = 1V

0 10 20 30

100

5040 60 9070 80

LOAD CURRENT (A)

PHASE CURRENT (A)

–2

IOUT_PHASE#1

IOUT_PHASE#2

IOUT_PHASE#3

IOUT_PHASE#4

IOUT_PHASE#5

IOUT_PHASE#6

IOUT_PHASE#7

IOUT_PHASE#8

LOAD CURRENT (A)

TOTAL CURRENT READBACK (A)

110

100

010 20 30

100

5040 60 9070 80

dc1989bcf

DEMO MANUAL DC1989B-C

QUICK START PROCEDURE

LTpowerPlay Software GUI

LTpowerPlay is a powerful Windows based development

environment that supports Linear Technology power sys-

tem management ICs, including the LTM4676A, LTC3880,

LTC3883, LTC2974 and LTC2978. The software supports

a variety of different tasks. You can use LTpowerPlay to

evaluate Linear Technology ICs by connecting to a demo

board system. LTpowerPlay can also be used in an offline

mode (with no hardware present) in order to build a mul-

tichip configuration file that can be saved and reloaded at a

latertime.LTpowerPlayprovidesunprecedenteddiagnostic

and debug features. It becomes a valuable diagnostic tool

during board bring-up to program or tweak the power

management scheme in a system, or to diagnose power

issues when bringing up rails. LTpowerPlay utilizes the

DC1613A USB-to-SMBus controller to communicate with

oneofmanypotentialtargets,includingtheLTM4676A,the

LTC3880 and the LTC3883’s demo system, or a customer

board. The software also provides an automatic update

feature to keep the software current with the latest set

of device drivers and documentation. The LTpowerPlay

software can be downloaded from:

http://linear.com/ltpowerplay

To access technical support documents for LT C Digital

Power Products visit Help. View online help on the

LTpowerPlay menu.

LTpowerPlay QUICK START PROCEDURE

Thefollowingprocedure describeshowtouse LTpowerPlay

to monitor and change the settings of LTM4676A.

1. Download and install the LTPowerPlay GUI:

http://linear.com/ltpowerplay

Figure 11. LTpowerPlay Main Interface

dc1989bcf

DEMO MANUAL DC1989B-C

QUICK START PROCEDURE

2. Launch the LTpowerPlay GUI.

a. The GUI should automatically identify the DC1989B-C.

The system tree on the left hand side should look like

this:

b. A green message box shows for a few seconds in the

lower left hand corner, confirming that LTM4676A is

communicating:

c. In the Toolbar, click the “R” (RAM to PC) icon to read the

RAM from the LTM4676A. This reads the configuration

from the RAM of LTM4676A and loads it into the GUI.

d. If you want to change the output voltage to a different

value, like 1.5V. In the Config tab, type in 1.5 in the

VOUT_COMMAND box, like this:

Then, click the “W” (PC to RAM) icon to write these

step, you will see the output voltage will change to 1.5V.

If the write is successful, you will see the following

message:

e. You can save the changes into the NVM. In the tool bar,

click “RAM to NVM” button, as following

f. Save the demo board configuration to a (*.proj) file. Click

the Save icon and save the file. Name it whatever you want.

dc1989bcf

DEMO MANUAL DC1989B-C

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 18 CIN1, CIN2, CIN4-CIN11, CIN12-CIN19 CAP., X5R, 10µF, 35V, 10%, 1210 AVX, 1210DD106KAT2A

2 1 CIN3 CAP., 150µF, 35V, ALUMINUM ELECTR., SUN ELECTRONIC INDUSTRIES

CORPORATION, 35CE150AX

3 12 COUT1, COUT6, COUT7, COUT9, COUT12, COUT17,

COUT18, COUT20, COUT23, COUT27, COUT31,

COUT35

CAP., X5R, 100µF, 6.3V, 20% 1210 AVX, 12106D107KAT2A

4 1 C3 CAP., X7R, 220pF, 16V, 10%, 0603 AVX, 0603YC221KAT2A

5 10 COUT4, COUT5, COUT8, COUT15, COUT38,

COUT34, COUT16, COUT19, COUT28, COUT26

CAP., 330µF, 6.3V, POSCAP, D3L PANASONIC, 6TPF330M9L

6 1 C7 CAP., X7R, 470pF, 25V, 10%, 0603 AVX, 06033C471KAT2A

7 1 C4 CAP., X7R, 6.8nF, 16V, 10%, 0603 AVX, 0603YC682KAT2A

8 1 C32 CAP., X5R, 100nF, 16V, 10%, 0603 AVX, 0603YD104KAT2A

9 1 C70 CAP., X5R, 1µF, 25V, 10%, 0805 AVX, 08053D105KAT2A

10 2 C65, C68 CAP., X5R, 1µF, 25V, 10%, 1206 AVX, 12063D105KAT2A

11 1 C67 CAP., X7R, 0.1µF, 25V, 10%, 1206 AVX, 12063C104KAT2A

12 1 C64 CAP., X5R, 4.7µF, 25V, 10%, 0603 MURATA, GRM188R61E475KE11D

13 1 C66 CAP., X5R, 0.22µF, 25V, 10%, 0805 AVX, 08053D224KAT2A

14 2 D1, D2 LED, 0603 GREEN WURTH ELEKTRONIK 150060GS75000

15 1 D3 LED, 0603 RED WURTH ELEKTRONIK 150060SS75000

16 1 D8 DIODE SCHOTTKY 20V 500MA SOD882 NXP SEMI. PMEG2005AEL

17 1 Q2 MOSFET P-CH 20V 5.9A TO-236 VISHAY SI2365EDS-T1-GE3

18 2 Q3, Q4 MOSFET N-CH 60V 115MA SOT-23 FAIRCHILD 2N7002K

19 2 Q11, Q12 XSTR, N-CH 40V 14A TO-252 VISHAY SUD50N04-8M8P-4GE3

27 1 Q19 P-CHANNEL 30-V MOSFET DIODES INC., DMP3130L-7

28 2 R65, R80 RES., CHIP, 2.43k, 1%, 0603 VISHAY CRCW06032K43FKEA

29 2 R66, R79 RES., CHIP, 3.24k, 1%, 0603 VISHAY CRCW06033K24FKEA

30 1 R20 RES., CHIP, 22.6k, 1%, 0603 VISHAY CRCW060322K6FKEA

31 23 R2, R4, R18, R25, R26, R30, R32, R47, R48, R50,

R56, R58, R60, R72, R74, R104, R119, R120,

R121, R122, R131, R135, R143

RES., CHIP, 0Ω, 1%, 0603 VISHAY CRCW06030000Z0EA

4 R49, R51, R53, R54 RES., CHIP, 0Ω, 1%, 2010Ω VISHAY CRCW20100000Z0EF

32 15 R6, R7, R8, R9, R10, R11, R12, R15, R35, R36,

R39, R64, R78, R116, R130

RES., CHIP, 10k, 1%, 0603 VISHAY CRCW060310K0FKEA

33 1 R14 RES., CHIP, 976Ω, 1%, 0603

34 2 R40, R42 RES., CHIP, 1.65k, 1%, 0603 VISHAY CRCW06031K65FKEA

35 2 R16, R41 RES., CHIP, 10Ω, 1%, 0603 VISHAY CRCW060310R0FKEA

36 1 R112 RES., CHIP, 100Ω, 1%, 0603 VISHAY CRCW0603100RFKEA

37 1 R113 RES., CHIP, 1.4k, 1%, 0603 VISHAY CRCW06031K40FKEA

38 1 R19 RES., CHIP, 787Ω, 1%, 0603 PANASONIC ERJ-3EKF7870V

39 1 R27 RES., CHIP, 51k, 1%, 0603 VISHAY CRCW060351K0FKEA

40 1 R141 RES., CHIP, 15.8k, 1%, 0603 VISHAY CRCW060315K8FKEA

41 2 R134, R144 RES., CHIP, 4.99k, 1%, 0603 VISHAY CRCW06034K99FKEA

42 2 R85, R124 RES., CHIP, 200Ω, 1%, 0603 VISHAY CRCW0603200RFKEA

PARTS LIST

dc1989bcf

DEMO MANUAL DC1989B-C

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

43 1 R86 RES., CHIP, 127Ω, 1%, 0603 VISHAY CRCW0603127RFKEA

44 1 R123 RES., CHIP, 1M, 1%, 0603 VISHAY CRCW06031M00FKEA

45 1 R105 RES., CHIP, 681k, 1%, 0603 VISHAY CRCW0603681KFKEA

46 1 R106 RES., CHIP, 3.3Ω, 1%, 0603 VISHAY CRCW06033R30FKEA

47 1 R107 RES., CHIP, 82.5Ω, 1%, 0603 VISHAY CRCW060382R5FKEA

48 2 R108, R118 RES., CHIP, 0.01Ω, 1%, 2010Ω VISHAY, WSL2010R0100FEA

49 1 R109 RES., CHIP, 100k, 1%, 0603 VISHAY CRCW0603100KFKEA

50 1 R110 TRIMMING POTENTIOMETER, 5k BOURNS, 3386P-1-502LF

51 2 R111, R115 RES., CHIP, 20k, 1%, 0603 VISHAY CRCW060320K0FKEA

52 1 R114 RES., CHIP, 154k, 1%, 0603 VISHAY CRCW0603154KFKEA

53 1 R117 RES., CHIP, 2Ω, 1%, 0603 VISHAY CRCW06032R00FKEA

54 4 U1, U2, U3, U4 IC, LTM4676AEY LINEAR TECH., LTM4676AEY#PBF

55 1 U9 IC, 24LC025T-I/ST SOT-23 6-LEAD MICROCHIP, 24LC025T-I/ST

56 1 U6 IC., LT1129CS8-5, S8 LINEAR TECH. LT1129CS8-5#PBF

57 1 U7 IC., LTC6992-1, S6-TSOT LINEAR TECH. LTC6992CS6-1#PBF

58 1 U8 IC., LT1803IS5, S5-TSOT LINEAR TECH. LT1803IS5#PBF

Additional Demo Board Circuit Components

1 0 COUT2, COUT3, COUT10, COUT11, COUT21,

COUT22, COUT29, COUT30, C1, C2, C6, C8-C20

CAP., OPTIONAL

2 0 C69 OPT

3 0 D4, D5 OPT SOD323

4 0 R3, R5, R17, R33, R34, R38, R59, R61, R63, R73,

R75, R77, R126, R127, R128, R132, R133, R136,

R137, R139, R140, R142, R1, R13, R29, R37, R57,

R62, R71, R76, R21, R22, R23, R24, R43, R44,

R45, R46, , R67, R68, R69, R70, R81-R84, R102,

R103, R138

RES., OPTIONAL

Hardware: For Demo Board Only

1 23 E2-E24 TESTPOINT, TURRET, 0.062" MILL-MAX, 2308-2-00-80-00-00-07-0

2 2 JP1, JP2 HEADER, 1X3 PIN 0.079 SINGLE ROW SULLIN, NRPN031PAEN-RC

3 2 XJP1, XJP2 SHUNT, 0.079" CENTER SAMTEC, 2SN-KB-G

4 4 J1, J2, J3, J4 STUD, TESTPIN PEM KFH-032-10

5 8 J1, J2, J3, J4 (x2) NUT, BRASS 10-32 ANY #10-32

6 4 J1, J2, J3, J4 RING, LUG #10 KEYSTONE 8205 (#10)

7 4 J1, J2, J3, J4 WASHER, TIN PLATED BRASS ANY #10EXT BZ TN

8 2 J5, J6 JACK, BANANA KEYSTONE 575-4

9 1 J7 CONN HEADER 12POS 2MM STR DL PCB FCI 98414-G06-12ULF

10 1 J12 CONN RECEPT 2MM DUAL R/A 14POS (F) SULLINS, NPPN072FJFN-RC

11 1 J13 HEADER 14POS 2MM R/A GOLD (M) MOLEX, 87760-1416

12 2 J10, J11 CONN, BNC, 5PINS CONNEX, 112404

13 1 J14 HEADER, 4 PINS, SHROUDED HIROSE, DF3A-4P-2DSA

14 2 SW1, SW2 CONNECTOR, SUB MINIATURE SLIDE

SWITCHES

C&K., JS202011CQN

15 4 (STAND-OFF) STAND-OFF, NYLON 0.50" TALL, SNAP ON KEYSTONE, 8833

dc1989bcf

DEMO MANUAL DC1989B-C

SCHEMATIC DIAGRAM

D D

C C

B B

A A

1210

0.035 VIA

TESTPOINTS

121035V

4.5V - 16V

1210 1210

1210

6.3V 1210 1210

0805

OFF

RUN0

NOTE: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS ARE 0603.

ALL CAPACITORS ARE 0603.

1210 6.3V1210 1210 6.3V

µModule REGULATOR WITH DIGITAL POWER MANAGEMENT

0805

WHEN VIN < 5.75V, SHORT INTVCC TO VIN WITH R5,R34,R61,R75.

1V / 50A

ALERTB

SCL

SDA

RUN0

SYNC

SHARE_CLK

GPIO0B

VIN

VOUT0

VIN

VOUT0

VOSNS0+

SHARE_CLK

ALERTB

COMP0

SCL

SDA

VOSNS0-

GPIO0B

RUN0

VOSNS0+

SYNC

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PROUCTION1 10-23-15

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PROUCTION1 10-23-15

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PROUCTION1 10-23-15

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, March 22, 2016

HIGH EFFICIENCY, POLY-PHASE, DC/DC STEP-DOWN

JIAN L.

LTM4676AEY

DEMO CIRCUIT 1989B-C

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, March 22, 2016

HIGH EFFICIENCY, POLY-PHASE, DC/DC STEP-DOWN

JIAN L.

LTM4676AEY

DEMO CIRCUIT 1989B-C

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, March 22, 2016

HIGH EFFICIENCY, POLY-PHASE, DC/DC STEP-DOWN

JIAN L.

LTM4676AEY

DEMO CIRCUIT 1989B-C

COUT4

330uF

R5 OPT

220pF

R25 0

R21 (OPT)

10K

VDD25

OPT

R4 0

COUT2

OPT

R22 (OPT)

CIN4

10uF

CIN6

10uF

COUT10

OPT

R26

R12

10K

R16

OPT

LTM4676AEY

VOUT0

ISNS0b-

ISNS0b+

ISNS1b- G1

ISNS1b+ H1

VOUT1 J1

VOUT1 J2

VOUT1 J3

VOUT1 K1

VOUT0

ISNS0a-

ISNS0a+

ISNS1a- G2

ISNS1a+ H2

VOUT1 K2

VOUT1 K3

VOUT1 L1

VOUT1 L2

VOUT0

GND

VOUT1 L3

VOUT1 M1

VOUT1 M2

VOUT1 M3

GND

A10

GND

ASEL G4

FSWPHCFG H4

GND

GPIO0 E4

GPIO1 F4

SNUB0

GND

TSNS0b

TSNS0a

ALERT E5

RUN0 F5

VOUT0CFG G5

VTRIM0CFG H5

TSNS1a J5

TSNS1b K5

GND

SNUB1 M5

GND

SDA D6

SCL E6

RUN1 F6

VOUT1CFG G6

VTRIM1CFG H6

VDD25 J6

WP K6

GND

F10

GND

G10

SYNC E7

GND

M10

SHARE_CLK H7

VDD33 J7

GND

G11

GND

G12

GND

L8 GND

GND

COMP0b

COMP0a

SGND

COMP1a H8

COMP1b J8

GND

H10

GND

VOSNS0+

VOSNS0-

INTVCC F9

INTVCC G9

VOSNS1 H9

VORB1 J9

GND

J10

GND

SW0

B10

DNC

E11

VORB0+

D10

VORB0-

E10

GND

DNC

C10

SW1 L10

GND

VINH0

B12 VINH0

B11 VINH0

A12 VINH0

A11

DNC

K10

VINL

F12

GND

DNC

H11

VINH1 H12

VINH1 J11

VINH1 J12

VINH1 K11

VINH0

E12 VINH0

D12 VINH0

D11 VINH0

C12 VINH0

C11

VINL

F11

GND

VINH1 K12

VINH1 L11

VINH1 L12

VINH1 M11

VINH1 M12

SGND

GND

R24

(OPT)

COUT8

330uF

CIN1

10uF

1210

R23

(OPT)

OPT

COUT6

100uF

1210

CIN3

150uF

R20 22.6K

R10

10K

R19 787

INTVCC

R13

OPT

GND0_SNS

VIN

10K

R17 OPT

10K

GND

R18

R11

10K

6.8nF

10nF

VIN

CIN7

10uF

OPT

R14

976

CIN2

10uF

1210

COUT9

100uF

GND

R15

10K

VOUT0_SNS

SW1

R120 0

COUT5

330uF

CIN5

10uF

VOUT0

COUT1

100uF

COUT7

100uF

1210

10K

VDD33

GND

COUT3

OPT

COUT11

OPT

Table des matières

Autres manuels Linear Technology Carte mère

Linear Technology

Linear Technology LT5557 Manuel utilisateur

Linear Technology

Linear Technology DC2181A Series Guide de configuration rapide

Linear Technology

Linear Technology DC1533A Guide de configuration rapide

Linear Technology

Linear Technology DC1818A Guide de configuration rapide

Linear Technology

Linear Technology DC1842B Manuel utilisateur

Linear Technology

Linear Technology DC1703A Guide de configuration rapide

Linear Technology

Linear Technology DC1281A Guide de configuration rapide

Linear Technology

Linear Technology DC2154A Guide de configuration rapide

Linear Technology

Linear Technology DC2191A Guide de configuration rapide

Linear Technology

Linear Technology 1251 Manuel utilisateur

Linear Technology

Linear Technology DC1216A-A Guide de configuration rapide

Linear Technology

Linear Technology DC1166A Guide de configuration rapide

Linear Technology

Linear Technology DC2024A Guide de configuration rapide

Linear Technology

Linear Technology DC1362A-A Guide de configuration rapide

Linear Technology

Linear Technology DC2118A Guide de configuration rapide

Linear Technology

Linear Technology DC1759A Guide de configuration rapide

Linear Technology

Linear Technology DC1959A Guide de configuration rapide

Linear Technology

Linear Technology DC2117A Guide de configuration rapide

Linear Technology

Linear Technology DC1496C Guide de configuration rapide

Linear Technology

Linear Technology DC1668B-C Guide de configuration rapide

Linear Technology

Linear Technology DC1811A Guide de configuration rapide

Linear Technology

Linear Technology 2373A Guide de configuration rapide

Linear Technology

Linear Technology DC1793A Guide de configuration rapide

Linear Technology

Linear Technology DC1084A-A Guide de configuration rapide

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
