DEMO MANUAL DC2479A-B

DESCRIPTION

LTM4650EY-1

Dual Phase Single 50A

DC/DC μModule Regulator

Demonstration circuit2479A-Bfeatures theLT M

4650EY-1,

the high efficiency, high density, dual 25A, single 50A

switch mode step-down power module regulator. The

input voltage is from 4.5V to 15V. The output voltage is

programmablefrom 0.6Vto1.8V. DC2479A-B is configured

as dual-phase, single-output, which can deliver up to 50A

maximum. The board designs with minimum components

to demonstrate this high efficiency, high density µModule.

As explained in the data sheet, output current de-rating is

necessary for certain VIN, VOUT, and thermal conditions. L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

BOARD PHOTO

These features and the availability of the LTM4650EY-1

in a compact 16mm ×16mm ×5.01mm BGA package

make it ideal for use in many high-density point-of-load

applications. The LTM4650-1 data sheet must be read

in conjunction with this demo manual for working on or

modifying the demo circuit DC2479A-B.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2479A-B

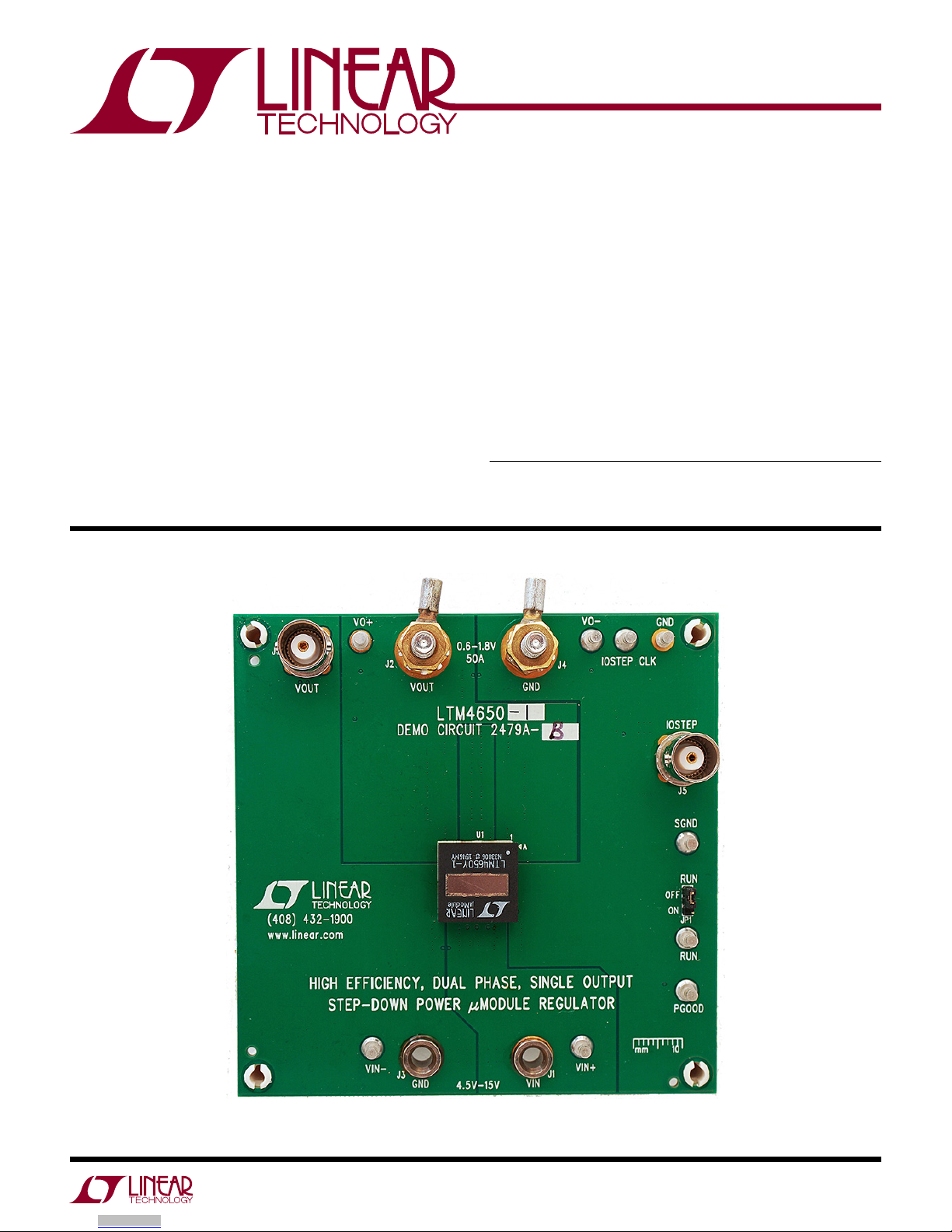

Figure 1. LTM4650-1/DC2479A-B Demo Board

Downloaded from Arrow.com.

dc2479abf

DEMO MANUAL DC2479A-B

QUICK START PROCEDURE

Demonstration circuit DC2479A-B is easy to set up to

evaluate the performance of the LTM4650EY-1. Please

refer to Figure 1 for proper measurement setup and follow

the procedure below:

1. With power off, connect the input power supply, load

and meters as shown in Figure 2. Preset the load to 0A

and VIN supply to 12V.

2. Turn on the power supply at the input. The output volt-

age should be 1.0V ± 1.5% (0.985V~1.015V).

3. Oncetheproperoutput voltage is established, adjust the

load within the operating range and observe the output

voltage regulation, output voltage ripple, efﬁciency and

other parameters. Output ripple can be measured at J6

with BNC cables.

4. (Optional) For optional load transient test, apply an

adjustable pulse signal between “IOSTEP CLK” and

“GND” test point. Pulse amplitude (3V~3.5V) sets the

loadstepcurrent amplitude. Theoutputtransient current

can be monitored at the BNC connector J5 (10mV/A).

The pulse signal should have very small duty cycle

(< 10%) to limit the thermal stress on the transient

load circuit.

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS/NOTES VALUE

Input Voltage Range 4.5V ~ 15V

Output Voltage VOUT VIN = 4.5~15V, IOUT = 0~50A 1.0V ± 1.5% (0.985V ~ 1.015V)

Maximum Continuous Output Current De-Rating is Necessary for Certain VIN, VOUT and Thermal Conditions,

See Data Sheet for Detail.

50A

Default Operating Frequency 500kHz

Efficiency VIN = 12V, VOUT = 1.0V, IOUT = 50A, fSW = 500 kHz 86.6%, See Figure 4

Load Transient VIN = 12V, VOUT = 1.0V, ISTEP = 25A to 37.5A < 60mVP-P, See Figure 5

Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2479abf

DEMO MANUAL DC2479A-B

QUICK START PROCEDURE

Figure 2. Test Setup of DC2479A-B

Figure 3. Measuring Output Voltage Ripple

+–

LOAD (0A ~ 50A)

1mΩ

VOUT

VIN

4.5V-15V

+–

–

+–

dc2479ab F02

+ –

VOUT GND

COUT

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2479abf

DEMO MANUAL DC2479A-B

QUICK START PROCEDURE

70%

75%

80%

85%

90%

1 5 10 15 20 25 30 35 40 45 50

EFFICIENCY

LOAD CURRENT

dc2479 F04

Figure 4. Efficiency vs Load Current at VIN = 12V, VO= 1V, fSW = 500kHz

Figure 5. Measured 25A – 37.5A Load Transient Response (VIN = 12V, VOUT = 1.0V, fSW = 500kHz)

Efficiency at VIN = 12V, VO= 1.0V

VO(20MHz BW) [20mV/DIV, AC COUPLED]

25A – 37.5A LOAD STEP

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2479abf

DEMO MANUAL DC2479A-B

QUICK START PROCEDURE

Figure 6. Output Voltage Ripple at VIN = 12V, VOUT = 1V, IOUT = 50A, fSW = 500kHz

Figure 7. Thermal Performance at VIN = 12V, VOUT = 1V, IOUT = 50A, TA= 23.8°C, No Air Flow

VOUT (20MHz BW) [5mV/DIV]

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2479abf

DEMO MANUAL DC2479A-B

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CIN1 CAP., 150µF, 25V, Aluminum Electr., SUN ELECT., 25CE150AX

2 4 CIN2, CIN3, CIN4, CIN5 CAP., X5R, 22µF, 25V, 10%, 1210 MURATA, GRM32ER61E226KE15L

3 6 COUT1, COUT3, COUT5, COUT7,

COUT12, COUT14

CAP., X5R, 330µF, 4V, 20%,1210 MURATA, GRM32ER60G337ME05L

4 1 C1 CAP., X5R, 220pF, 50V, 10%, 0603 AVX, 06035A221KAT2A

5 1 C4 CAP., X5R, 2.2µF, 10V, 10%, 0603 MURATA, GRM188R61A225KE34D

6 1 C5 CAP., X7R, 4.7nF, 50V, 10%, 0603 AVX, 06035C472KAT2A

7 1 C7 CAP., X5R, 0.1µF, 25V, 10%, 0603 AVX, 06033D104KAT2A

8 3 C8, C9, C10 CAP., X7R, 1µF, 10V,10%, 0603 AVX, 0603ZC105KAT2A

9 1 Q1 XSTR, SUD50N04-8M8P-4GE3 MOSFET VISHAY, SUD50N04-8M8P-4GE3

10 2 R1, R3 RES., 10, 1%, 1/10W, 0603 VISHAY, CRCW060310R0FKEA

11 2 R2, R9 RES., 121k, 1%, 1/10W, 0603 VISHAY,CRCW0603121KFKEA

12 2 R4, R18 RES., 10k, 1%, 1/10W, 0603 VISHAY, CRCW060310K0FKEA

13 1 R11 RES., 1k, 1%, 1/10W, 0603 VISHAY, CRCW06031K00FKEA

14 1 R13 RES., 2.55k, 1%, 1/10W, 0603 VISHAY, CRCW060320K55FKEA

15 1 R16 RES., 0.01Ω, 1W, 2512 VISHAY, WSL2512R0100FEA

16 1 R19 RES., 90.9k, 1%, 1/10W, 0603 VISHAY, CRCW060390K9FKEA

17 1 U1 LTM4650EY-1#PBF, 16 ×16 ×5.01 BGA LINEAR TECH., LTM4650EY-1#PBF

Additional Demo Board Circuit Components

1 0 COUT2, COUT4, COUT6, COUT8,

COUT9, COUT10

CAP., OPT, SANYO-D4D OPT

2 0 COUT11, COUT13 CAP., OPT, 1210 OPT

3 0 C3, C11 CAP., OPT, 0603 OPT

4 0 R8, R10 RES., OPT, 0603 OPT

5 2 R12, R14 RES., 0Ω,1/10W, 0603 VISHAY, CRCW06030000Z0EA

6 0 R20 RES., OPT, 2512 OPT

Hardware: For Demo Board Only

1 9 E1-E7, E17, E18 TESTPOINT, TURRET, .094" MILL-MAX, 2501-2-00-80-00-00-07-0

2 0 E8-E14 TESTPAD SMD TESTPAD SMD

3 1 JP1 HEADER, 3 PIN 2mm SINGLE ROW WURTH ELEKTRONIK, 620-003-111-21

4 2 J1, J3 JACK BANANA KEYSTONE, 575-4

5 2 J2, J4 STUD, TESTPIN PEM KFH-032-10

6 4 J2, J4 (×2) NUT, BRASS 10-32 ANY #10-32

7 2 J2, J4 RING, LUG #10 KEYSTONE #10

8 2 J2, J4 WASHER, TIN PLATED BRASS ANY #10

9 2 J5, J6 CONN,BNC,5 PINS CONNEX 112404

10 1 XJP1 SHUNT 2mm WURTH ELEKTRONIK, 608-002-134-21

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2479abf

DEMO MANUAL DC2479A-B

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

SCHEMATIC DIAGRAM

50A

NOTE: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS AND CAPACITORS ARE 0603.

DYNAMIC LOAD CIRCUIT

VOUT

LTM4650EY-1

LTM4650EY

ASSY

-A

-B

4.5V - 15V

RUN

OFF

OPT

220pF

OPT

4.7nF

OPT

2.55K

R13

470uF

OPT

COUT2,4,6,8 COUT1,3,5,7

100uF

330uF

COUT11,13

100uF

OPT

COUT12,14

100uF

330uF

PGOOD

RUN

TRACK

VFB

PGOOD

COMP

RUN

TRACK

DIFFP

DIFFN

VFB

COMP

VIN

INTVCC

VOUT

VO+

VO-

VO+

INTVCC

VO+ VO-

VOUT

VIN

VOUT
