DEMO MANUAL DC2268A-I

DESCRIPTION

LTM4650A-1

Dual 25A or Single 50A

μModule Regulator

Demonstration circuit 2268A-I is a high efficiency, high

density, dual 8A, switch mode step-down power supply on

a compact 1.5' ×1.2' PCB. It features the LT M

4650A-1

μModule

regulator. The input voltage is from 4.5V to

16V. The output voltage is programmable from 0.6V to

5.3V. DC2268A-I can deliver up to 25A maximum in each

channel. As explained in the data sheet, output current

derating is necessary for certain VIN, VOUT, and thermal

conditions. The board operates in continuous conduc-

tion mode in heavy load conditions. For high efficiency

at low load currents, the resistor jumper (R1/R2) selects

pulse-skipping mode for noise sensitive applications or

Burst-Mode

in less noise sensitive applications. Two out-

puts can be connected in parallel for a single 50A output

solution with optional jumper resistors. The board allows

the user to program how its output ramps up and down

L, LT, LTC, LTM, Linear Technology, the Linear logo, µModule and Burst Mode are registered

trademarks of Analog Devices, Inc. All other trademarks are the property of their respective

owners.

BOARD PHOTO

through the TRACK/SS pin. Remote output voltage sens-

ing is available for improved output voltage regulation

at the load point. An optional input inductor L1 reduces

the EMI noise for noise sensitive applications. DC2268A

can be easily inserted to an edge connector for testing

and debugging. These features and the availability of the

LTM4650A-1 in a compact 16mm × 16mm × 4.41mm

LGA package make it ideal for use in many high-density

point-of-load regulation applications. The LTM4650A-1

data sheet must be read in conjunction with this demo

manual for working on or modifying the DC2268A-I.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2268A-I

Figure1. LTM4650A-1/DC2268A-I Demo Board

dc2268aif

DEMO MANUAL DC2268A-I

QUICK START PROCEDURE

DC2268A-I is easy to set up to evaluate the performance

of the LTM4650A-1. It can be easily inserted to an edge

connector (SAMTEC MEC2-20-01-L-DV--TR) for testing

and debugging. Please refer to Figure 2 for proper mea-

surement setup and follow the procedure below:

1. Pull up the RUN1(J1 Pin 22) and RUN2(J1 Pin 24)

between 1.4V to 5V or leave them floating.

2. With power off, connect the input power supply, load

and meters as shown in Figure2. Preset the load to 0A

and VIN supply to 12V.

3. Turn on the power supply at the input. The output

voltage in channel 1 should be 3.3V ± 1.5% (3.25V ~

3.35V) and the output voltage in channel 2 should be

1.5V ± 1.5% (1.478V ~ 1.523V),

NOTE:Due to very small PCB size of the DC2268A

board, the LTM43650A-1 module can be quite hot at

heavy load. Cooling air is required. See Figures 7 and 8

4. Once the proper output voltage is established, adjust

the load within the operating range and observe the

output voltage regulation, output voltage ripple, effi-

ciency and other parameters. Output ripple should be

measured at Co3 and Co4.

5. (Optional) LTM4650A-1 can be synchronized to an

external clock signal. Remove R2 and apply a clock

signal (0V~5V, square wave) to MODE-PLLIN pin.

6. (Optional) LTM4650A-1 can be configured for a 2-phase

single output at up to 36A on DC2268A-I. Install 0Ω

resistors on R26, R27, R28, R29, R32, and remove

R14, R18 R30. Output voltage is set by R7 based on

equation VOUT = 0.6V (1 + 60.4k/R7).

PERFORMANCE SUMMARY

Table1.

PARAMETER CONDITIONS VALUE

Input Voltage Range 4.5V ~ 16V

Output Voltage VOUT1 VIN = 4.5~16V, IOUT1 = 0A ~25A 3.3V ± 1.5%

Output Voltage VOUT2 VIN = 4.5~16V, IOUT2 = 0A ~25A 1.5V ± 1.5%

Per-Channel Maximum Continuous Output Current De-rating is necessary for certain VIN, VOUT and thermal conditions 25A (per channel)

Default Operating Frequency 600kHz

External Clock Sync. Frequency Range 400kHz to 780kHz

Efficiency of Channel 1 VIN = 12V, VOUT1 = 3.3V, IOUT1 = 25A, fSW = 600kHz 94.4%, see Figure3

Efficiency of Channel 2 VIN = 12V, VOUT2 = 1.5V, IOUT2 = 25A, fSW = 600kHz 90.0%, see Figure4

Load Transient of Channel 1 VIN = 12V, VOUT1 = 3.3V, ISTEP = 12.5A ~ 18.75A VOPP = 157mV, see Figure5

Load Transient of Channel 2 VIN = 12V, VOUT2 = 1.5V, ISTEP = 12.5A ~ 18.75A VOPP = 127mV, see Figure6

Table2. DC2268A Demo Circuit

DEMO BOARD NUMBER µModule REGULATOR ON THE BOARD OUTPUT CURRENT

DC2268A-A LTM4620 13A,13A

DC2268A-B LTM4620A 13A,13A

DC2268A-C LTM4628 8A, 8A

DC2268A-D LTM4630 18A,18A

DC2268A-E LTM4630-1 18A,18A

DC2268A-F LTM4630A 18A, 18A

DC2268A-G LTM4631 10A, 10A

DC2268A-H LTM4650-1 25A, 25A

DC2268A-I LTM4650A-1 25A, 25A

Specifications are at TA= 25°C

dc2268aif

DEMO MANUAL DC2268A-I

QUICK START PROCEDURE

Figure2. Test Setup of DC2268A-I

Figure3. Measured Efficiency on Channel 1 (VOUT1 = 3.3V,

fSW = 600kHz, Channel 2 Disabled)

Figure4. Measured Efficiency on Channel 2 (VOUT2 = 1.5V,

fSW = 600kHz, Channel 1 Disabled)

IO(LOAD CURRENT)

EFFICIENCY (%)

100

510 15 20

2268ai F03

VIN = 12V

VIN = 5V

IO(LOAD CURRENT)

EFFICIENCY (%)

100

510 15 20

2268ai F04

VIN = 12V

VIN = 5V

dc2268aif

DEMO MANUAL DC2268A-I

QUICK START PROCEDURE

Figure5. Measured Channel 1 12.5A to 18.75A Load Transient (VIN = 12V, VOUT1 = 3.3V)

Figure6. Measured Channel 12.5A to 18.75A Load Transient (VIN = 12V, VOUT2 = 1.5V)

3.3V

OUT

20MHz BW

100mV/DIV

12.5A to 18.75A

LOAD STEP

1.5V

OUT

20MHz BW

50mV/DIV

12.5A to 18.75A

LOAD STEP

dc2268aif

DEMO MANUAL DC2268A-I

QUICK START PROCEDURE

Figure7. Thermal Performance at VIN = 12V, VOUT1 = 3.3V/11A, VOUT2 = 1.5V/11A,

fSW = 600kHz, TA= 23°C, No Forced Airflow

Figure8. Thermal Performance at VIN = 12V, VOUT1 = 3.3V/19A, VOUT2 = 1.5V/19A,

fSW = 600kHz, TA= 23°C, 400LFM Airflow

dc2268aif

DEMO MANUAL DC2268A-I

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 6 CIN1, CIN2, CIN3, CIN4, CIN5, CIN6 CAP, 1210 22µF 10% 25V X5R AVX 12103D226KAT2A

2 2 CO1, CO5 CAP, 7343 470µF 20% 6.3V POSCAP PANASONIC 6TPF470MAH

3 4 CO2, CO3, CO4, CO6 CAP, 1210 100µF 10% 6.3V X5R AVX 12106D107KAT2A

4 1 C6 CAP, 0603 4.7µF 20% 6.3V X5R AVX 06036D475MAT2A

5 2 C7, C15 CAP, 0603 68pF 5% 50V C0G / NP0 AVX 06035A680JAT2A

6 2 C8, C14 CAP, 0603 0.1µF 10% 25V X7R AVX 06033C104KAT2A

7 2 C5, C12 CAP, 0603 2200pF 5% 16V C0G AVX 0603YC222JAT2A

8 2 C16, C17 CAP, 0603 10µF 20% 25V X5R TDK C1608X5R1E106M080AC

9 2 C18, C20 CAP, 0603 22µF 20% 6.3V X5R TDK C1608X5R0J226M080AC

10 1 L1 IND, 1.0µH COILCCRAFT XAL5030-102MEC

11 2 R2, R22 RES, 0603 0Ω JUMPER VISHAY CRCW06030000Z0EA

12 3 R3, R5, R14 RES, 0603 100Ω 5% 0.1W VISHAY CRCW0603100RJNEA

13 1 R4 RES, 0603 121k 1% 0.1W VISHAY CRCW0603121KFKEA

14 2 R6, R17 RES, 0603 10k 5% 0.1W VISHAY CRCW060310K0JNEA

15 1 R7 RES, 0603 13.3k 1% 0.1W VISHAY CRCW060313K3FKEA

16 1 R9 RES, 0603 0Ω VISHAY CRCW06030000Z0EA

17 2 R10, R16 RES, 0603 5k 1% 0.1W VISHAY CRCW0605K00FKEA

18 1 R15 RES, 0603 143k 1% 0.1W VISHAY CRCW0603143KFKEA

19 1 R18 RES, 0603 40.2k 1% 0.1W VISHAY CRCW060340K2FKEA

20 3 R24, R25, R30 RES, 0603 10Ω 5% 0.1W VISHAY CRCW060310R0JNEA

21 1 U1 IC, VOLTAGE REGULATOR LGA LINEAR TECH. LTM4650AEV-1#PBF

Additional Demo Board Circuit Components

1 0 C1, C2, C3, C4, C9, C10, C11, C13 CAP, 0603 OPTION OPTION

2 0 R1, R8, R11, R12, R13, R19, R20, R21,

R23, R26, R27, R28, R29

RES, 0603 OPTION OPTION

3 0 R31, R32 RES, 2512 OPTION OPTION

Hardware: For Demo Board Only

1 1 J1 CONN., CARD EDGE 1.6mm SAMTEC MEC2-20-01-L-DV--TR

dc2268aif

DEMO MANUAL DC2268A-I

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

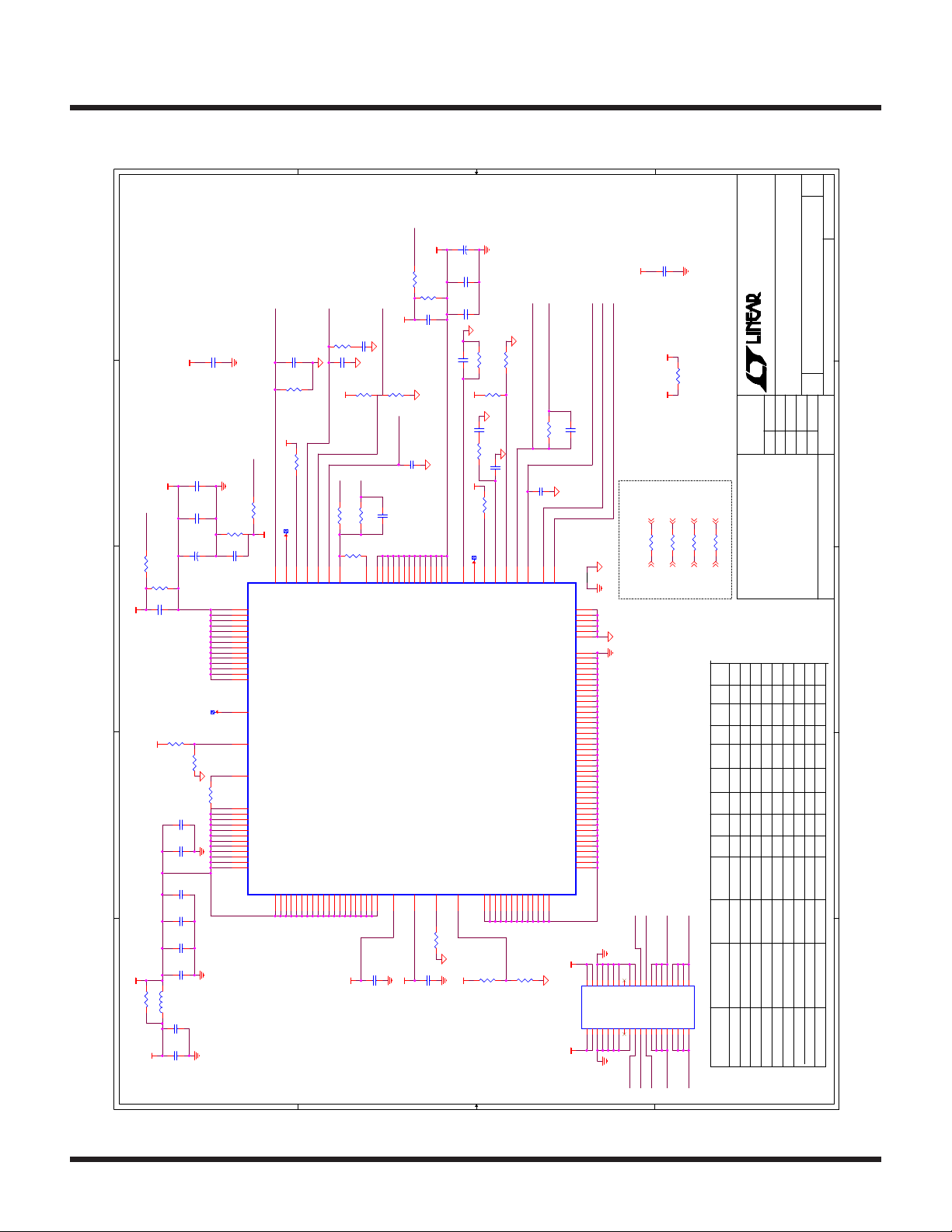

SCHEMATIC DIAGRAM
