Lightspeed Cascadia C25 Manuel utilisateur

Installation Guide

Networked Instructional Audio System

1. Do not use the apparatus near water.

2. Clean only with dry cloth.

3. Do not block any ventilation openings.

4. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

5. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding- type

plug has two blades and a third grounding prong. The wide blade or the third prong

is provided for your safety. If the provided plug does not fit into your outlet, consult

an electrician for replacement of the outlet.

6. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

7. Unplug this apparatus during lightning storms or when unused for long periods of

time.

8. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

9. When the mains plug or appliance coupler is used as the disconnect device, it shall

remain readily operable.

10. Please keep the unit in a good ventilation environment.

11. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus

to rain or moisture.

12. Apparatus shall not be exposed to dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on the apparatus.

13. WARNING: Battery pack shall not be exposed to excessive heat such as sunshine,

fire or the like.

Important Safety Instructions

Table of Contents

OVERVIEWINSTALLATION

PLANNING

SPEAKER LOCATION &

INSTALLATION

SET UP &

INTEGRATION

INSTALLING OPTIONAL

EQUIPMENT

TROUBLESHOOTING

OVERVIEW

2Important Safety Instructions

4Optional Speakers

INSTALLATION PLANNING

5Location in the Classroom

5Power over Ethernet: PoE+

5Connecting the Power Supply

SPEAKER LOCATION & INSTALLATION

6TCQ Speaker Installation

12 DRQ Ceiling Speaker Installation

15 WMQ Wall Speaker Installation

17 4JCS Ceiling Speaker Installation

20 Connecting Speaker Wires

SET UP & INTEGRATION

21 Charging the Microphones

22 Operating the Microphone

23 Audio Integration

INSTALLING OPTIONAL EQUIPMENT

24 Analog Life Safety Solutions

27 Media Connector Set-Up

TROUBLESHOOTING

30 Common Problems and Solutions

30 Tips to Obtain Optimum Audio Performance

Optional Speakers

Systems can be configured with a variety of dierent speaker types, including the following:

4JCS (x 4)

Plenum rated. Available in U.S. only

WMQ (x 4)

Available in U.S. and Canada only

TCQ (x 1)

Ceiling-mounted speaker

DRQ (x 4)

Ceiling-mounted speakers

OVERVIEWINSTALLATION

PLANNING

SPEAKER LOCATION &

INSTALLATION

SET UP &

INTEGRATION

INSTALLING OPTIONAL

EQUIPMENT

TROUBLESHOOTING

INSTALLATION PLANNING

First, find a suitable location to set-up the C25. It is best to put the

amplifier in a stable location near other equipment to be used.

It can be set in a cabinet, on a tabletop, or mounted on the wall. The

C25 may be wall-mounted using the integrated mounting holes.

Appropriate mounting hardware should be purchased locally.

Location in the Classroom

Connecting the Power Supply

• Locate the power supply and AC power cord.

• Connect the AC power cord into the DC power supply.

• Insert the DC connector into the “Power” port on C25 and plug the other end to an electrical outlet.

• The C25 automatically powers on and the white Power light on the front panel will turn on.

• A network connection is required for network communication when using the DC power supply.

DC Power Supply (24V/2.5A)

PoE+ Ethernet Cable

Audio Inputs

Wall Plate

Class 2 Wiring

Input Output

USB

PoE+

Ethernet Power

24VDC / 2.5A

Input PrioritySpeaker Outputs

Audio

Output

Digital Audio Page

First

Relay

Input

Contact

Closure

Power over Ethernet: PoE+

• Locate network switch that can support PoE+ power.

• Insert PoE+ Ethernet Cable into the “Ethernet” port on C25 and the other end to the

network switch.

• The C25 automatically powers on and the white Power light on the front panel will turn

on.

• If the C25 is connected to a network switch with PoE+ ports and the DC power supply is

also used, the C25 will be powered by the DC power supply.

SPEAKER LOCATION & INSTALLATION

TOOLS AND EQUIPMENT TO INSTALL THE SPEAKERS OUTLINED IN THIS MANUAL

Locate the specific speaker(s) that were ordered with the system and then follow the installation instructions for the model of speaker outlined in this section of the manual.

• Straight edge

• Utility knife or drywall saw

• Screwdriver, standard and phillips

• Screwdriver, small jewelers type, 1/8” wide tip

• Drill driver and bits/drills

• Marker or pencil

• Wire cutters

• Wire strippers

• Wire ties

TCQ Speaker Installation

SYSTEM COMPONENTS AND UNPACKING

• (1) Ceiling grid T-bar (US & Canada use)

• (1) 50  (15m) plenum rated speaker wire (If ordered)

• (1) 19  (6m) coil safety wire

• (4) Self drilling screws (outside U.S. and Canada)

NOTE: Wiring should follow the class 2 wiring methods as outlined in the National Electric Code.

SELECTING SPEAKER MOUNTING LOCATIONS

One TCQ speaker will distribute sound throughout a classroom of up to 1,200 sq 

(112 sq m). The location of the speaker is important to ensure even sound distribution.

Ceiling height should be 9 - 12  (2.75m - 3.75m).

1. Identify the center of the of the classroom for optimum location.

2. Select a ceiling tile that is free from fixtures (lighting, HVAC, etc.) within a 6  (1.8m)

radius nearest to the center point.

3. Remove the selected ceiling tile for speaker installation.

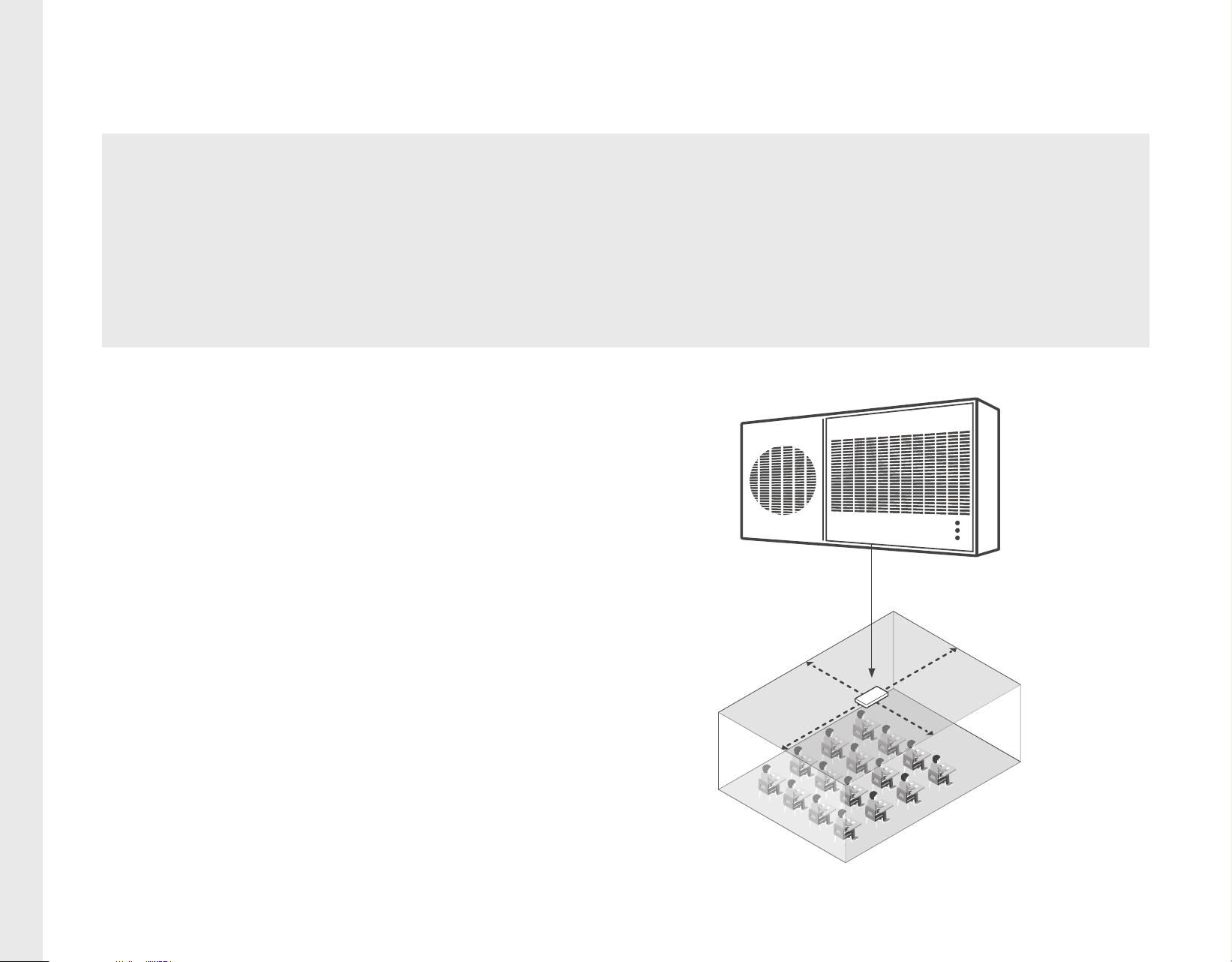

IDENTIFY THE CENTER OF THE ROOM

OVERVIEWINSTALLATION

PLANNING

SPEAKER LOCATION &

INSTALLATION

SET UP &

INTEGRATION

INSTALLING OPTIONAL

EQUIPMENT

TROUBLESHOOTING

SNAP THE T-BAR INTO PLACE TO CREATE A

’ X ’ OPENING AND A ’ X ’ OPENING

NEW T-BAR

EXISTING TILE GRID

/ TILE

TCQ

GRID CEILING INSTALLATION (U.S. & CANADA ONLY)

The dimensions of the TCQ are 1’ x 2’. It is designed to fit into any

standard 2’ X 4’, or 2’ X 2” suspended ceiling tile grid.

1. The ceiling tile will need to be cut to accommodate the TCQ

2. Set the ceiling tile on a flat work surface with the patterned side

facing down.

3. Using a straight edge, cut a 1’ x 2’ section from the ceiling tile,

creating a 1’ x 2’ section and a 3’ x 2’ section, or two 1’ x 2’

sections depending on the size of your tiles.

4. Locate the 2’ ceiling grid t-bar attachment. Locate the

attachment slots in the existing ceiling grid and snap the new

T-bar into place to create a 1’ x 2’ and 2’ x 3’ sections, or two 1’ x

2’ sections.

CUT THE ’ X ’ TILE TO CREATE A ’ X ’

SECTION AND A ’ X ’ SECTION.

WASTE REMAINING

/ CEILING TILE

CUT WITH

STRAIGHT EDGE

1’ 3’

2’

4’

’ X ’ CEILING TILE

CUT THE ’ X ’ TILE TO CREATE

TWO ’ X ’ SECTIONS

WASTE

CUT WITH

STRAIGHT EDGE

1' 1'

2’

’ X ’ CEILING TILE

NEW T-BAR

EXISTING TILE GRID

/ TILE

SNAP THE T-BAR INTO PLACE TO

CREATE TWO ’ X ’ OPENINGS

TCQ

FIGURE :

ATTACHING THE SAFETY WIRE TO THE BUILDING STRUCTURE

FIGURE :

SECURE THE WIRE IN THE TWO SAFETY WIRE TABS

SAFETY WIRE TAB

ANCHOR OR

EYE SCREW

SECURING THE TCQ SPEAKER (U.S. & CANADA ONLY)

To comply with Building Codes, the TCQ MUST be secured to the building

structure with two safety wires.

1. Locate the safety wire. The safety wire needs to be permanently attached to the

solid building structure with metal clips, tie point studs, concrete anchors or eye

screws designed for the specific structure material. The specific anchors will need

to be provided by the installer.

2. Cut the safety wire in half.

3. Install the appropriate anchor into the building structure (see figure 6).

4. Loop one end of the safety wire through the anchor (or eye screw), then twist it

around itself at least five times. Repeat for the second anchor tie point.

5. Place the TCQ into the desired grid location.

Caution: Make sure the TCQ is stable on the grid rails with side brackets capturing

the T-bar grid. If not stable, there could be a danger of it falling until safety wires

are attached.

6. Loop the other end of the safety wire through one of the tabs on the TCQ (located

in opposite corners). Pull the wire through until it is taut and twist it around itself

at least five times to secure the TCQ and cut o any excess wire if needed (see

figure 7).

7. Repeat with securing the second safety wire to the other tab.

OVERVIEWINSTALLATION

PLANNING

SPEAKER LOCATION &

INSTALLATION

SET UP &

INTEGRATION

INSTALLING OPTIONAL

EQUIPMENT

TROUBLESHOOTING

ANCHOR OR

EYE SCREW

FIGURE :

TERMINAL BLOCK

FIGURE :

OPENING FOR SPEAKER WIRES

FIGURE A:

OPEN FRONT PANEL

FIGURE B:

CLOSE FRONT PANEL

_TO

CROSSOVER

 OHMS

MAX  W

RMS

SECURE TO CEILING GRID (U.S. & CANADA ONLY)

CONNECT SPEAKER WIRES

FIGURE :

SECURE TCQ TO CEILING RAIL WITH SELF-DRILLING SCREWS

1. Locate the four (4) self-drilling sheet metal screws.

2. Utilizing existing holes on the vertical section of the ceiling rail

(center of the hole to the base of the rail must be a minimum

of 0.6”, drill two screws on each 2’ side of the TCQ (see figure

8). Drilling these screws into the designated areas of the TCQ

chassis will not cause harm to the product.

NOTE: Do not drill in the area designated with yellow tape as

this could aect audio quality and void the warranty.

1. Find and open the front panel door on the TCQ by sliding the

door toward the end of the TCQ to disengage the lock (see

figure 9A).

2. Run speaker wire through back of speaker and into the

terminal block area. Use appropriate conduit connector or

cable bushing/grommet (not supplied) as needed for the 1/2”

opening (see figure 10).

3. Attach the two wires to the terminal block screws as indicated

(see figure 11). Spade lugs are provided that can be attached

to the speaker wire, if desired.

4. Close speaker door securly by applying pressure outward on

the main body of the TCQ. Then slide the door toward the

middle of the unit and lock into place (see figure 9B).

5. To continue with installation, go to Page22: Connecting Wire

to Amplifier.

FIGURE :

ATTACHING THE SAFETY WIRE TO THE BUILDING STRUCTURE

FIGURE :

SECURE THE WIRE IN THE TWO SAFETY WIRE TABS

SAFETY WIRE TAB

ANCHOR OR

EYE SCREW

SECURING THE TCQ SPEAKER (U.S. & CANADA ONLY)

FOR MM X MM CEILING GRID

To comply with Building Codes, the TCQ MUST be secured to the building

structure with two safety wires.

The TCQ has spacer brackets mounted on each of the four sides. With these brackets

installed, the TCQ will fit a standard 2’ x 2’ suspended ceiling grid. With the brackets

removed, it will fit a 600mm x 600mm ceiling grid.

Remove the spacer brackets from each of the four sides of the TCQ. Replace the two

screws into the woofer end of the speaker cabinet to ensure proper audio quality

Note: If your ceiling grid is any other dimension than mentioned above, contact your

local Lightspeed representative.

1. Locate the 6m length of safety wire. The safety wire needs to be permanently

attached to the solid building structure with metal clips, tie point studs, concrete

anchors or eye screws designed for the specific structure material. The specific

anchors will need to be provided by the installer.

2. Cut the safety wire in half.

3. Install the appropriate anchor into the building structure (see figure 1).

4. Loop one end of the safety wire through the anchor (or eye screw), then twist it

around itself at least five times. Repeat for the second anchor tie point.

5. Place the TCQ into the desired grid location.

Caution: Make sure the TCQ is stable on the grid rails with side brackets capturing

the T-bar grid. If not stable, there could be a danger of it falling until safety wires

are attached.

6. Loop the other end of the safety wire through one of the tabs on the TCQ (located

in opposite corners). Pull the wire through until it is taut and twist it around itself

at least five times to secure the TCQ and cut o any excess wire if needed (see

figure 2).

7. Repeat with securing the second safety wire to the other tab.

Table des matières

Autres manuels Lightspeed Système stéréo

Lightspeed

Lightspeed Redcat media Manuel utilisateur

Lightspeed

Lightspeed 705iR Manuel utilisateur

Lightspeed

Lightspeed ActivateStation Manuel utilisateur

Lightspeed

Lightspeed Active Manuel utilisateur

Lightspeed

Lightspeed Redcat media Manuel utilisateur

Lightspeed

Lightspeed Redcat media Manuel utilisateur

Lightspeed

Lightspeed Mobile PA Manuel utilisateur

Lightspeed

Lightspeed TOPCAT Manuel utilisateur

Lightspeed

Lightspeed TOPCAT Manuel utilisateur

Lightspeed

Lightspeed Mobile PA Manuel utilisateur

Lightspeed

Lightspeed flexcat Manuel utilisateur

Lightspeed

Lightspeed 955Access Manuel utilisateur

Lightspeed

Lightspeed TOPCAT Manuel utilisateur

Lightspeed

Lightspeed Redcat media Manuel utilisateur

Lightspeed

Lightspeed Redcat media Manuel utilisateur

Lightspeed

Lightspeed CAT 860 Manuel utilisateur

Lightspeed

Lightspeed flexcat Manuel utilisateur

Lightspeed

Lightspeed TOPCAT Manuel utilisateur

Lightspeed

Lightspeed 820iR Manuel utilisateur

Lightspeed

Lightspeed RedcatAccess Manuel utilisateur

Lightspeed

Lightspeed TOPCAT Manuel utilisateur

Lightspeed

Lightspeed 850iR Manuel utilisateur

Lightspeed

Lightspeed 955 Access Manuel utilisateur

Lightspeed

Lightspeed Topcat LSRCNG Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur
