Lightolier Lytespan 8706E Manuel utilisateur

1 1/16”

ø 3/4”

3 9/16”

4 3/4”

5 3/16”

5 5/16”

3 3/16”

2 9/16”

6 3/8”

7/16”

2 3/16”

3 1/2”

4 7/16”

2 1/4”

ø 1 1/8”

2 3/4”

7 13/16”

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting 8706E

Page 1 of 2 MetallicsTM Metal Halide (Electronic) PAR38 70W Adapter

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Features

1. Arm: Die-cast aluminum, brushed and clear coated finish.

2. Socket Cover: Injection-molded thermoplastic.

3. Stem: Stainless steel, brushed and clear coated finish, with a permanently

tensioned horizontal rotation stop (315°Rotation).

4. Stem Base: Die-cast aluminum, brushed and clear coated finish with

a permanently tensioned 90°vertical rotation stop (0°to 90°).

5. Contact Holder: High temperature thermoplastic. Secures fixture

mechanically and makes electrical contact with track.

6. Locking Lever: Nickel plated steel. For mechanical/electrical connection

into track.

7. Track Adapter: Die-cast aluminum, brushed and clear coated finish;

attaches to track.

8. Moveable Brass Contact: Extends for 2nd circuit in two circuit Lytespan

track systems.

9. Embossed Keyway: For attachment of optional shades.

10. Ballast: UL Listed. High power factor Electronic Metal Halide ballast.

11. Ballast Housing: Aluminum-extrusion.

12. Socket: 5KV pulse rated ceramic body socket; leads encased in silicone

coated fiberglass sleeving.

13. Ballast Housing End Plates: Stamped steel.

14. Ground Spring: Grounds fixture to track.

ELECTRICAL

Electronic Ballast

Input Voltage: 120V, 60Hz

Power Factor: >95%

Input Power: 78W

Input Current: .67 amp

Harmonic Distortion: <10%

Do not use on a dimming circuit.

Options and Accessories

Accepts MetallicsTM PAR38 Dome Shade (8747), MetallicsTM PAR38 Barndoor

Shade (8745), & MetallicsTM Par-Tech®PAR38 Ring Shade (8248).

Finish

Feature numbers 2, 11, & 13 painted in White or Titanium. Other external

components, brushed metal with protective clear coat.

Labels

UL, I.B.E.W.

Ordering Information

Catalog No. Finishes Track Mountings Lamps

8706E WH Matte White All Lytespan Track Systems, Multipoint, Monopoint, Monopoint Pin Up, 70W PAR38 Metal Halide

8706E TM Dark Titanium Monopoint Weighted Base, Clamp On Monopoint, Extension Wands,

& Sloped Ceiling Adapter. (DOES NOT MOUNT ON PROSPEC®TRACK).

Note: Do not install on stem mounted Radius®track.

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Lytespan®Track Lighting 8706E

Page 2 of 2 MetallicsTM Metal Halide (Electronic) PAR38 70W Adapter

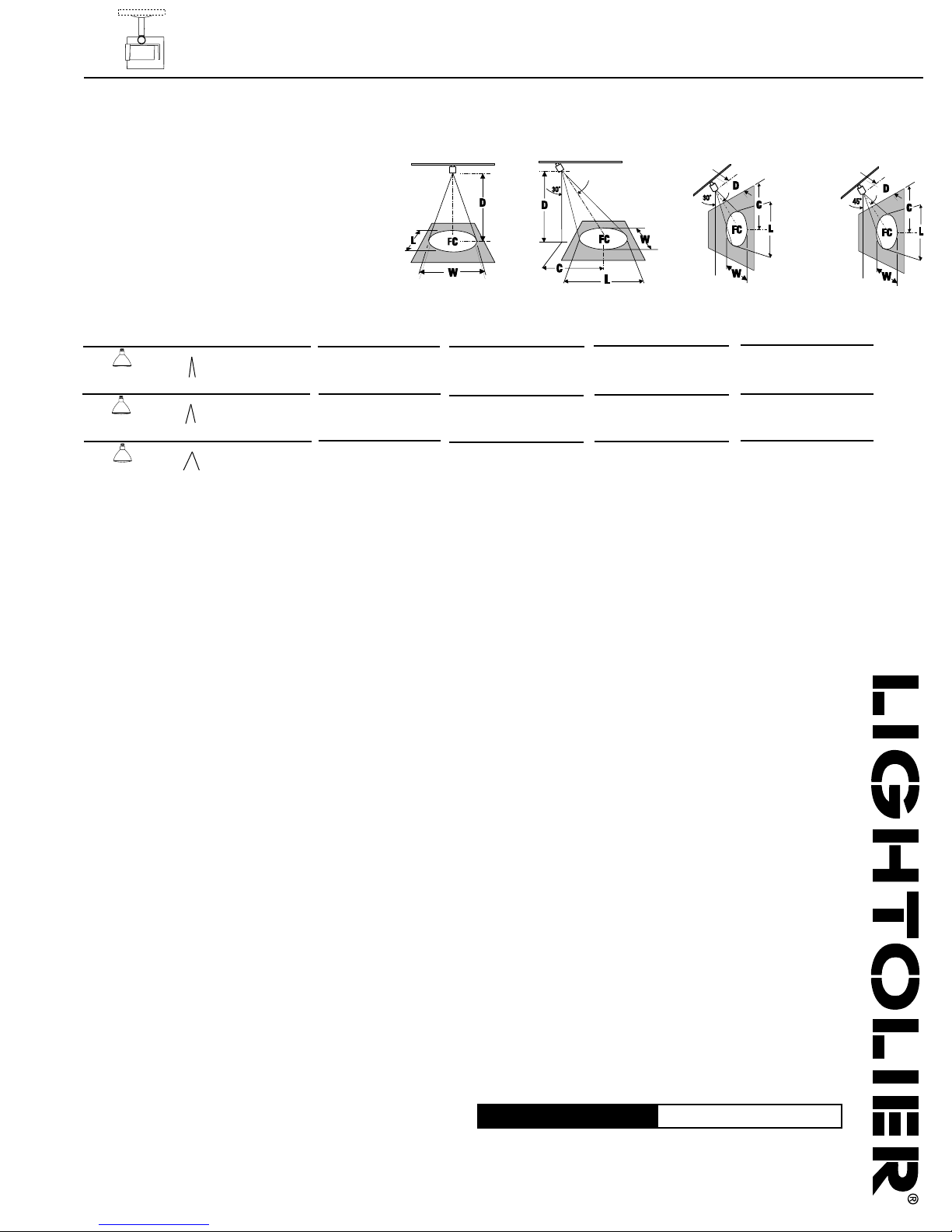

AIMING ANGLE: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam Length D Distance

W Beam Width A Aiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle power drops

to 50% of the maximum. FC are the initial footcandles at the

center of the beam.

Lamp data shown is typical. Consult lamp manufacturers for

availability and performance.

LAMP:

DFC L W DC FC L W DC FC L W DC FC L W

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

50,000 7,500

70W PAR38

(MC/MH) SP 15˚

15’222 3.9’3.9’

20’125 5.3’5.3’

25’80 6.6’6.6’

30’56 7.9’7.9’

10’5.8’325 3.5’3.0’

15’8.7’144 5.3’4.6’

20’11.5’81 7.1’6.1’

25’14.4’52 8.8’7.6’’

5’8.7’250 5.6’2.6’

8’13.9’98 8.9’4.2’

11’19.1’52 12.2’5.8’

14’24.2’32 | 15.6’7.4’

8 8.0 276 4.3 3.0

12 12.0 123 6.4 4.5

16 16.0 69 8.6 6.0

20 20.0 44 10.7 7.4 9’

8’281 3.5’3.5’

12’125 5.3’5.3’

16’70 7.1’7.1’

20’45 8.9’8.9’

7’4.0’239 4.2’3.6’

10’5.8’117 6.0’5.1’

13’7.5’69 7.8’6.7’

16’9.2’46 | 9.6’8.2’

3’5.2’250 6.2’2.7’

4’6.9’141 8.3’3.5’

5’8.7’90| 10.4’4.4’

6’10.4’63 12.5’5.3’

5 5.0 255 4.7 3.1

7 7.0 130 6.5 4.4

9 9.0 79 8.4 5.6

11 11.0 53 10.3 6.9’

6’139 6.9’6.9’

8’78 9.2’9.2’

10’50 11.5’11.5’

12’35 13.9’13.9’

5’2.9’130 8.7’6.7’

7’4.0’66 12.1’9.3’

9’5.2’40 15.6’12.0’

11’6.4’27| 19.1’14.7’

2’3.5’156 N/A 4.6’

3’5.2’69 N/A 6.9’

4’6.9’39 N/A 9.2’

5’8.7’25 N/A 11.5’

3 3.0 196 10.4 4.9

5 5.0 71 17.3 8.2

7 7.0 36 24.2| 11.4

9 9.0 22 31.2 14.7

5,000 7,500

70W PAR38

(MC/MH) WFL 60˚

18,000 7,500

70W PAR38

(MC/MH) FL 26˚
