READ AND UNDERSTAND THESE INSTRUCTIONS

BEFORE INSTALLING LUMINAIRE.

This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at main power supply before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION PROCEDURE FOR: LYTECASTER® 2000LV, 2000LVE1, & 2000LVE2 LOW VOLTAGE

FRAME-IN KITS

CAUTION: USE ONLY WITH REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURER’S TRIMS

MAY VOID THE UNDERWRITERS LABORATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.

INSTRUCTION SHEET NO.

IS:2000LV-

S0607 Page 1 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

CAUTION: BEFORE INSTALLING FRAME-IN KIT AND REFLECTOR TRIM, READ ALL MARKINGS ON FRAME-IN KIT AND

REFLECTOR TO DETERMINE LAMP WATTAGE AND TYPE APPLICABLE FOR YOUR INSTALLATION.

WARNING— (RISK OF FIRE) DO NOT INSTALL INSULATION WITHIN 3 INCHES OF FIXTURE SIDES OR WIRING

COMPARTMENT

NOR ABOVE FIXTURE IN SUCH A MANNER TO ENTRAP HEAT.

1. FRAME- IN AND WIRE-IN (Fig. A)

Fasten MOUNTING FRAME to wood joist. Line up bottom edge of

ADJUSTABLE MOUNTING BAR with bottom of wood joist (Fig. E). Wire to

supply leads. (For Cable, use built-in Cable Clamp in J-Box). WHITE

FIXTURE LEAD to NEUTRAL SUPPLY LEAD. BLACK FIXTURE LEAD to

HOT SUPPLY LEAD (120V). BARE FIXTURE WIRE to SUPPLY GROUND

(2000LV only). Use wirenuts (local hardware item). Place all electrical

connections in the J-BOX. Attach J-BOX COVER onto J-BOX.

NOTE: ADJUSTABLE MOUNTING BARS can be extended for

24” mounting. For suspended ceiling, make certain that the

bottom of MOUNTING FRAME is no higher than 1” above

ceiling line (Fig. F)

2. CLOSE- IN (Fig. B)

Install plasterboard, or any other dry type ceiling, as required. Hole in board

must be cut either on the ground or after the board is nailed to the ceiling,

using MOUNTING FRAME opening as a cutting guide. (Make sure ROTO-

CLIPS are rotated out of hole area to be cut.) (Fig. G)

* Lightolier offers a hole cutter (HC-356) that can be purchased separately

to assist with quick, clean trim installations. In this case, follow the hole

cutting directions supplied with HC-356.

3. SNAP-IN (Fig. C).

→

4. PUSH- UP (Fig. D).

NOTE: For wet plaster ceiling, use Plaster Ring Accessory

No.1959 (order separately).

SEE SEPARATE

REFLECTOR TRIM

INSTRUCTION SHEETS

SEE BACK PAGE FOR LAMPING INSTRUCTIONS.

INSTALLATION PROCEDURE FOR: LYTECASTER®

2000LV, 2000LVE1 & 2000LVE2 LOW VOLTAGE FRAME-IN

KITS (CONTINUED)

INSTRUCTION SHEET NO.

IS:2000LV-

S0607 Page 2 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

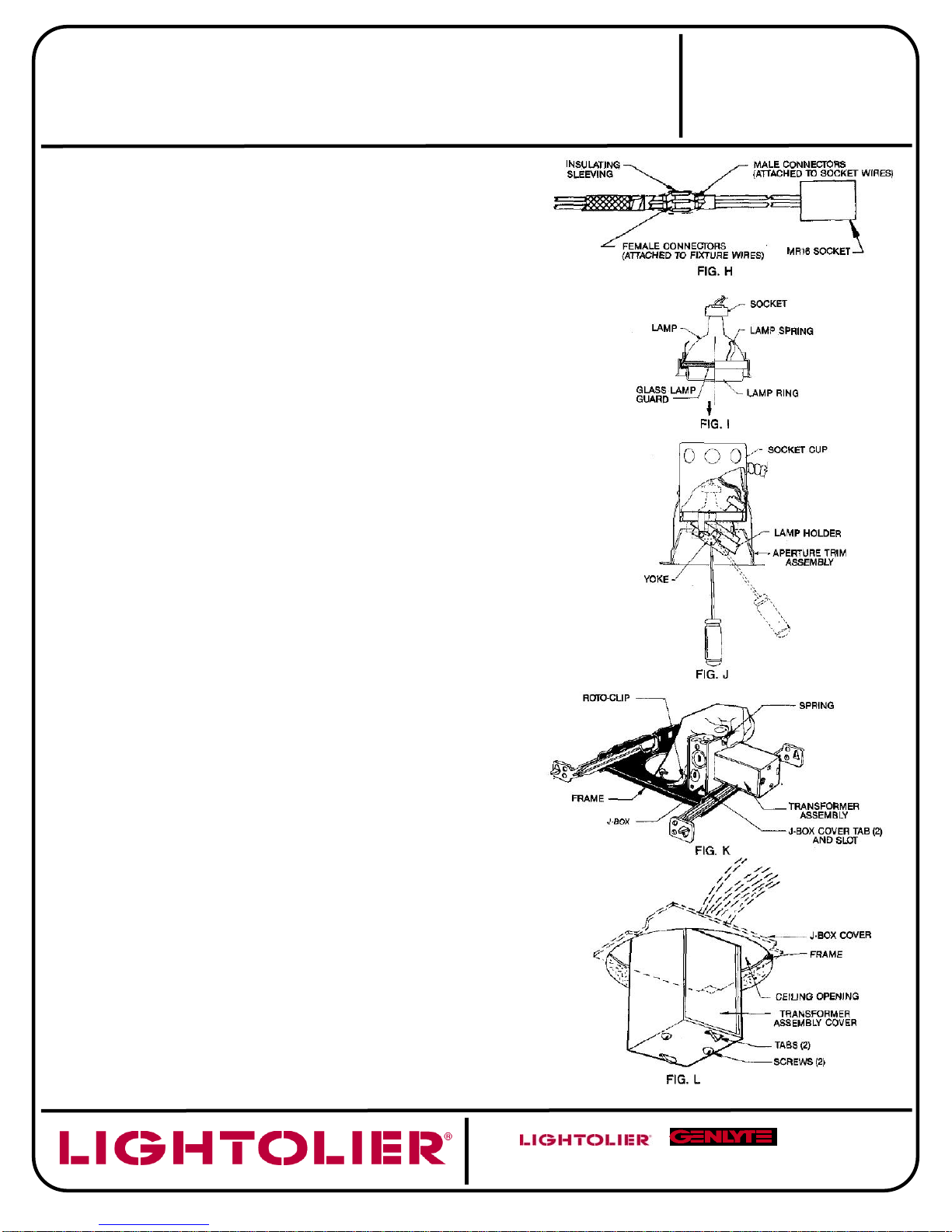

LAMPING (Fig. H)

NOTE: Socket manufacturers have suggested that socket may fail after 3 to 6 relampings. If

this occurs, socket can be replaced by disconnecting male connectors (attached to socket

leads) from female connectors (attached to fixture leads) and replacing it with a new socket

procured through LIGHTOLIER (Fig. H)

1. Make sure that power is OFF when lamping or relamping. Remove LAMP RING

from SOCKET CUP by pulling straight down.

2. Insert LAMP (MR-16) between LAMP SPRINGS until face of lamp sits firmly on GLASS

LAMP GUARD (Fig. I.)

3. Attach SOCKET to bi-pin prongs on LAMP.

4. Insert LAMP RING with LAMP and GLASS LAMP GUARD back into SOCKET CUP.

AIMING ANGLE ADJUSTMENT (Fig. J)

1. For vertical adjustment, insert blade of screwdriver into the open slot of YOKE.

2. Using screwdriver as a lever, tilt the entire LAMP HOLDER to the desired angle.

3. For horizontal adjustment, rotate the LAMP HOLDER.

NOTE: 1. LOW VOLTAGE FIXTURES should be dimmed only with special

dimmers intended specifically for that purpose. Use Lightolier Lytemode,

Scenist, Crescendo VA, Neptune VA, Precision VA, Easyset VA, Sunrise VA,

Radiant VA or equivalent products by others or variable autotransformers or

electronic dimmers intended for use with low voltage fixtures. 2. Low voltage

fixtures may produce audible sound when used with dimmers, which may be

objectional in acoustically critical areas.

TRANSFORMER REPLACEMENT (2000LV, 2000LVE1, and 2000LVE2)

1. Make sure power is off.

2. Remove REFLECTOR TRIM from ceiling.

3. Rotate ROTO CLIPS out of hole area.

4. Remove J-BOX COVER nearest ceiling opening by lifting SPRING.

5. Unsplice all wiring.

6. Remove TRANSFORMER ASSEMBLY from J-BOX by pulling SPRING upward. (Fig. K).

7. Place TRANSFORMER ASSEMBLY thru ceiling opening (Fig. L).

8. Remove TRANSFORMER and TRANSFORMER COVER by straightening TABS with pliers

and removing SCREWS. For 2000LVE1 and 2000LVE2, remove TRANSFORMER by

removing NUTS.

9. Install the new TRANSFORMER on the U-shaped holder with SCREWS and re-tab to the

remaining half of the TRANSFORMER ASSEMBLY. For 2000LVE1 and 2000LVE2, install

the new TRANSFORMER with NUTS.

10. Reassemble TRANSFORMER ASSEMBLY to J-BOX by placing J-BOX COVER TABS into

J-BOX SLOTS and snapping onto SPRING (Fig. K).

11. Rewire Fixture:

A. Splice transformer red leads to white socket leads.

B. Splice transformer black lead to thermal protector blue lead.

C. Splice transformer and thermal protector white leads to supply common lead.

D. Splice thermal protector black lead to supply black lead.

12. Replace J-BOX COVER.

13. Install REFLECTOR TRIM.
