"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

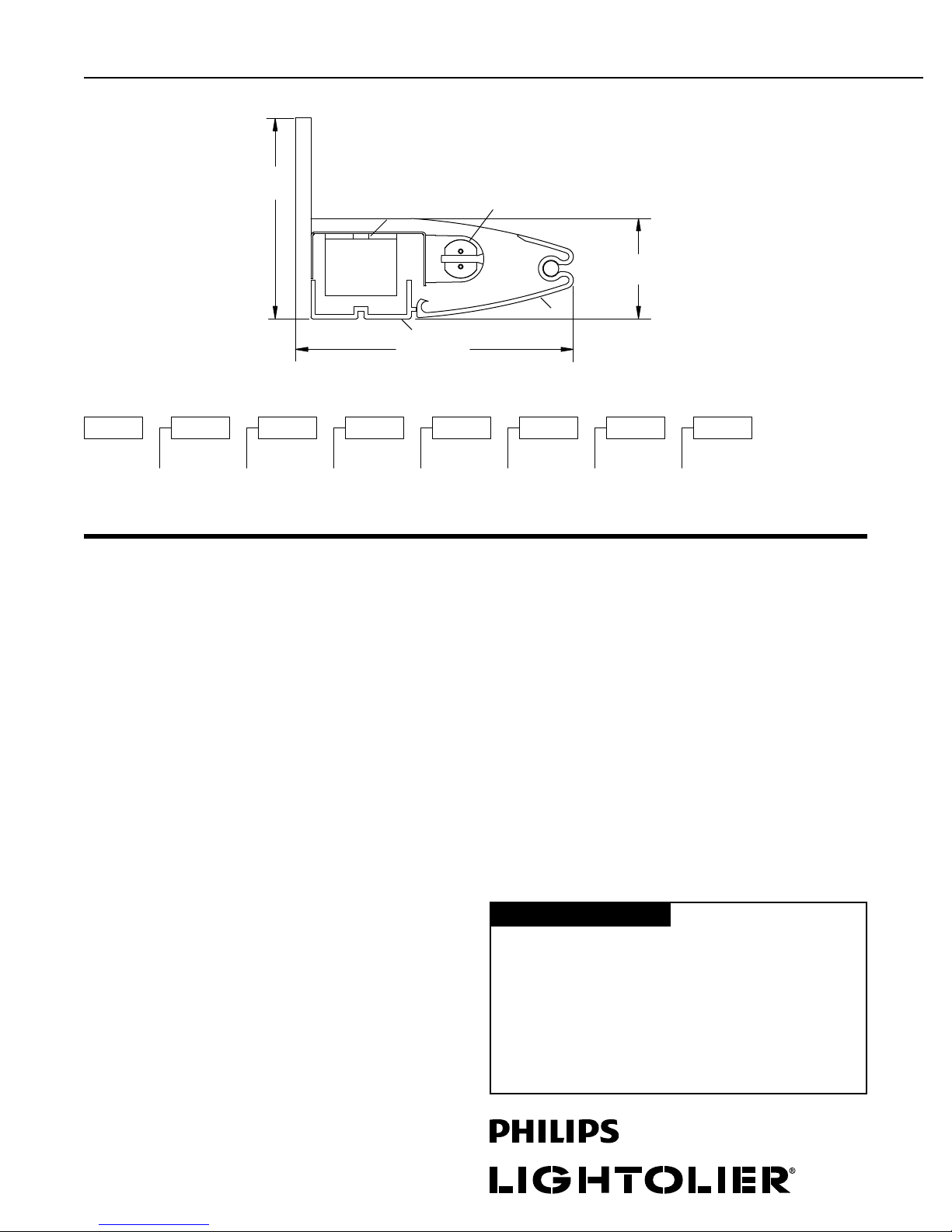

Lighting Systems F7000-26

1BHFPG '4FSJFT-JHIU5-FOT8BMM.PVOU

(

Features

1. Housing: Single piece of high purity extruded aluminum, a portion from

recycled material.

2. Housing End: Die-cast aluminum, welded in place.

3. End Cap: Die-cast aluminum. Encloses the end of the run.

4. Lamps: F28T5 or F54T5HO as specified. By others. Installed fromthe

ceiling side of the luminaire.

5. Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound

rating specifications. Low THD.

6. Shielding: Extruded acrylic with suspended bead texture; inset metal rod.

Electrical

Connections: Pre-wired with 18 gauge wires and polarized cannon plug con-

nectors for simultaneous mechanical/electrical connection.

Emergency Battery Pack: 90 minute operation, 700 lumens for 54W and 520

lumens for 28W.

iGEN: F7000 accepts iGEN (DALI) with supplemental 2-wire control technology.

Use with X5 power feed.

Power Tray: Code-gauge, die-formed steel, pre-paint white enamel finish;

secured by quarter-turn fasteners for easy access to wiring. Holds ballasts, sock-

ets, and wiring. Accepts ballasts up to 1.25” (3.18cm) wide by 1.20” (3.05cm) high.

Finish

Powder-coated, baked enamel, white or aluminum, as specified.

Labels

UL, cUL and I.B.E.W.

Ordering Instructions

Individual Fixtures:

1. Order one MODULE.

2. Order one END SET.

Continuous Rows:

1. Order the appropriate number of MODULES for the complete run.

2. Order one END SET.

Finish

Powder coated White or Aluminumbaked enamel.

Customcolors are available, consult factory.

Labels

UL , cUL and I.B.E.W.

Mounting

Each module includes two wall-mounting brackets. Bracket hole pattern accom-

modates junction box (single gang box rotated 90 degrees) or other appropriate

mounting method using customer supplied fasteners.

Ordering Information

4.51” (11.46cm)

1.63”

(4.14cm)

3.25”

(8.26cm)

FW7

Family Series

Type Lamps Color Wattage Voltage Length

5 1

6= Lens 5= Extruded

Lens

1= 1 LampAL = Aluminum

WH = White

1= 28W

2= 54W

3= 28W Dimming

4= 28W EM

5= 54W Dimming

6= 54W EM

1= 120v

2= 277v

4= 4’ (121.92cm)

8= 8’ (243.84cm)

Complete Ordering Instructions below.

Factory installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Dimming: Advance Mark X standard for 54W lamps (no additional wires required)

or ULT Super Dimstandard for 28W lamps (5 wires required in end set); use

compatible dimmer.. Dimming ballasts using additional control wires (e.g. Lutron

Hi-Lume or ECO-10, Osram) can be used; consult factory and use X4 or X5 power

feeds with additional leads, as appropriate. Ballast not to exceed 1.25” (3.18cm)

wide by 1.20” (3.05cm) high.

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems F7000-26

1BHFPG '4FSJFT-JHIU5-FOT8BMM.PVOU

(

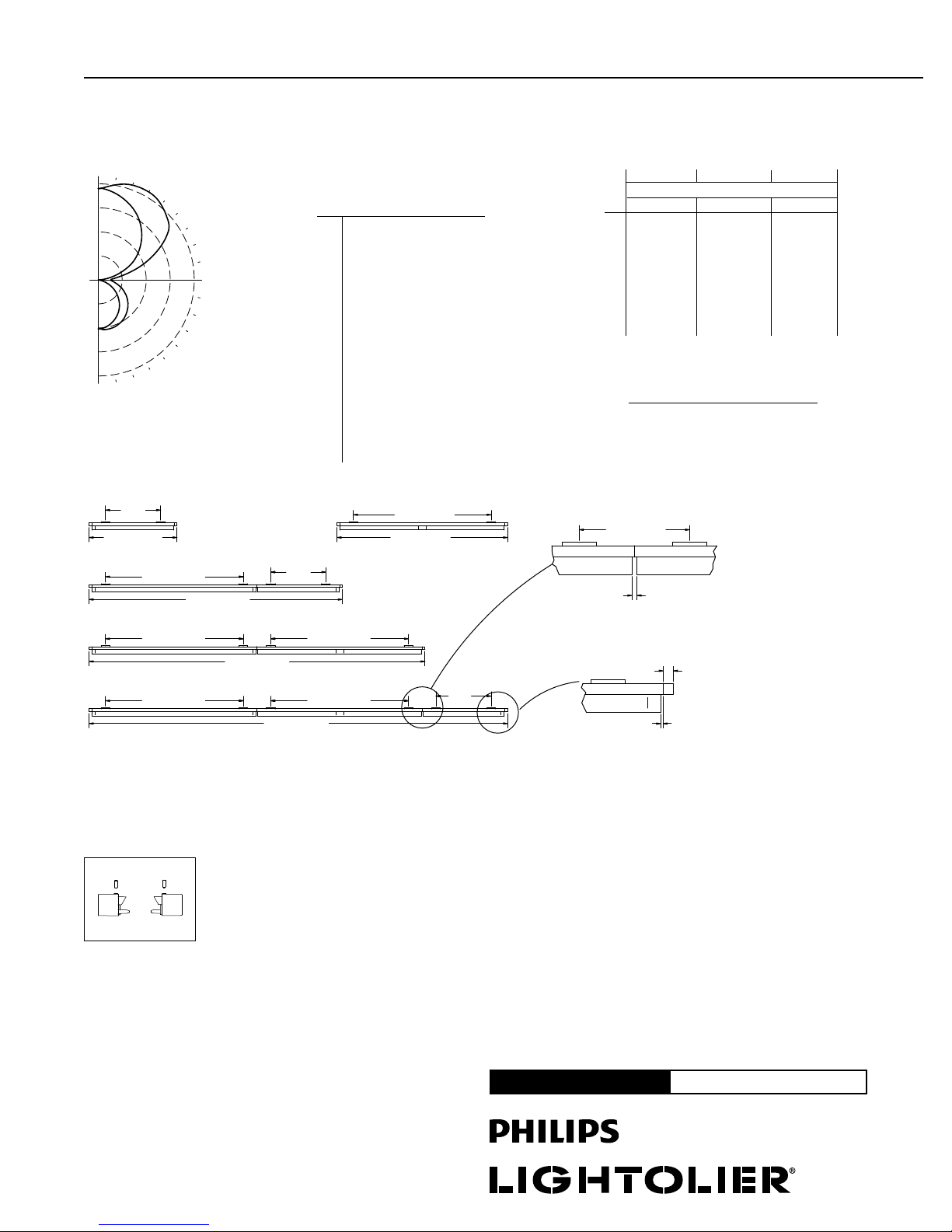

CANDLEPOWER

ZONE 0 22 45 67 90

DEG. CANDELAS

0 510 510 510 510 510

5 519 519 520 516 510

15 523 523 519 508 492

25 508 505 497 479 455

35 477 474 458 435 405

45 431 427 406 378 340

55 375 367 341 307 264

65 304 296 267 228 181

75 223 216 185 142 92

85 151 141 106 62 18

90 132 120 85 42 0

95 164 153 129 104 38

105 378 383 366 341 186

115 656 652 624 504 351

125 894 874 775 650 506

135 988 960 887 774 646

145 1048 1022 957 870 767

155 1056 1039 999 928 860

165 1033 1020 996 957 921

175 972 967 967 959 952

180 950 950 950 950 950

Performance

CANDLEPOWER CURVE

1000

750

500

250

100

110

120

130

140

150

160

170

180

REPORT NO.: ITL54696.IES

LAMPS: 1-F54T5

LUMENS: 5000 each

EFFICIENCY: 81.6%

CAT. NO.: F7762WH214

DISTRIBUTION

Zone Lumens % Lamp %Luminaire

0 - 90 1279 25.5 31.0

90 - 180 2790 56.1 69.0

0 - 180 4069 81.6 100.0

80% 70% 50%

50 30 10 50 30 10 50 30 10

0 838383 7676 76 606060

1 727066 6563 60 525048

2 635854 5753 49 454340

3 554945 5045 41 403633

4 484337 4438 34 353128

5 433732 3933 30 312724

6 393227 3530 26 282420

7 352824 3126 22 262118

8 312621 2923 20 231916

9 292319 2620 17 211714

10 26 20 16 24 19 15 20 15 13

20% FLOOR CAVITY REFLECTANCE

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

WALL REFLECTANCE

ROOM CAVITY RATIO

Mounting Accessories

Fixture Lengths & Mounting Reflected (Plan View)

20'-3" (617.22cm)

16'-3" (495.30cm)

12'-3" (373.38cm)

8'-3" (251.46cm)4'-3" (129.54cm)

2'-8"

(81.28cm)6'-8" (203.20cm)

6'-8" (203.20cm)2'-8"

(81.28cm)

1'-4"

(40.64cm)

6'-8" (203.20cm)1'-4"

(40.64cm)6'-8" (203.20cm)

6'-8" (203.20cm)1'-4"

(40.64cm)6'-8" (203.20cm)2'-8"

(81.28cm)

1'-4"

(40.64cm)

16.00" (40.64cm)

3/4"

(1.91cm)

1-1/2"

(3.81cm)

3/8" (0.95cm)

END OF ROW DETAIL

GAP BETWEEN FIXTURES

JOINING DETAIL

Recommended mounting is a single gang outlet box rotated 90 degrees at the

feed point. Remaining mounting points could be outlet boxes as well, or a couple

of holes per mounting point spaced 3-1/4” (8.26cm) at 1-3/4” (4.45cm) above the

bottomof fixture.

Wall Mount End Set

FW7EWH = White

FW7EAL = Aluminum
