Lighting Systems LSB-13

1BHFPG -ZUFTQSFBEÜ-4#3BEJBM-PVWFS-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Features

1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with

no exposed fasteners or hardware.

2. Lamping: One T5, 28 or 54 watt (as specified) fluorescent lamp per 4-foot

nominal section. Provided by others.

3. Reflector: Precision die-formed semi-specular aluminum.

4. Radial Louver: Precision die-formed aluminumstraight blade louver, blades

Electrical

Ballast is <10% THD, .98 ballast factor, pre-heat start. 18 gauge wire. Color-

coded quick connectors allow ease of connection for joiner modules. Power feed

is 18 gauge white SJT. For special circuiting consult factory. Factory installed

ballast disconnect allows the ballast to be disconnected fromand reconnected to

incoming power under load without turning the entire circuit off.

Dimming: - 120/277 VAC 1% dimming level, 4 wire feed required.

Emergency Battery Pack: - 28 watt: 520 lumens @ 90 minutes, 54 watt: 700

lumens @ 90 minutes, 4 wire feed required.

Mountings

Finish

Powder coated baked white or aluminumfinish. Customcolors available, consult

factory.

Options and Accessories

Emergency circuiting; special circuiting; X, T & L joiner blocks - consult factory.

Labels

UL, cUL, and I.B.E.W.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete

run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one

per run.

5. For runs that exceed amperage limits, order the appropriate

number of CABLE/CORD ASSEMBLIES.

Complete ordering instructions below.

Ordering Information

Family Lamps Voltage Finish

1= 1-Lamp T5 D= Radial Louver AL = Aluminum

WH = White

LSB 1 D

Length Shielding Ballast

1 = 120 volt

2 = 277 volt

28 = 28W T5

54 = 54W T5

5E = 54W T5 Emergency Pack

2E = 28W T5 Emergency Pack

5D = 54W T5 Dimming

4= 4-Foot

8= 8-Foot

are 5/8” (1.59cm) high and 5/8” (1.59cm) O.C.

Cable suspension (not shown) - 4-1/2" (11.43cm) diameter canopy finished white

enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up to 36”

(91.44cm). Dual-screw draw-tight connector to create hairline seambetween joiner

modules.

Half Scale

3-1/2" (8.89 cm)

2" (5.08 cm)

8-1/2" (21.60 cm)

1-3/4" (4.45 cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LSB-13

1BHFPG -ZUFTQSFBEÜ-4#3BEJBM-PVWFS-JHIU51FS'PPU/PNJOBM4FDUJPO

#

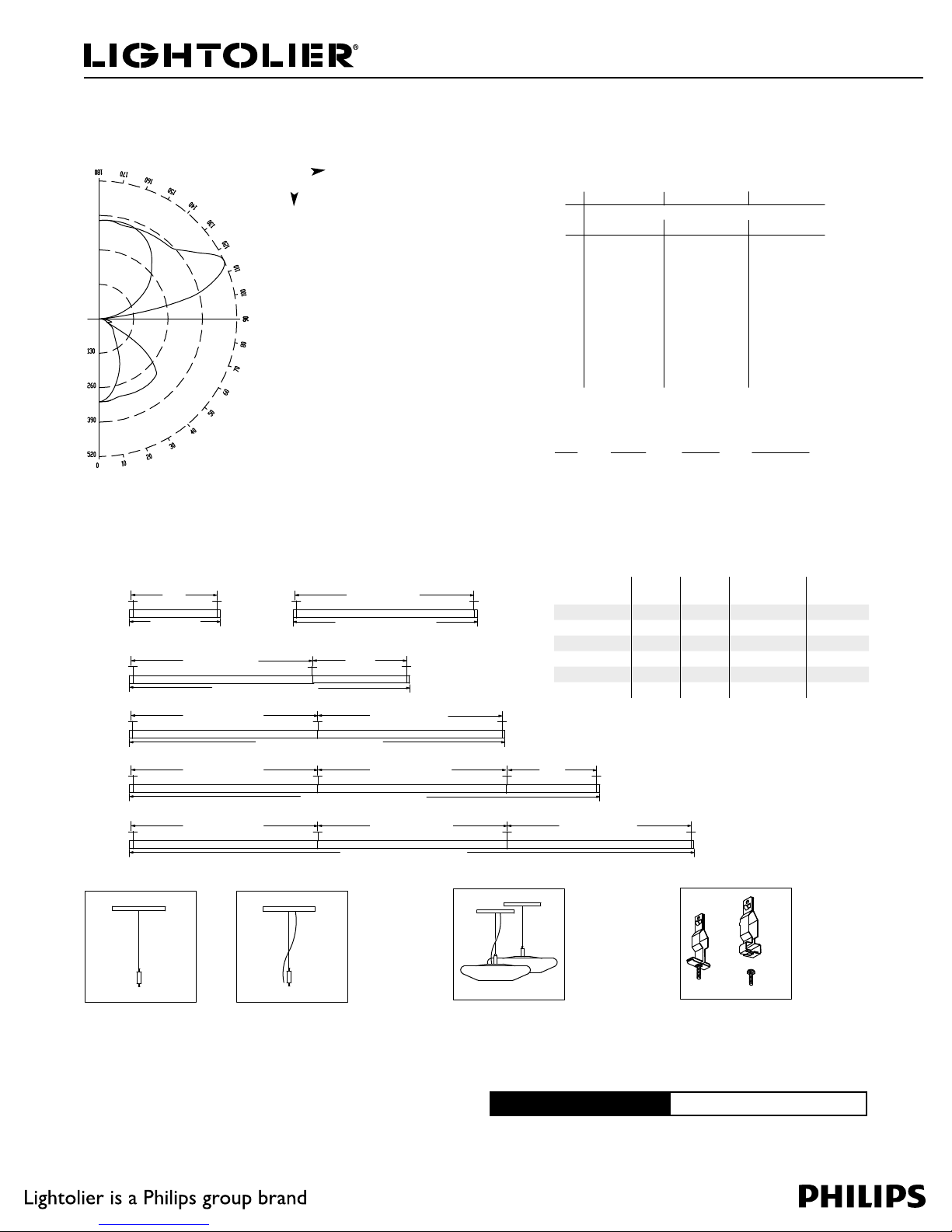

Performance

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 371 371 371 371 371

175 373 373 373 373 373

165 373 374 372 371 363

155 361 365 365 372 370

145 332 342 358 377 375

135 280 300 338 379 381

125 229 260 342 433 438

115 156 206 394 499 520

105 85 189 302 387 399

95 23 75 12 41 43

90 0 0 0 0 0

85 6 8 1 14 15

75 22 24 26 30 49

65 36 39 45 56 31

55 61 63 78 169 208

45 78 82 120 221 303

35 112 228 175 254 310

25 183 195 224 277 308

15 249 255 272 298 303

5 303 305 310 313 313

0 313 313 313 313 313

REPORT NO: LRL 300-1R

CAT NO: LSB14D28

LAMPS: 1 F28T5

LUMENS: 2900

EFFICIENCY: 84.0%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

085 858576 7676 59 5959

178 757270 6764 52 5049

271 666164 5955 46 4441

365 585358 5247 41 3835

460 524653 4741 37 3330

555 464049 4236 33 2926

651 413545 3732 30 2623

747 373142 3328 27 2320

843 332739 3025 24 2017

940 302436 2722 22 1815

10 37 28 22 33 25 20 20 16 14

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp% Luminaire

0-90 641 22.1 26.3

90-180 1794 61.9 73.7

0-180 2435 84.0 100.0

Calculations are for 28 watt T5 lamps, for 54 watt T5 lamps multiply by 1.7

Fixture Lengths & Mounting Locations

48"

(121.92cm)

4' 5-1/8"

(134.94cm)

96" (243.84cm)

8' 5-1/8" (256.86cm)

96" (243.84cm)

96" (243.84cm) 96" (243.84cm)

96" (243.84cm) 96" (243.84cm) 96" (243.84cm)

48"

(121.92cm)

48"

(121.92cm)

12' 5-1/8" (378.78cm)

16' 5-1/8" (500.70cm)

20' 5-1/8" (622.62cm)

24' 5-1/8" (744.54cm)

4-Foot 8-Foot

12-Foot

16-Foot

20-Foot

24-Foot

Mounting Accessories

Power Feed End Set

Straight Cord: LSBEC36WH (white)

LSBEC36AL (aluminum)

4 Wire Cord*: LSBEC36WHX4 (white)

LSBEC36ALX4 (aluminum)

Cable Assembly

Single Cable: LSBC36

Ceiling Grid Kit

CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

*Use for dimming, switching, and emergency battery packs.

Cable/Cord Assembly

Single Cable & Cord: LSBCC36

Single Cable & 4 Wire Cord*: LSBCC36X4

4-Foot

Module

8-Foot

Module

Cable/

Assembly

Power Feed

End Set

4-Foot Run 11

8-Foot Run 11

12-Foot Run 11 1 1

16-Foot Run 21 1

20-Foot Run 12 2 1

24-Foot Run 32 1
