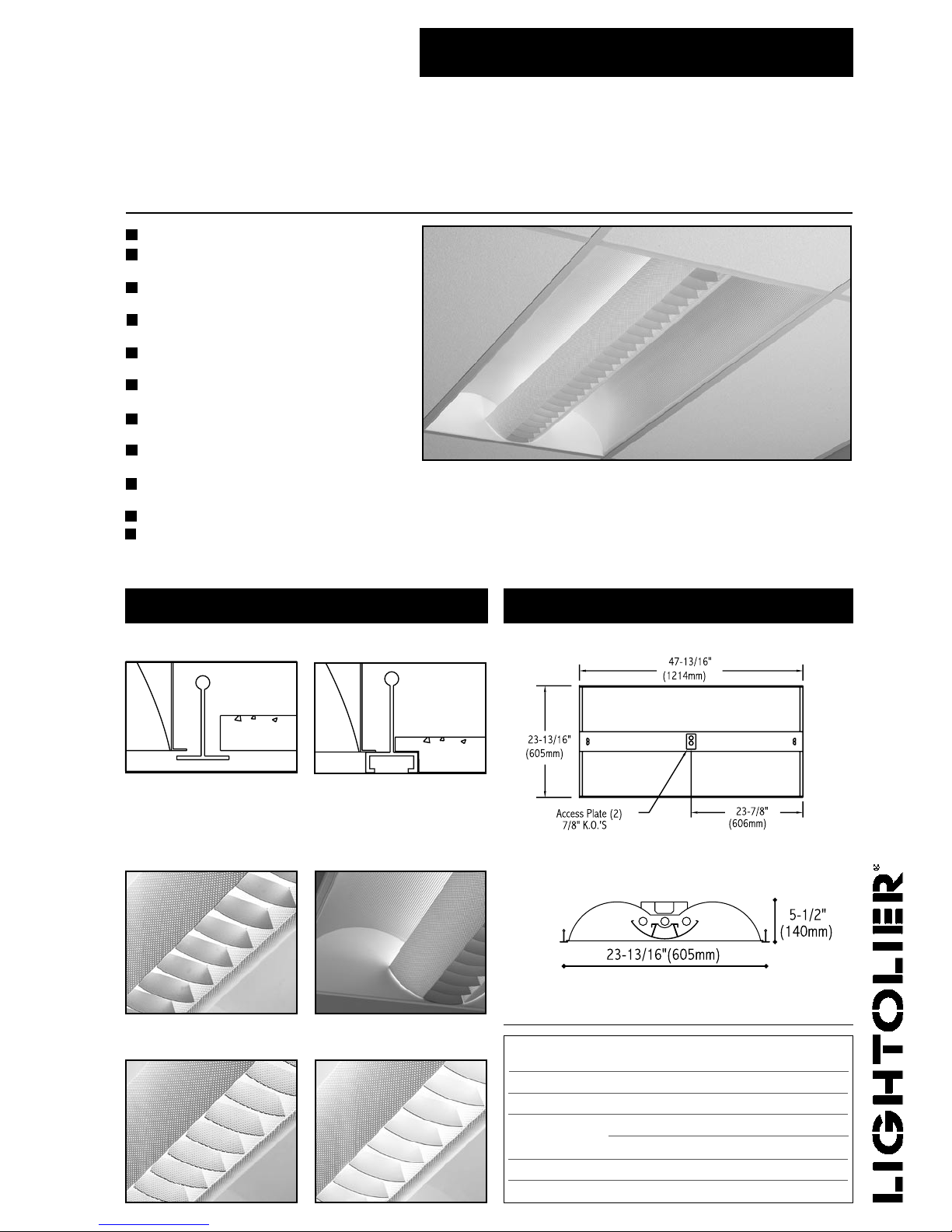

Lightolier QVS2GPTLG332 Manuel utilisateur

ALTER METALYTE LOUVER

2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT

3 LAMP, T8, 5 1/2” DEEP

MICROPERFORATED MESH WHITE LAMP SHIELD

GREY SOLID LOUVER BLADES, STATIC

Efficiency 40%.

Flat blade louver with lens overlay

and perforated curved side blades.

Semi-specular aluminum reflectors with

lengthwise ridges.

No visible welding, screws, latches, springs,

hooks, rivets or plastic supports.

5-1/2” deep, one-piece body for easy

installation.

Choice of white microperforated blade,

white solid blade or grey solid blade.

Easy access to ballast through lamp

compartment.

Fits standard T-grid, exposed slot T-grid

ceilings and drywall ceilings.

Fully recessed luminaire and lamp

compartment.

Optional hold-down clips.

Luminaire can be row mounted.

MOUNTING METHODS/FEATURES DIMENSIONS

FIXTURE TYPE

JOB INFORMATION:

VOLTS

L30-61

QVS2GPTLG332

Suited to standard exposed Slot T-grid

ceilings

Microperforated mesh white lamp shields

grey solid louver

Microperforated mesh white lamp shields

white mesh louver

Ceiling compatibility

Suited to standard exposed T-grid ceilings

Microperforated mesh white lamp shields

white solid louver

Semi-spec aluminum reflector

with lenghwise ridges

Genlyte Thomas Company

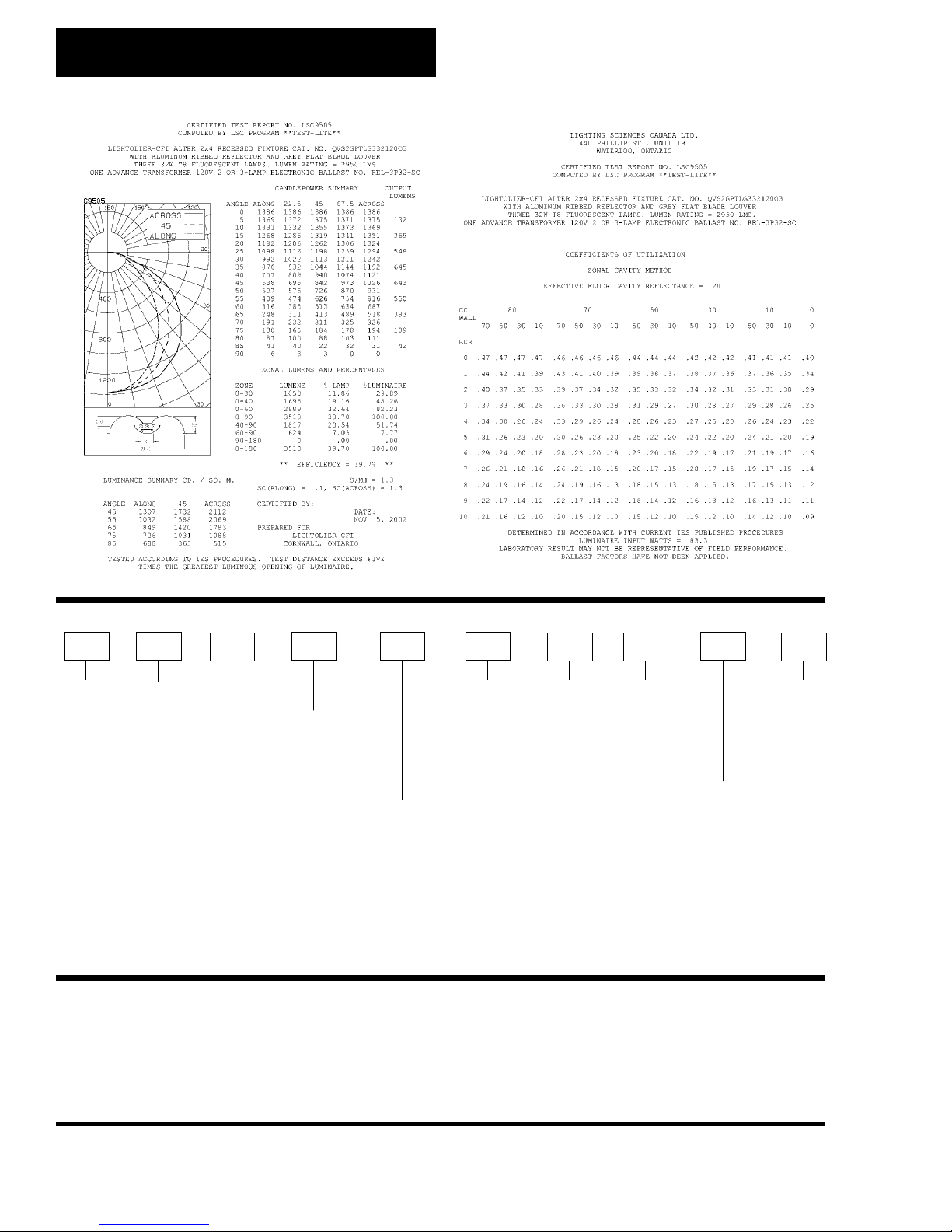

ORDERING INFORMATION Explanation of Catalogue Number Example: QVS2GPTLV332120O3

SPECIFICATIONS

MATERIALS: One piece chassis constructed from die formed

20 gauge cold rolled steel. Optic - Semi-specular matte aluminum

reflector with lenghtwise ridges. Soft white acrylic film on inside of lamp

shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic

matte high reflectance paint finish. Louver - flat blade louver with soft

white acrylic overlay.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast. If K.Os

are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by CSA, UL

QVS2GPTLG332

QVS

FAMILY

QVS: Quality

Visual Static

LUMINAIRE

WIDTH

24"

CEILING

TYPE

G=Grid

LAMP

SHIELD

PT=Semi-specular matte

reflector /

Microperforated mesh

lamp shield

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH

32= 32W

(T8 nominal 48")

120

VOLTAGE

120,277

347

OPTIONS

F = Internal Fusing

(consult factory)

N= Emergency Lighting

System (for U.S.)

O =Emergency Lighting

System (for Canada)

R =Radio Interface

Filter

SHIELD DETAILING

LG= Grey solid flat blade louver

LV= White perforated flat blade louver

LW= White solid flat blade louver

We reserve the right to change, materials and finish in any way that will not alter installed appearance or reduce function and performance.

ALTER METALYTE LOUVER

2’ X 4’ RECESSED DIRECT/INDIRECT FLUORESCENT

LV 3 32

LPB : Number of lamps per ballast

BALLAST

SO: T8 Elect.

O3: 3LPB T8 Elect.

PS: T8 PowerSpec HDF Dimming †

DA: iGEN DALI †

† Not available in 347V.

Genlyte Thomas Company

631 Airport Road, Fall River, MA 02720 - Tel. (508) 679-8131

C.F.I. Division of Canlyte, Inc.

525 Education Road, Cornwall, Ontario

Canada K6H 6C7 - (613) 938-6221
