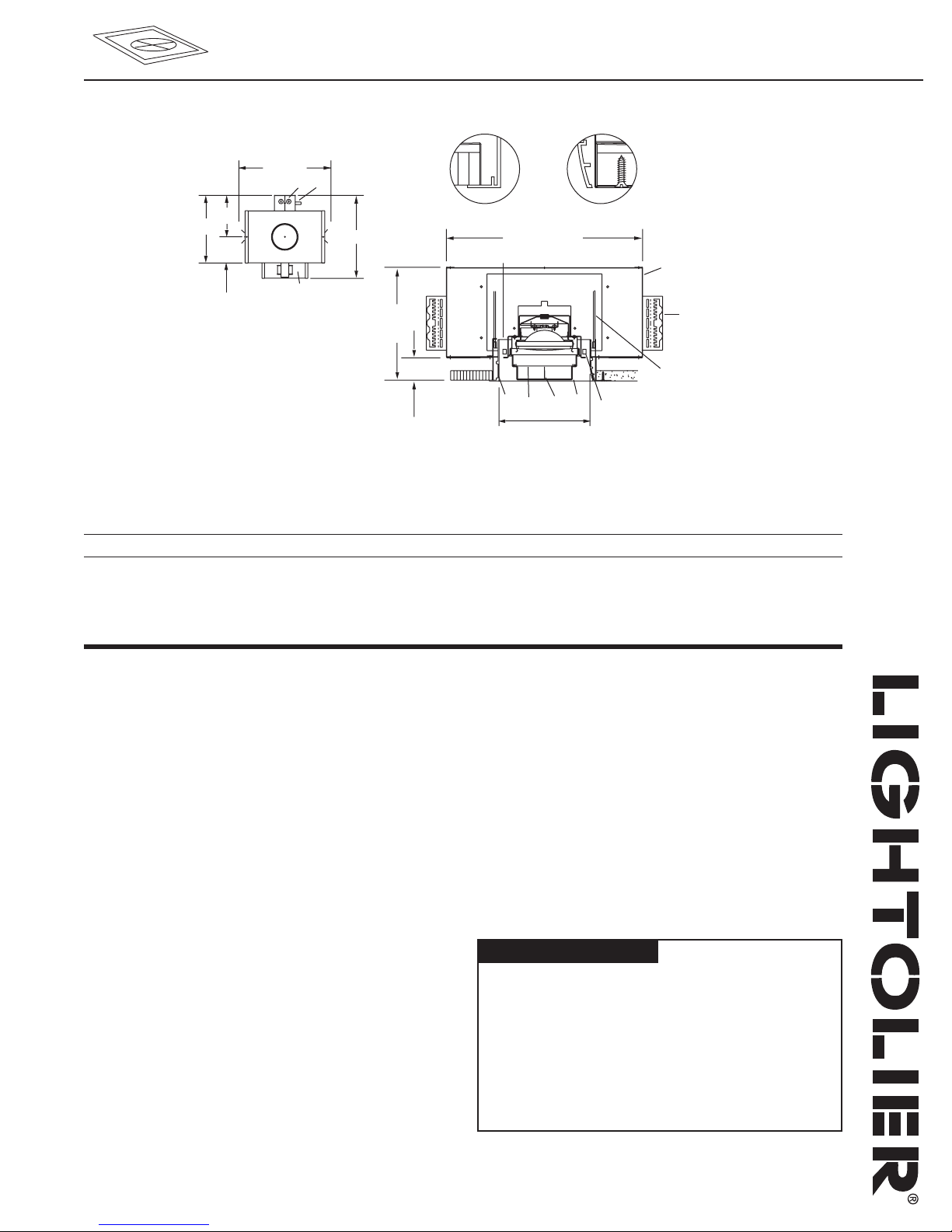

Lightolier ProSpec PA1A1175 Manuel utilisateur

Flanged Trimless

15 3/8" L X 10" W

7" L X 7" W Opening

Depth

8 3/4"

1 3/4" 5

11 12

18 1/8"

16"

13"

Top View

Ceiling Cutout: 8 3/16"L x 8 3/16"W

Ordering Information: AR 111 Series A

Cat. No. Lamp Ceiling Trim Aperture Finish

PA1A117EBL (1) 75W AR 111 Overlap Black with White Flange

PA1A117EWL (1) 75W AR 111 Overlap White with White Flange

PA1A117EBTL (1) 75W AR 111 Trimless Black

PA1A117EWTL (1) 75W AR 111 Trimless White

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

PA1A117EBL = (Flanged) Black/White PA1A117EBTL = (Trimless) Black

PA1A117EWL = (Flanged) White PA1A117EWTL = (Trimless) White

ProSpec®Linear Downlight PA1A1175

Page 1 of 2 1 Light AR 111 Series A

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of up to two

accessories (including lamp cover glass; lamp cover glass may be replaced

with solid glass accessory). Easily installed and removed for lamping with a

simple twisting motion. Constructed of die-cast aluminum.

3. Cross Blade Louver: Extruded aluminum. 1" deep, provides additional

shielding and can be easily removed.

4. Adjustable Ring: Allows 360° horizontal and 30° (on width) and 40° (on

length) vertical adjustment.

5. Tortiontite Spring: For easy installation of aperture frame.

6. Housing: Die-formed 22 ga. steel. Finish: Black.

7. Mounting Brackets: Adjustable vertically from outside of housing.

8. Thermal Protector: Meets NEC, UL , and CSA requirements.

9. Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from

below.

10. Lamp and Accessory Support: .032" steel, flared for easy entry of Media

Cartridge.

11. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

12. Lamp Guard: Heat resistant clear glass. Lamp manufacturers requirement.

13. Transformer Housing: Die-formed 18 ga. steel.

Electrical

Electronic Transformers: Offer reliable operation and are accessible

from below for servicing. 12V Secondary.

Dimming Controls: Use only dimmers specifically designed for use with

electronic transformers. Low Voltage fixtures may produce audible sound

when used with dimmers, which may be objectionable in acoustically

critical areas.

UL/cUL listed for through branch circuit wiring with maximum of (8) no. 2 AWG

90° C.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 4 3/4" dia. series, filters, lenses, screens and louvers. (2) acces-

sories maximum, including lamp cover glass. Lamp guard glass may be replaced

with solid glass accessory.

Labels

UL/cUL (Suitable for Damp Location), I.B.E.W.

Add a “1” for 120v or “2” for 277v at the end of the catalog number for voltage

4500 2000

75W AR111

FL 30°

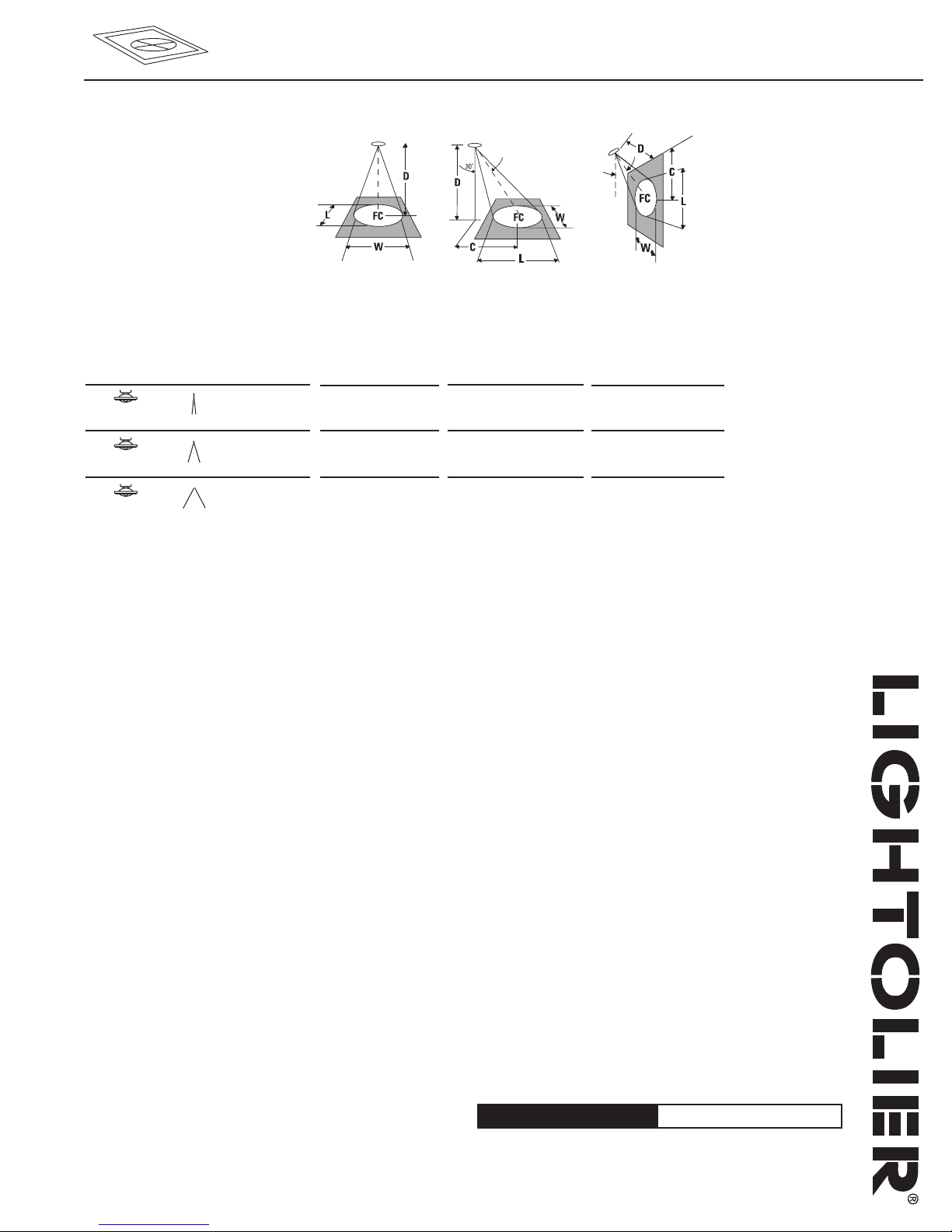

(FC) is initial footcandles at center of beam.

Beam length (L) and beam width (W) are to

where the candlepower is reduced to 50%

of the center beam candlepower.

CBCP is center beam candlepower.

Lamp data shown is typical, and is based on

bare lamp photometrics. Contact lamp man-

ufacturers for availability and performance.

10’ 250 1.7’ 1.7’

15’ 111 2.6’ 2.6’

20’ 63 3.5’ 3.5’

25’ 40 4.4’ 4.4’

8’ 4.6’ 254 1.9’ 1.6’

12’ 6.9’ 113 2.8’ 2.4’

16’ 9.2’ 63 3.7’ 3.2’

20’ 11.5’ 41 4.7’ 4.0’

4’ 6.9’ 195 2.9’ 1.4’

6’ 10.4’ 87 4.3’ 2.1’

8’ 13.9’ 49 5.7’ 2.8’

10’ 17.3’ 31 7.2’ 3.5’

25000 2000

75W AR111

SP 10°

3’ 144 3.5’ 3.5’

5’ 52 5.8’ 5.8’

7’ 27 8.1’ 8.1’

9’ 16 10.4’ 10.4’

3’ 1.7’ 94 5.2’ 4.0’

5’ 2.9’ 34 8.7’ 6.7’

7’ 4.0’ 17 12.1’ 9.3’

9’ 5.2’ 10 15.6’ 12.0’

1’ 1.7’ 163 * 2.3’

2’ 3.5’ 41 * 4.6’

3’ 5.2’ 18 * 6.9’

4’ 6.9’ 10 * 9.2’

1300 2000

75W AR111

WFL 60°

6’ 125 3.2’ 3.2’

8’ 70 4.3’ 4.3’

10’ 45 5.4’ 5.4’

12’ 31 6.4’ 6.4’

5’ 2.9’ 117 3.7’ 3.1’

7’ 4.0’ 60 5.1’ 4.3’

9’ 5.2’ 36 6.6’ 5.6’

11’ 6.4’ 24 8.1’ 6.8’

2’ 3.5’ 141 5.5’ 2.1’

3’ 5.2’ 63 8.2’ 3.2’

4’ 6.9’ 35 10.9’ 4.3’

5’ 8.7’ 23 13.7’ 5.4’

MR16 Low Voltage Halogen Bi-Pin Lamps

D FC L W D C FC L W D C FC L W

Lamps Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

0° Aiming Angle 30° Aiming Angle 30° Aiming Angle

30°

ProSpec®Linear Downlight PA1A1175

Page 2 of 2 1 Light AR 111 Series A

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:
