MJ4 Series

CHICAGO STEEL RECESSED UNIT

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: High-output

incandescent sealed beam

lamps provide glare-free light

distribution. 6 V, 12 W bi-pin

halogen has an expected life of

100 hours.

Housing: Heavy-duty

steel cabinet is finished in

white baked-on powder

paint providing scratch and

corrosion resistance. Optional

black and special color paint

finishes are available, see

options on back for ordering

details. All metal lamp housing

and swivel assemblies in white

color to match unit housing.

Lamp heads are fully adjustable

and feature lockable swivels.

Units are designed for recessed

installation in wall and ceiling

applications by T-slot holes

provided on all four sides of

the unit housing. Mounting bars

(supplied by others) allow XC-

R-C unit installation in T-grid

type suspended ceilings.

Battery: Maintenance-free,

sealed, lead calcium battery

has an estimated service life

of 5 years, and an operating

temperature range of

65°F (19°C) to 85°F (30°C).

Nickel cadmium batteries are

optional.

Electronics: 120/277 VAC

dual voltage input with surge-

protected, solid-state circuitry.

Fully automatic, temperature

compensating, variable rate

float charging system is

complete with low voltage

disconnect, AC lockout,

brownout protection, AC

indicator lamp and test switch.

Code Compliance

All models are UL 924 listed

and meet NFPA 101 Life Safety

Code, NEC, OSHA and City of

Chicago codes.

Warranty

Three year unit warranty

(excludes lamps). One year full

plus four year prorated battery

warranty (lead calcium). Five

year full plus five year prorated

battery warranty (nickel

cadmium).

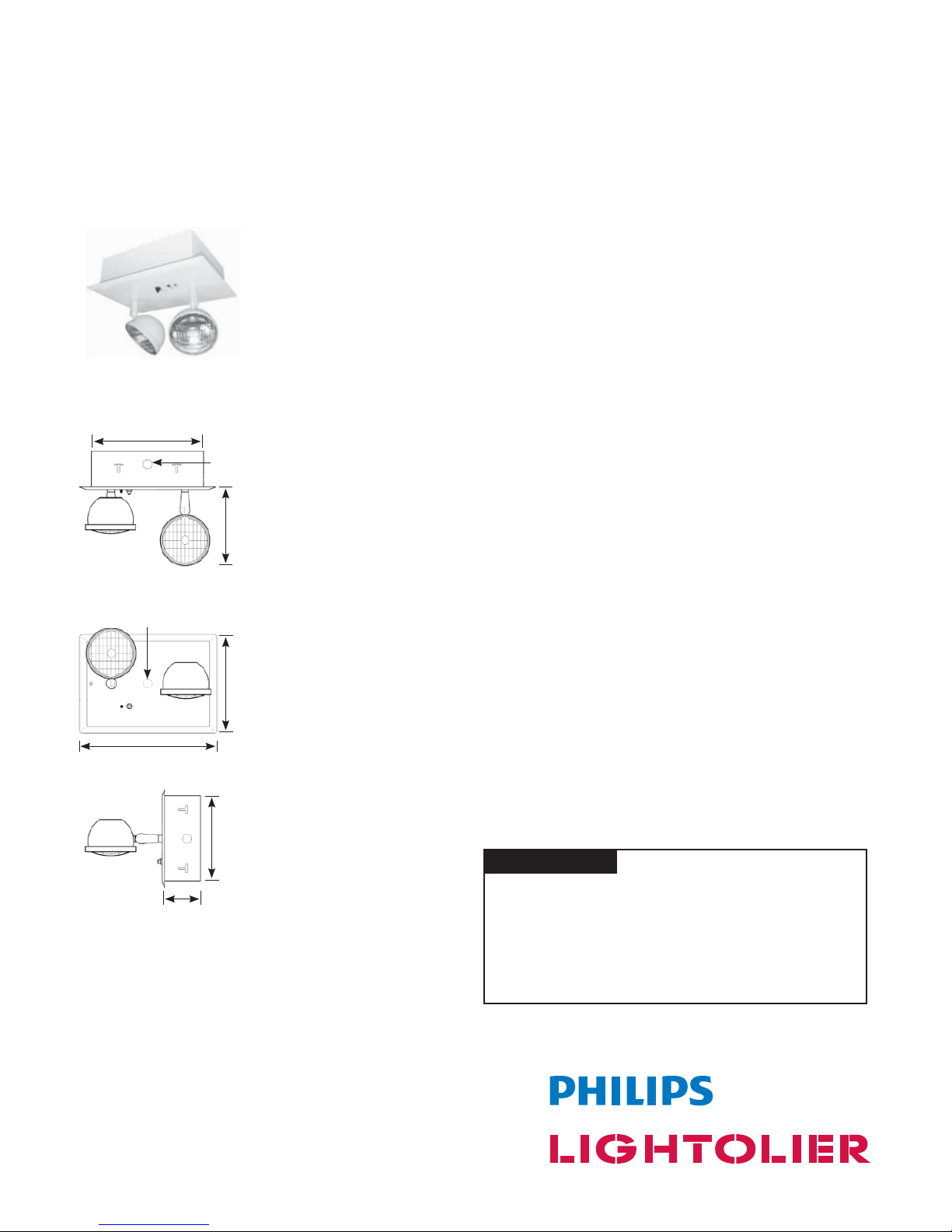

MJ4126LH12W

7.0 "

(17.8 cm)

.88"

(2.2 cm)

knockout -

four sides

10.63"

(27.0 cm)

13.0"

(33.0 cm)

9.25"

(23.5 cm)

3.5"

(8.9 cm)

8.25"

(21.0 cm)

.88"

(2.2 cm)

knockout

on back

MJ4 Series

CHICAGO STEEL RECESSED UNIT

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

MJ4 Series September 19, 2011

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

MJ4 = Chicago

Steel Unit

MJ4

26L = 26 W,

Lead Calcium

26N = 26 W,

Nickel Cadmium

Battery Wattage

1= 6 V

Voltage

W= White

Housing Color

V= Voltmeter1

A= Ammeter1

B= Black Finish - Housing and Lamp Heads

SP = Special Paint Finish - Specify Color

SX = Self-Diagnostic Circuit

Factory Installed Options

H12 = Halogen

12 W

Lamp Type

H12

Note

1) Unit has provisions for one meter option only.

Accessories (order as a separate item)

MJPG1 = Wire Guard

UNIT

MJ4

VOLTAGE

LAMP

WATTAGE

BATTERY WATTS TO 87 1/2

OF RATED VOLTAGE*

1 1/2 HRS

Unit Battery Capacity

2 HRS

* Per NEC specifications.

4 HRS

8 HRS
