MJ6 Series

CHICAGO LED STEEL EXIT

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Exit face

illumination is provided

by a special high intensity

indirect white LED lighting

strips. Letter brightness and

illumination uniformity exceed

UL requirements. MJ6E-DEH

combination models with

side mounted lamp heads

are provided with 6 V, 12 W

halogen bi-pin lamps.

Housing: MJ6 Series exits

are constructed of heavy-duty

steel finished in white baked-

on powder paint providing

scratch and corrosion

resistance. Exit face features

6” letters with 3/4” stroke on

translucent glass panels and full

length directional arrows to

meet City of Chicago visibility

requirements. Mounting

canopy is standard.

Battery: Maintenance-free,

sealed, lead calcium battery

has an estimated service life

of 5 years, and an operating

temperature range of

65°F (19°C) to 85°F (30°C).

120 minutes of emergency

illumination.

Electronics: 120/277 VAC

dual voltage input with surge-

protected, solid-state circuitry.

Fully automatic, temperature

compensating, variable rate

float charging system is

complete with low voltage

disconnect, AC lockout,

brownout protection, AC

indicator lamp and test switch.

Input Power Requirements:

AC Only:

9.6 W (120 VAC)

9.2 W (277 VAC)

Emergency Operation:

10.6 W (120 VAC)

10.2 W (277 VAC)

Code Compliance

All models are UL listed and

meet NFPA 101 Life Safety

Code, NEC, OSHA and City

of Chicago codes. Emergency

models are UL 924 listed.

Warranty

Three year unit warranty

(excludes lamps). Three year

full plus seven year prorated

battery warranty.

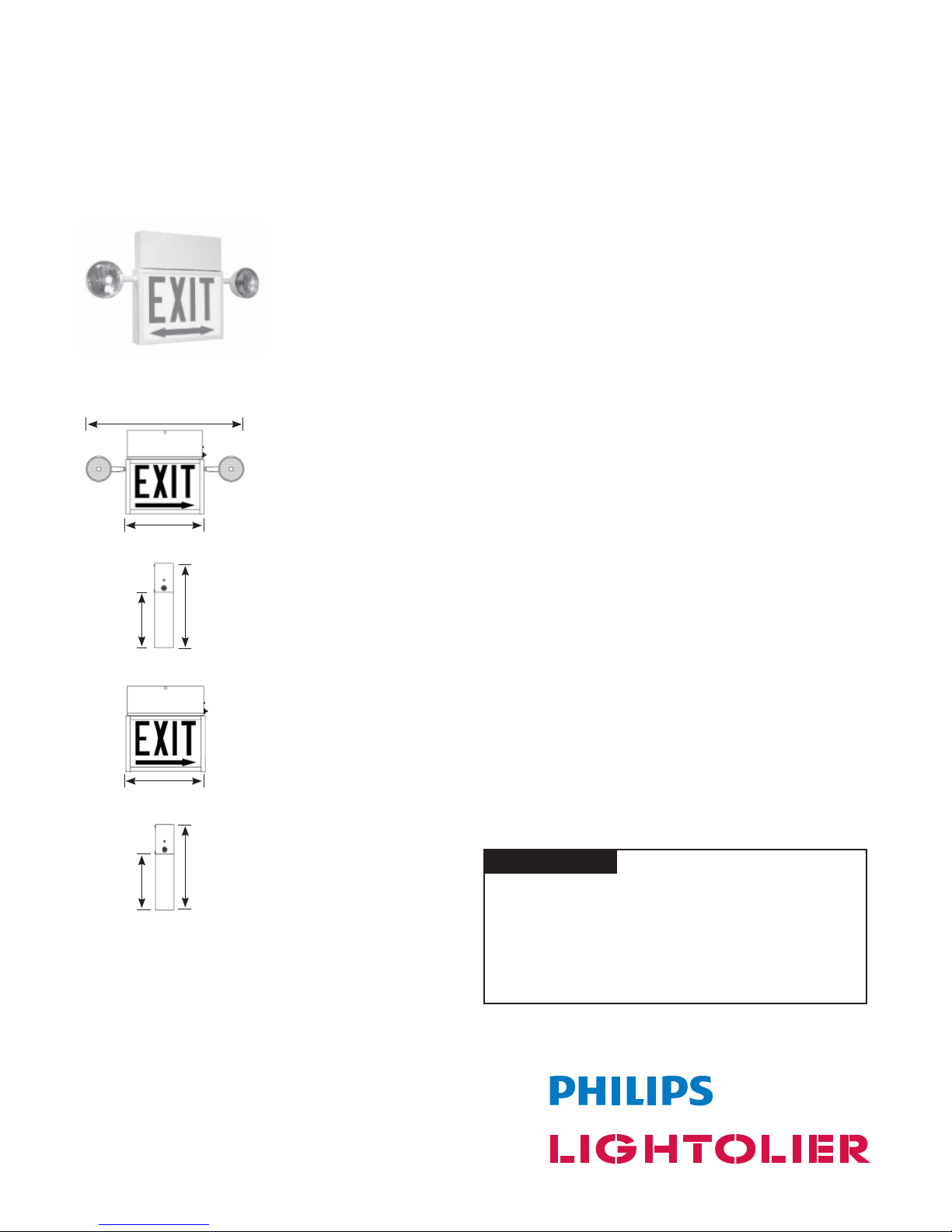

MJ6E1RW12DEH

9.5"

(24.1 cm)

26.25"

(66.7 cm)

14.5"

(36.8 cm)

12.75"

(32.4 cm)

Combination Model

Standard Model

9.5"

(24.1 cm)

14.5"

(36.8 cm)

12.75"

(32.4 cm)

MJ6 Series

CHICAGO LED STEEL EXIT

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

MJ6 Series July 27, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

MJ6 = Chicago

Exit

MJ6

1= Single Face

2= Double Face

# of Faces

A= AC Only Exit

E= Emergency

Operation Exit

Mode of Operation

Single Face Models

3= EXIT (No Arrow)

6= EXIT (Right Arrow)

9= EXIT (Left Arrow)

12 = EXIT (Double Arrow)

2= STAIRS (No Arrow)

5= STAIRS (Right Arrow)

8= STAIRS (Left Arrow)

11 = STAIRS (Double Arrow)

Double Face Models

18 = EXIT (No Arrow)

21 = EXIT (Right or Left Arrow)

24 = EXIT (Double Arrow)

17 = STAIRS (No Arrow)

20 = STAIRS (Right or Left Arrow)

23 = STAIRS (Double Arrow)

Exit Face Designator

DEH = Combination Model w/ Side Mounted Par 36

12 W Halogen Heads

SW = Special Wording (consult factory)

SX = Self-Diagnostic Circuit (emergency models only)

IA = Audible Intermittent Alarm (emergency models only)

IV = Visual Intermittent Alarm (emergency models only)

FA = Fire Alarm Panel Interface

Factory Installed Options

RW = Red

on White

Letter Color

Accessories (order as a separate item)

MJSKW = 18” Stem Mounting Kit (white)

MJSKB = 18” Stem Mounting Kit (black)

MJPG9 = Wire Guard - Wall Mount (AC and emergency models)

MJPG10 = Wire Guard - Wall Mount (combination models)
