Features

Stand-Off Unit: 2-3/4" overall height, meets ADA requirements.

Channel: 1" x 1" brushed and anodized extruded aluminum ballast channel.

Provided with KO’s and threaded holes to accept all mounting accessories.

Cover: Brushed and anodized aluminum ballast cover. Press-fit installation.

No visible hardware.

Multi-fonction bloc (2): Retains lampholder to the ballast channel. Also

functions as a wireway for continuous rows and patterns. Brushed and anodized

aluminum finish.

Lampholder Stem: Small 5/16" diameter aluminum wireway stem for lampholder,

suitable distance to permit the installation of the shielding options. Hold in place

by ball plungers to ease relamping.

Lampholder Housing (2): 1" square brushed and anodized aluminum with turret

style locking socket.

Mounting

Direct Mount: Square canopies or invisible feed suitable for plaster ceiling, exposed

ceiling or T-Bar ceilings mounts. See details on page 2.

Suspended Mount: Single stem or aircraft cable with round canopy suitable for mounting

on a standard outlet box for plaster ceiling, exposed installation or T-Bar ceilings mounts.

Stem and cable mounts can both be used on the same fixture.

Wall Mount: can be wall mounted vertically or horizontally.

KUBIK 1.0 SL110B

Page 1 of 5 Bare Lamp Stand-Off Unit

1-28W T5 Linear

Dimensions

Louver accessories

Lightolier www.lightolier.com



We reserve the right to change details of design, materials and finish.

SL110B.pdf

Canlyte www.canlyte.com



Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Accessories/Options

Cat. No. Description Finish

SL002ALG Spiral Louver Textured light grey (paint)

SL002C Orbit Louver Semi-diffused aluminum anodized

SPR: Add to unit. The

Spiral louver produces

reﬁned, effective lengthwise

shielding to minimize

add to direct view of

the light source.

ORB: Add to unit. The

Orbit louver displays perfect

balance as it rotates into

any number of positions

from uplight to downlight

to wall washing.



46-3/16"

(1173mm)

2-3/4"

(70mm)

(25mm)

44-1/2"





43-1/2"

 1-3/8"



3-1/2"



Spiral Louver

Orbit Louver (1 part)

Labels

cULus Certified. Suitable for damp locations.

Electrical

Ballast: Electronic rapid start extra slim profile 1 lamp 28W T5 linear ballast. Not available

in universal voltage.

120V: 0.25 amps

277V: 0.11 amps

Lampholder: G5 plug-on base, miniature Bi-pin.

Finish

Natural brushed and anodized aluminum. All suspension parts and Spiral louver painted

with powder coat paint process.

Ordering guide (complete luminaire consist of unit & power feed)

Cat. No. Lamp Volts Description Finish

SL110A28IA1 120V 4 ft Bare Lamp Flush unit Brushed and Anodized Aluminum

SL110A28IA2 1 -28W T 5 277V

Lightolier is a Philips group brand

KUBIK 1.0 SL110B

Page 2 of 5 Bare Lamp Stand-Off Unit

1-28W T5 Linear

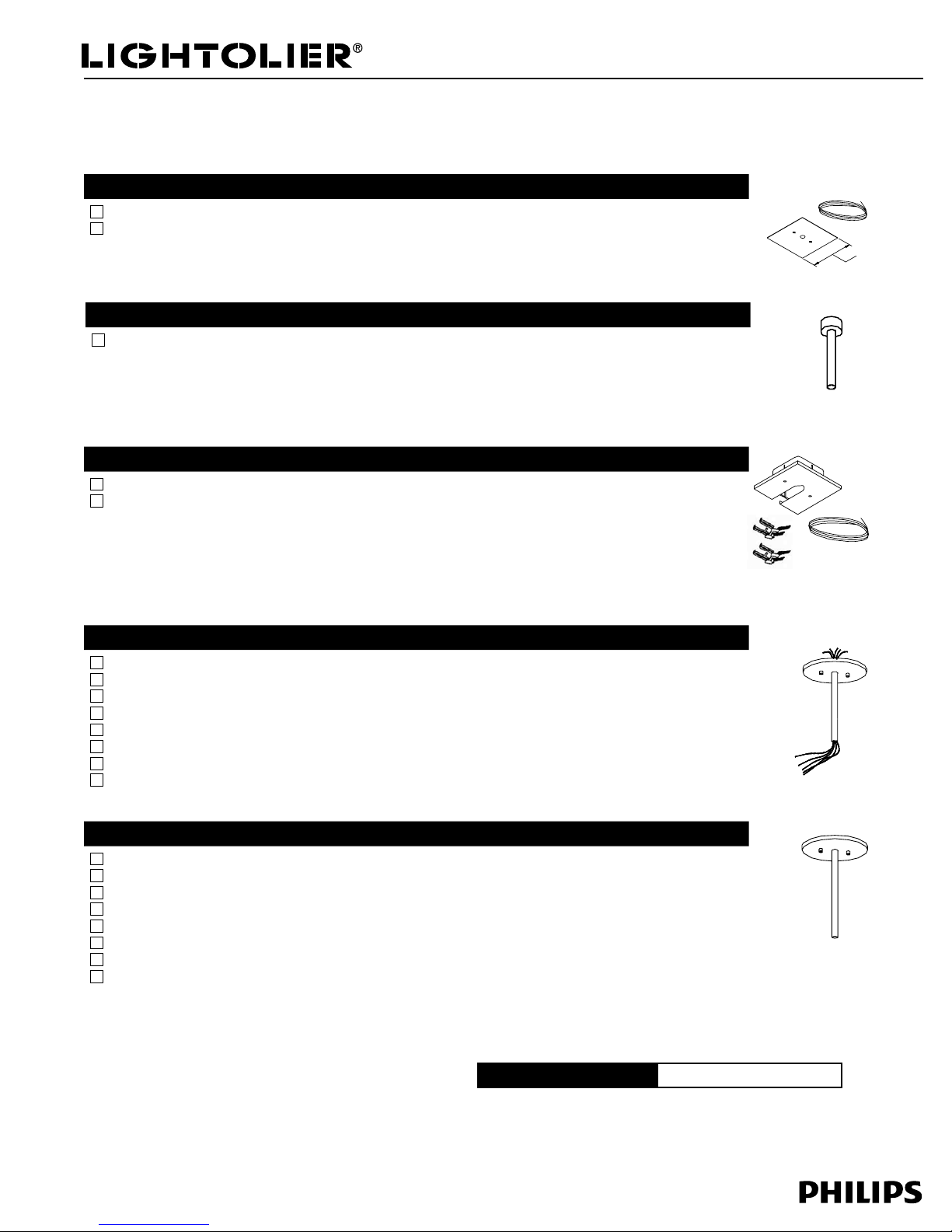

Accessories/Options

Job Information Type:

Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.

SL110B.pdf

Canlyte www.canlyte.com

Cat. No. Finish Feed Canopy Kit

SL003JLG

SL003JWH

Textured Light Grey

White

Mounts to end or middle of the channel for power feed from

3" (76mm) or 4" (102mm) octagonal outlet box. Kit includes

one 0.05" (1.3mm) thick, 4-1/2" (114mm) grounded square steel

plate. Comes with 4 wires 18 AWG, 10 Amps max.

4-1/2"



Square

Cat. No. Finish Invisible Feed Kit

SL003K Corrosion Protected Accepts conduit or cable with 3/8" (10mm) or 1/2" (13mm)

electrical connector (by others). Kit includes one 0.06" (1.5mm)

thick wall by 1/2" (13mm) dia. seamless steel stem and,

one 0.09" (2.3mm) thick by 5/8" (16mm) by 15/16" (24mm) dia.

aluminum connector. (20 Amps max.)

Cat. No. Finish Power Feed Stem Kit

SLO03M18LG

SLO03M36LG

SLO03M48LG

SLO03M72LG

SLO03M18WH

SLO03M36WH

SL003M48WH

SLO03M72WH

18" Textured Light Grey

36" Textured Light Grey

48" Textured Light Grey

72" Textured Light Grey

18" White

36" White

48" White

72" White

Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box

Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel

canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless

steel stem, available in 4 different lengths and two decorative

cylinder head screws. Complete installation of Power Feed

Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS. Comes

with 5 pre-assembled wires. 10 Amps max.

Cat. No. Finish Stem Mounting Kit (non-electrical)

SLO04M18LG

SLO04M36LG

SLO04M48LG

SLO04M72LG

SLO04M18WH

SLO04M36WH

SLO04M48WH

SLO04M72WH

18" Textured Light Grey

36" Textured Light Grey

48" Textured Light Grey

72" Textured Light Grey

18" White

36" White

48" White

72" White

Mounts to a 3" (76mm) or 4" (102mm) octagonal outlet box

Kit includes one 0.024" (0 6mm) thick, 5" (127mm) round steel

canopy, and one 0.06" (1.5mm) thick, 1/2" (13mm) dia. seamless

steel stem, available in 4 different lengths and two decorative

cylinder head screws. Complete installation of Power Feed

Stem Kit. Field cuttable, re-thread stem 1/4-18 NPS.

Cat. No. Finish Grid Ceiling Feed Kit

SL003LLG

SL003LWH

Textured Light Grey

White

Mounts along runner or at the intersection of runners. Kit

Includes one 2-1/8" (54mm) deep by 4" (102mm) grounded

octagonal outlet box, one 0.05" (1.3mm) thick universal

crossbar, one 4-1/2” (114mm) white plastic square, and two

t-bar clips 5/32" (4mm) thick spacer, one 0.04" (1 mm) thick

aluminum canopy and two t-bar wrap around clips. Comes

with 4 wires 18 AWG, 10 Amps max.

Lightolier is a Philips group brand

KUBIK 1.0 SL110B

Page 3 of 5 Bare Lamp Stand-Off Unit

1-28W T5 Linear

Job Information Type:

Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.

SL110B.pdf

Canlyte www.canlyte.com

Cat. No. Finish Power Feed Cable Kit

SL003NLG

SL003NWH

Textured Light Grey

White

Mounts to a 3" (76mm) or 4" (102mm) octogonal outlet box.

Kit includes one 0.024" (0.6mm) thick, 5" (127mm) round steel

canopy, one 0.05" (1.3mm) thick grounded crossbar threaded

stud, one 0.046" (1.2mm), 96" (2438mm) long aircraft galvanized

cable with zinc plated hanger adjusting glider hardware,

two white plastic cable stay and one 18 AWG (AWM), 10 feet

(3048mm) long white cord, 10 Amps max.

Cat. No. Finish Extension Blank (4')

SL003F4 Brushed Aluminum Permits power feed between two 1" x 1" (25mm x 25mm)

brushed and anodized units in a straight run with supplied

extra wires 18 AWG, 10 Amps max, and wire connectors

to energize them. Includes one 46-3/16" (1173mm) long

extruded aluminum channel and cover, two solid aluminum

multi-function blocks as a wireway, plug inserts and wire

connectors.

46-3/16"



Cat. No. Finish Invisible Coupler

SL003G Zinc plated Invisible coupler for joining two Kubik 1.0 units together

mechanically or/and electrically. Recommended for direct

surface mounting. Comes with 4 wires 18 AWG, 10 Amps max.

Cat. No. Finish 5 Face Connector

SL003H Brushed Aluminum Kubik 1.0 units coupled with exclusive solid brushed and

anodized aluminum 5-face connectors and power feed can

satisfy virtually any layout requirement. The connector permits

you to create square, rectangular, continuous rows, L, T,

X conﬁgurations. Includes four threaded couples, plug insert

(3), four wires 18 AWG and wire connectors, 10 Amps max.

Kubik 1.0



Cat. No. Finish Cable Mounting Kit (non-electrical)

SL004NLG

SL004NWH

Textured Light Grey

White

Mounts to a 3" (76mm) or 4" (10mm) octagonal outlet box.

Kit includes one 0.024" (0.6mm) thick, 5" (127mm) round steel

canopy, one 0.05" (1 3mm) thick grounded crossbar, threaded

stud, one 0.046" (1.2mm), 96' (2438mm) long galvanized

aircraft galvanized cable with zinc plated hanger and

adjusting glider hardware. Can be used with either Cable

or Stem Power Feed Kit.

Lightolier is a Philips group brand

Job Information Type:

Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.

SL110B.pdf

Canlyte www.canlyte.com

KUBIK 1.0 SL110B

Page 4 of 5 Bare Lamp Stand-Off Unit

1-28W T5 Linear

ZONE

DEG

ALONG 22.5 45 67.5 ACROSS

0 312 312 312 312 312

     

     

     

     

45 120 141 203 265 308

     

65 33 52 145 232 287

75 22 34 120 218 278

85 13 27 102 203 265

     

     

     

115 0 11 75 187 252

     

135 0 0 0 5 27

145 0 0 0 0 0

155 0 0 0 0 0

165 0 0 0 0 0

175 0 0 0 0 0

180 0 0 0 0 0

ZONE

DEG

ALONG 22.5 45 67.5 ACROSS

0 537 537 537 537 537

5 536 533 538 544 535

     

     

35 362 387 446 502 526

45 274 310 380 447 480

     

65 116 163 242 301 344

     

     

     

     

     

     

125 0 15 21 33 47

135 0 7 22 35 41

145 0 5 20 30 38

155 0 0 12 25 28

     

175 3 1 2 1 0

180 2 2 2 2 2

COEFFICIENTS OF UTILIZATION

ZONAL CAVITY METHOD * EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50

Wall Reﬂectance

70 50 30 10 70 50 30 10 50 30 10

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

LUMINAIRE INPUT WATTS = 33.2

COEFFICIENTS OF UTILIZATION

ZONAL CAVITY METHOD * EFFECTIVE FLOOR CAVITY REFLECTANCE = .20

80 70 50

Wall Reﬂectance

70 50 30 10 70 50 30 10 50 30 10

DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES

LUMINAIRE INPUT WATTS = 26.5

Room Cavity RatioRoom Cavity Ratio

ZONE LUMENS % LAMP % LUMINAIRE

   

0-40 383 14.75 25.55

   

   

   

   

   

   

ZONE LUMENS % LAMP % LUMINAIRE

0-30 428 16.41 23.66

   

0-60 1271 48.72 70.24

   

   

   

   

   

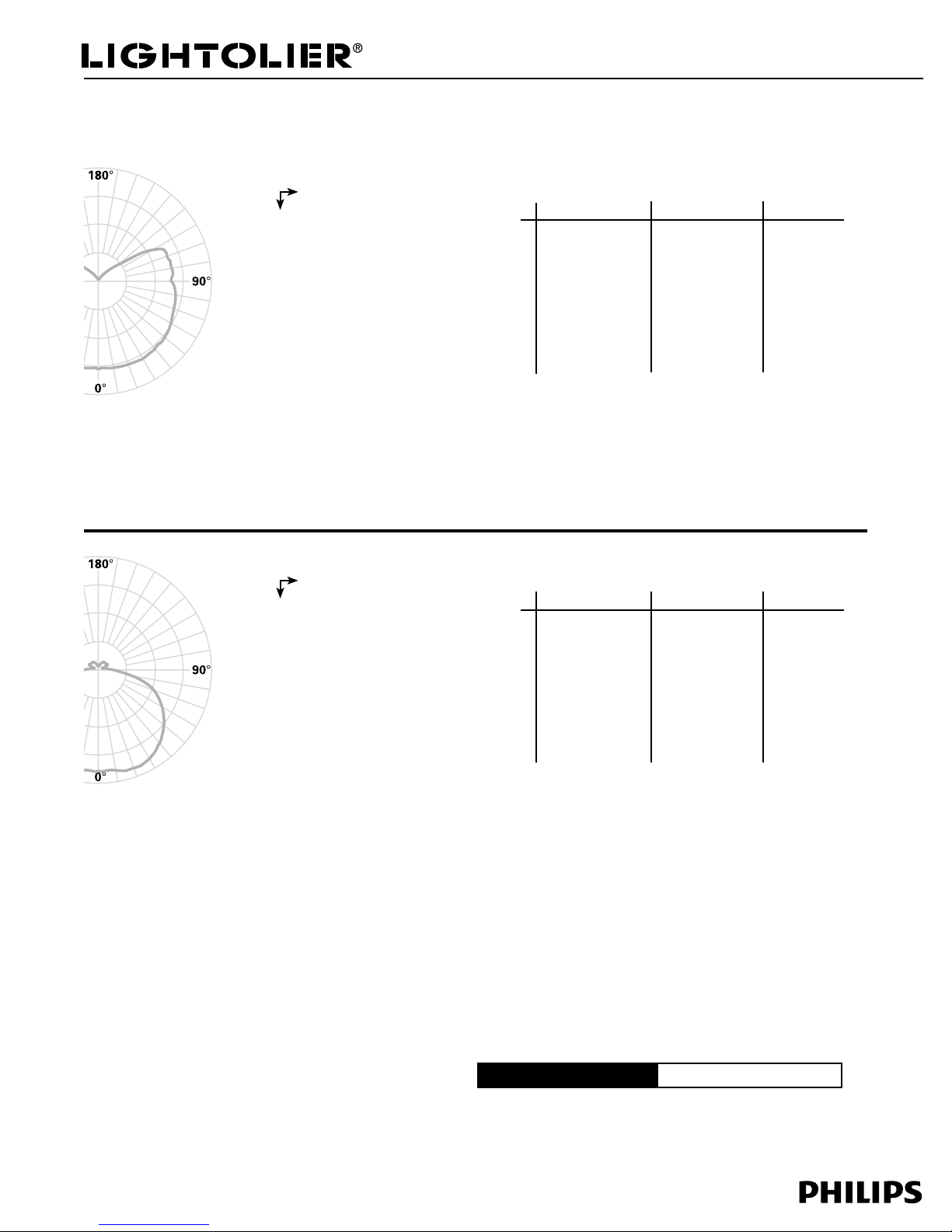

DISTRIBUTION

CANDLEPOWER CURVE

Performance

CANDLEPOWER



CAT. NO: SL110B281A/SL002ALG

1 x 28W T5 at 2610 Lumens

Efficiency: 57.7 %

Candela at Nadir: 312cd



CAT. NO: SL110B281A/SL002C

1 x 28W T5 at 2610 Lumens



Candela at Nadir: 537cd

400

300

200

600

500

400

0 .65 .65 .65 .65 .62 .62 .62 .62 .56 .56 .56

            

            

            

4 .43 .36 .31 .27 .41 .34 .30 .26 .31 .27 .24

            

            

7 .33 .25 .20 .17 .32 .24 .20 .16 .22 .18 .15

            

            

           

            

            

2 .68 .62 .57 .53 .66 .60 .56 .52 .57 .54 .51

            

4 .57 .48 .42 .38 .55 .47 .42 .37 .45 .40 .36

5 .52 .43 .36 .32 .50 .41 .36 .31 .40 .34 .31

6 .47 .38 .32 .27 .46 .37 .31 .27 .35 .30 .26

7 .44 .34 .28 .24 .42 .33 .28 .23 .32 .27 .23

            

            

           

Lightolier is a Philips group brand

Job Information Type:

Lightolier www.lightolier.com

We reserve the right to change details of design, materials and finish.

SL110B.pdf

Canlyte www.canlyte.com

KUBIK 1.0 SL110B

Page 5 of 5 Bare Lamp Stand-Off Unit

1-28W T5 Linear

Pattern

SL110A281A

SL003G

SL003GSL003F4 SL110A281A

SL003K

SL003J

SL003M

SL003H

SL004N

SL003H SL004N

SL003J

Lightolier is a Philips group brand

Ce manuel convient aux modèles suivants

Autres manuels Lightolier Luminaire

Lightolier

Lightolier Calculite C7E17VW Manuel utilisateur

Lightolier

Lightolier REFLECTOR TRIM Manuel utilisateur

Lightolier

Lightolier Calculite IS_PB Assembly and Mode d’emploi

Lightolier

Lightolier Calculite ProSpec PA2H3039 Manuel utilisateur

Lightolier

Lightolier Lytespan 83ED17S Manuel utilisateur

Lightolier

Lightolier Lytecaster 1004ICR Manuel utilisateur

Lightolier

Lightolier 9” PENDALYTE SERIES Mode d’emploi

Lightolier

Lightolier Brisa FB5114U Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PB2H3070 Manuel utilisateur

Lightolier

Lightolier CORD AND PLUG CONNECTOR Instructions d'utilisation

Lightolier

Lightolier D13 Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PB1A7050 Manuel utilisateur

Lightolier

Lightolier QVS2GPTOS2FT Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PB1A1175 Manuel utilisateur

Lightolier

Lightolier Lytespan 9630 Manuel utilisateur

Lightolier

Lightolier Lytespan 6276B Manuel utilisateur

Lightolier

Lightolier Lytespan 8338 Manuel utilisateur

Lightolier

Lightolier Lytespan 6279 Manuel utilisateur

Lightolier

Lightolier QVH1GPFOS2FT Manuel utilisateur

Lightolier

Lightolier Lytecaster 2005 Manuel utilisateur

Lightolier

Lightolier SL205B Manuel utilisateur

Lightolier

Lightolier ProSpec DRP16 Manuel utilisateur

Lightolier

Lightolier 4K35 Manuel utilisateur

Lightolier

Lightolier STA 1'x4' 1 LAMP Manuel utilisateur

Manuels Luminaire populaires d'autres marques

Emos

Emos CLASSIC ZY1431T Manuel utilisateur

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuel utilisateur

Hedler

Hedler C 12 silent Manuel utilisateur

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuel utilisateur

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuel utilisateur

Lightmaxx

Lightmaxx Shaft 5R Manuel utilisateur

Triarch

Triarch 31083 Manuel utilisateur

Philips

Philips 32614 Series Manuel utilisateur

IKEA

IKEA TIVED Manuel utilisateur

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuel utilisateur

Martin

Martin MAC 250 Krypton Manuel utilisateur

Cooper Lighting

Cooper Lighting Halo L3232E Manuel utilisateur

Stageline

Stageline ODW-2410RGBW Manuel utilisateur

Light Sky

Light Sky Tornado Series Manuel utilisateur

ArtFox

ArtFox Beam 15R extreme Manuel utilisateur

GLG

GLG multispot 330 Manuel utilisateur

Home Accents Holiday

Home Accents Holiday TY052-1924-1 Manuel utilisateur

SELF Electronics

SELF Electronics FLEX Manuel utilisateur
