Lightolier CA3FMR SERIES Manuel utilisateur

PLASTER

SHIELD

PLASTER/JOINT

COMPOUND

NOTE: Photos shown here assume the Frame-In Kit

and ceiling are already installed.

For flangeless installations, cardboard PAINT

OVERSPRAY SHIELD, which is installed in 3”

Evolution Frame-In-Kits, must be removed prior to

CA3FMR installation.

NOTE: The bottom surface of the Frame-In Kit should be

flush with the top surface of the ceiling material.

1. Do not remove cardboard FLANGELESS TRIM RING

PLASTER SHIELD from flangeless trim ring.

2. Prior to installation, ensure that ceiling opening is

3-5/8” in diameter.

NOTE: For maximum adhesion, a bead of construction

adhesive can be applied to the back (ceiling) side of the

FLANGELESS TRIM RING perforated flange.

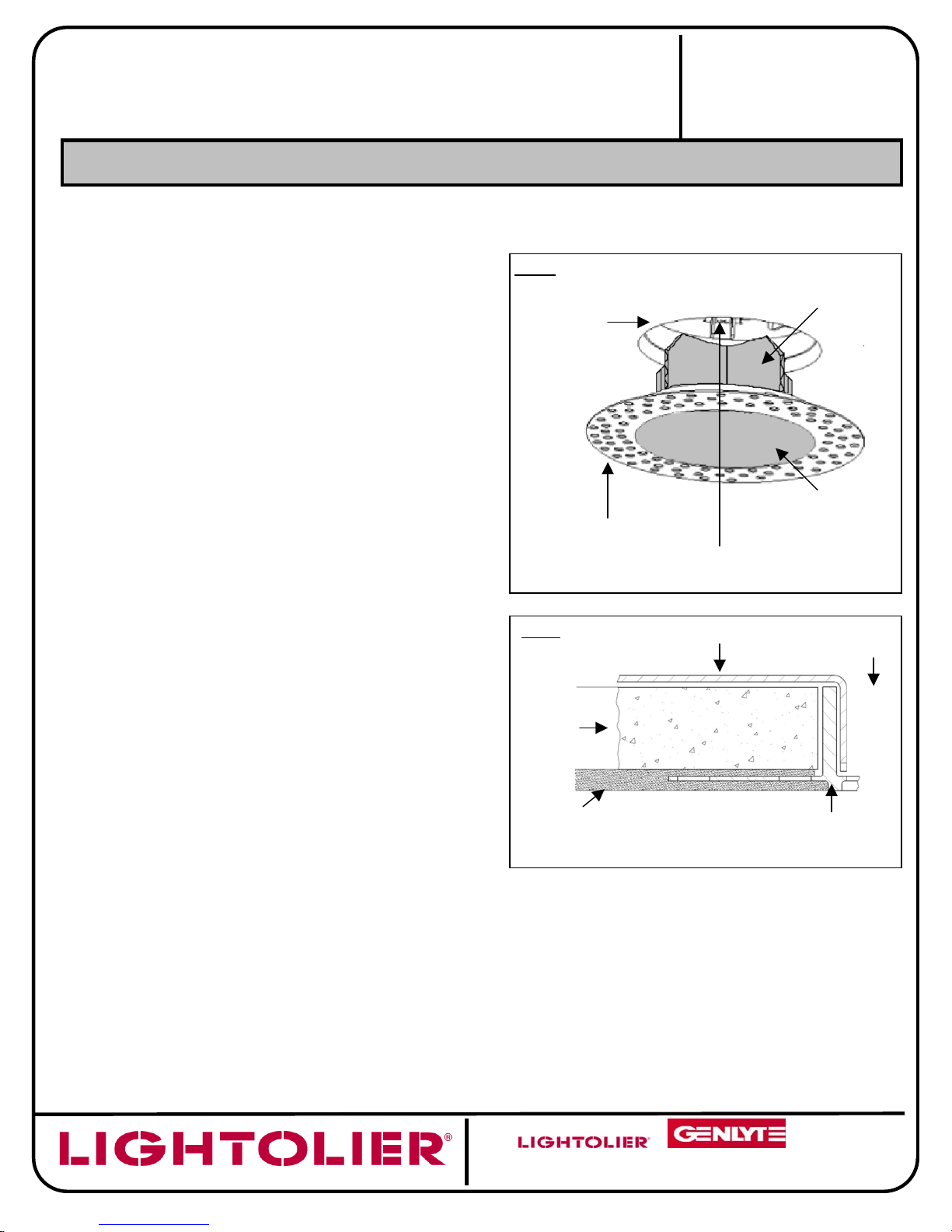

3. Insert FLANGELESS TRIM RING into ceiling opening

and rotate clockwise, ensuring the perforated flange is

flush to the ceiling (Fig. 1). Blades on outside edge of

ring should bite into ceiling and secure ring in place.

NOTE: For applications where ceiling thickness is less

than ¾”, FLANGELESS TRIM RING should fit between

ceiling & Frame-In Kit (Fig 2). For applications where

ceiling thickness exceeds ¾”, FLANGELESS TRIM RING

will not contact installed Frame-In Kit. It is therefore

critical that FLANGELESS TRIM RING be vertically

aligned with the Frame-In Kit aperture. Vertical walls of

cardboard FLANGELESS TRIM RING PLASTER

SHIELD should fit inside Frame-In Kit aperture and be

used to ensure vertical alignment.

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE

This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTALLATION PROCEDURE FOR CALCULITE®EVOLUTION:

CA3FMR SERIES FLANGELESS TRIM RING FOR FLANGELESS TRIMS

INSTRUCTION SHEET NO.

IS: CA3FMR

A1104 Page 1 of 2

A COMPANY

631 Airport Road, Fall River, MA 02720

Fig. 1 CEILING

INSTALL RING IN

THIS DIRECTION

FLANGELESS TRIM

RING PERFORATED

FLANGE

. 2 FRAME-IN KIT

CEILING

CA3FMR FLANGELESS

TRIM RING

CEILING

OPENING

VERTICAL

WALLS

3-5/8”

OPENING

CEILING APPEARANCE

AFTER PLASTER / COMPOUND

HAS BEEN APPLIED AND FLANGELESS TRIM

RING PLASTER SHIELD HAS BEEN REMOVED.

Fig. 4 FLANGELESS

TRIM RING LIP

Fig. 3 PLASTER / COMPOUND

PLASTER / COMPOUND

APPLICATION TOOL PLASTER SHIELD

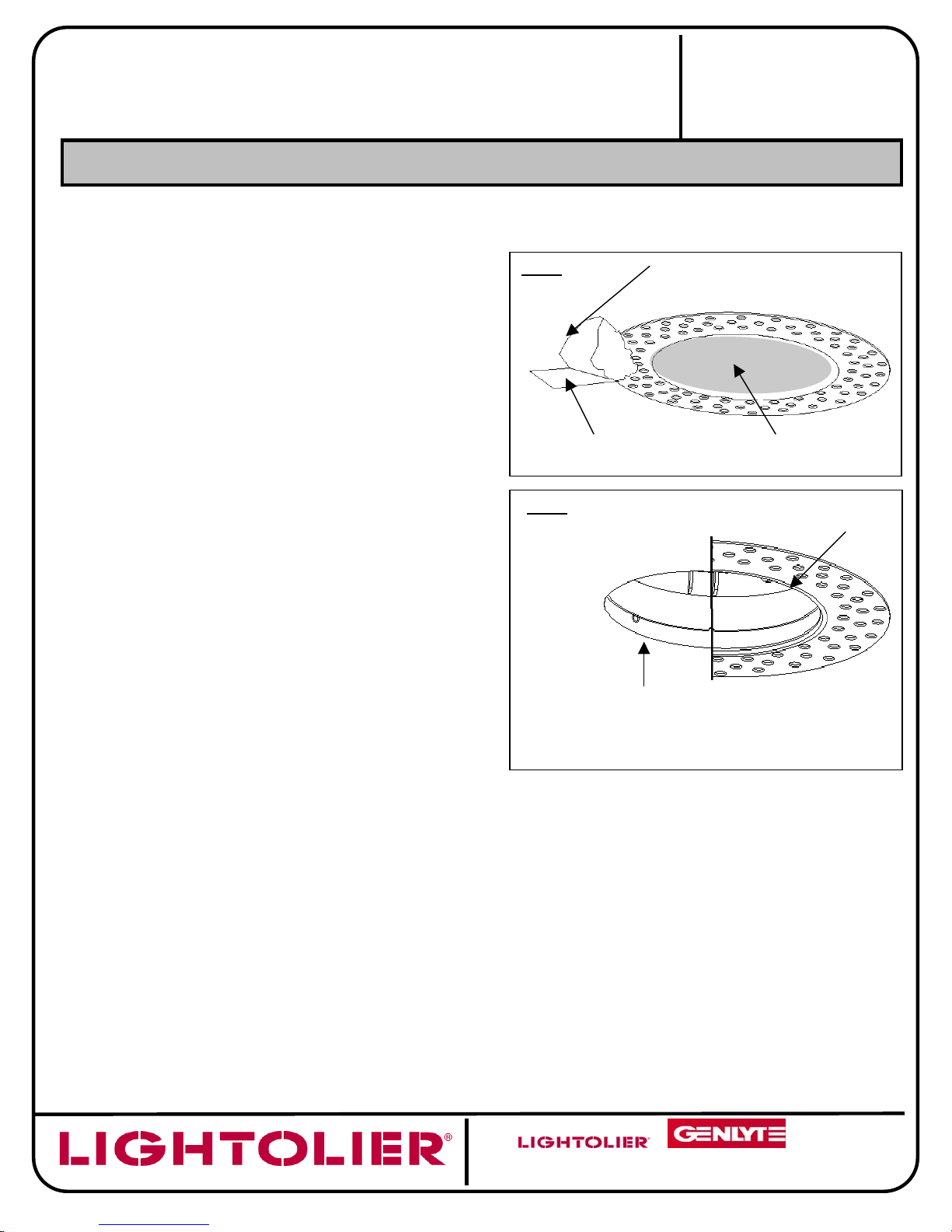

4. Apply plaster/compound to the ceiling (Fig 3). Starting at

the outside of the ring circumference, evenly build up the

plaster/compound around the entire RING LIP surface. It

is also acceptable to carefully apply plaster/compound ove

the cardboard FLANGELESS TRIM RING PLASTER

SHIELD if preferred. Plaster/compound should be applied

so as to firmly secure FLANGELESS TRIM RING flush to

ceiling.

5. Feather the plaster/compound out away from the RING

until the transition is smooth and acceptable; multiple coats

may be required.

6. Sand away surface blemishes. For best results, sand

flat until the FLANGELESS TRIM RING plaster lip is

visible.

7. If cardboard FLANGELESS TRIM RING PLASTER

SHIELD is covered with plaster/compound, use a sharp

blade to carefully cut around inside circumference of

FLANGELESS TRIM RING and remove cardboard.

8. Paint as required, making sure to keep paint out of

Frame-In Kit.

A COMPANY

631 Airport Road, Fall River, MA 02720

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE

This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.

To assure full compliance with local codes and regulations, check with your local electrical inspector before

installation. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference. IS: CA3FMR

INSTRUCTION SHEET NO.

Page 2 of 2

A1104

INSTALLATION PROCEDURE FOR CALCULITE®EVOLUTION:

CA3FMR SERIES FLANGELESS TRIM RING FOR FLANGELESS TRIMS
