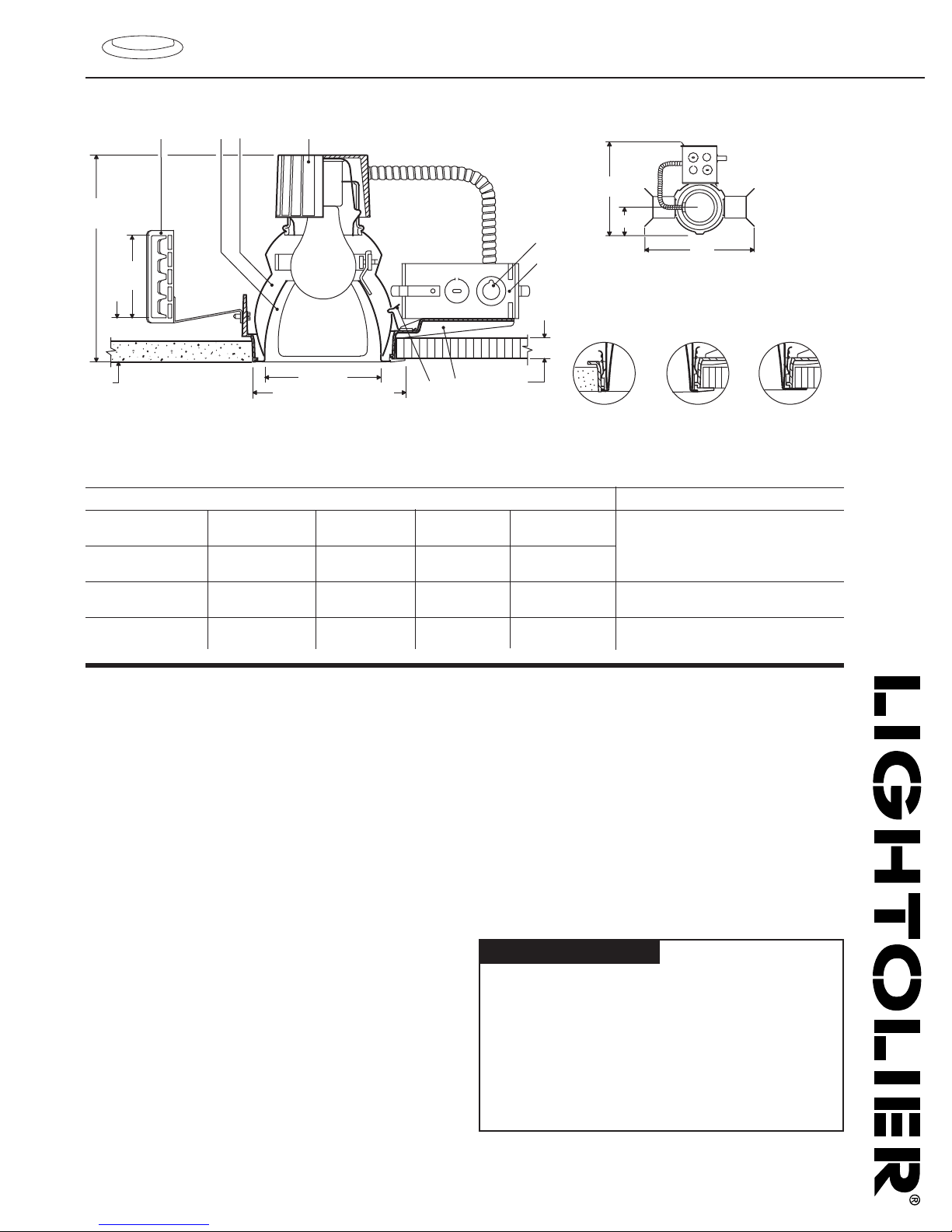

Lightolier Calculite P7006 Manuel utilisateur

Ceiling Cutout: 5 1/6” Dia.

Reflector Trims Frame-In Kits Lamp

White Polished Flush/White

Finish Self-Flange Self-Flange Molded Trim Ring

Wall Washer Specular Clear P7006CLW P7006CLP P7006CL P401 Clear A19 100W

Specular Gold Q7006GDW Q7006GDP Q7006GD Q402 Gold

Corner Wall Washer Specular Clear P7007CLW P7007CLP P7007CL P401 Clear A19 100W

Specular Gold Q7007GDW Q7007GDP Q7007GD Q402 Gold

Double Wall Washer Specular Clear P7008CLW P7008CLP P7008CL P401 Clear A19 100W

Specular Gold Q7008GDW Q7008GDP Q7008GD Q402 Gold

2184

3/4" max.

Ceiling Thickness

4 5/16" Dia.

Overlap

5-3/4"

Flush

7 7/16"

1" min.-

2 1/8 " max.

(Ceiling Runner)

3-1/4"

11"

13"

Molded

Trim Ring

Flush Trim

(Molded Trim Ring Removed)

Overlap Self-Flange

Matte White or Polished

TOP VIEW

Calculite®Incandescent Open Wall Washer P7006

Page 1 of 2 4 1/2" Aperture A19

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Socket Cup: Die-cast aluminum cup effectively dissipates heat and assures

lamps maintain proper optical alignment to reflector. Snaps onto reflector

neck for easy tool-less installation. Contains medium base porcelain socket

with nickel plated screw shell wired with No. 18 SF1 leads to J-Box.

2. Mounting Bracket: Adjusts vertically from inside of fixture. Durable 16 ga.

steel construction. Use with standard 3/4”or 1 1/2”lathing channels, or

1/2”(11/16" O.D.) EMT pipe (by others), or Lightolier accessory mounting

bars.

3. Retaining Springs: Precision tooled springs secure reflector to mounting

frame for quick tool-less installation.

4. Insert reflector: Alzak®aluminum, 16 ga., “cut-window”reflector allows

light to pass to a separately contoured outer housing reflector. 50°visual

cut-off to lamp and lamp image. Insert reflector contours provide even down-

lighting. Direction of wall wash can be re-orientated after installation.

Attached with thumb screws for simple installation and maintenance.

Reflector supplied with white molded trim ring (field paintable); or self-

flanged reflector, matte white or flange finish to match reflector.

5. Junction Box: 14 ga. steel, 4" x 4”x 2" specially designed horizontal junc-

tion box allows inspection from below.

6. Thermal Protector: Meets NEC and UL requirements.Insulation must be

kept 3" away from fixture sides and wiring compartments and must not be

placed above fixture in a manner which will entrap heat.

7. Mounting Frame: Die-cast aluminum suitable for dry or plaster ceilings.

Provides flangeless trim in plaster ceiling.

Options & Accessories

18" Mounting Bars 1950 (set of 2)

27" Mounting Bars 1951 (set of 2)

T-Bar Anchor Clips 1956 (set of 4, for 1950 & 1951 bars)

Options & Accessories (continued)

Wood Joist Mtg. Bars 7994 (set of 2)

Existing Ceiling Clips 7998 (set of 2)

Step Down Transformer 7997 see separate specification sheet

Chicago Air Plenum LC (add suffix to Frame-in Kit. Requires access

from above ceiling)

Electrical

UL Listed for a maximum of 8 No. 12, 75°C through branch circuit conductors, or

60°C supply conductors for end of run.

Labels

UL Listed for damp locations, I.B.E.W.

Alzak®is a registered trademark of ALCOA.

WALL

WASHER

INSIDE CORNER

WALLWASHER

DOUBLE

WALLWASHER

WALL

14 f.c.

12 f.c.

Coefficients of Utilization

% Effective Ceiling Cavity Reflectance

80 50 10

Room Cavity Ratio

20% Floor Cavity Reflectance

50 30 10 50 30 10 50 30 10

.62 .60 .59 .58 .57 .56 .54 .53 .53

.58 .55 .53 .55 .53 .52 .51 .50 .49

.54 .51 .49 .51 .49 .48 .49 .48 .47

.50 .48 .46 .48 .47 .45 .47 .45 .44

.48 .44 .42 .46 .43 .41 .44 .42 .41

.44 .41 .39 .43 .40 .38 .41 .39 .39

.41 .38 .35 .40 .37 .35 .39 .36 .34

.38 .35 .32 .37 .34 .32 .36 .33 .32

.35 .31 .29 .34 .31 .29 .33 .31 .29

.32 .29 .27 .32 .29 .27 .31 .29 .27

% Ceiling Reflectance

Conversion Factors:

75W A-19; (Clear): C.U. X 1.O. 75W (Gold): C.U. X 0.9. 100W A-19 (Gold): C.U. X 0.9

Units 2 Feet

From Wall

1 191819 151415 15 815

2 262626 202020 181518

3 222222 161616 141214

4 161816 121412 101010

5 131413 101210 9 8 9

6 131213 9109 989

7 101010 888 868

8 101010 888 868

9 101010 888 868

Units 3 Feet

From Wall

1 7107 767 545 533

2 131213 11811 989 969

3 141414 121012 8 8 8 8 8 8

4 131413 11811 888 787

5 101410 10810 888 666

6 9129 969 767 565

7 9129 969 767 565

8 9109 969 767 565

9 9109 969 767 565

Footcandle values are averaged and rounded off and are based on a minimum of five units.

Conversion factors: 75W A-19 (Clear) = F.C. x 0.7; 75W A-19 (Gold) = F.C. x 0.6; 100W A-19 (Gold) = F.C. x 0.9;

Distance from Ceiling (FT.)

2' 3' 4'

3' 4' 5' 6'

Footcandles on Wall from Multiple Units —Clear Cone, 100W A19

Clear Cone, 100W A19

Example: with multiple

clear cone units, using

100W A-19 lamps, located

2' from wall and 4' on cen-

ter, (matching downlights

4' on center), the illumina-

tion on the wall 3' down

from the ceiling is 14 f.c.

beneath fixtures and 12 f.c.

between fixtures.

Wall Wash Side Downlight Side

For even wall washing use a

maximum of 2 to 1 spacing

(distance between fixture +

distance to wall).

Downlight Spacing

Ratio = 1.3

Candlepower Distribution

Calculite®Incandescent Open Wall Washer P7006

Page 2 of 2 4 1/2" Aperture A19

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.
