Lightolier Calculite C4X4MRD Manuel utilisateur

Calculite® Matrix Low Voltage Open Downlight C4X4MRD

Page 1 of 2 4½" X 4½" Square Aperture (1) MR16 Low Voltage

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Ordering Information

Frame-In Kits Reﬂector Trims Finish/Flange Lamp

C4 X4LVMU Magnetic 120/277V

C4X4LVE1 Electronic 120V

C4X4LVE2 Electronic 277V

C4X4MRDCLW

C4X4MRDCLP

C4X4MRDCCLW

C4X4MRDCCLP

C4X4MRDCCDW

C4X4MRDCCDP

C4X4MRDWHW

Specular Clear/White

Specular Clear/Polished

Comfort Clear/White

Comfort Clear/Polished

Comfort Clear Diffuse/White

Comfort Clear Diffuse/Polished

White/White

(1) 12V MR16 Type Lamp

65W Max or IR 37W Max

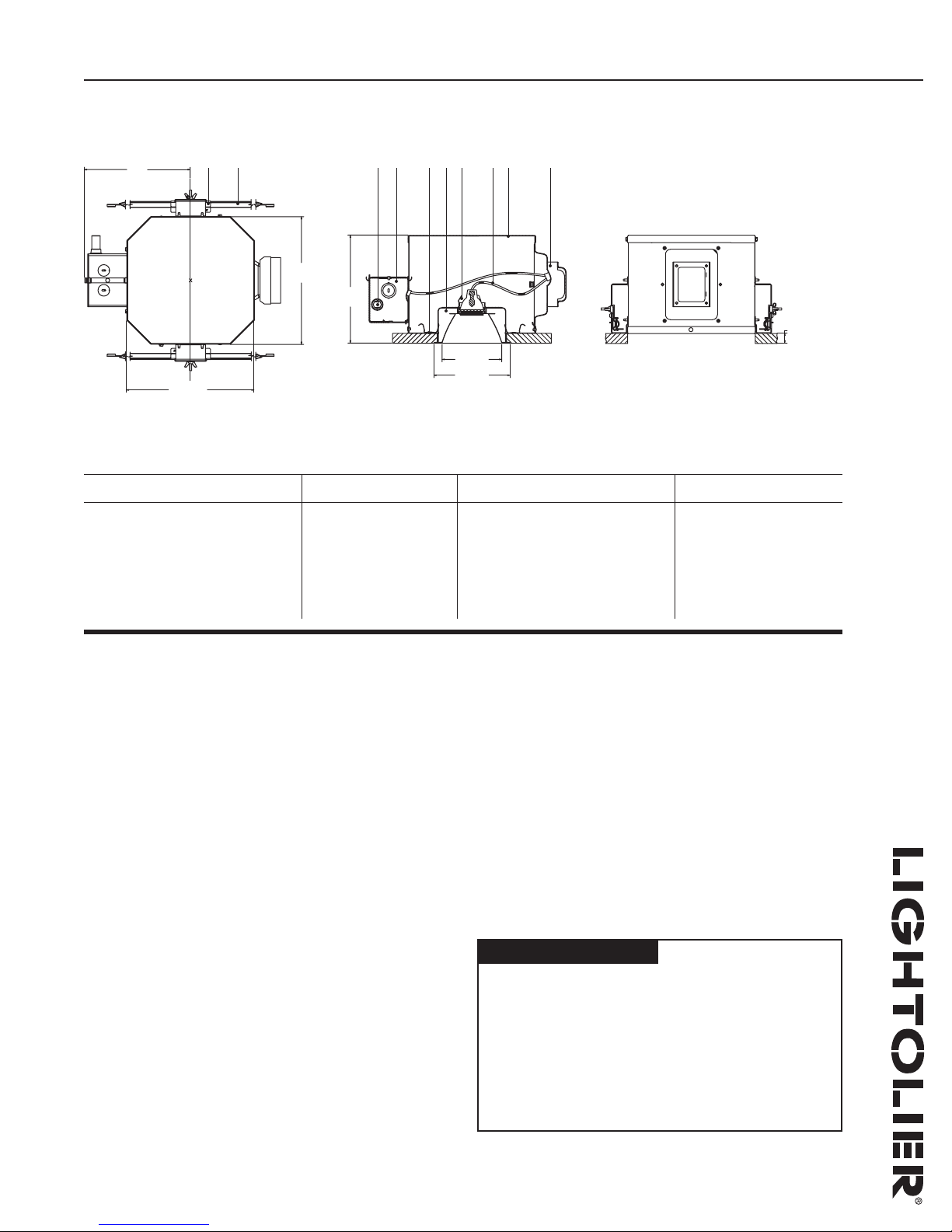

Ceiling Cutout: 5 1/4" x 5 1/4" (130 mm x 130mm) Dia.

8.16"

9.66"

Max. Ceiling

Thickness

5.75"

4.5"

Features

1. Reflector Trim: 55° physical and reflected cutoff. Available with integral

flange painted white or polished to match inside of cone.

2. Lamp Holder: Unitized optics ensure alignment of lamp and aperture cone.

Soft diffusion lens ships standard. Adjust trim kit vertically to accommodate

up to 2" thick ceiling.

3. Socket: Ceramic body with mica cover, GX5.3 (MR-16) base.

4. Frame Housing: Steel, 0.029" (22-Ga.), matte black finish.

5. Frame Vertical Adjustment Mechanism: Accommodates mounting to

virtually any ceiling system using pre-installed mounting bars, or ½" EMT

tubing (by others). Single locking feature secures all adjustments. Alignment

holes and markings allow fixture to be pre-set prior to installation. Final

adjustment can be made from below from inside the fixture.

6. Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping

bars extend to 30" long and lock securely into position. Built-in locking tabs

provide positive attachment to common T-bar systems. Self-centering feature

simplifies installation in 24" O.C. grid systems. Attaches to steel or wood

joists without accessories.

7. Retention Springs: Rust resistant springs secure trim for quick, tool-less

installation.

8. Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG,

90°C through branch circuit conductors. Allows inspection from below.

9. Thermal Protector: Meets NEC and UL requirements. Do not install

insulation above nor within 3" (76mm) of any part of the luminaire.

10. Transformer: Replaceable from below. Magnetic: 120/277V 60 Hz. Dual-

voltage, core & coil. Electronic: 120V or 277V 50/60 Hz., regulated lamp

voltage, HPF, EMI and circuit protections, thermal auto-reset, quiet operation.

Options and Accessories

Accepts two optical accessories

2" diameter color filters/specialty filters: ADF2/AF2

2" diameter louver: AL2HC

Labels

UL, cUL (Suitable for Damp Locations)

5 6 9 8 7 1 2 3 104

Calculite® Matrix Low Voltage Open Downlight C4X4MRD

Page 2 of 2 4½" X 4½" Square Aperture (1) MR16 Low Voltage

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

500

1000

1500 30°

60°

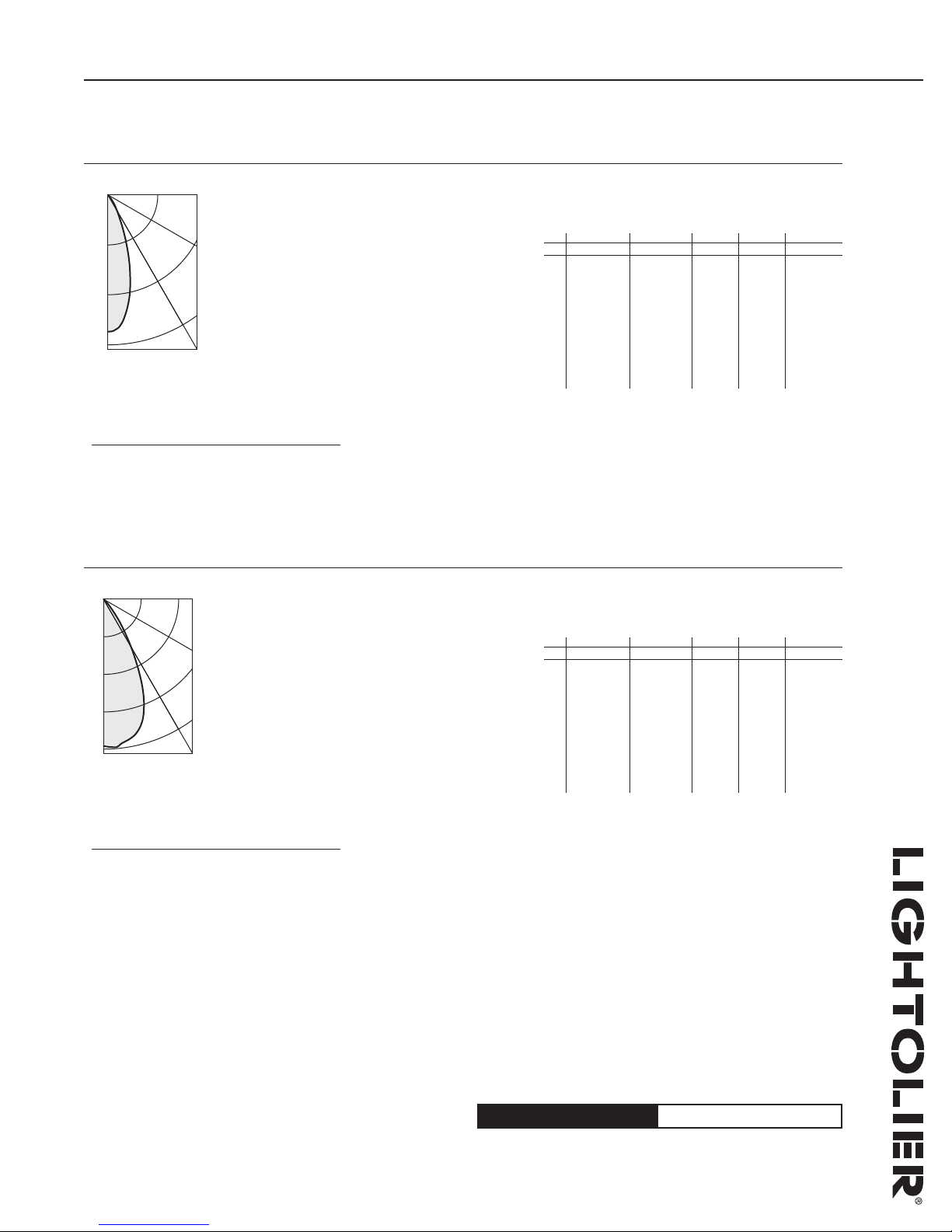

4 ½" x 4 ½" Aperture 50W MR16-40°

Candlepower Summary

Angle Mean CP Lumens

0 1371

5 1326 123

10 1137

15 863 243

20 567

25 324 162

30 184

35 108 70

40 48

45 20 19

50 7

55 1 2

60 0

65 0 0

70 0

75 0 0

80 0

85 0 0

90 0

Zonal Lumens And Percentages

Zone Lumens %Lamp %Luminaire

0-30 528 66.02 85.13

0-40 598 74.82 96.48

0-60 619 77.42 99.83

0-90 620 77.56 100.00

40-90 21 2.73 3.52

60-90 1 .1 .17

90-180 0 .00 .00

0-180 620 77.56 100.00

Efficiency = 77.6%

50W MR16 G.E. 40° FL

Lumen Rating = 800 LMS.

SC = .6

Test Report No. 3366FR

Tested According To Ies Procedures. Test Distance Exceeds Five

Times The Greatest Luminous Opening Of Luminaire

Luminance Summary - CD. / SQ. M.

Angle Mean CD/SQ M

45 2164

55 172

65 53

75 87

85 391

Coefficients Of Utilization

Zonal Cavity Method

Effective Floor Cavity Reflectance = .20

CC 80 70 50 30 10

WALL 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR 0 .92 .92 .92 .92 .90 .90 .90 .90 .86 .86 .86 .83 .83 .83 .79 .79 .79 .78

1 .89 .88 .87 .85 .88 .86 .85 .84 .83 .82 .81 .80 .80 .79 .78 .77 .77 .75

2 .86 .84 .82 .80 .85 .83 .81 .79 .80 .79 .77 .78 .77 .76 .76 .75 .74 .73

3 .84 .80 .78 .76 .82 .79 .77 .75 .78 .76 .74 .76 .74 .73 .74 .73 .72 .71

4 .81 .77 .74 .72 .80 .77 .74 .72 .75 .73 .71 .74 .72 .70 .72 .71 .69 .68

5 .79 .74 .71 .69 .78 .74 .71 .69 .72 .70 .68 .71 .69 .67 .70 .68 .67 .66

6 .77 .72 .69 .66 .76 .71 .68 .66 .70 .68 .66 .69 .67 .65 .68 .66 .65 .64

7 .74 .69 .66 .64 .73 .69 .66 .63 .68 .65 .63 .67 .65 .63 .66 .64 .62 .62

8 .72 .67 .63 .61 .71 .66 .63 .61 .65 .63 .61 .65 .62 .61 .64 .62 .60 .60

9 .69 .64 .61 .59 .69 .64 .61 .59 .63 .60 .59 .63 .60 .58 .62 .60 .58 .57

10 .67 .62 .59 .57 .67 .62 .59 .57 .61 .58 .57 .61 .58 .56 .60 .58 .56 .56

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 53.0

350

700

175

525

30°

60°

4 ½" x 4 ½" Aperture 50W MR16-60°

Candlepower Summary

Angle Mean CP Lumens

0 684

5 692 65

10 665

15 630 175

20 549

25 411 188

30 256

35 139 93

40 56

45 21 20

50 6

55 1 2

60 0

65 0 0

70 0

75 0 0

80 0

85 0 0

90 0

Zonal Lumens And Percentages

Zone Lumens % Lamp %Luminaire

0-30 428 52.00 78.82

0-40 521 63.22 95.83

0-60 543 65.90 99.88

0-90 544 65.97 100.00

40-90 22 2.75 4.17

60-90 0 .08 .12

90-180 0 .00 .00

0-180 544 65.97 100.00

Efficiency = 66.0%

50W MR16 SYLVANIA 60° VWFL

Lumen Rating = 825 LMS.

SC = .8

Test Report No. 3367FR

Tested According To Ies Procedures. Test Distance Exceeds Five

Times The Greatest Luminous Opening Of Luminaire

Luminance Summary - CD. / SQ. M.

Angle Mean CD/SQ M

45 2262

55 132

65 41

75 53

85 178

Coefficients Of Utilization

Zonal Cavity Method

Effective Floor Cavity Reflectance = .20

CC 80 70 50 30 10

WALL 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR 0 .79 .79 .79 .79 .77 .77 .77 .77 .73 .73 .73 .70 .70 .70 .67 .67 .67 .66

1 .76 .74 .73 .72 .74 .73 .72 .71 .70 .70 .69 .68 .67 .67 .66 .65 .65 .64

2 .73 .71 .69 .67 .72 .70 .68 .66 .67 .66 .65 .66 .65 .63 .64 .63 .62 .61

3 .70 .67 .65 .63 .69 .66 .64 .62 .65 .63 .61 .63 .62 .60 .62 .61 .60 .59

4 .68 .64 .62 .59 .67 .64 .61 .59 .62 .60 .58 .61 .59 .58 .60 .58 .57 .56

5 .65 .61 .58 .56 .64 .61 .58 .56 .60 .57 .55 .59 .56 .55 .58 .56 .54 .54

6 .63 .59 .56 .54 .62 .58 .55 .53 .57 .55 .53 .57 .54 .53 .56 .54 .52 .52

7 .61 .56 .53 .51 .60 .56 .53 .51 .55 .52 .50 .54 .52 .50 .53 .51 .50 .49

8 .59 .53 .50 .48 .58 .53 .50 .48 .52 .50 .48 .52 .50 .48 .51 .49 .48 .47

9 .56 .51 .48 .46 .56 .51 .48 .46 .50 .47 .46 .50 .47 .45 .49 .47 .45 .45

10 .54 .49 .46 .44 .53 .49 .46 .44 .48 .45 .44 .48 .45 .43 .47 .45 .43 .43

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 54.0

Multiple Unit Data - RCR 1

Spacing Initial Watts/

On Center Footcandles Sq Ft

4' 35 3.38

5' 24 2.34

6' 16 1.49

24' x 24' x 12' Room, Workplane 2 1/2'

above floor, 80/50/20% Reclectances

Multiple Unit Data - RCR 1

Spacing Initial Watts/

On Center Footcandles Sq Ft

4' 31 3.38

5' 21 2.34

6' 14 1.49

24' x 24' x 12' Room, Workplane 2 1/2'

above floor, 80/50/20% Reclectances
