Life Span APEX Manuel utilisateur

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

APEX TREADMILL

OWNER’S MANUAL

APEX

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. IMPORTANT ELECTRICAL INFORMATION 5

3. IMPORTANT OPERATING INSTRUCTIONS 6

4. ASSEMBLY INSTRUCTIONS 7

5. FOLDING INSTRUCTIONS 12

6. OPERATION GUIDE 15

7. EXERCISE GUIDE 28

8. MAINTENANCE INSTRUCTIONS 30

9. EXPLODED DIAGRAM 38

10. PARTS LIST 39

11. TROUBLE SHOOTING 41

12. WARRANTY 42

APEX

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

Danger – To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior

to cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY

USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

 Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded

outlet.

 Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

 Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear

of the treadmill and any fixed object.

 Place your unit on a solid, level surface when in use

 When running, make sure the plastic clip is fastened on your clothing. It is for your safety,

should you fall or move too far back on the treadmill.

 Keep hands away from all moving parts.

 Never operate the treadmill if it has a damaged power cord or plug. When damaged, these must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to

avoid a hazard.

 Keep the cord away from heated surfaces.

 Do not operate where aerosol spray products are being used or where oxygen is being

administered. Sparks from the motor may ignite a highly gaseous environment.

 Never drop or insert any object into any openings.

APEX

 The treadmill is intended for in-home use only and is not suitable for commercial environments.

 To disconnect, turn all controls to the off position, remove the safety key, and then remove the

plug from the outlet.

 The pulse sensors are not medical devices. Various factors, including the user’s movement,

may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise

aids in determining heart rate trends in general.

 Use the handrails provided; they are for your safety.

 Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on

your treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

 Before undertaking any type of exercise program, it is recommended that you consult a doctor.

 Injuries to health may result from incorrect or excessive training.

 This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

 WARNING heat rate monitoring systems may be inaccurate. If you feel faint stop exercising

immediately.

 Children should not be allowed on or around the equipment, even when not in use.

 Children should be supervised to ensure that they do not play with this machine

 Loose-fitting clothing or jewellery that could become an entanglement hazard should not be

worn.

 Training shoes should be worn when using the equipment.

 Equipment must be used on a level and stable surface.

 All fixings should be checked before the equipment is used.

 All literature relating to the use of the equipment should be retained for future reference.

 Recommended operating temperature: 5-40°C

Remove the safety key after use to prevent unauthorized treadmill operation.

APEX

2. IMPORTANT ELECTRICAL INFORMATION

WARNING!

Route the power cord away from any moving part of the treadmill including the elevation

mechanism and transport wheels.

NEVER remove any cover without first disconnecting AC power.

NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,

near a pool, or in any other high humidity environment.

This is a high-power item; please do not share the same outlet with other high power machines

such as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and

make sure the fuse is 10A.

APEX

3. IMPORTANT OPERATING INSTRUCTIONS

Understand that changes in speed and incline do not occur immediately. Set your desired

speed on the computer console and release the adjustment key. The computer will obey the

command gradually.

Use caution while participating in other activities while walking on your treadmill, such as

watching television, reading, etc. These distractions may cause you to lose balance or stray

from walking in the centre of the belt; which may result in serious injury.

In order to prevent losing balance and suffering unexpected injury, never mount or dismount the

treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on

the belt during slow acceleration is proper after you have learned to operate this machine.

Always hold on to handrail while making control changes.

A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the

display.

Do not use excessive pressure on console control keys. They are precision set to function

properly with little finger pressure.

Replace any defective components immediately. The machine must be kept out of use until

repaired.

Belt wear-in period: all treadmills make a certain type of thumping noise due to the belt

riding over the rollers, especially new treadmills. This noise will diminish over time,

although may not completely go away. The belt will stretch over time, causing it to ride

smoother over the rollers.

APEX

4. ASSEMBLY INSTRUCTIONS

PART LIST

ASSEMBLY TOOLS:

6#Allen Wrench 5mm 1pc

Wrench screw Driver S=13, 14, 15 1pc

Note: Do not connect power before completing assembly

No.

Description

Specification

Qty

No.

Description

Specification

Qty

A02

Main Frame

D46

Bolt

M8*50

Console

D50

Bolt

M8*15

B12

Allen wrench

5mm

D64

Lock washer

B13

Wrench with Screw Driver

S=13, 14, 15

D21

Power wire

C31

Safety key

D38

MP3 connecting wire

C08

Left upright tube cover

Lubricant oil

C09

Right upright tube cover

APEX

STEP 1:

STEP 2:

1. Open the carton and remove all

contents. Place the Main Frame (A02)

on level ground and ensure that you

have a clean work space that has

adequate space.

2. Note: For safety reasons, do NOT cut

the Packing Belt (F) until you’ve

completed assembly

1. Lift the Left Upright Tube (A05) upwards.

See Figure 1.

2. Fix the Left Upright Tube (A05) to the

Base Frame (A01). Use 1 Bolt (D46) and

1 Lock Washer (D64) to secure the side,

and 1 Bolt (D50) and Lock Washer (D64)

to secure the front.

Tighten using Allen Wrench (B12).

3. Repeat the step above to assemble the

Right Upright Tube (A06) to the Base

Frame (A01). See Figure 2.

4. NOTE: During assembly, support the

Upright Tubes (A05 and A06) with your

hand to prevent them from falling down.

Figure 2

Figure 1

APEX

STEP 3:

1. Insert the Left Upright Tube Cover (C08)

into the bottom of the Left Upright Tube

(A05). Push down to secure the Left

Upright Tube Cover (C08) to the Base

Frame (A01).

2. Repeat the step above to attach the Right

Upright Tube Cover (C09) to the Base

Frame (A01).

APEX

STEP 4:

1. Connect the Top Signal Wire (D04) to the

Middle Signal Wire (D05).

2. Fix the Console (E) to the Left and Right

Upright Tubes (A05 & A06) with 4 Bolts

(D50) and 4 Lock Washers (D64). Tighten

using Allen Wrench (B12).

Table des matières

Autres manuels Life Span tapis roulant

Life Span

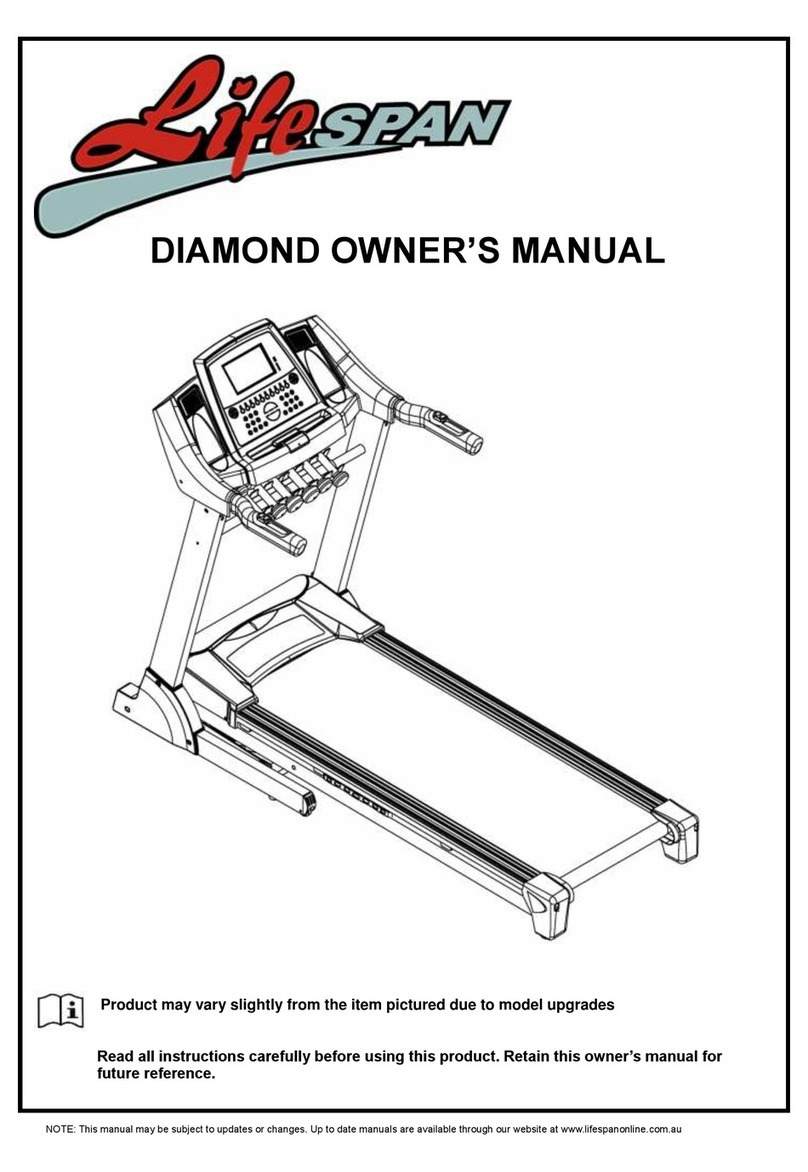

Life Span Diamond Manuel utilisateur
