Life Span Jazz Manuel utilisateur

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

JAZZ OWNER’S MANUAL

JAZZ

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. IMPORTANT ELECTRICAL INFORMATION 4

3. IMPORTANT OPERATING INSTRUCTIONS 5

4. ASSEMBLY INSTRUCTIONS 6

5. FOLDING INSTRUCTIONS 11

6. OPERATION GUIDE WITH PROGRAM CHART 12

7. EXERCISE GUIDE 22

8. MAINTENANCE INSTRUCTIONS 24

9. TROUBLESHOOTING 29

10. EXPLODED DIAGRAM 30

11. PARTS LIST 31

12. WARRANTY 33

JAZZ

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

Danger – To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY

USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

•Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

•Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

•Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of

the treadmill and any fixed object.

•Place your unit on a solid, level surface when in use

•Never allow children on or near the treadmill.

•When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should

you fall or move too far back on the treadmill.

•Keep hands away from all moving parts.

•Never operate the treadmill if it has a damaged cord or plug.

•Keep the cord away from heated surfaces.

•Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly gaseous environment.

•Never drop or insert any object into any openings.

•The treadmill is intended for in-home use only and not suitable for long time running.

JAZZ

•To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

•The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

•Use the handrails provided; they are for your safety.

•Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

•Allowed temperature: 5 to 40 degrees.

Remove the safety key after use to prevent unauthorized treadmill operation.

2. IMPORTANT ELECTRICAL INFORMATION

WARNING!

•NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power

cord away from any moving part of the treadmill including the elevation mechanism and transport

wheels.

•NEVER remove any cover without first disconnecting AC power.

•NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,

near a pool, or in any other high humidity environment.

•This is high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

JAZZ

3. IMPORTANT OPERATING INSTRUCTIONS

•Be sure to read the entire manual before operating your machine.

•Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the computer console and release the adjustment key. The computer will obey the command

gradually.

•Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in

the centre of the belt; which may result in serious injury.

•In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the

treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the

belt during slow acceleration is proper after you have learned to operate this machine.

•Always hold on to handrail while making control changes.

•A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.

•Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

JAZZ

4. ASSEMBLY INSTRUCTIONS

PARTIAL PART LIST

DES.

Specification

Qty No

DES.

Specification

Qty

1 Main frame 1 71 Safety key 1

12 #5 Allen wrench 5mm 1 61 wrench w/screw driver S=13、14、15

70 Bolt M8*45 2 64 Lock washer 8 5

83 Left back cover 1 60 Bolt ST4.2*19 4

Right back cover

1 51

Bolt

M8*16 3

89 Spring 2 43 Rubber Pads 2

ASSEMBLY TOOLS:

5# Allen Wrench 5mm 1pc

#6 Allen Wrench 6mm 1pc

Wrench s/screw Driver S=13, 14, 15 - 1pc

Note: Do not plug in power until machine is completely assembled

JAZZ

STEP 1:

STEP 2:

1. Open the carton

2. Extract the parts listed above

3. Place the Main Frame onto level

ground

Do not damage the computer wire when

folding the computer.

1. Move the computer according to the

diagram.

2. Screw in Bolt M8*16(51) and the Lock

washer (64) of Left Upright and Right

Upright.

3. Secure the Computer frame to the Left

Upright and Right Upright tightly with

Bolt M8*16(51) and Lock washer (64)

Note: Support the upright with your hand to

avoid it falling down and causing injury.

JAZZ

STEP 3:

1. Do not severe the computer wire when

folding the computer to on top of the

Left Upright and Right Upright.

2. Note: hold the Left Upright and

Right Upright, to prevent them from

falling down

JAZZ

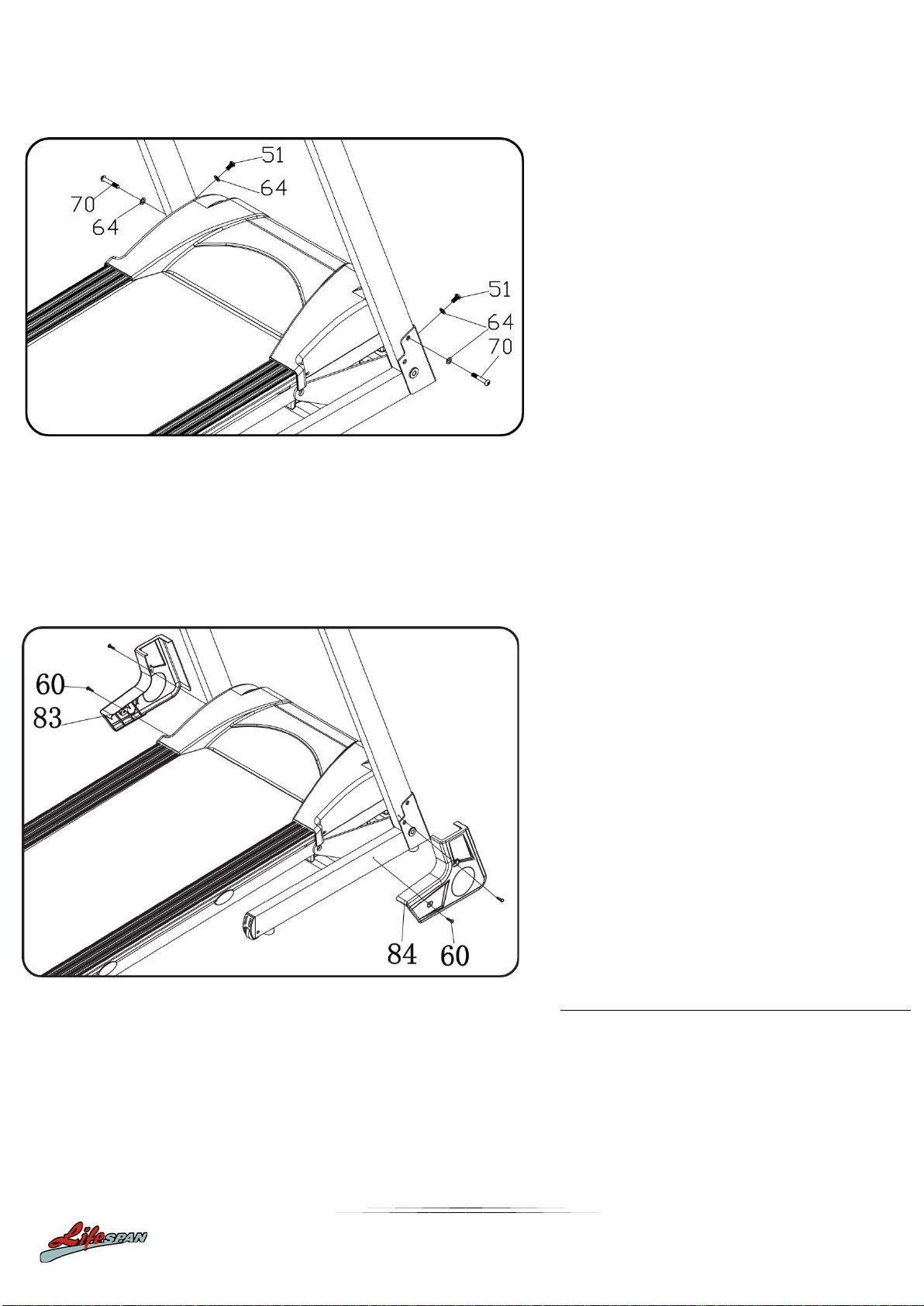

STEP 4:

STEP 5:

1. Using the 5# Allen wrench (12),

screw in the Bolt M8*45 (70) and

Lock washer (64)

2. Then attach the Right Upright Tube

(3) to the Main Frame (1) using the

Bolt M8*16(51) and Lock washer

(64).

3. Repeat these steps for the Left

Upright Tube

Note: Support the upright with your hand

to avoid it falling down and causing injury.

1. Use the wrench w/screw driver (61) to

attach the Left back cover (83) onto the

base frame with ST4.2*19(60).

2. Use the wrench w/screw driver (61) to

attached the Right back cover (84) onto

the base frame with ST4.2*19(60).

JAZZ

STEP 6:

STEP 7:

1. Place the safety key (71) on the

computer and start your workout.

1. Attach the spring (89) to the rubber

pads(43)

2. Erect the frame and screw the entire

assembly onto the frame
