Life Span GOLD 2.0 Manuel utilisateur
NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product. Retain this owner’s manual for
future reference.
GOLD 2.0 OWNER’S MANUAL
2
GOLD 2.0
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. IMPORTANT ELECTRICAL INFORMATION 4
3. IMPORTANT OPERATING INSTRUCTIONS 5
4. ASSEMBLY INSTRUCTIONS 6
5. FOLDING INSTRUCTIONS 10
6. OPERATION GUIDE 11
7. EXERCISE GUIDE 20
8. MAINTENANCE GUIDE 22
9. EXPLODED DIAGRAM 30
10. PARTS LIST 31
11. WARRANTY 33
3
GOLD 2.0
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this treadmill.
It is important your treadmill receives regular maintenance to prolong its useful life. Failing to
regularly maintain your treadmill may void your warranty.
Danger –To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to
cleaning and/or service work.
DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY
USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.
Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.
Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and
treadmill may result.
Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of
the treadmill and any fixed object.
Place your unit on a solid, level surface when in use
Never allow children on or near the treadmill.
When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should
you fall or move too far back on the treadmill.
Keep hands away from all moving parts.
Never operate the treadmill if it has a damaged cord or plug.
Keep the cord away from heated surfaces.
Do not operate where aerosol spray products are being used or where oxygen is being administered.
Sparks from the motor may ignite a highly gaseous environment.
Never drop or insert any object into any openings.
The treadmill is intended for in-home use only and not suitable for long time running.
4
GOLD 2.0
To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug
from the outlet.
The pulse sensors are not medical devices. Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
Use the handrails provided; they are for your safety.
Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
treadmill. Quality athletic shoes are recommended to avoid leg fatigue.
Allowed temperature: 5 to 40 degrees.
Remove the safety key after use to prevent unauthorized treadmill operation.
2. IMPORTANT ELECTRICAL INFORMATION
WARNING!
NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
NEVER remove any cover without first disconnecting AC power.
NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near a pool, or in any other high humidity environment.
This is high-power item; please do not share the same outlet with other high power machines such
as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure
the fuse is 10A.
5
GOLD 2.0
3. IMPORTANT OPERATING INSTRUCTIONS
Be sure to read the entire manual before operating your machine.
Understand that changes in speed and incline do not occur immediately. Set your desired speed on
the computer console and release the adjustment key. The computer will obey the command
gradually.
Use caution while participating in other activities while walking on your treadmill, such as watching
television, reading, etc. These distractions may cause you to lose balance or stray from walking in
the centre of the belt; which may result in serious injury.
In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the
treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the
belt during slow acceleration is proper after you have learned to operate this machine.
Always hold on to handrail while making control changes.
A safety key is provided with this machine. Remove the safety key will stop the walking belt
immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.
Do not use excessive pressure on console control keys. They are precision set to function properly
with little finger pressure.
6
GOLD 2.0
4. ASSEMBLY INSTRUCTIONS
PART LIST
NO.
DES.
Specification
Qty
NO.
DES.
Specification
Qty
1
Main frame
1
62
Right base cover
1
5
Computer components
1
68
I type hexagon nuts
M8
2
70
Lock washer
8
8
45
Safety key
1
72
Screw
M8*20
8
11
Allen Wrench
S=13、14、15
1
73
Screw
ST4.2*19
4
12
5#Allen Wrench
5mm
1
74
Screw
M8*55
4
13
6#Allen Wrench
6mm
1
109
MP3 wire
1
61
Left base cover
1
ASSEMBLY TOOLS:
6#Allen Wrench 5mm 1pc
Wrench screw Driver S=13, 14, 15 1pc
Note: Do not connect power before completing assembly
7
GOLD 2.0

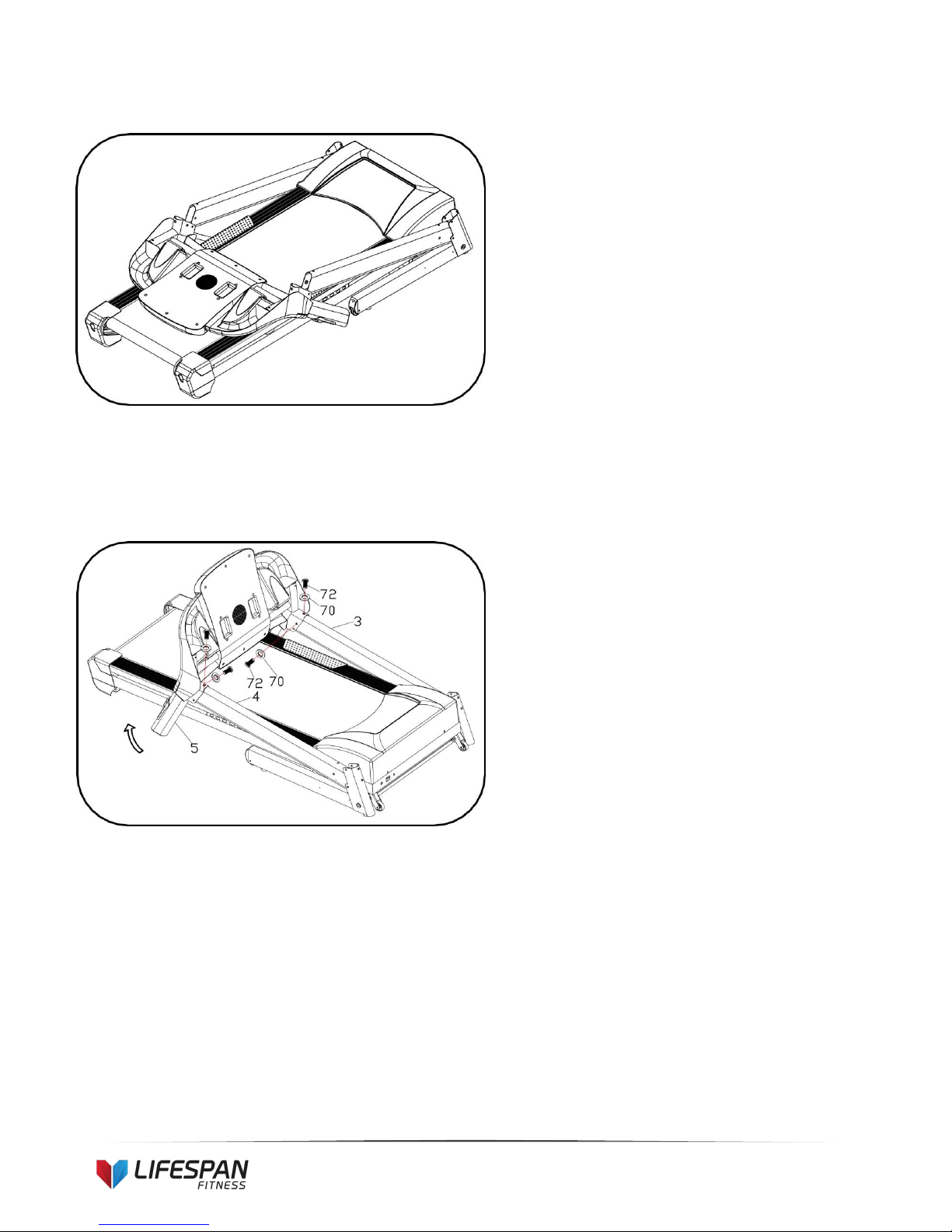

STEP 1:
STEP 2:
1. Open the carton
2. Extract the parts listed above
3. Place the Main Frame onto level ground
1. Move the display in the direction of the
arrow in the diagram.
2. Do not damage the wire inside the right
upright (4) to the wire.
3. Use 5#Allen Wrench, Screw M8*20 (72)
and Lock washer (70) to secure
Computer components (5) to the right
upright (4). Repeat this for the left side.
8
GOLD 2.0
STEP 3:
STEP 4:
1. Erect the Upright Tubes in the direction of
the arrows. Support the upright tubes with
your hands to prevent them from falling
down.
1. Use the 5# Allen wrench (12) to secure
the right base frame with M8*55 bolt (71)
and lock washer (70). Repeat this for the
left side.
9
GOLD 2.0
STEP 5:
STEP 6:
1. Using the Allen Wrench (11), attach left &
right base cover (61) (62) with screw
ST4.2*19 (73).
1. Tighten all the screw, then put safety
key(45) on the computer.
10
GOLD 2.0
5. FOLDING INSTRUCTIONS
Folding:
Unfolding:
Erect the base frame using position (A)
until you hear the click sound emitted when
the air pressure bar (B) is locked into the
round tube.
1. Whilst supporting position (A) with your
hand, pull out the pin (B) with your right
hand.
2. Maintain this pin position whilst gently
pulling the base frame towards the
ground. Let the base frame descend
slowly to the ground.
3. The base frame will descend
automatically. (Please keep people and
any pets away the machine during
descent)
