EX-2 EXERCISE BIKE

OWNER’S MANUAL

EX-2

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. CARE INSTRUCTIONS 4

3. EXPLODED DIAGRAM 5

4. PARTS LIST 6

5. ASSEMBLY INSTRUCTIONS 7

6. TENSION ADJUSTMENT 12

7. EXERCISE MONITOR INSTRUCTIONS 14

8. WARRANTY 16

EX-2

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to

regularly maintain your machine may void your warranty.

Please keep this manual with you at all times

a. It is important to read this entire manual before assembling and using the equipment. Safe and

effective use can only be achieved if the equipment is assembled, maintained and used properly.

Please note: It is your responsibility to ensure that all users of the equipment are informed of all

warnings and precautions.

b. Before starting any exercise program you should consult your doctor to determine if you have any

medical or physical conditions that could put your health and safety at risk, or prevent you from

using the equipment properly. Your doctor’s advice is essential if you are taking medication that

affects your heart rate, blood pressure or cholesterol level.

c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop

exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular

heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If

you do experience any of these symptoms, you should consult your doctor before continuing with

your exercise program.

d. Keep children and pets away from the equipment. This equipment is designed for adult use only.

e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To

ensure safety, the equipment should have at least 2 meters of free space around it.

f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any

unusual noises coming from the equipment during use and assembly, stop immediately. Do not use

the equipment until the problem has been rectified.

EX-2

g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get

caught in the equipment or that may restrict or prevent movement.

h. This equipment is designed for indoor and family use only

i. Care must be taken when lifting or moving the equipment so as not to injure your back.

j. Always keep this instruction manual and assembly tools at hand for reference.

k. The equipment is not suitable for therapeutic use.

2. CARE INSTRUCTIONS

a. Maximum use weight: 100KG

b. Lubricate moving joints with grease after periods of usage

c. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects

d. The machine can be kept clean by wiping it down using dry cloth

Battery Usage

a. Batteries are to be installed or replaced by adult only

b. Do not use rechargeable batteries. Do not mix different battery types. Do not mix old and new

batteries. Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries

c. Remove batteries when product is not in use

d. Remove exhausted batteries from product and dispose of in accordance with the manufacturer’s

recommendation

e. Do not attempt to recharge non-rechargeable batteries

f. Batteries are to be inserted with correct polarity

g. The supply terminals are not to be short-circuited

h. Do not dispose of batteries in fire, batteries may explode or leak

EX-2

3. EXPLODED DIAGRAM

EX-2

4. PARTS LIST

No.

Description

QTY

NO.

Description

QTY

Main frame

Chain cover screw ST4.2X40

Front stabilizer

Screw ST4.8×20

Rear stabilizer

Flat washer D8x3xΦ38

4L/R

Coupler bar

Arc washer Φ10×1.5×Φ25×R28

Square cap

Hexagon bolt M8x20

6L/R

Pedal tube

Hexagon bolt M10×45

7L/R

Handle bar

Nylon nut M10

8L/R

Chain cover

Carriage bolt M10×57

Fan wheel

Acorn nut M10

Square cap

48L/R

Nylon nut B0.5×20

11L/R

Pedal

Chain cover screw ST4.8X30

Handle bar shaft

1 50

Computer

End cap

4 51

Spring washer Φ13×B2

Foam grip

4 52

Spring washer Φ10.5×3×Φ18

End cap Φ25×2

Gear

Plastic bushing

4 54

Chain wheel

Knob bolt

4 55

Washer

Transport wheel

2 56

D shape washer Φ28×Φ16.2×14×B5

Alloy bushingΦ24×16×Φ16.1

10 57

Bolt M10×18

Alloy bushingΦ14×10×Φ10.1

4 58

Pulse sensor wire

Brass bushing

2 59

Hexagon bolt M6×45

Fan wheel axle

Nylon nut M6

Nut M10×1×B5

Hexagon bolt M10×55

Adjusting bolt M6×36

62L/R

Pedal hinge bolt

Φ16×89×L23×B0.5×20

Nut M10×1

End cap Φ32×1.5

Sensor

Screw M4X12

Crank

Saddle

Connecting tube

Flat washer D8

Washer

Nylon nut M8

30L

Collar housing L

Saddle post

30R

Collar housing R

Decorative sleeve

Collar ball

Tri-knob

Collar housing

Cap S13

Nut

Computer post

Chain

Flat washer D5

Tension belt

Cap S16

Tension control

Cap S18

Upper computer wire

Washer

Chain cover screw十ST4.2X20

EX-2

5. ASSEMBLY INSTRUCTIONS

NOTE:

Most of the listed assembly hardware has been packaged separately, but some hardware items have

been preinstalled in the identified assembly parts. In these instances, simply remove and reinstall the

hardware as assembly is required.

Please reference the individual assembly steps and make note of all preinstalled hardware.

STEP 1:

Install the Stabilizers

1. Attach the Stabilizers (2&3) onto the

Main frame (1), secure with the

Carriage bolts (46), Arc washers

(42), and Acorn nuts (47).

Notice that the Front stabilizer (2) has

wheels for moving your Elliptical bike.

EX-2

STEP 2:

Install the Coupler bars & Pedal arms

1. Remove Washer (76),D shape washer (56), Spring washer (52) and Bolts (57) from the

Handle bar shaft (12) on one side, mount one Coupler bar (4Ror4L) to the Main section, then

attach the other side Coupler bar (4Ror4L), and reinstall the D shape washer (56), Spring

washer (52) and Bolts (57) as shown.

2. Fit the Pedal tubes (6) to the Crank (27), secure with the Pedal hinge bolts (62R/L), Spring

washers (51) and Nylon nuts (48). And cover with caps (75)

Note: Both Pedals hinge bolts are labelled L FOR LEFT and R FOR RIGHT. To tighten turn the left

bolt COUNTERCLOCKWISE and the right bolt CLOCKWISE. Move the Crank to a proper angle for

easily tightening the Bolts.

EX-2

Install the Handle bars

1. Insert the Handle bars (7L&7R) to the Coupler bars

(4R/L) accordingly, select a comfortable height for

exercise, and make sure both Handle bars are at a

same level. Lock in place with Knob bolts(17).And cover

with the cap(71)

ATTENTION:

The Right and Left Hinge Bolt (No.62R/L) must fully penetrate the

nylon ring inside the Pedal Arm Joint and the Crank. This will ensure

the stability and durability of your Elliptical Trainer.

In order to install hinge bolt properly, keep it perfectly straight as the

bolt goes through the pedal arms and the crankshaft. If the hinge bolt is

connected to the crankshaft at an angle, damage to both the hinge and

the crankshaft may occur.

STEP 3:

STEP 4:

Install the Pedals

1. Attach the Pedals (11) to the Pedal

tubes (6) respectively, secure in

place with the Hexagon bolts (44)

and Nylon nuts (45).

EX-2

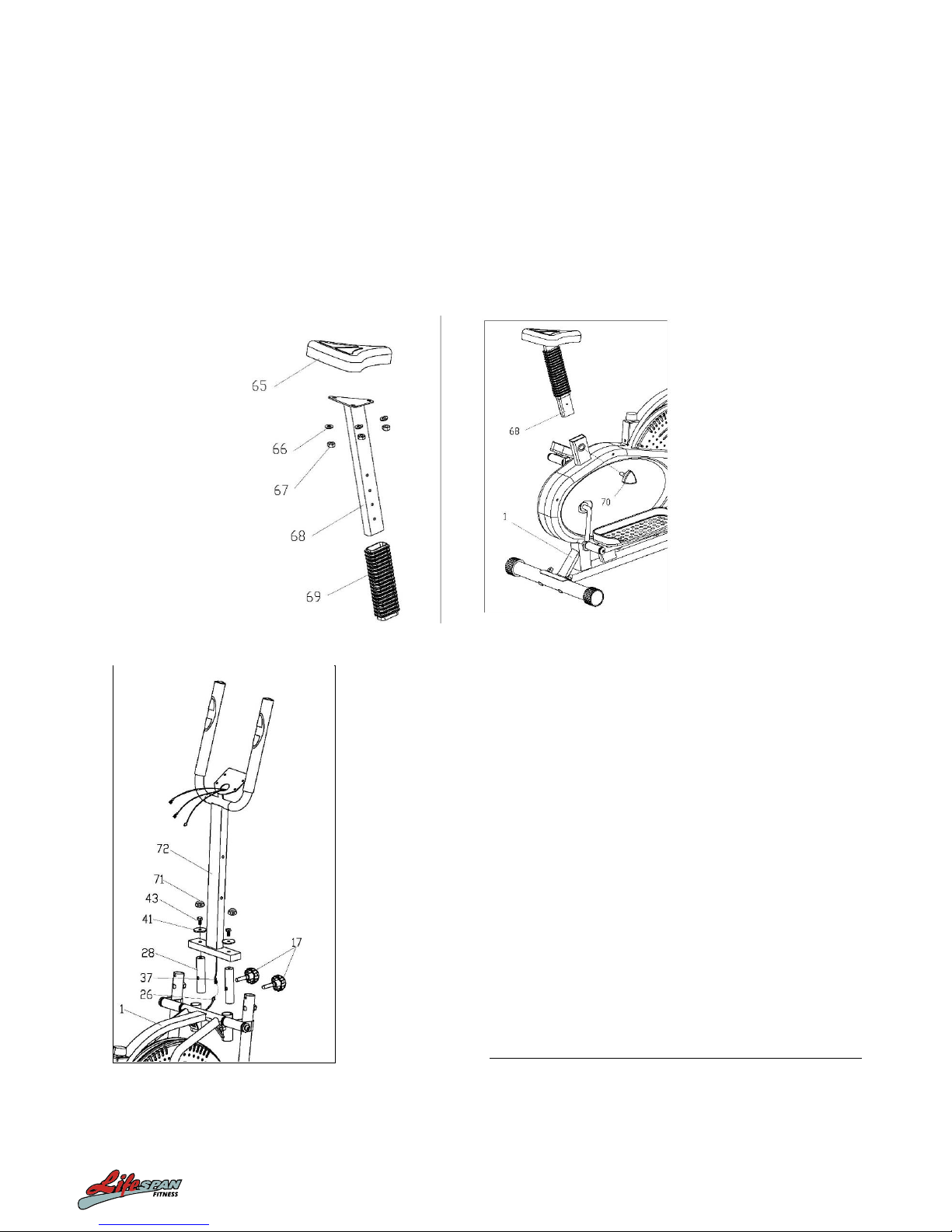

Install the Saddle and Saddle post

1. Place the Saddle (65) over the Saddle post (68), secure in place with the Flat washers (66)

and Nylon nuts (67).

2. Slide the Decorative Sleeve (69) onto the Saddle post, then insert the Saddle post into the

Main section; adjust to a proper position, secure in place with the Tri-knob (70).

STEP 5:

STEP 6:

Connecting tubes (28) to the Main section,

secure in place with Knob bolts(17).Fix the

Computer post (72) onto the Connecting tubes

(28), secure with Flat washers (41) and

Hexagon bolts (43). Cover the Bolts with Caps

(71).Check and re-fasten the Knob bolts (17).

Connect the Wires (26 & 37) ,Then insert the
