1 Product Features

Light Weight, Compact, Solid Design

Low Cost Smartphone

Easy to Use

•Voice Activated Dialing

•Large Graphic LCD Display with Touch Panel

- 160 X 240(dots)

- Partial Display in Phone Mode

- Virtual Keyboard for Easy Entry

- Backlight for High Visibility

•Intuitive and Easy-to-use Phonebook,Large Screen Call Log

•Scheduler(Datebook) with Alarms.

•Various useful PIMs : Phonebook, Datebook, Todo List, Memo, Sketch, World Clock, Calculator, …

•Speaker Phone Capability(0.3W Max)

Support Data Communication

•Phone.com Browser

•Text Message, E-Mail

•PC Connectivity-Compatible with the Microsoft Outlook,Scheduler+

FCC RF EXPOSURE INFORMATION

In August 1996 the Federal Communications Commission (FCC) of the United States

with its action in Report and Order FCC 96-326 adopted an updated safety standard for

human exposure to radio frequency (RF) electromagnetic energy emitted by FCC

regulated transmitters. Those guidelines are consistent with the safety standard

previously set by both U.S. and international standards bodies. The design of this

phone complies with the FCC guidelines and these international standards.

Use only the supplied or an approved antenna. Unauthorized antennas, modifications,

or attachments could impair call quality, damage the phone, or result in violation of

FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into

contact with the skin, a minor burn may result. Please contact your local dealer for

replacement antenna.

Body-worn Operation

This device was tested for typical body-worn operations with the back of the phone kept

0.79 inches (2 cm) from the body. To comply with FCC RF exposure requirements, a

minimum separation distance of 0.79 inches (2 cm) must be maintained between the

user’s body and the back of the phone, including the antenna, whether extended or

retracted. Third-party belt-clips, holsters and similar accessories containing metallic

components should not be used. Body-worn accessories that cannot maintain 0.79

inch (2 cm) separation distance between the user’s body and the back of the phone,

and have not been tested for typical body-worn operations may not comply with FCC

RF exposure limits and should be avoided.

Vehicle Mounted External Antenna (optional, if available.)

A minimum separation distance of 7.9 inches (20 cm) must be maintained between the

user/bystander and the vehicle mounted external antenna to satisfy FCC RF exposure

requirements.

For more information about RF exposure, please visit the FCC website at www.fcc.gov

WARNING! Read this information before using your phone

Specification

Size FlipUp type : 135 * 56.5 * 25mm

Button / Dial Key pad : 12 keys

Connector 4 function keys, cursor key, Backlight/Power On-Off

Button : Volume up/down

Jack : Headset jack

ICA/SIO jack

Connector : for External device

Contact : for Charger

Weight TBD

LCD Resolution : 160 * 240

Module Dot Pitch : 0.25mm

Graphic LCD with Backlight

Size : Full Active size : 40* 60mm , Partial Active size : 40 * 27.5mm

Module size : 50.5*70.65mm(min)

Touch Panel Size : 50.3 * 70.3

Battery 3.6V Li-ion 1 cell / 1300 mAH

Cell Size : 9 * 34 * 48mm

3 Hours Talk (@+10dBm, 45 % rate, standard batt.)

100 hours Stand-by Time (@2.56s slot mode 2, standard)

2 Product Specifications

3 Design Rendering

CLR

END

PWR

1 2 3

4 5 6

7 8 9

*0 #

ABC DEF

GHI JKL MNO

PQRS TUV WXYZ

OPER

LGIC

Phone Mode(Flip Closed)

Volume Control

Adjust the sound level,

both voice(during a call)

and ringer(when in standby)

Select highlighted menu item

(Place a call, Receive a call, etc.) CLR

Clear user input and

Back to the previous menu

Up/Down

navigate

throughout

the menu

Message button

Headset Jack

BackLight

4 Description

Menu Area

Banner Area

Status Icon Area

ICON DESCRIPTION

Signal Strength Indicator

No Service

Roaming

New page/text messages

New voicemail

Vibrator Indicator

Battery Charge Status

Display Icons

Phone Mode LCD Display

Basic Display Format

3 line

144 dot

20 dot

48 dot

(16 dot/line)

42 dot

(14 dot/line)

110 dot

CLR

END

PWR

Apr.23 12:35A

PIM Mode(Flip Opened)

Contrast Control

Adjust the Contrast level

Flip

Touch Panel

touch with

stylus pen or finger

Stylus pen

touch icons,

input keyboard,

draw line, etc.

Go to select application

3:46p

Status Bar

Always display in the top of the screen

current time BatteryRSSI

All

Home All

PIMs

Communication

5 UI Specification

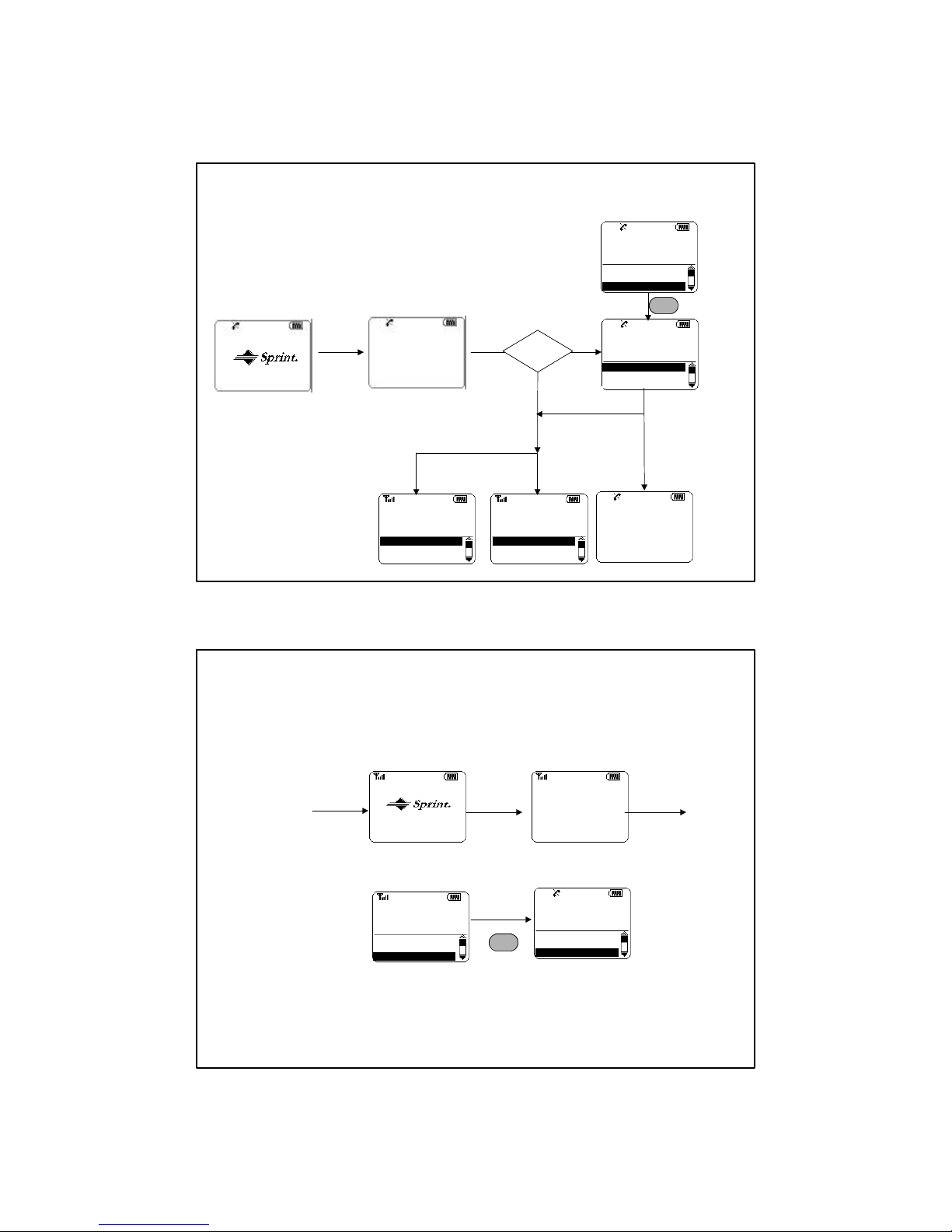

Initial Screen

1. Turning the Power On

Call History

Messages

Phone Book

LGI-3000W

2:23p Mar 18, (Th)

Unlock

Call 911

LGI-3000W

2:23p Mar 18, (Th)

--Locked-- *Power Save*

No Service available

Press any key to exit.

No System found

within 15 minutes

Phone Mode (Flip Closed)

Security

Setup

Phone Off

Phone On

[PWR] Press & Hold O.K

Call History

Messages

Phone Book

Searching for

Service

Sprint PCS

Handset locked

System

found?

yes

System Found

User can abort animation

by pressing any key

Trade Mark Tone

2.2 Phone Power Off

O.K

Phone is Off,

while System Power

is still On.

Security

Setup

Phone Off

LGI-3000W

2:20p Mar 18, (Th)

2. Power Off

2.1 System Power Off

- Battery out or [PWR] press & hold in standby state

Phone Mode (Flip Closed)

Initial Screen (continued)

Sprint PCS

Powering Off Good-Bye!

System

Power

Off

3 Sec

Trade Mark Tone

NV Write

Application Close

Beep

Security

Setup

Phone Off

Phone On

3. Standby State

Call History

Messages

Phone Book

LGI-3000W

2:29p Mar 18, (Th)

Default Standby State

Call History

Messages

Phone Book

LGI-3000W

2:29p Mar 18, (Th)

Different size font for

status indicator

-Ringer Off- Call History

Messages

Phone Book

Digital Roam

-Ringer Off-

Digital Roam flashing

Unlock

Call 911

LGI-3000W

2:23p Mar 18, (Th)

--Locked--

Locked State

*KeyGuard*

To disable, hold

the clear key

LGI-3000W

2:29p Mar 18, (Th)

KeyGuard State Power Save State

Call History

Messages

Phone Book

* Car Kit*

2:29p Mar 18, (Th)

Only in Car-kit mode and

auto-answer is enabled

-Auto Answer-

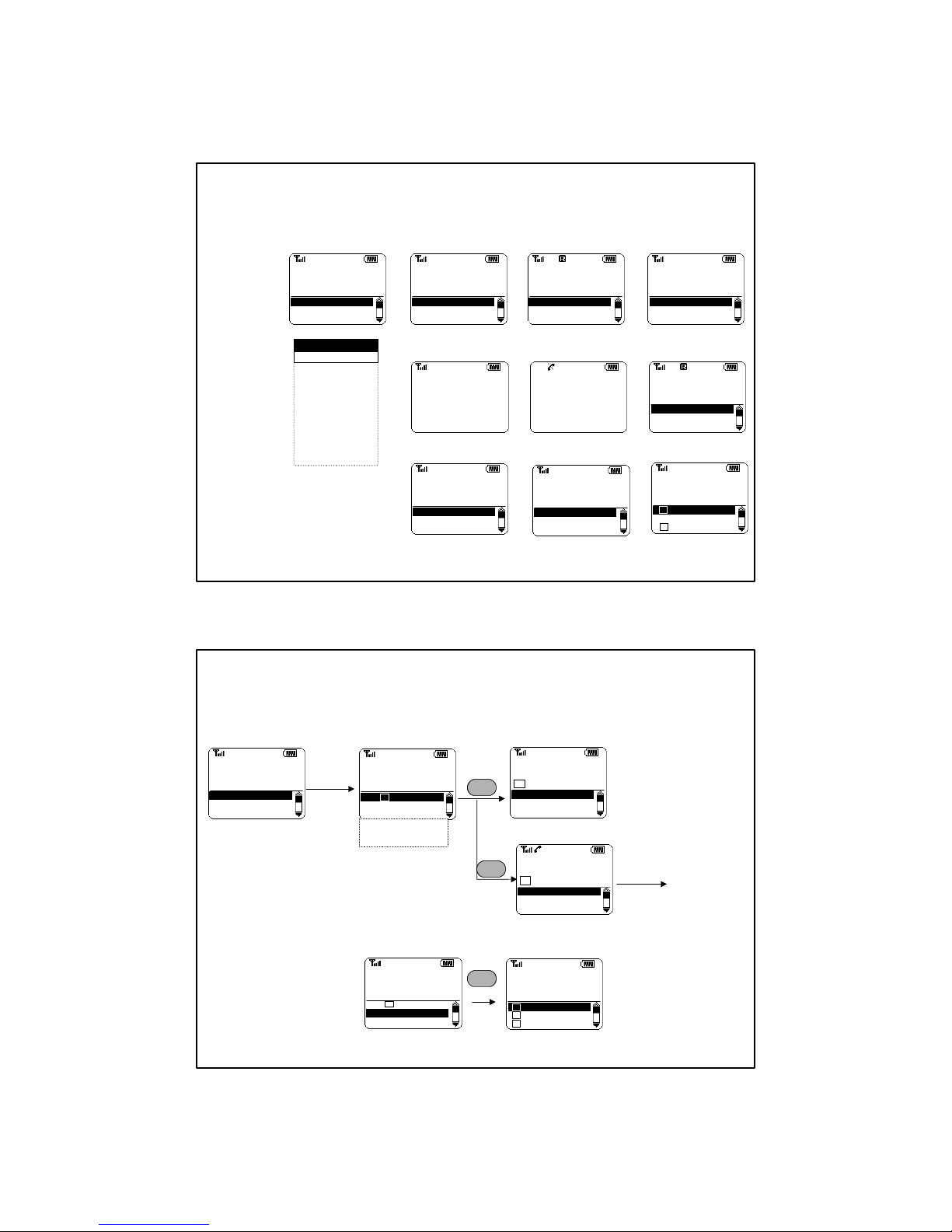

Initial Screen (continued)

Unlock

Call 911

Digital Roam

-Locked-

Locked State

(Digital Roam blinking)

Main Menu

Items

Customer Care

H Joe Roberts

032-456-2345l

O Charley Brown

Missed Calls

Missed Call Notification

during standby state

Phone Book

MiniBrowser

Environment

Sounds

Display

Security

Setup

KeyGuard

PC Sync

Phone Off

Messages

Call History

Phone Mode (Flip Closed)

Call History

Messages

Phone Book

*Headset*

2:29p Mar 18, (Th)

-Auto Answer-

Only in headset mode and

auto-answer is enabled

*Power Save*

No Service available

Press any key to exit.

Call Origination

Phone Mode (Flip Closed)

1. 1-Digit Input

2 Sec. Pause

Exit

Jump to speed dial entry #2

Dial the number in phonebook entry #2

Hard Pause

02: M Aaron

Find

2OK

Jump to “Find Number”in phonebook menu

M Aaron

H Seo

O Jung

Call History

Messages

Phone Book

LGI-3000W

2:29p Mar 18, (Th)

Default Standby State

Go to Inuse state

End Call

M 310-234-5090

Aaron

Connecting...

Speed Dial #2

Call

Prepend

Aaron

M 310-234-5090

Edit

Find

02: M Aaron

Hard Pause

Press & Hold

Speaker On

Call Origination (continued)

Phone Mode (Flip Closed)

2. 4-Digit Input

Find

Hard Pause

2Sec. Pause

Exit

4-Digit Dial

Call

Save

6595

H Brian

O Julia Huffman

6595

If there are more than two phone numbers of “6595”in phone book.

Call

4-Digit Dial

Save

6595 OK

End Call

H 619-892-6595

Brian

Connecting...

End Call

6595

Connecting...

One match

End Call

816-559-6595

Abbre. Dialing

Connecting...

- No Phonebook Match

- Abbreviate Dial to prefix

that set in

setup->abbre. dialing

Only one match in phonebook

Speaker On

Call Origination (continued)

Phone Mode (Flip Closed)

3. Others

Hard Pause

2 Sec. Pause

Exit

Call

Save

Find

619-123-4567

4. Dynamic Numeric Character Sizing

Call

Find

Hard Pause

312-345-6789

Call

Find

Hard Pause

312-345-67890123

456

When the number entered less than or

equal to 10 digits, the larger font are used When the number entered more than 10 digits,

the smaller font are used

Go to Inuse State

End Call

619-123-4567

Connecting...

Hyphenation follows

NANP and if “0”or

“1”is the first digit,

it will be

hyphenated in the

form 0-123-456-

7890

Hyphenation follows

NANP and if “0”or

“1”is the first digit,

it will be

hyphenated in the

form 0-123-456-

7890

Speaker On

Call Origination (continued)

Phone Mode (Flip Closed)

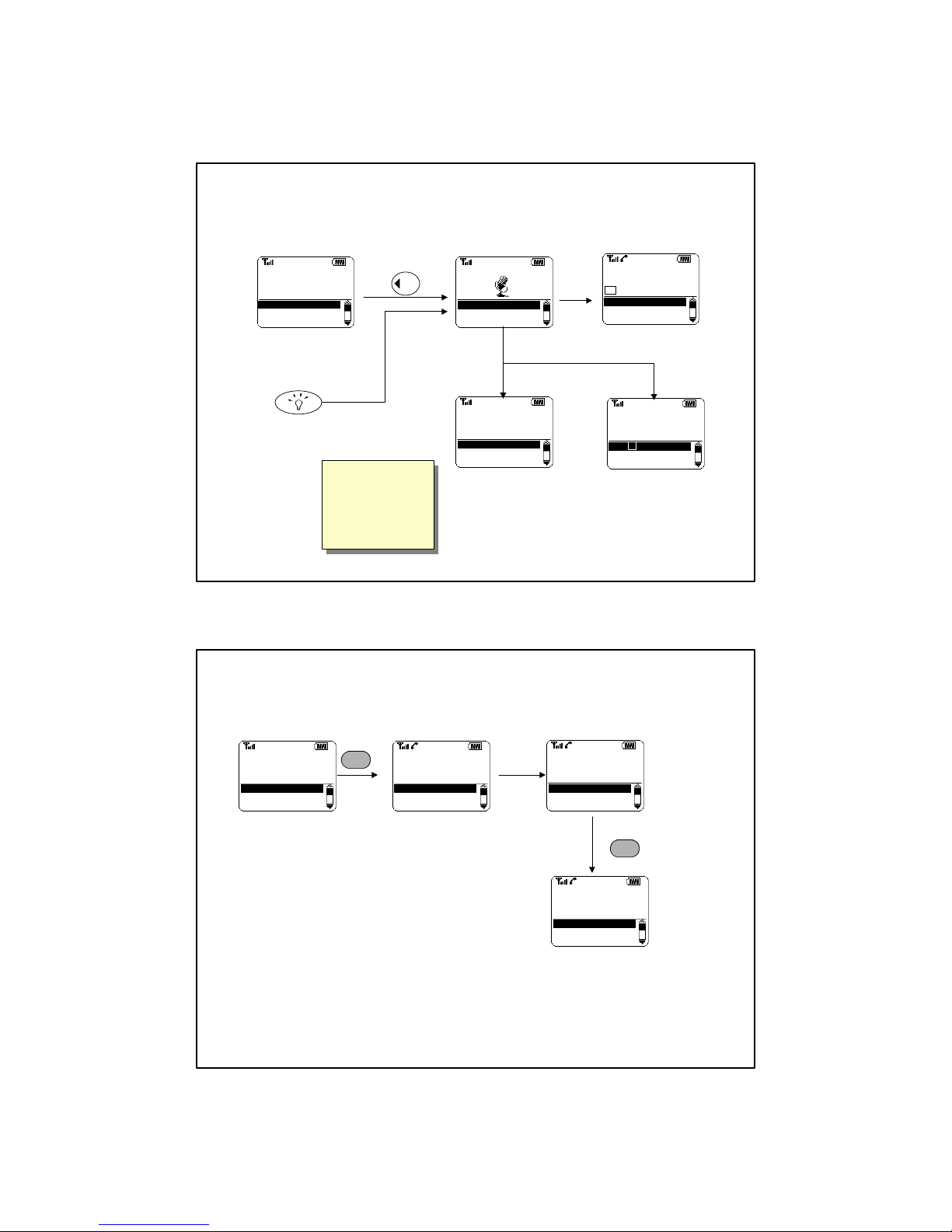

5. Voice Dialing

Call History

Messages

Phone Book

LGI-3000W

2:29p Mar 18, (Th)

Default Standby State

Exit User speaks

the programmed

name

OK or CLR or

Mouse Key, or

Timeout(5 Secs)

Call History

Messages

Phone Book

LGI-3000W

2:29p Mar 18, (Th)

Go back to default standby state

Any Keypad

Go to the dialing state

End Call

H 310-234-5090

Aaron

Connecting...

Find

02: M Aaron

Hard Pause

If hot key is set to Voice Dial

Left Rocker

Voice Prompt:

handset should

repeat the name

of the found voice

dial entry.

Voice Prompt:

handset should

repeat the name

of the found voice

dial entry.

“Who would you like to call?”

“Name Please” “Connecting <Name>”

Speaker On

Call Origination (continued)

Phone Mode (Flip Closed)

Call

Save

Find

619-123-4567p36

3t1111

End Call

619-123-4567

Connecting...

6. Continue Dialing after Pause

Send Tones

End Call

Speaker On

Sprint: 00:00:06

619-123-4567

p363t1111

End Call

Speaker On

Mute

Sprint: 00:00:06

619-123-4567

connected

Phone Mode (Flip Closed)

Incoming Call / In use / End Call

1. Incoming Call

Answer

Silent Ringer

Call From:

Cindy

H 714-870-8842

Call History

Messages

Phone Book

LGI-3000W

2:29p Mar 18, (Th) Incoming

Call

Answer

Silent Ringer

Answer(Speaker On)

Call From:

Cindy

H 714-870-8842 Answer

Call From:

Cindy

H 714-870-8842

End Call

Speaker On

Sprint: 00:00:25

Cindy

H 714-870-8842

Mute

[CLR], [END] or [vol] keys pressed to

mute ringer temporary

Default Stand-By State

(Incoming Call also occurs

when handset not in stand-by state)

CLR or Volume

Keys pressed to

mute ringer

temporally

Down Rocker

Answer(Speaker On)

2. In Use State

Phone Mode (Flip Closed)

Incoming Call / In use / End Call (continued)

Unmute

Mute: 00:00:25

Cindy

H 714-870-8842

Toggle mute

and unmute

Call Waiting State(Call Waiting Blinks)

same menu options in Roaming

Flash

End Call

Call Waiting :

Kathy Zoe

O 913-398-2234

Speaker On End Call

Speaker On

Roam: 00:00:25

Cindy

H 714-870-8842

Mute

Default In Use State(ROAM Blinks)

End Call

Mute

End Call

Sprint: 00:00:25

Cindy

H 714-870-8842

Speaker On

2.1. Default Inuse State

2.2. Call Waiting State 2.3. Roam State

3-Way Call

Call History

Messages

Phone Book

Environment

Display

End Call

Speaker On

Sprint: 00:00:25

Cindy

H 714-870-8842

Mute

3-way call may not be

applicable in roaming,

especially analog

roaming. The menu

option “Flash”will be

used instead

3-way call may not be

applicable in roaming,

especially analog

roaming. The menu

option “Flash”will be

used instead

Speaker On

Unmute

Sprint: 00:00:25

Cindy

*Speaker Phone*

Toggle

Speaker Phone

Mode End Call

Mute

End Call

Sprint: 00:00:25

Cindy

H 714-870-8842

Speaker On Speaker Off

Table des matières

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur

Blackbe;rry

Blackbe;rry CURVE 8300 - SMARTPHONE Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 - VERSION 4.1 Manuel utilisateur
